Model Details

FE-5-63-T

Printer Friendly
FE-5-63-T

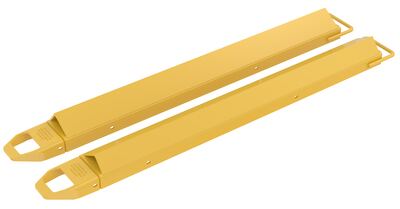

Steel Triangle Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Yellow

These triangular fork extensions are ideal for moving around large rolls of material. Powder coat yellow fork. To install, insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the fork. OSHA regulations require that extensions do not exceed the length of the fork by more than one-hundred and fifty (150) percent. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Total Ship Wt.(lbs.): 110 (Multiple Packages: P1: 55 lbs + P2: 55 lbs) Size: 7.375"W x 66.125"L x 4.9375"H Color: Yellow

Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 Fits Fork Extension Inside Height (in.): 2
Fits Fork Extension Inside Width (in.): 5 Usable Fork Extension Inside Width (in.): 5-1/2 Mount Style: Loop Style
Steel Thickness (in.): 5/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
FE-5-63-T
Product Name
Steel Triangle Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Yellow
UPC
691215019781
GTIN
00691215019781
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Fork Extensions
Assembled Depth (in.)
66.125
Assembled Width(in.)
7.375
Assembled Height(in.)
4.9375
Assembled Weight(lbs.)
110
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
PR-Pair
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
67
Package Width (in.)
8
Package Height (in.)
5
Package Weight (in.)
55
Subclass
11
Freight Class
60
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
Package 2 Depth (in.)
67
Package 2 Width (in.)
8
Package 2 Height (in.)
5
Package 2 Weight (lbs.)
55
Package 2 Subclass
11
Package 2 Freight Class
60
Package2 NMFC Number
193100
LTL Freight
Parcel
UNSPSC
24101629
HTSUS Number
8428900390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FE-5-63-T
FE-5-63-T

Steel Triangle Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Yellow

These triangular fork extensions are ideal for moving around large rolls of material. Powder coat yellow fork. To install, insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the fork. OSHA regulations require that extensions do not exceed the length of the fork by more than one-hundred and fifty (150) percent. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Dimensions: 7.375"W x 66.125"L x 4.9375"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215019781 GTIN: 00691215019781
Warranty: -- Shipping Weight: 55 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 Fits Fork Extension Inside Height (in.): 2
Fits Fork Extension Inside Width (in.): 5 Usable Fork Extension Inside Width (in.): 5-1/2 Mount Style: Loop Style
Steel Thickness (in.): 5/16
