Model Details

FE-7-90-P

FE-7-90-P

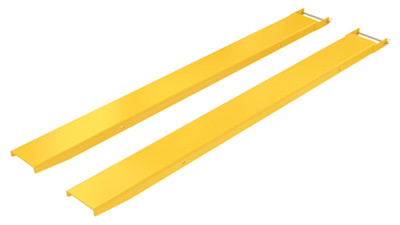

Steel Pin Style Fork Extensions 7 In. x 90 In. 4,000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck. Welded steel construction with tapered steel tips. Steel retaining strap (loop style*) prevents fork extensions from sliding off forks during use. Baked-in powder coat finish for added toughness. OSHA regulations require that extensions are no more than 150% of the existing fork length. (e.g. 48" existing forks, the fork extension should not exceed 72"). Maximum uniform capacity is 4,000 pounds evenly distributed per pair. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability

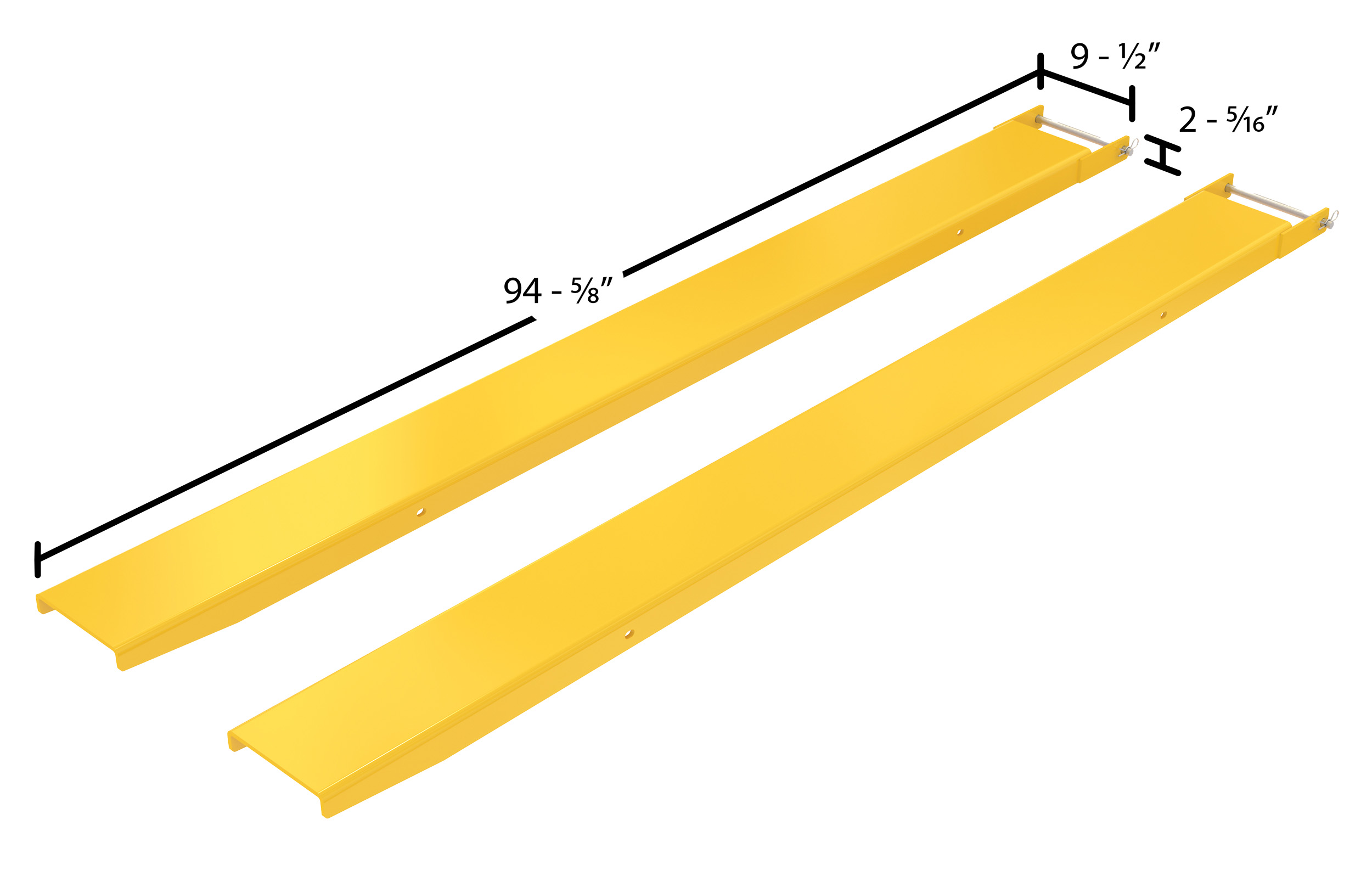

Total Ship Wt.(lbs.): 225 (only 1 package) Size: 9.5"W x 94.625"L x 2.3125"H Color: Yellow

Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 Fits Fork Extension Inside Height (in.): 2-1/2
Fits Fork Extension Inside Width (in.): 7 Usable Fork Extension Inside Width (in.): 7-1/2 Mount Style: Pin Style
Steel Thickness (in.): 5/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FE-7-90-P


FE-7-90-P

Steel Pin Style Fork Extensions 7 In. x 90 In. 4,000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck. Welded steel construction with tapered steel tips. Steel retaining strap (loop style*) prevents fork extensions from sliding off forks during use. Baked-in powder coat finish for added toughness. OSHA regulations require that extensions are no more than 150% of the existing fork length. (e.g. 48" existing forks, the fork extension should not exceed 72"). Maximum uniform capacity is 4,000 pounds evenly distributed per pair. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Dimensions: 9.5"W x 94.625"L x 2.3125"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215130561 GTIN: 00691215130561
Warranty: -- Shipping Weight: 225 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 Fits Fork Extension Inside Height (in.): 2-1/2
Fits Fork Extension Inside Width (in.): 7 Usable Fork Extension Inside Width (in.): 7-1/2 Mount Style: Pin Style
Steel Thickness (in.): 5/16
