Model Details

FMDL-1

Printer Friendly
FMDL-1

Steel Automatic Eagle Beak 1 Drum 1,000 Lb. Capacity Blue

This time tested and proven automatic eagle beak Drum Lifter design allows a fork truck operator to easily secure, move, and release drums without leaving the seat of the fork truck. For use with open (lid installed and secured) and closed head steel, plastic and fiber drums with a top lip strong enough to support the weight of the drum. This unit is a single-drum configuration. Includes safety restraint to secure unit to the fork truck. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain. Complies with OSHA 1910.178; ANSI B56.1.

  • Solid steel construction offers a rugged long lasting use
  • Drum release design dumps without leaving the seat of the fork truck
  • Safety restraint secures unit to the fork truck
  • Ratchet strap secures drum when traveling over rough terrain

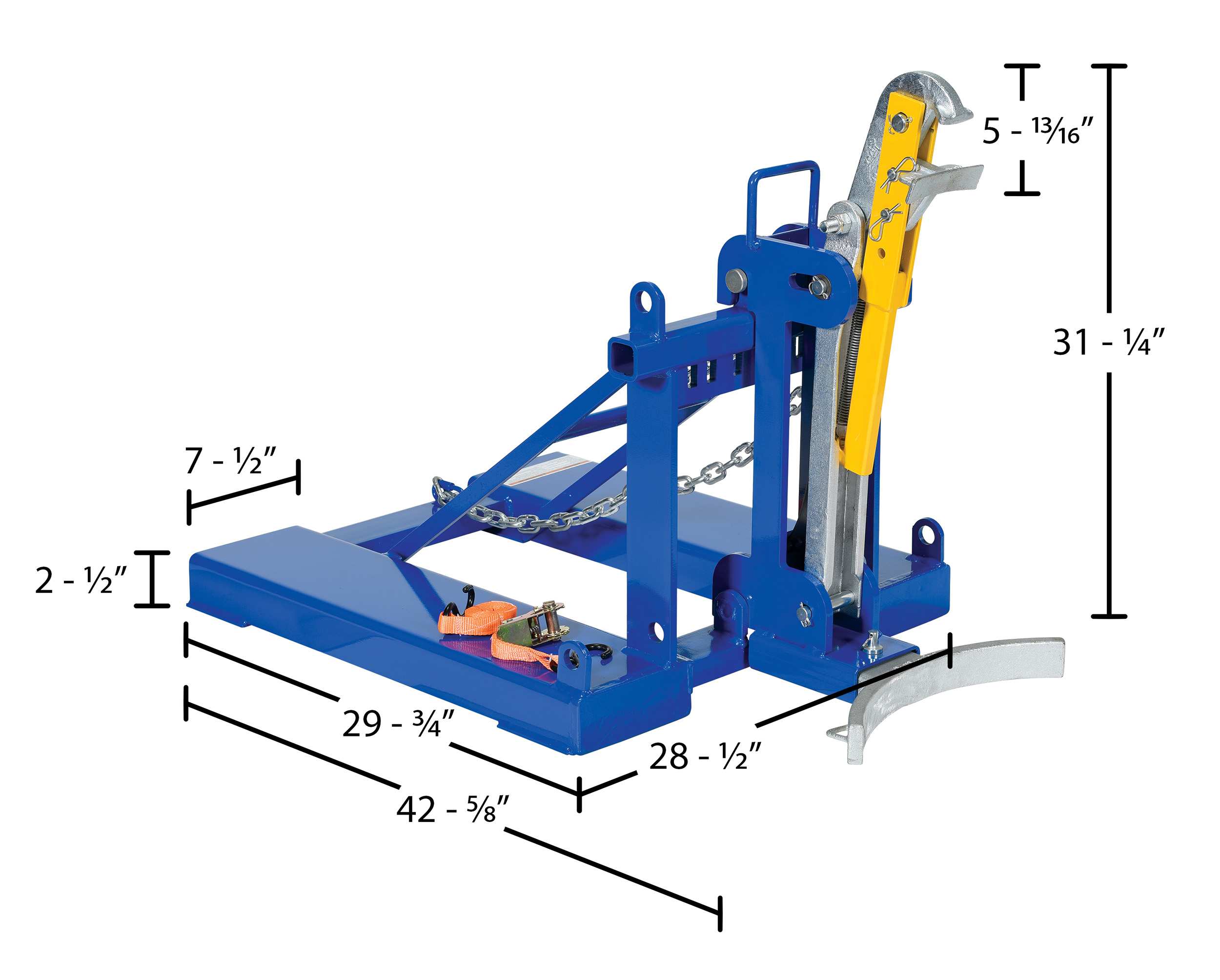

Total Ship Wt.(lbs.): 227 (only 1 package) Size: 28.5"W x 42.625"L x 31.25"H Color: Blue QuickShip

Uniform Capacity (lb.): 1,000 Accepts: 30 and 55-gallon drums Drums (qty.): 1
Drum Type: Steel, Plastic or Fiber Fork Pockets Width/Height (in.): 7-1/2 x 2-1/2 Fork Pocket Center (in.): 20-1/2
Standards: OSHA 1910.178

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FMDL-1
FMDL-1

Steel Automatic Eagle Beak 1 Drum 1,000 Lb. Capacity Blue

This time tested and proven automatic eagle beak Drum Lifter design allows a fork truck operator to easily secure, move, and release drums without leaving the seat of the fork truck. For use with open (lid installed and secured) and closed head steel, plastic and fiber drums with a top lip strong enough to support the weight of the drum. This unit is a single-drum configuration. Includes safety restraint to secure unit to the fork truck. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain. Complies with OSHA 1910.178; ANSI B56.1.

  • Solid steel construction offers a rugged long lasting use
  • Drum release design dumps without leaving the seat of the fork truck
  • Safety restraint secures unit to the fork truck
  • Ratchet strap secures drum when traveling over rough terrain
Dimensions: 28.5"W x 42.625"L x 31.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215020664 GTIN: 00691215020664
Warranty: -- Shipping Weight: 227 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Accepts: 30 and 55-gallon drums Drums (qty.): 1
Drum Type: Steel, Plastic or Fiber Fork Pockets Width/Height (in.): 7-1/2 x 2-1/2 Fork Pocket Center (in.): 20-1/2
Standards: OSHA 1910.178
