Model Details

GR-F2R-DI-TP18-YL

GR-F2R-DI-TP18-YL

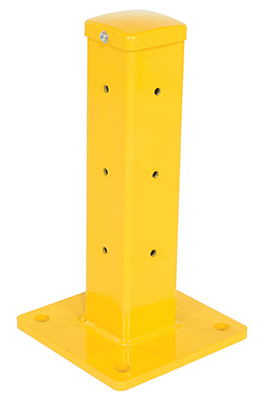

Steel Rigid Tube Post Drop In Style 18 In. For 2 Ribbed Drop In Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong steel guard rail those worries can be eased. This rail is double ribbed for impact resistance both indoors and out. With the drop-in style rail design, accessibility is simple and rails can be positioned quickly. To put in place simply slide the rail sections into the post saddles. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 2 Ribbed design for secure protection
  • Yellow baked-in powder-coated finish for added toughness
  • Drop-In rail with brackets and hardware
  • Pre drilled surface mounting holes

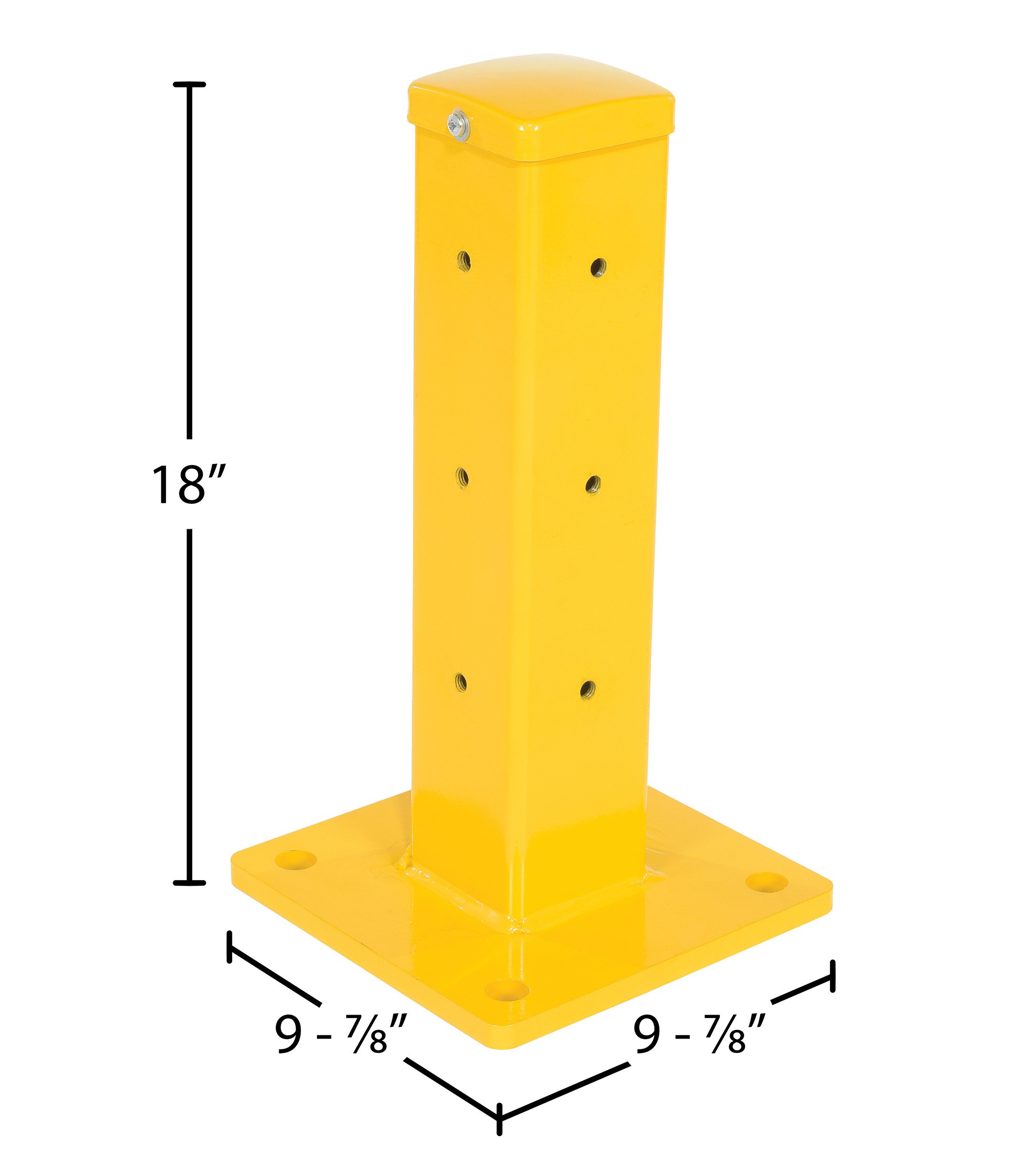

Total Ship Wt.(lbs.): 38 (only 1 package) Size: 9.875"W x 9.875"L x 18"H Color: Yellow QuickShip

Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875 Base Plate Mounting Holes: 4
Base Plate Hole Diameter: .9375 Base Plate Thickness: .625

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: GR-F2R-DI-TP18-YL


GR-F2R-DI-TP18-YL

Steel Rigid Tube Post Drop In Style 18 In. For 2 Ribbed Drop In Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong steel guard rail those worries can be eased. This rail is double ribbed for impact resistance both indoors and out. With the drop-in style rail design, accessibility is simple and rails can be positioned quickly. To put in place simply slide the rail sections into the post saddles. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 2 Ribbed design for secure protection
  • Yellow baked-in powder-coated finish for added toughness
  • Drop-In rail with brackets and hardware
  • Pre drilled surface mounting holes
Dimensions: 9.875"W x 9.875"L x 18"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215327916 GTIN: 00691215327916
Warranty: -- Shipping Weight: 38 Quickship Item? --
Can It Ship UPS? -- Option? Y Origin: Turkey
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875 Base Plate Mounting Holes: 4
Base Plate Hole Diameter: .9375 Base Plate Thickness: .625
