GR-F3R-BO-TP42-YL

Steel Rigid Tube Post Bolt On Style 3-1/24 In. For 3 Ribbed Bolt On Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have 3 ribs for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes

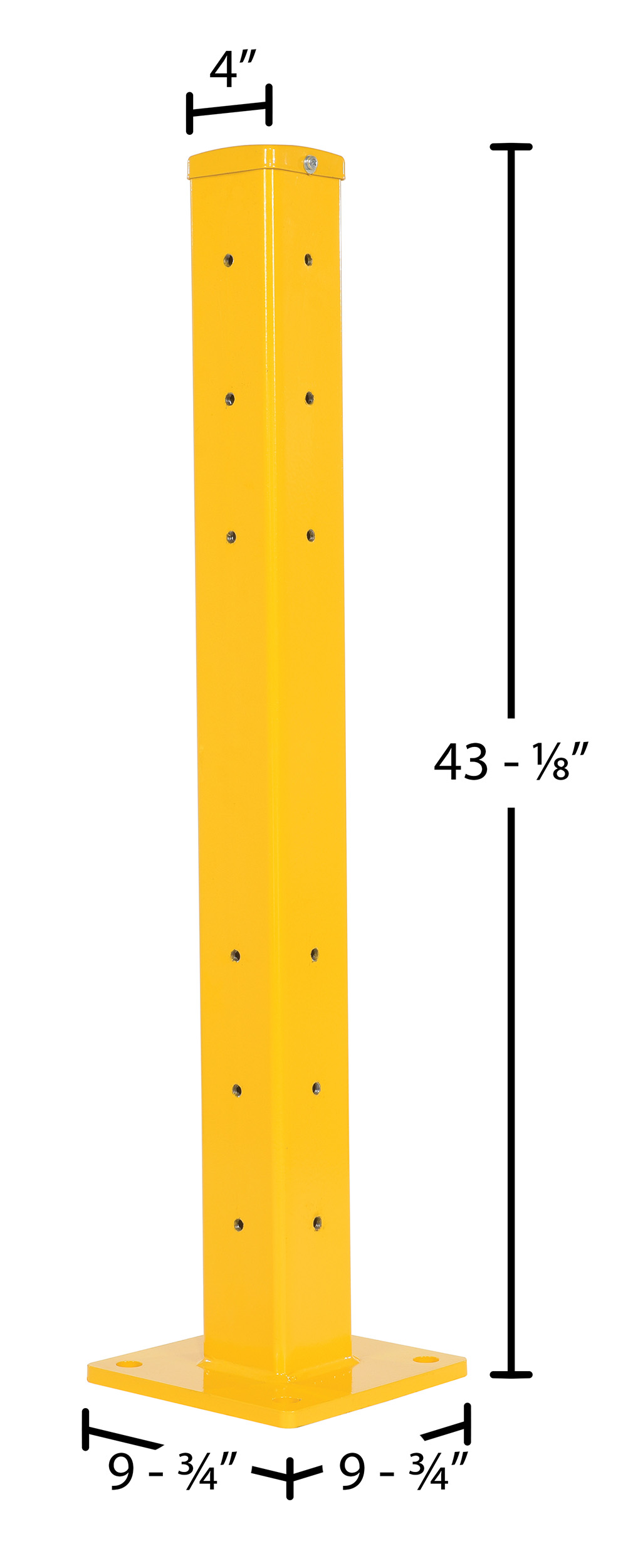

Total Ship Wt.(lbs.): 65 (only 1 package) Size: 9.875"W x 9.875"L x 42"H Color: Yellow QuickShip

Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875
Base Plate Mounting Holes: 4 Base Plate Hole Diameter: 0.9375 Base Plate Thickness: 0.625
Gauge: 3

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: GR-F3R-BO-TP42-YL
GR-F3R-BO-TP42-YL

Steel Rigid Tube Post Bolt On Style 3-1/24 In. For 3 Ribbed Bolt On Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have 3 ribs for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes
Dimensions: 9.875"W x 9.875"L x 42"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215327954 GTIN: 00691215327954
Warranty: -- Shipping Weight: 65 Quickship Item? --
Can It Ship UPS? -- Option? Y Origin: Turkey
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Impact Capacity (Lbs.): 10,000 Base Plate Width (in.): 9.875 Base Plate Length (in.): 9.875
Base Plate Mounting Holes: 4 Base Plate Hole Diameter: 0.9375 Base Plate Thickness: 0.625
Gauge: 3
