Model Details

H-CK3-MR6-2

H-CK3-MR6-2

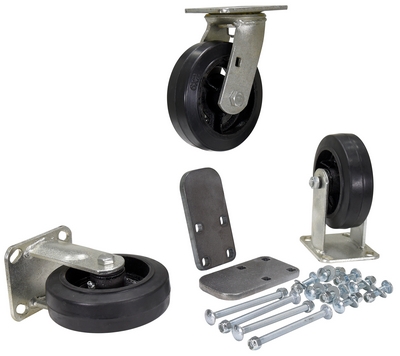

Mold On Rubber Caster Kit 6 In. x 2 In. 1,800 Lb. Capacity Black

Casters for the self-dumping hoppers create a more worthwhile portable unit. Casters are constructed of glass filled nylon for strength and durability throughout a lifetime of use. The high capacity allows the simple transport of heavy loads promoting task efficiency. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes.

  • Designed to be easily installed on hoppers
  • Casters allow hopper units to be transported without the use of a fork truck
  • Robust assembly provides long lasting resilient use
  • Both rigid and swivel designs included for maneuverability
Total Ship Wt.(lbs.): 25 (only 1 package) Size: 2"W x 6"L x 6"H Color: Black QuickShip

Uniform Capacity (lb.): 1800 Caster Quantity/Diameter/Width (in.): (3) 6 x 2 Caster Quantity/Type: (2) Rigid (1) Swivel
Added Height H-Style Hopper (in.): 3-3/4 Flat Washer (qty.): 8 Carriage Bolt (qty.): 8
Lock Nut (qty.): 8 Bracket (qty.): 2 Pin, Bulldog Bolt and Nut Assembly: 4
Top Plate Dimensions (in.): 4 x 4-1/2 Hole Spacing (Center to Center)(in.): 2-3/4 x 3-1/4 Carriage Bolt Size (in.): 3/8 x 1-1/2
Bull Dog Bolt Nut combo (in.): 3/8 x 5 Stabilizing Leg Quantity: 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: H-CK3-MR6-2


H-CK3-MR6-2

Mold On Rubber Caster Kit 6 In. x 2 In. 1,800 Lb. Capacity Black

Casters for the self-dumping hoppers create a more worthwhile portable unit. Casters are constructed of glass filled nylon for strength and durability throughout a lifetime of use. The high capacity allows the simple transport of heavy loads promoting task efficiency. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes.

  • Designed to be easily installed on hoppers
  • Casters allow hopper units to be transported without the use of a fork truck
  • Robust assembly provides long lasting resilient use
  • Both rigid and swivel designs included for maneuverability
Dimensions: 2"W x 6"L x 6"H Sell UOM: ST-Set Color: Black
Material: Mold-on-Rubber UPC: 691215227186 GTIN: 00691215227186
Warranty: -- Shipping Weight: 25 Quickship Item? --
Can It Ship UPS? -- Option? Y Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Capacity (lb.): 1800 Caster Quantity/Diameter/Width (in.): (3) 6 x 2 Caster Quantity/Type: (2) Rigid (1) Swivel
Added Height H-Style Hopper (in.): 3-3/4 Flat Washer (qty.): 8 Carriage Bolt (qty.): 8
Lock Nut (qty.): 8 Bracket (qty.): 2 Pin, Bulldog Bolt and Nut Assembly: 4
Top Plate Dimensions (in.): 4 x 4-1/2 Hole Spacing (Center to Center)(in.): 2-3/4 x 3-1/4 Carriage Bolt Size (in.): 3/8 x 1-1/2
Bull Dog Bolt Nut combo (in.): 3/8 x 5 Stabilizing Leg Quantity: 2
