HDC-450-60

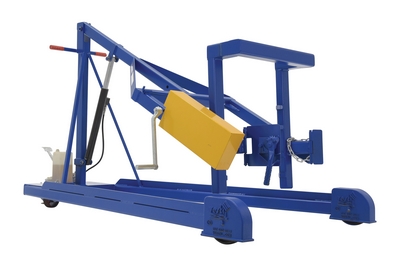

Steel Manual Hydraulic Drum Stacker 60 In. Lift Height 800 Lb. Capacity Blue / Yellow

The Hydraulic drum stacker is perfect for positioning steel drums horizontally on shelves. The solid steel construction provides stability during transit. Drums are held in place with a ratchet mechanism. Fully loaded drums rotate. Unit rolls easily on casters. Comes standard with hydraulic foot pump.

  • Floor lock for added stability
  • 360 degree rotation
  • Hand crank drum rotation
  • Rolls on casters for portability to specific workstations
Total Ship Wt.(lbs.): 745 (only 1 package) Size: 49.1875"W x 109.25"L x 77.375"H Color: Blue

Uniform Capacity (lb.): 800 Lift Height (in.): 60 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Maximum Drum Diameter: 23.5 Minimum Drum Diameter: 20.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
HDC-450-60
Product Name
Steel Manual Hydraulic Drum Stacker 60 In. Lift Height 800 Lb. Capacity Blue / Yellow
UPC
691215022194
GTIN
00691215022194
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Rotators / Carriers
Taxonomy 5
Manual
Assembled Depth (in.)
109.25
Assembled Width(in.)
49.1875
Assembled Height(in.)
77.375
Assembled Weight(lbs.)
532
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
61
Package Width (in.)
44
Package Height (in.)
99
Package Weight (in.)
745
Subclass
6
Freight Class
250
NMFC Code
Machinery or Machines NOI
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428900390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HDC-450-60
HDC-450-60

Steel Manual Hydraulic Drum Stacker 60 In. Lift Height 800 Lb. Capacity Blue / Yellow

The Hydraulic drum stacker is perfect for positioning steel drums horizontally on shelves. The solid steel construction provides stability during transit. Drums are held in place with a ratchet mechanism. Fully loaded drums rotate. Unit rolls easily on casters. Comes standard with hydraulic foot pump.

  • Floor lock for added stability
  • 360 degree rotation
  • Hand crank drum rotation
  • Rolls on casters for portability to specific workstations
Dimensions: 49.1875"W x 109.25"L x 77.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215022194 GTIN: 00691215022194
Warranty: -- Shipping Weight: 745 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Lift Height (in.): 60 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Maximum Drum Diameter: 23.5 Minimum Drum Diameter: 20.5
