Model Details

HDC-450-60-AC

Printer Friendly
HDC-450-60-AC

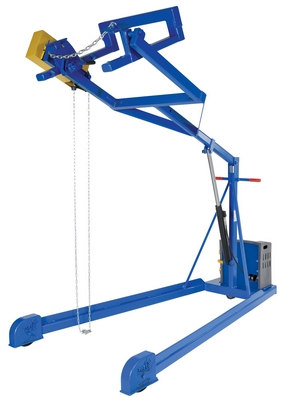

Steel AC Powered Hydraulic Drum Stacker 60 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. The lift operation is AC powered and rolls on casters. Hand crank drum rotation. This unit features a lifting boom attachment which stores on the outriggers. Heavy-duty welded steel construction.

  • Allows one person to lift, transport, and dispense steel drums with ease
  • Lift operation is AC powered for maximum power
  • Rolls on casters for portability to specific workstations
  • Features chain rotation in order to rotate the drum
Total Ship Wt.(lbs.): 745 (only 1 package) Size: 49.1875"W x 109.25"L x 77.375"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 800 Lift Height (in.): 60 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Lift Motor HP: 3/4 Lift Power Unit (volts): 115

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
HDC-450-60-AC
Product Name
Steel AC Powered Hydraulic Drum Stacker 60 In. Lift Height 800 Lb. Capacity Blue / Yellow
UPC
691215022200
GTIN
00691215022200
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Rotators / Carriers
Taxonomy 5
Electric
Assembled Depth (in.)
109.25
Assembled Width(in.)
49.1875
Assembled Height(in.)
77.375
Assembled Weight(lbs.)
624
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
61
Package Width (in.)
44
Package Height (in.)
99
Package Weight (in.)
745
Subclass
6
Freight Class
250
NMFC Code
Machinery or Machines NOI
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101900
HTSUS Number
8428900390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HDC-450-60-AC
HDC-450-60-AC

Steel AC Powered Hydraulic Drum Stacker 60 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. The lift operation is AC powered and rolls on casters. Hand crank drum rotation. This unit features a lifting boom attachment which stores on the outriggers. Heavy-duty welded steel construction.

  • Allows one person to lift, transport, and dispense steel drums with ease
  • Lift operation is AC powered for maximum power
  • Rolls on casters for portability to specific workstations
  • Features chain rotation in order to rotate the drum
Dimensions: 49.1875"W x 109.25"L x 77.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215022200 GTIN: 00691215022200
Warranty: -- Shipping Weight: 745 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 800 Lift Height (in.): 60 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Lift Motor HP: 3/4 Lift Power Unit (volts): 115
