Model Details

HDC-450-60-DC

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
HDC-450-60-DC

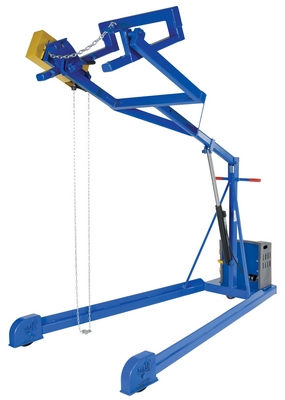

Steel DC Powered Hydraulic Drum Stacker 60 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. The lift operation is DC powered and rolls on casters. Hand crank drum rotation. This unit features a lifting boom attachment which stores on the outriggers. Heavy-duty welded steel construction.

  • Allows one person to lift, transport, and dispense steel drums with ease
  • Lift operation is DC powered for maximum power
  • Rolls on casters for portability to specific workstations
  • Features chain rotation in order to rotate the drum
Total Ship Wt.(lbs.): 763 (only 1 package) Size: 49.1875"W x 109.25"L x 77.375"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 800 Lift Height (in.): 60 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Lift Motor HP: 1 Lift Power Unit (volts): 12 Maximum Drum Diameter: 23.5
Minimum Drum Diameter: 20.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDC-450-60-DC
HDC-450-60-DC

Steel DC Powered Hydraulic Drum Stacker 60 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. The lift operation is DC powered and rolls on casters. Hand crank drum rotation. This unit features a lifting boom attachment which stores on the outriggers. Heavy-duty welded steel construction.

  • Allows one person to lift, transport, and dispense steel drums with ease
  • Lift operation is DC powered for maximum power
  • Rolls on casters for portability to specific workstations
  • Features chain rotation in order to rotate the drum
Dimensions: 49.1875"W x 109.25"L x 77.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215022217 GTIN: 00691215022217
Warranty: -- Shipping Weight: 763 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Lift Height (in.): 60 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Lift Motor HP: 1 Lift Power Unit (volts): 12 Maximum Drum Diameter: 23.5
Minimum Drum Diameter: 20.5
