Model Details

HDC-450-84

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
HDC-450-84

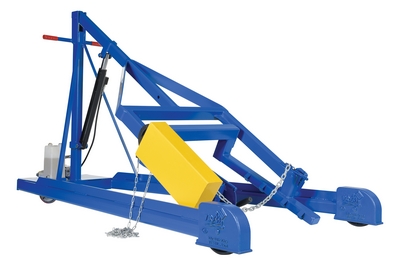

Steel Manual Hydraulic Drum Stacker 84 In. Lift Height 800 Lb. Capacity Blue / Yellow

The Hydraulic drum stacker is perfect for positioning steel drums horizontally on shelves. The solid steel construction provides stability during transit. Drums are held in place with a ratchet mechanism. Fully loaded drums rotate. Unit rolls easily on casters. Comes standard with hydraulic foot pump.

  • Floor lock for added stability
  • 360 degree rotation
  • Pull chain drum rotation
  • Rolls on casters for portability to specific workstations
Total Ship Wt.(lbs.): 709 (only 1 package) Size: 53.1875"W x 124.875"L x 105.9375"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 800 Lift Height (in.): 84 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Pull Chain
Maximum Drum Diameter: 23.5 Minimum Drum Diameter: 20.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDC-450-84
HDC-450-84

Steel Manual Hydraulic Drum Stacker 84 In. Lift Height 800 Lb. Capacity Blue / Yellow

The Hydraulic drum stacker is perfect for positioning steel drums horizontally on shelves. The solid steel construction provides stability during transit. Drums are held in place with a ratchet mechanism. Fully loaded drums rotate. Unit rolls easily on casters. Comes standard with hydraulic foot pump.

  • Floor lock for added stability
  • 360 degree rotation
  • Pull chain drum rotation
  • Rolls on casters for portability to specific workstations
Dimensions: 53.1875"W x 124.875"L x 105.9375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215022255 GTIN: 00691215022255
Warranty: -- Shipping Weight: 709 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 800 Lift Height (in.): 84 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Pull Chain
Maximum Drum Diameter: 23.5 Minimum Drum Diameter: 20.5
