Model Details

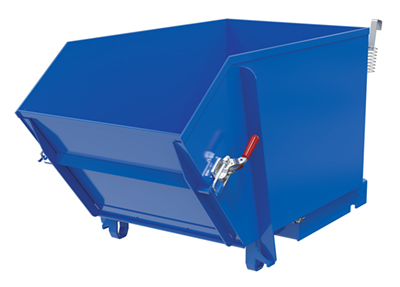

HDROP-50-LD

HDROP-50-LD

Steel Light Duty Self Dumping Hopper with Fold Down Front 1/2 Cubic Yard 2000 Lb. Capacity Blue

This self-dumping steel Hopper has a low-profile design with a drop-down front for easy shovel loading. The manual hand latches are used to secure the drop-down front. The manual pull-cable is used to dump the hopper from the seat of a fork truck, the dumper returns to the upright position when lowered to the ground.

  • Drop-down front design conveniently serves as a ramp
  • Included manual pull-cable dumps hopper from seat of fork truck
  • Full 90 degrees dump angle returns to upright position when lowered to ground
  • Features heavy-duty latch mechanism for worker safety
Total Ship Wt.(lbs.): 239 (only 1 package) Size: 30"W x 51.1875"L x 28.125"H Color: Blue / Silver (Base)

Uniform Capacity (lb.): 2000 Fork Pocket Centers (in.): 11-5/8 Front Lip Height (in.): 20-9/16
Dump Angle (degree): 90 Fork Pocket Width/Height (in.): 7 x 2 Hopper Type: Self-Dumping
Volume Capacity (cu. yds.): 1/2 Steel (gauge): 12

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDROP-50-LD


HDROP-50-LD

Steel Light Duty Self Dumping Hopper with Fold Down Front 1/2 Cubic Yard 2000 Lb. Capacity Blue

This self-dumping steel Hopper has a low-profile design with a drop-down front for easy shovel loading. The manual hand latches are used to secure the drop-down front. The manual pull-cable is used to dump the hopper from the seat of a fork truck, the dumper returns to the upright position when lowered to the ground.

  • Drop-down front design conveniently serves as a ramp
  • Included manual pull-cable dumps hopper from seat of fork truck
  • Full 90 degrees dump angle returns to upright position when lowered to ground
  • Features heavy-duty latch mechanism for worker safety
Dimensions: 30"W x 51.1875"L x 28.125"H Sell UOM: EA-Each Color: Blue / Silver (Base)
Material: Steel UPC: 691215101790 GTIN: 00691215101790
Warranty: -- Shipping Weight: 239 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Fork Pocket Centers (in.): 11-5/8 Front Lip Height (in.): 20-9/16
Dump Angle (degree): 90 Fork Pocket Width/Height (in.): 7 x 2 Hopper Type: Self-Dumping
Volume Capacity (cu. yds.): 1/2 Steel (gauge): 12
