IBC-TLT-FP

IBC-TLT-FP

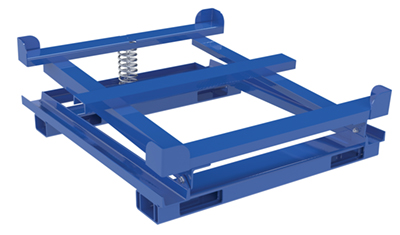

Steel Intermediate Bulk Container Tilt Stand with Fork Pockets 48-1/2 In. x 15-1/4 In. 4400 Lb. Capacity Blue

An intermediate bulk container tilt station is designed of a sturdy steel construction which, provides a secure tilting of containers for complete draining. Fork pockets are included for simple raising and lowering, as well as, easy access to valve connections. To use simple place the container on the station. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the station will rise up creating an angle for a better release of fluids.

  • Rising design as weight diminishes
  • Powder coated for baked in added toughness
  • Strong construction for daily use
  • Sleek smooth finish
Total Ship Wt.(lbs.): 268 (only 1 package) Size: 4.08125"W x 48.4375"L x 15.25"H Color: Blue QuickShip

Uniform Capacity (lb.): 4400 Fork Pocket (in.) WxH: 7 x 2 Fork Pocket Center (in.): 27
Overall Depth (in.): 48.5 Overall Width (in.): 48 Useable Depth (in.): 47.75
Useable Width (in.): 40.5

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: IBC-TLT-FP


IBC-TLT-FP

Steel Intermediate Bulk Container Tilt Stand with Fork Pockets 48-1/2 In. x 15-1/4 In. 4400 Lb. Capacity Blue

An intermediate bulk container tilt station is designed of a sturdy steel construction which, provides a secure tilting of containers for complete draining. Fork pockets are included for simple raising and lowering, as well as, easy access to valve connections. To use simple place the container on the station. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the station will rise up creating an angle for a better release of fluids.

  • Rising design as weight diminishes
  • Powder coated for baked in added toughness
  • Strong construction for daily use
  • Sleek smooth finish
Dimensions: 4.08125"W x 48.4375"L x 15.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215344180 GTIN: 00691215344180
Warranty: -- Shipping Weight: 268 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4400 Fork Pocket (in.) WxH: 7 x 2 Fork Pocket Center (in.): 27
Overall Depth (in.): 48.5 Overall Width (in.): 48 Useable Depth (in.): 47.75
Useable Width (in.): 40.5
