Model Details

JIB-LC-6

JIB-LC-6

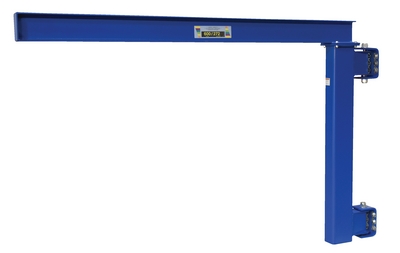

Steel Low Clearance Tie Rod Jib 80 In. I-Beam 600 Lb. Capacity Blue

This wall Jib is designed to assist workers in the maneuvering of materials as well as achieving maximum headroom where low ceilings are of concern. This cantilever style jib mounts to true vertical wall members. Increase personnel productivity by lifting awkward material capacities.

  • Wall jib design assists workers in the maneuvering of materials
  • Achieves maximum headroom where low ceilings are of concern
  • Cantilever style jib mounts to true vertical wall members
  • Increase personnel productivity by lifting awkward material capacities
Total Ship Wt.(lbs.): 399 (only 1 package) Size: 8"W x 96.125"L x 63"H Color: Blue

Uniform Capacity (lb.): 600 Under I-Beam to Bottom Frame (in.): 57 I-Beam (Flange x Height) (in.): 4 x 6
Overall I-Beam Length (in.): 88 Usable I-Beam Length (in.): 80 Rotation Degree: 180
Operation Mode: Manual

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: JIB-LC-6


JIB-LC-6

Steel Low Clearance Tie Rod Jib 80 In. I-Beam 600 Lb. Capacity Blue

This wall Jib is designed to assist workers in the maneuvering of materials as well as achieving maximum headroom where low ceilings are of concern. This cantilever style jib mounts to true vertical wall members. Increase personnel productivity by lifting awkward material capacities.

  • Wall jib design assists workers in the maneuvering of materials
  • Achieves maximum headroom where low ceilings are of concern
  • Cantilever style jib mounts to true vertical wall members
  • Increase personnel productivity by lifting awkward material capacities
Dimensions: 8"W x 96.125"L x 63"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215024839 GTIN: 00691215024839
Warranty: -- Shipping Weight: 399 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Under I-Beam to Bottom Frame (in.): 57 I-Beam (Flange x Height) (in.): 4 x 6
Overall I-Beam Length (in.): 88 Usable I-Beam Length (in.): 80 Rotation Degree: 180
Operation Mode: Manual
