LL-PMPS-50-DC

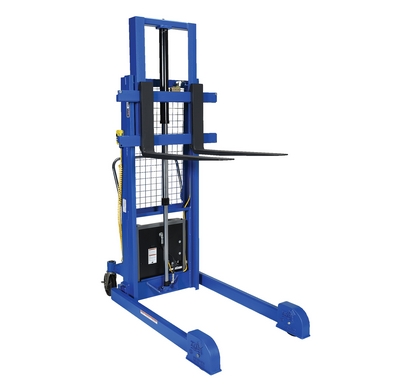

Steel Pallet Master/Server DC Powered 50 In. Raised Height 1200 Lb. Capacity Blue

The pallet master/server enables one person to easily move fully loaded pallets without the use of a fork truck. The unique straddle design works well with pallets and skids with and without an understructure. The unit is ideal for loading and unloading semi-trailers. Outriggers are adjustable. Hand pendant control on an eight (8) foot coil cord standard. All welded steel construction.

  • Straddle design works well for pallets with and without an understructure
  • Outriggers are adjustable for loading and unloading semi-trailers
  • Hand pendant control is on an 8' coil cord to raise and lower easier
  • Key-operated on/off control is built in for better security
Total Ship Wt.(lbs.): 836 (only 1 package) Size: 58"W x 67.1875"L x 72.5"H Color: Blue

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
LL-PMPS-50-DC
Product Name
Steel Pallet Master/Server DC Powered 50 In. Raised Height 1200 Lb. Capacity Blue
UPC
691215058636
GTIN
00691215058636
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Electric
Assembled Depth (in.)
67.1875
Assembled Width(in.)
58
Assembled Height(in.)
72.5
Assembled Weight(lbs.)
742
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
77
Package Weight (in.)
836
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8428900390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
42
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
