Model Details

← All Products- ← Fork Truck Attachments- ← Lift Master Booms -← Lift Master Fork Truck Booms- LM-1NT-4-11

LM-1NT-4-11

Printer Friendly
Available
LM-1NT-4-11
LM-1NT-4-11

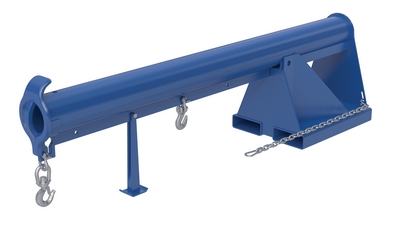

Steel Non Telescoping Lift Boom 11 In. Fork Pocket Center 4,000 Lb. Capacity Blue and Yellow

The non-telescoping lift boom delivers heavy-duty performance, maximum operator convenience, and uncompromising safety in challenging manufacturing and warehouse environments. Fabricated from high-strength structural steel and welded to rigorous AWS standards, this rugged, durable unit is engineered for years of reliable, long-term service. For precision operation, it features a safety restraint that secures the boom directly to the fork truck to ensure secure, slip-free performance. Ready for immediate use, each unit comes fully equipped with two high-capacity lifting hooks to maximize your facility's material handling efficiency.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Assembled Wt.(lbs.): 315 Assembled Size: 24.8125"W x 81.5"L x 19"H

Total Ship Wt.(lbs.): 391 (only 1 package) Package 1 Size: 32"W x 84"D x 25"H Color: Blue

Uniform Capacity (lb.): 4,000 Fork Pocket Center (in.): 11 Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Restraint Length (in.): 36 Boom Style: Non-Telescoping Minimum/Maximum Hook Point (in.): 36/78
Single-Hook Capacity at 36" (lb.): 4000 Single-Hook Capacity at 48" (lb.): 3750 Single-Hook Capacity at 60" (lb.): 3500
Single-Hook Capacity at 72" (lb.): 3250 Single-Hook Capacity at 78" (lb.): 3000 Boom Type: Lift Master Boom
OSHA: 1910.178(a)(4)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: LM-1NT-4-11
Available
LM-1NT-4-11

Steel Non Telescoping Lift Boom 11 In. Fork Pocket Center 4,000 Lb. Capacity Blue and Yellow

The non-telescoping lift boom delivers heavy-duty performance, maximum operator convenience, and uncompromising safety in challenging manufacturing and warehouse environments. Fabricated from high-strength structural steel and welded to rigorous AWS standards, this rugged, durable unit is engineered for years of reliable, long-term service. For precision operation, it features a safety restraint that secures the boom directly to the fork truck to ensure secure, slip-free performance. Ready for immediate use, each unit comes fully equipped with two high-capacity lifting hooks to maximize your facility's material handling efficiency.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Dimensions: 24.8125"W x 81.5"L x 19"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 391 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Fork Pocket Center (in.): 11 Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Restraint Length (in.): 36 Boom Style: Non-Telescoping Minimum/Maximum Hook Point (in.): 36/78
Single-Hook Capacity at 36" (lb.): 4000 Single-Hook Capacity at 48" (lb.): 3750 Single-Hook Capacity at 60" (lb.): 3500
Single-Hook Capacity at 72" (lb.): 3250 Single-Hook Capacity at 78" (lb.): 3000 Boom Type: Lift Master Boom
OSHA: 1910.178(a)(4)
