LM-1T-4-11

Printer Friendly
Available
LM-1T-4-11
LM-1T-4-11 LM-1T-4-11 LM-1T-4-11 LM-1T-4-11 LM-1T-4-11 LM-1T-4-11 LM-1T-4-11

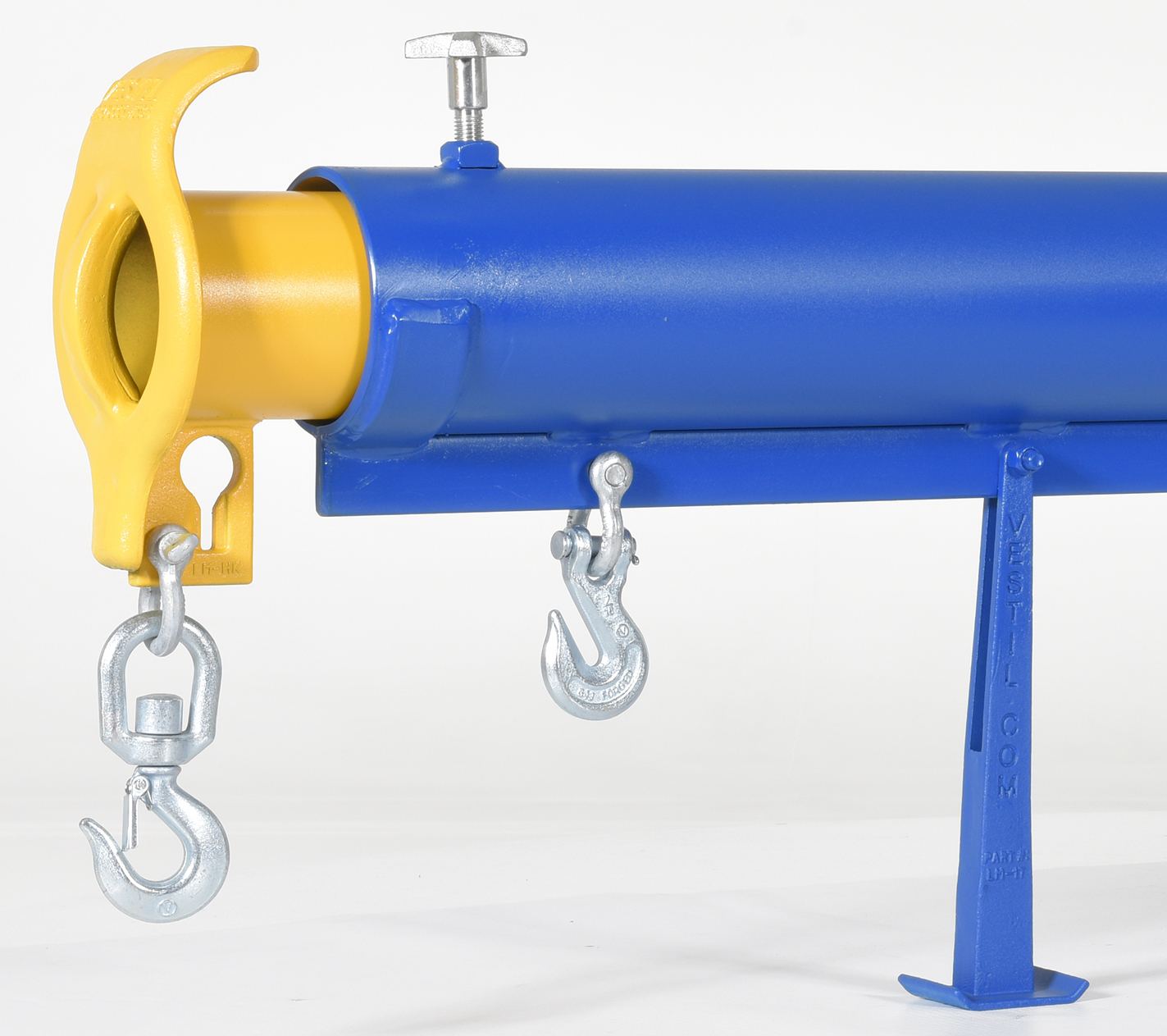

Steel Telescoping Lift Boom 11 In. Fork Pocket Center 4,000 Lb. Capacity Blue and Yellow

The lift boom delivers heavy-duty performance, maximum operator convenience, and uncompromising safety in challenging manufacturing and warehouse environments. Fabricated from high-strength structural steel and welded to rigorous AWS standards, this rugged, durable unit is engineered for years of reliable, long-term service. For precision operation, it features an infinitely adjustable locking screw alongside a robust safety restraint that secures the boom directly to the fork truck to ensure secure, slip-free performance. Ready for immediate use, each unit comes fully equipped with two high-capacity lifting hooks to maximize your facility's material handling efficiency.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Assembled Wt.(lbs.): 410 Assembled Size: 19"W x 86"L x 25.875"H

Total Ship Wt.(lbs.): 416 (only 1 package) Package 1 Size: 19"W x 85"D x 27"H Color: Blue (Base Frame)/Yellow (Extension)

Uniform Capacity (lb.): 4,000 Fork Pocket Center (in.): 11 Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 4000 Single-Hook Capacity at 48" (lb.): 3750 Single-Hook Capacity at 60" (lb.): 3500
Single-Hook Capacity at 72" (lb.): 3250 Single-Hook Capacity at 84" (lb.): 3000 Single-Hook Capacity at 96" (lb.): 2750
Single-Hook Capacity at 108" (lb.): 2500 Single-Hook Capacity at 120" (lb.): 2250 Single-Hook Capacity at 132" (lb.): 2000
Single-Hook Capacity at 144" (lb.): 1750 Overall Extended Length (in.): 151-1/4 Boom Type: Lift Master Boom
OSHA: 1910.178(a)(4)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: LM-1T-4-11
Available
LM-1T-4-11

Steel Telescoping Lift Boom 11 In. Fork Pocket Center 4,000 Lb. Capacity Blue and Yellow

The lift boom delivers heavy-duty performance, maximum operator convenience, and uncompromising safety in challenging manufacturing and warehouse environments. Fabricated from high-strength structural steel and welded to rigorous AWS standards, this rugged, durable unit is engineered for years of reliable, long-term service. For precision operation, it features an infinitely adjustable locking screw alongside a robust safety restraint that secures the boom directly to the fork truck to ensure secure, slip-free performance. Ready for immediate use, each unit comes fully equipped with two high-capacity lifting hooks to maximize your facility's material handling efficiency.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Dimensions: 19"W x 86"L x 25.875"H Sell UOM: -- Color: Blue (Base Frame)/Yellow (Extension)
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 416 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Fork Pocket Center (in.): 11 Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 4000 Single-Hook Capacity at 48" (lb.): 3750 Single-Hook Capacity at 60" (lb.): 3500
Single-Hook Capacity at 72" (lb.): 3250 Single-Hook Capacity at 84" (lb.): 3000 Single-Hook Capacity at 96" (lb.): 2750
Single-Hook Capacity at 108" (lb.): 2500 Single-Hook Capacity at 120" (lb.): 2250 Single-Hook Capacity at 132" (lb.): 2000
Single-Hook Capacity at 144" (lb.): 1750 Overall Extended Length (in.): 151-1/4 Boom Type: Lift Master Boom
OSHA: 1910.178(a)(4)
