LM-OBT-3-24

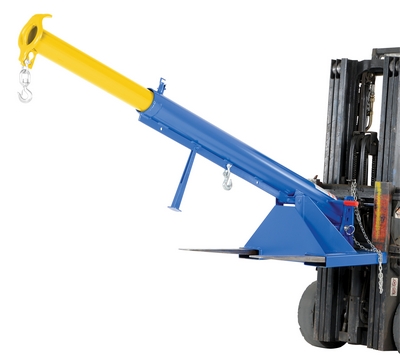

Steel Orbit Telescoping Lift Boom 24 In. Fork Pocket Center 3,000 Lb. Capacity Blue

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. This unit features a locking detest. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Total Ship Wt.(lbs.): 432 (only 1 package) Size: 32"W x 86.625"L x 27.6875"H Color: Blue (Base Frame)/Yellow (Extension) QuickShip

Uniform Capacity (lb.): 3,000 Fork Pocket Center (in.): 24 Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 3000 Single-Hook Capacity at 48" (lb.): 2750 Single-Hook Capacity at 60" (lb.): 2500
Single-Hook Capacity at 72" (lb.): 2250 Single-Hook Capacity at 84" (lb.): 2000 Single-Hook Capacity at 96" (lbs.): 1750
Single-Hook Capacity at 108" (lbs.): 1500 Single-Hook Capacity at 120" (lbs.): 1250 Single-Hook Capacity at 132" (lbs.): 1000
Single-Hook Capacity at 144" (lbs.): 750 Overall Extended Height (in.): 99-1/2 Retracted Hook Height (in.): 6
Extended Hook Height (in.): 78-5/16 Overall Extended Length (in.): 146-5/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LM-OBT-3-24
LM-OBT-3-24

Steel Orbit Telescoping Lift Boom 24 In. Fork Pocket Center 3,000 Lb. Capacity Blue

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. This unit features a locking detest. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Dimensions: 32"W x 86.625"L x 27.6875"H Sell UOM: EA-Each Color: Blue (Base Frame)/Yellow (Extension)
Material: Steel UPC: 691215054492 GTIN: 00691215054492
Warranty: -- Shipping Weight: 432 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3,000 Fork Pocket Center (in.): 24 Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 3000 Single-Hook Capacity at 48" (lb.): 2750 Single-Hook Capacity at 60" (lb.): 2500
Single-Hook Capacity at 72" (lb.): 2250 Single-Hook Capacity at 84" (lb.): 2000 Single-Hook Capacity at 96" (lbs.): 1750
Single-Hook Capacity at 108" (lbs.): 1500 Single-Hook Capacity at 120" (lbs.): 1250 Single-Hook Capacity at 132" (lbs.): 1000
Single-Hook Capacity at 144" (lbs.): 750 Overall Extended Height (in.): 99-1/2 Retracted Hook Height (in.): 6
Extended Hook Height (in.): 78-5/16 Overall Extended Length (in.): 146-5/8
