Model Details

LM-OBT-8-30

LM-OBT-8-30

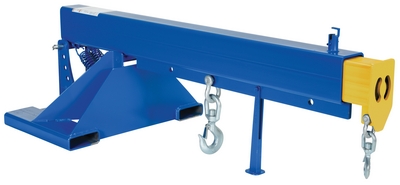

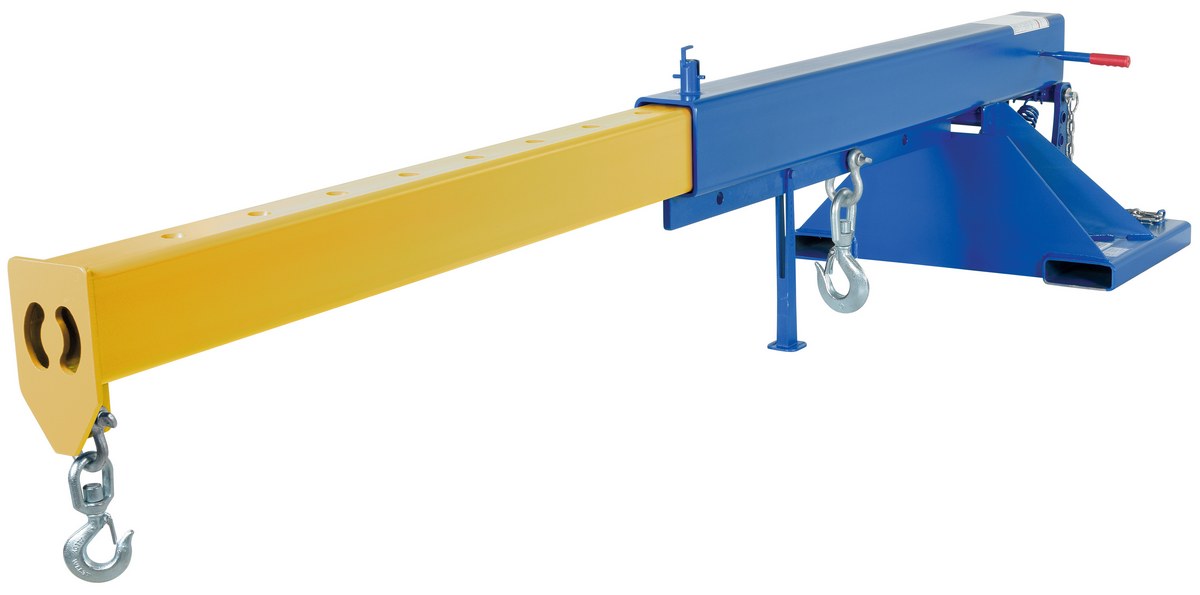

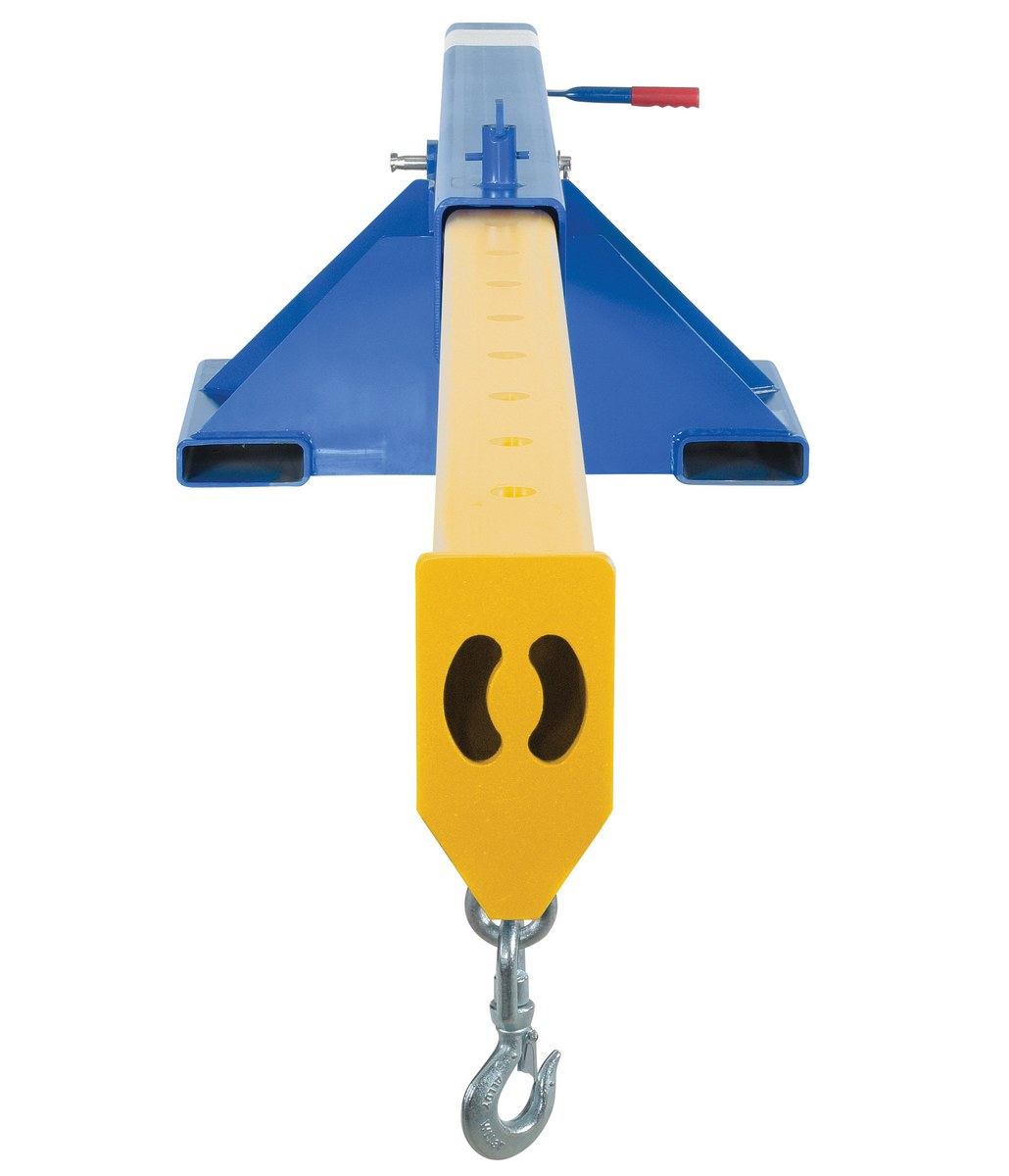

Steel Orbit Telescoping Lift Boom 30 In. Fork Pocket Center 8,000 Lb. Capacity Blue

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Total Ship Wt.(lbs.): 755 (only 1 package) Size: 38"W x 85.25"L x 28.875"H Color: Blue (Base Frame)/Yellow (Extension)

Uniform Capacity (lb.): 8,000 Fork Pocket Center (in.): 30 Fork Pocket Width (in.): 7-1/4 x 2-1/4
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 8000 Single-Hook Capacity at 48" (lb.): 6650 Single-Hook Capacity at 60" (lb.): 6000
Single-Hook Capacity at 72" (lb.): 5300 Single-Hook Capacity at 84" (lb.): 4650 Single-Hook Capacity at 96" (lbs.): 4000
Single-Hook Capacity at 108" (lbs.): 3500 Single-Hook Capacity at 120" (lbs.): 3000 Single-Hook Capacity at 132" (lbs.): 2600
Single-Hook Capacity at 144" (lbs.): 2200 Overall Extended Height (in.): 96-1/8 Retracted Hook Height (in.): 5-1/8
Extended Hook Height (in.): 76-9/16 Overall Extended Length (in.): 148-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LM-OBT-8-30


LM-OBT-8-30

Steel Orbit Telescoping Lift Boom 30 In. Fork Pocket Center 8,000 Lb. Capacity Blue

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Dimensions: 38"W x 85.25"L x 28.875"H Sell UOM: EA-Each Color: Blue (Base Frame)/Yellow (Extension)
Material: Steel UPC: 691215089333 GTIN: 00691215089333
Warranty: -- Shipping Weight: 755 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 8,000 Fork Pocket Center (in.): 30 Fork Pocket Width (in.): 7-1/4 x 2-1/4
Restraint Length (in.): 36 Boom Style: Telescoping Minimum/Maximum Hook Point (in.): 36/144
Single-Hook Capacity at 36" (lb.): 8000 Single-Hook Capacity at 48" (lb.): 6650 Single-Hook Capacity at 60" (lb.): 6000
Single-Hook Capacity at 72" (lb.): 5300 Single-Hook Capacity at 84" (lb.): 4650 Single-Hook Capacity at 96" (lbs.): 4000
Single-Hook Capacity at 108" (lbs.): 3500 Single-Hook Capacity at 120" (lbs.): 3000 Single-Hook Capacity at 132" (lbs.): 2600
Single-Hook Capacity at 144" (lbs.): 2200 Overall Extended Height (in.): 96-1/8 Retracted Hook Height (in.): 5-1/8
Extended Hook Height (in.): 76-9/16 Overall Extended Length (in.): 148-1/2
