Model Details

LP-4000T-39-SS

Printer Friendly

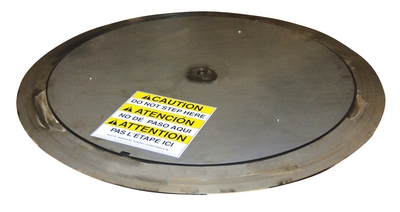

LP-4000T-39-SS

Stainless Steel Thin Spin 47-11/16 In. Diameter 4000 Lb. Capacity Silver

The thin spin is a pallet truck loadable carousel. When confronted with minimum floor space and only a hand pallet truck, the thin spin low-profile carousel is ideal for loading and unloading pallet applications. The unit is pallet truck loadable because of its sleek overall height. The detest lock restricts carousel rotation when not in use.

  • Precision ball bearings allow for manual 360 degrees rotation
  • Locking device prevents unnecessary rotation
  • Pallet truck loadable due to its sleek overall height
  • Unique design works well when there is minimum floor space
Total Ship Wt.(lbs.): 206 (only 1 package) Size: 47.6875"W x 47.6875"L x 0.875"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 39 Effective Ramping Length (in.): 4-3/8
Slope Degree: 11 Starting Force at Full Capacity (lb.): 35 Maintaining Force at Full Capacity (lb.): 25
Rotation Degree: 360

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LP-4000T-39-SS
LP-4000T-39-SS

Stainless Steel Thin Spin 47-11/16 In. Diameter 4000 Lb. Capacity Silver

The thin spin is a pallet truck loadable carousel. When confronted with minimum floor space and only a hand pallet truck, the thin spin low-profile carousel is ideal for loading and unloading pallet applications. The unit is pallet truck loadable because of its sleek overall height. The detest lock restricts carousel rotation when not in use.

  • Precision ball bearings allow for manual 360 degrees rotation
  • Locking device prevents unnecessary rotation
  • Pallet truck loadable due to its sleek overall height
  • Unique design works well when there is minimum floor space
Dimensions: 47.6875"W x 47.6875"L x 0.875"H Sell UOM: EA-Each Color: Silver
Material: 304 Stainless Steel UPC: 691215089357 GTIN: 00691215089357
Warranty: -- Shipping Weight: 206 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 39 Effective Ramping Length (in.): 4-3/8
Slope Degree: 11 Starting Force at Full Capacity (lb.): 35 Maintaining Force at Full Capacity (lb.): 25
Rotation Degree: 360
