LP-6

Steel LP Tank Truck 137-9/16 In. x 33-13/16 In. x 97-11/16 In. 6 Tank Capacity Blue

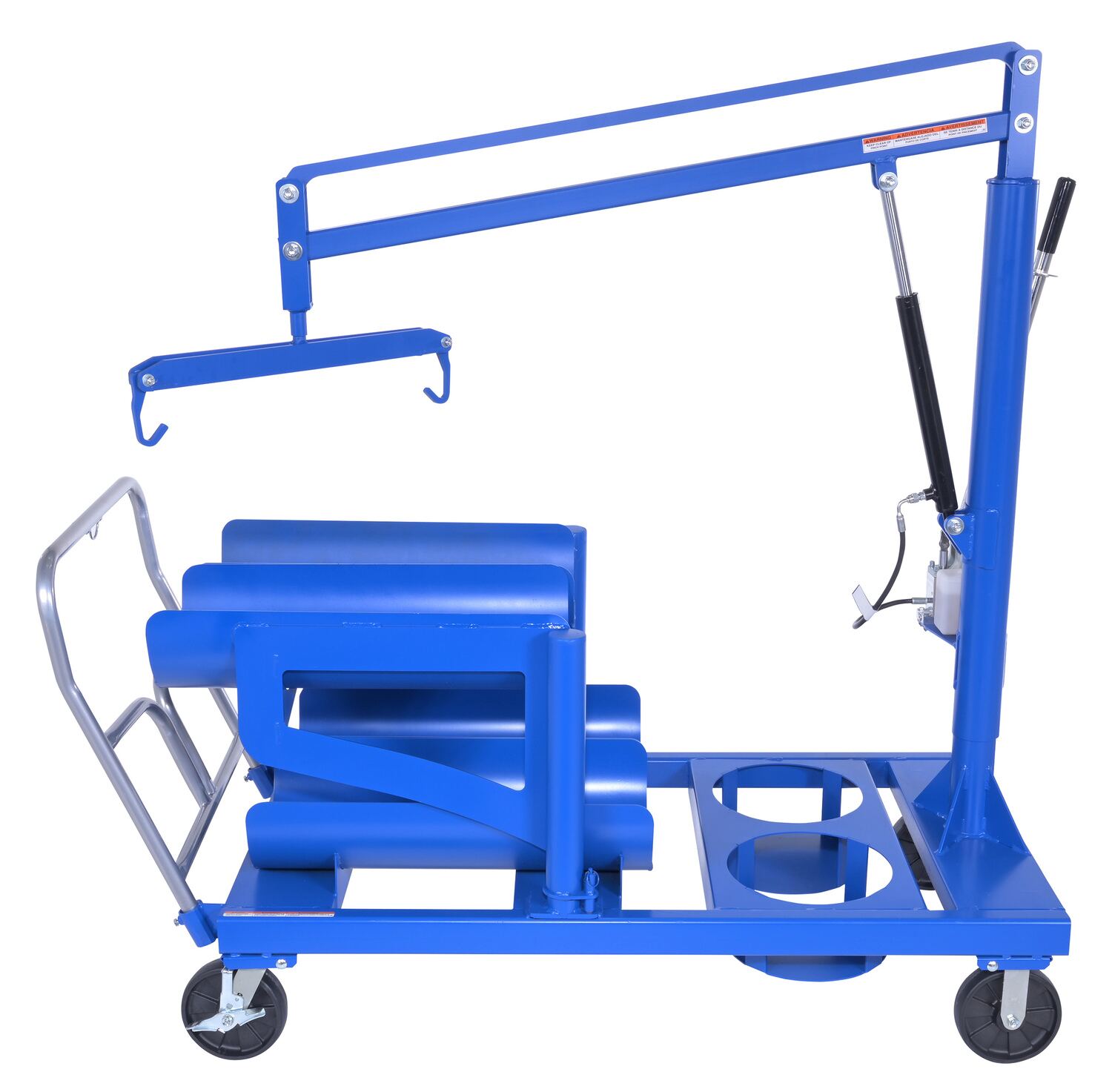

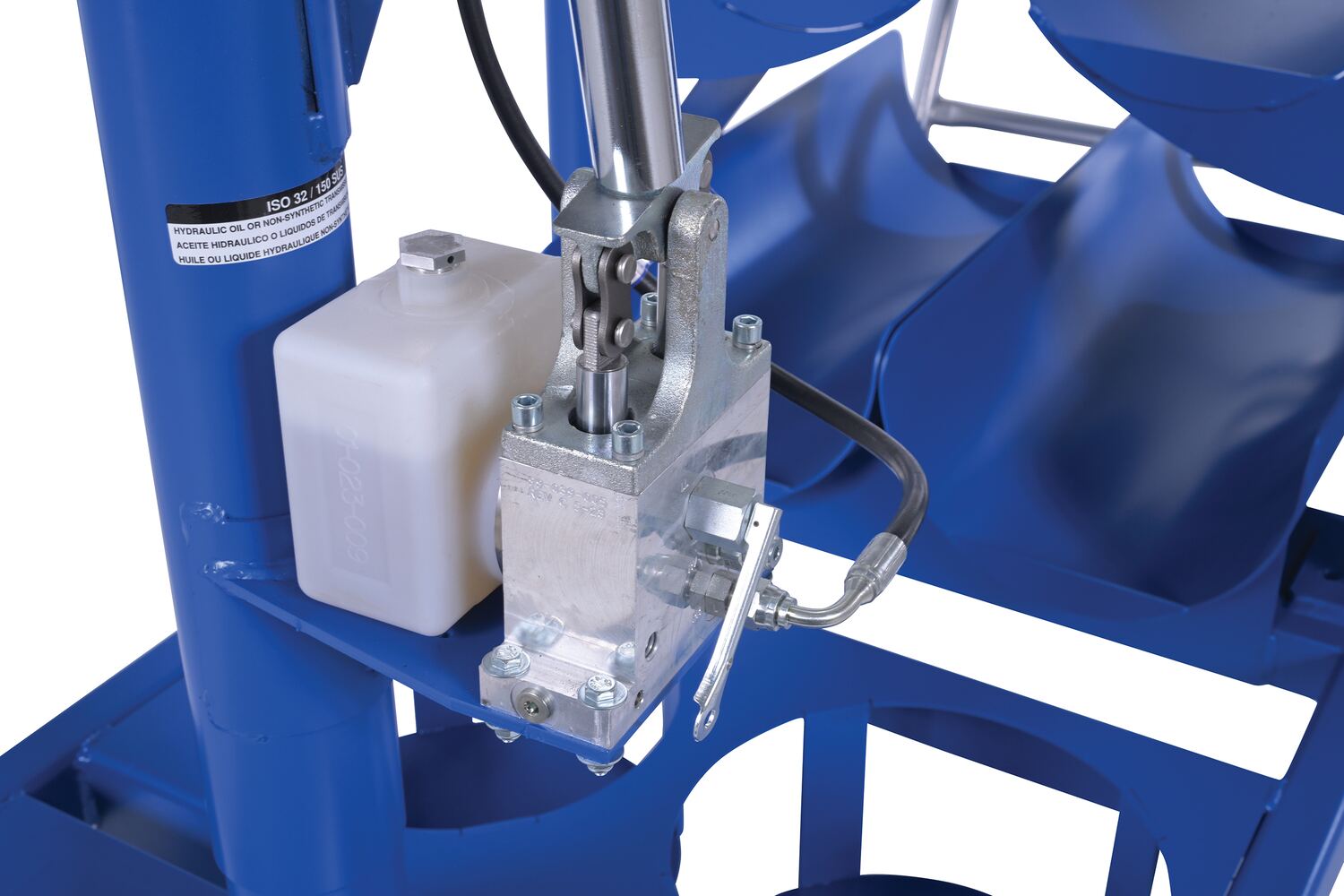

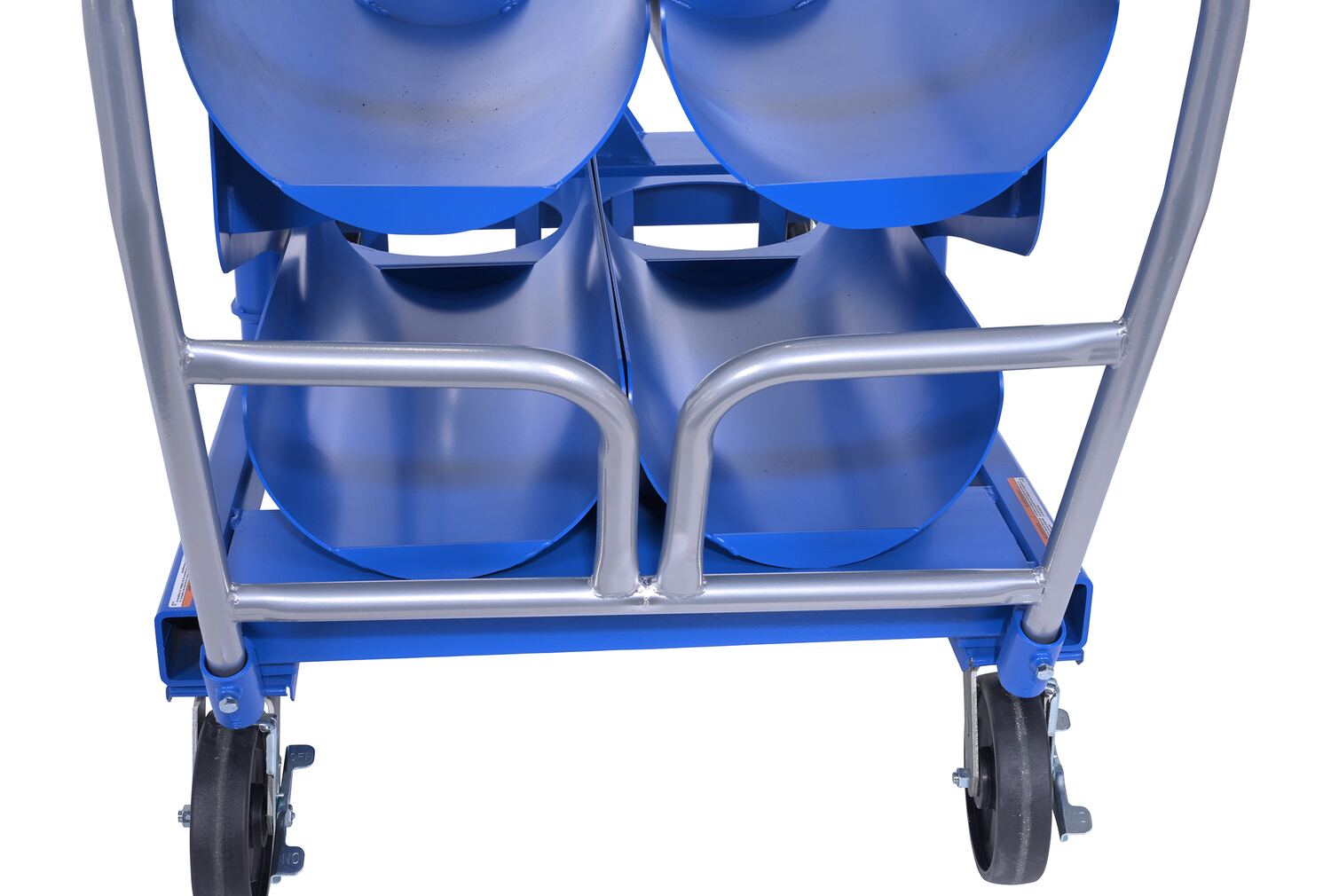

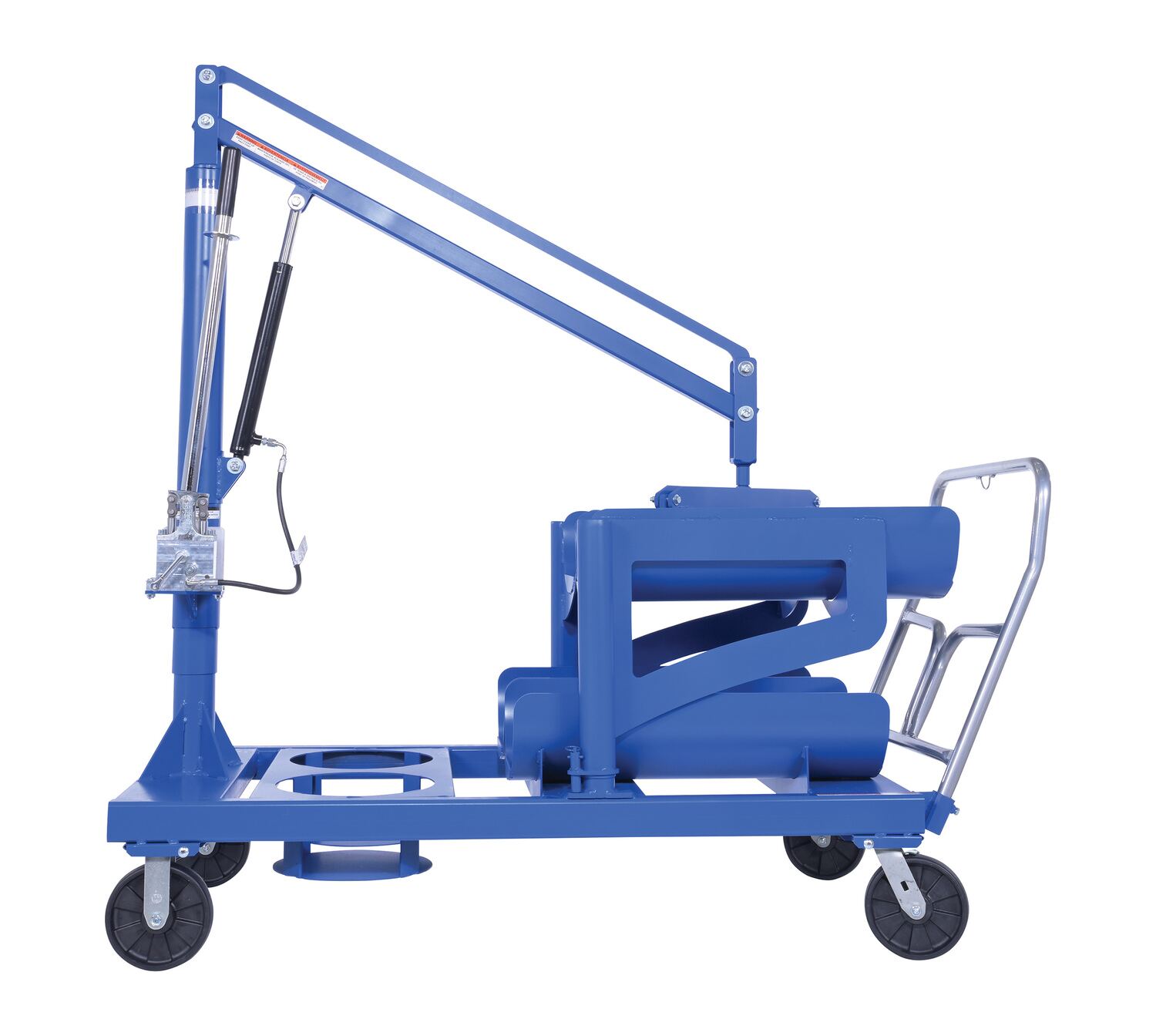

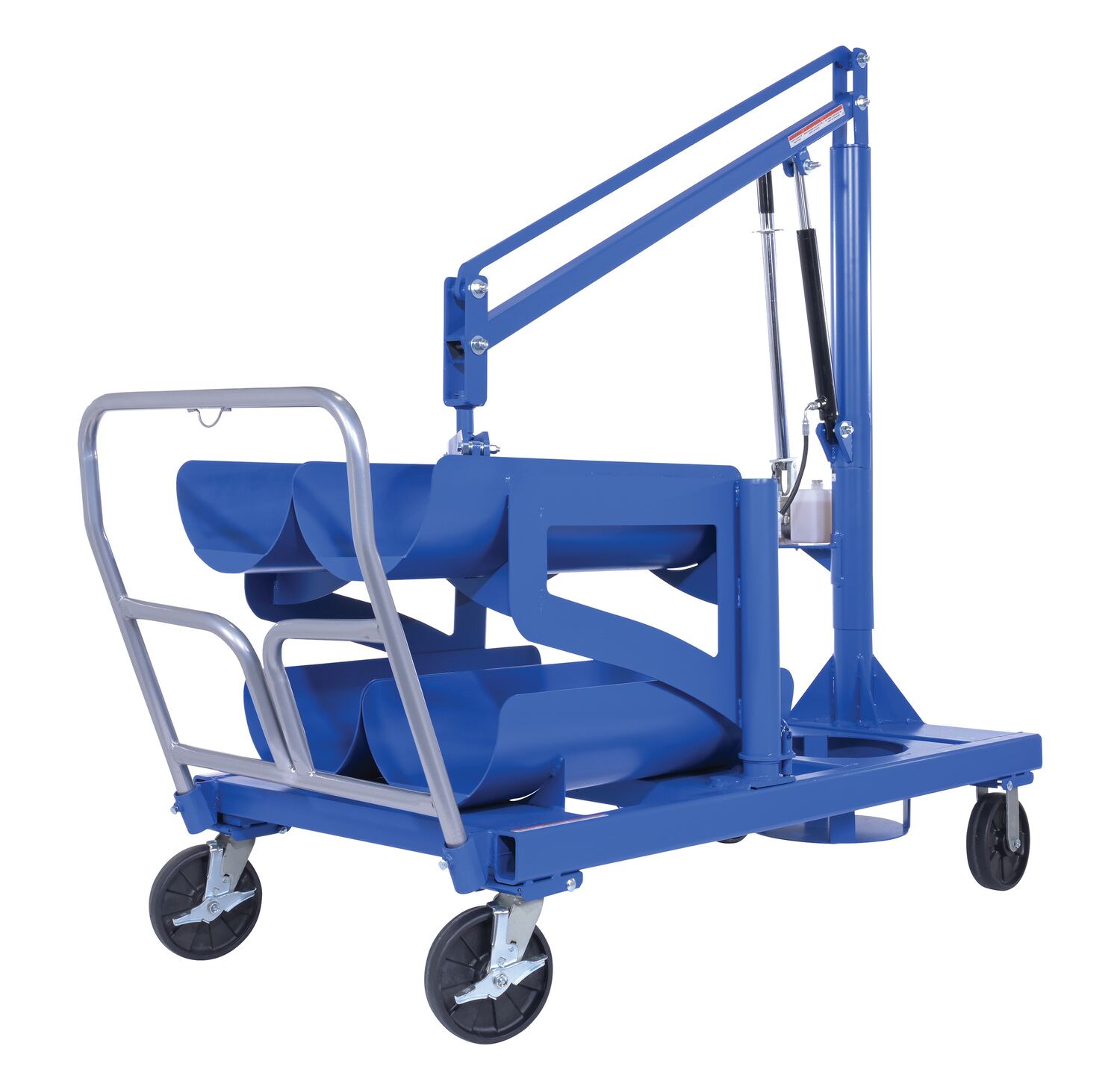

Finally an easy answer to lifting, storing, and transporting problems associated with LP tanks. This all-in-one LP tank truck allows users to transport LP tanks where needed. The built-in crane can be used to safely load full tanks into fork trucks. The crane pivots for maximum versatility. The crane boom is raised and lowered with a manual hand pump hydraulic lift. The tank attachment at the end of the boom automatically clamps to each end of the cylinder. The built-in racks are ideal for LP tank storage-racks. Store two (2) tanks in the vertical position and four (4) tanks in the horizontal position. Truck includes a push handle with casters for portability.

  • Truck allows users to transport LP tanks where needed
  • Built-in crane can be used to safely load full tanks into fork trucks

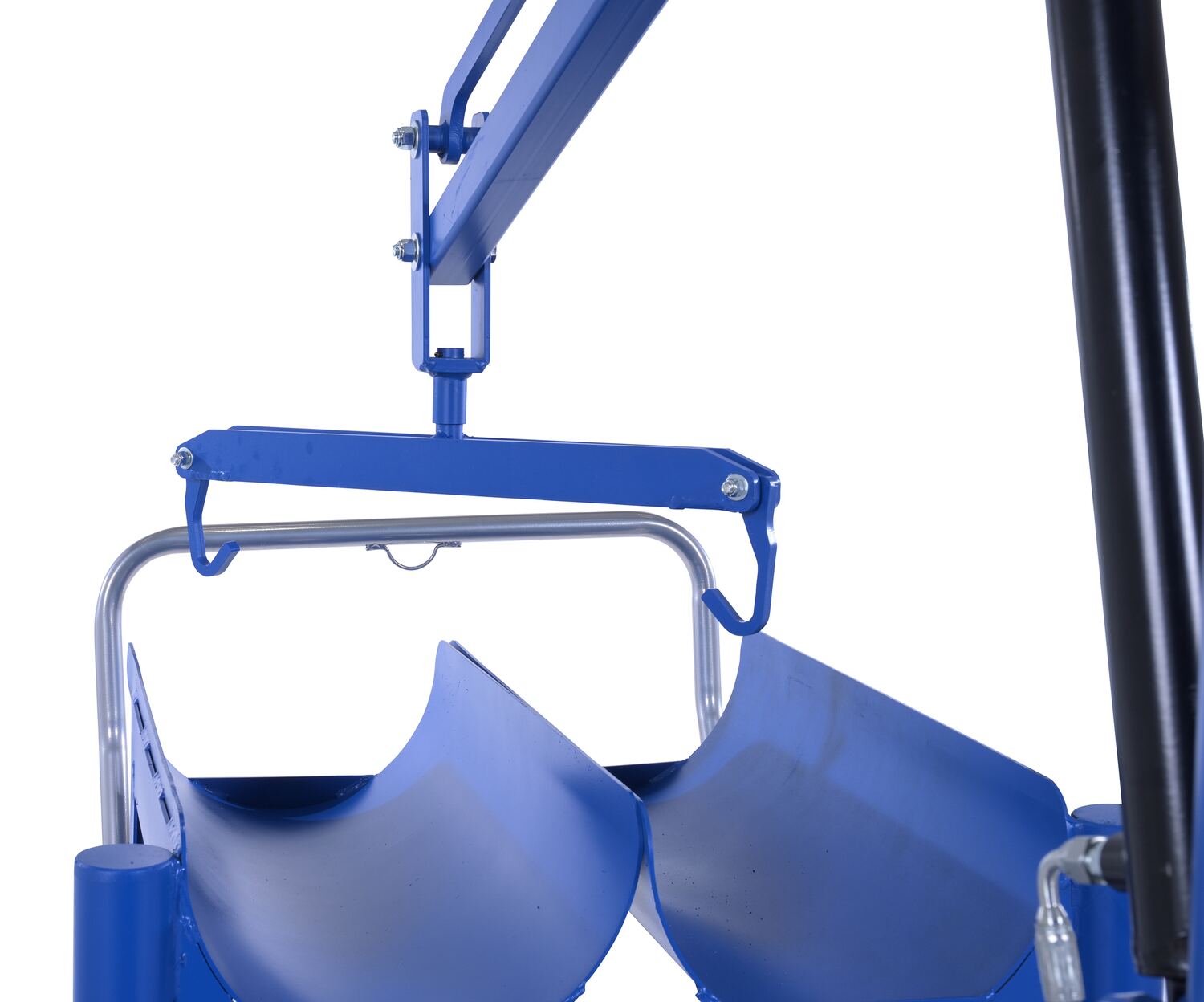

  • Attachment at the end of the boom automatically clamps to each end of the cylinder
  • Truck includes a push handle with casters for portability
Total Ship Wt.(lbs.): 600 (only 1 package) Size: 33.8125"W x 136.4375"L x 94.5625"H Color: Blue

Uniform Storage Capacity (qty.): 6 Crane Lifting Capacity (lb.): 100 Pivot (degrees): 360

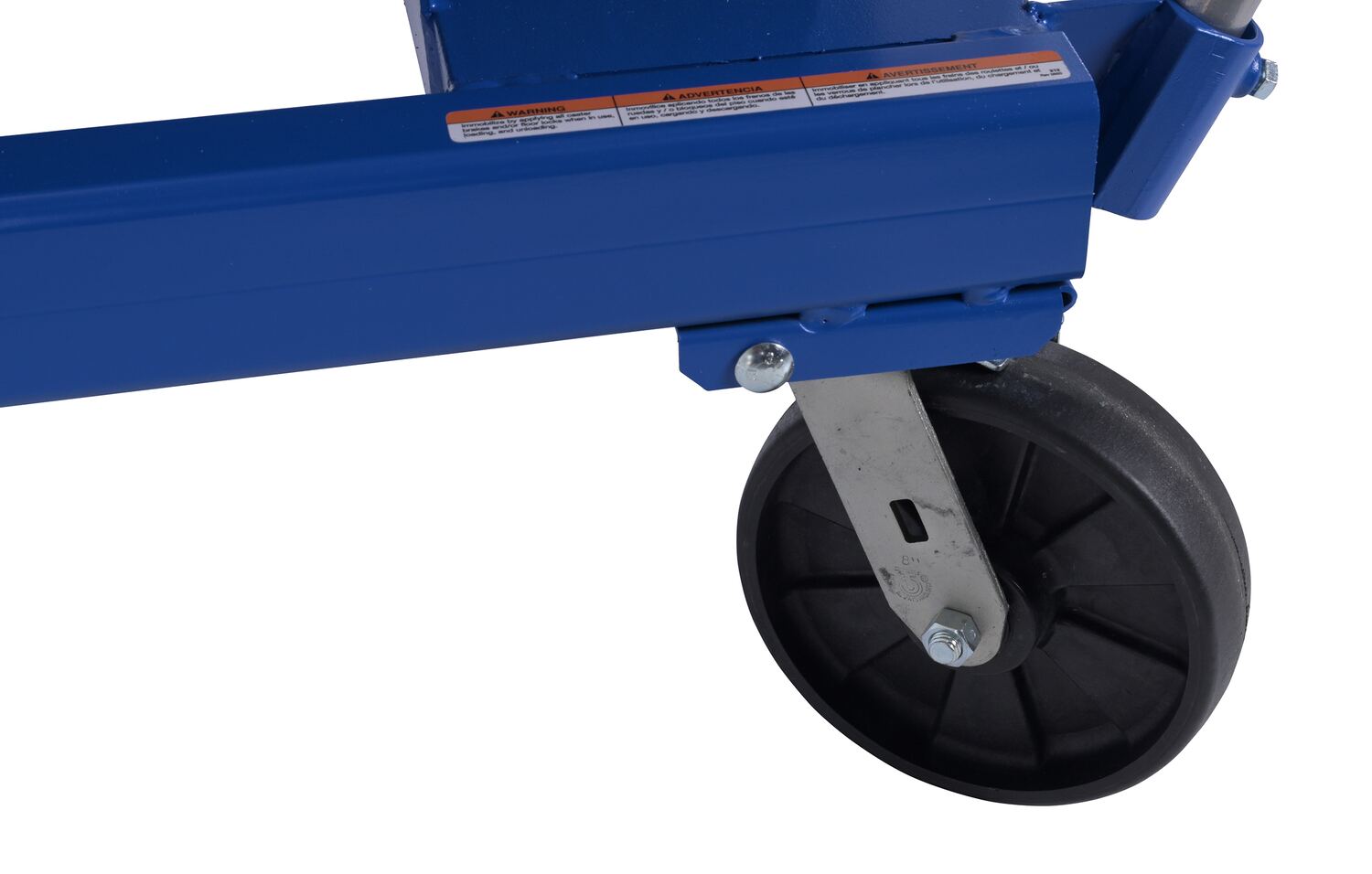

Maximum Cylinder Diameter (in.): 12-1/2 Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: (2) Rigid (2) Swivel w/Brakes
Caster Material: Glass Filled Nylon Handle Height (in.): 37-3/16 Handle Diameter (in.): 1.25
Ground Clearance (in.): 6-1/8 Maximum Lifting Capacity When Unit Empty (lbs.): 65

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LP-6
LP-6

Steel LP Tank Truck 137-9/16 In. x 33-13/16 In. x 97-11/16 In. 6 Tank Capacity Blue

Finally an easy answer to lifting, storing, and transporting problems associated with LP tanks. This all-in-one LP tank truck allows users to transport LP tanks where needed. The built-in crane can be used to safely load full tanks into fork trucks. The crane pivots for maximum versatility. The crane boom is raised and lowered with a manual hand pump hydraulic lift. The tank attachment at the end of the boom automatically clamps to each end of the cylinder. The built-in racks are ideal for LP tank storage-racks. Store two (2) tanks in the vertical position and four (4) tanks in the horizontal position. Truck includes a push handle with casters for portability.

  • Truck allows users to transport LP tanks where needed
  • Built-in crane can be used to safely load full tanks into fork trucks
  • Attachment at the end of the boom automatically clamps to each end of the cylinder
  • Truck includes a push handle with casters for portability
Dimensions: 33.8125"W x 136.4375"L x 94.5625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215027694 GTIN: 00691215027694
Warranty: -- Shipping Weight: 600 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Storage Capacity (qty.): 6 Crane Lifting Capacity (lb.): 100 Pivot (degrees): 360
Maximum Cylinder Diameter (in.): 12-1/2 Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Type: (2) Rigid (2) Swivel w/Brakes
Caster Material: Glass Filled Nylon Handle Height (in.): 37-3/16 Handle Diameter (in.): 1.25
Ground Clearance (in.): 6-1/8 Maximum Lifting Capacity When Unit Empty (lbs.): 65
