Model Details

MEZZ-200-BT

Printer Friendly
MEZZ-200-BT

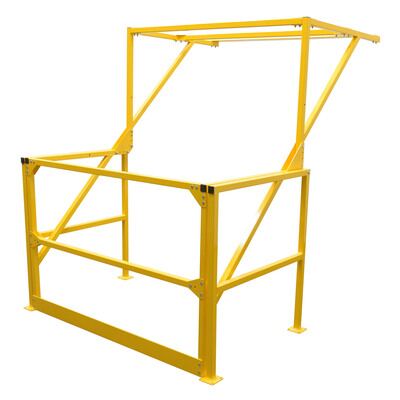

Steel Bolt Together Mezzanine Safety Gate 111 in. x 68.5 in. x 80 in. Yellow

The mezzanine safety gate provides a handrail, mid-rail and kick-plate for mezzanines, without sacrificing load accessibility. With a bolt-together design, the gate can be the constructed, disassembled, or easily transferred to a new location. To accommodate the maximum load height, when utilizing a standard pallet, load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. The gate rotates and is balanced to allow for easy operation without the use of springs.

  • 42-3/8" high handrail
  • Manually operated rotation
  • Pre-drilled mounting holes
  • Assembly hardware included
Total Ship Wt.(lbs.): 258 (only 1 package) Size: 68.5"W x 111.625"L x 80.0625"H Color: Yellow

Base Plate Width (in.): 4 Base Plate Length (in.): 4 Number of Mounting Holes: 4
Hole Diameter (in.): .4375 Handrail Length (in.): 37.375 Handrail Height (in.): 42.375
Midrail Height (in.): 19.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: MEZZ-200-BT
MEZZ-200-BT

Steel Bolt Together Mezzanine Safety Gate 111 in. x 68.5 in. x 80 in. Yellow

The mezzanine safety gate provides a handrail, mid-rail and kick-plate for mezzanines, without sacrificing load accessibility. With a bolt-together design, the gate can be the constructed, disassembled, or easily transferred to a new location. To accommodate the maximum load height, when utilizing a standard pallet, load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. The gate rotates and is balanced to allow for easy operation without the use of springs.

  • 42-3/8" high handrail
  • Manually operated rotation
  • Pre-drilled mounting holes
  • Assembly hardware included
Dimensions: 68.5"W x 111.625"L x 80.0625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215373333 GTIN: 00691215373333
Warranty: -- Shipping Weight: 258 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Base Plate Width (in.): 4 Base Plate Length (in.): 4 Number of Mounting Holes: 4
Hole Diameter (in.): .4375 Handrail Length (in.): 37.375 Handrail Height (in.): 42.375
Midrail Height (in.): 19.5
