Model Details

MEZZ-200-DW

Printer Friendly
MEZZ-200-DW

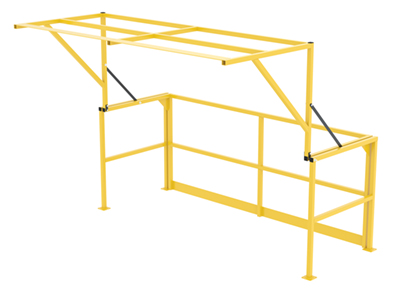

Steel Mezzanine Safety Double Wide Gate 79-5/16 In. x 108-1/2 In. x 80-1/16 In. Yellow

The mezzanine safety gate provides an OSHA required handrail, mid-rail and kick plate for mezzanine without sacrificing load accessibility. To accommodate the maximum load height, when utilizing a standard pallet, load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. The gate rotates and design is balanced to allow for easy operation without use of springs.

  • Access to mezzanines with safety first concept
  • Manually operated gate rotates to allow access mezzanine
  • Heavy-duty welded steel construction provides long lasting use
  • Powder coat safety yellow finish offers an attractive appearance
Total Ship Wt.(lbs.): 284 (only 1 package) Size: 108.5"W x 79.3125"L x 80.0625"H Color: Yellow

Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 Kickplate Height (in.): 4
Usable Width (in.): 96 Maximum Load Height (in.) / Utilizing pallet quantity/width/length (in.): 68 / (2) 48 x 48 Attachment Method: Lag Bolts
Compliance: OSHA 29 CFR 1910.23 ( e ) Tubing Size Square (in.): 1-1/2 x 1-1/2 Tube Thickness (in.): .083

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: MEZZ-200-DW
MEZZ-200-DW

Steel Mezzanine Safety Double Wide Gate 79-5/16 In. x 108-1/2 In. x 80-1/16 In. Yellow

The mezzanine safety gate provides an OSHA required handrail, mid-rail and kick plate for mezzanine without sacrificing load accessibility. To accommodate the maximum load height, when utilizing a standard pallet, load positioning within the gate is critical. For greatest amount of clearance and item placement flexibility, shorter loads are recommended. The gate rotates and design is balanced to allow for easy operation without use of springs.

  • Access to mezzanines with safety first concept
  • Manually operated gate rotates to allow access mezzanine
  • Heavy-duty welded steel construction provides long lasting use
  • Powder coat safety yellow finish offers an attractive appearance
Dimensions: 108.5"W x 79.3125"L x 80.0625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215227414 GTIN: 00691215227414
Warranty: -- Shipping Weight: 284 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Handrail Height (in.): 42-3/8 Mid-Rail Height (in.): 21 Kickplate Height (in.): 4
Usable Width (in.): 96 Maximum Load Height (in.) / Utilizing pallet quantity/width/length (in.): 68 / (2) 48 x 48 Attachment Method: Lag Bolts
Compliance: OSHA 29 CFR 1910.23 ( e ) Tubing Size Square (in.): 1-1/2 x 1-1/2 Tube Thickness (in.): .083
