Model Details

PM5-2048-QL

PM5-2048-QL

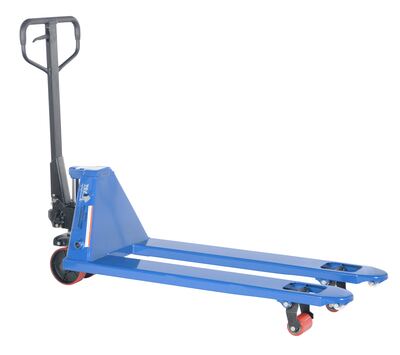

Steel Quick Lift Pallet Truck 59 In. x 20 In. x 48 In. 5500 Lb. Capacity Blue

The quick lift pallet truck lifts to a maximum height with just five to six (5-6) pumps. It reduces operating cost and is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. The hydraulic pump design facilitates easy access seal replacement. The chrome-plated hydraulic pump piston ensures long seal life.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Reach max height with empty unit in 6 pumps, 13 pumps when unit is loaded
Total Ship Wt.(lbs.): 184 (only 1 package) Size: 20"W x 59"L x 48"H Color: Blue QuickShip

Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 20 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 3 Load Roller Width (in.): 3-5/8
Number of Pumps to Maximum Height (Empty): 5-6 Number of Pumps to Maximum Height (Loaded): 12-13

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM5-2048-QL


PM5-2048-QL

Steel Quick Lift Pallet Truck 59 In. x 20 In. x 48 In. 5500 Lb. Capacity Blue

The quick lift pallet truck lifts to a maximum height with just five to six (5-6) pumps. It reduces operating cost and is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. The hydraulic pump design facilitates easy access seal replacement. The chrome-plated hydraulic pump piston ensures long seal life.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Reach max height with empty unit in 6 pumps, 13 pumps when unit is loaded
Dimensions: 20"W x 59"L x 48"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215077880 GTIN: 00691215077880
Warranty: -- Shipping Weight: 184 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 20 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 3 Load Roller Width (in.): 3-5/8
Number of Pumps to Maximum Height (Empty): 5-6 Number of Pumps to Maximum Height (Loaded): 12-13
