Model Details

PMRA-20

Printer Friendly
PMRA-20

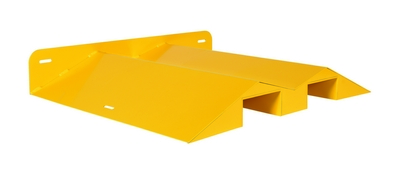

Steel Pallet Truck Roll Adapter 36-1/4 In. x 40-1/4 In. x 7 In. Yellow

The pallet roll adapter holds and transports rolls of material with standard pallet trucks. The sloped ends allow for manually rolling material into position. V-shaped center holds rolls in position. The built-in fork pockets allow for movement with a standard pallet truck. Unit has a heavy-duty welded construction with a painted finish.

  • Pallet roll adapter holds and transports rolls of material with standard pallet trucks
  • Sloped ends allow for manually rolling material into position
  • V-shaped center holds rolls in position
  • Heavy-duty welded construction for durability and long life
Total Ship Wt.(lbs.): 225 (only 1 package) Size: 40.25"W x 36.25"L x 7"H Color: Yellow

Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 3-1/2 Fork Pocket Spacing on Center (in.): 13-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
PMRA-20
Product Name
Steel Pallet Truck Roll Adapter 36-1/4 In. x 40-1/4 In. x 7 In. Yellow
UPC
691215067973
GTIN
00691215067973
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Loading Platform
Assembled Depth (in.)
36.25
Assembled Width(in.)
40.25
Assembled Height(in.)
7
Assembled Weight(lbs.)
167
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
China
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
15
Package Weight (in.)
225
Subclass
8
Freight Class
85
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine, s
NMFC Number
193100
LTL Freight
LTL Palletized
UNSPSC
24000000
HTSUS Number
8431390080
USMCA HS
8431.39
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PMRA-20
PMRA-20

Steel Pallet Truck Roll Adapter 36-1/4 In. x 40-1/4 In. x 7 In. Yellow

The pallet roll adapter holds and transports rolls of material with standard pallet trucks. The sloped ends allow for manually rolling material into position. V-shaped center holds rolls in position. The built-in fork pockets allow for movement with a standard pallet truck. Unit has a heavy-duty welded construction with a painted finish.

  • Pallet roll adapter holds and transports rolls of material with standard pallet trucks
  • Sloped ends allow for manually rolling material into position
  • V-shaped center holds rolls in position
  • Heavy-duty welded construction for durability and long life
Dimensions: 40.25"W x 36.25"L x 7"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215067973 GTIN: 00691215067973
Warranty: -- Shipping Weight: 225 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 3-1/2 Fork Pocket Spacing on Center (in.): 13-1/2
