Model Details

PMSS-50-DC

Printer Friendly
PMSS-50-DC

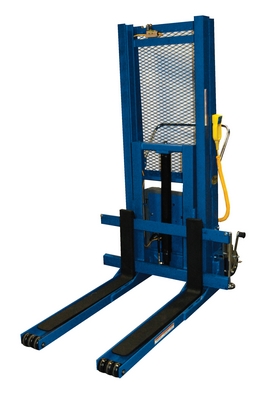

Steel Basket/Skid Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue

The basket and skid stacker transports open bottom pallets, skids, baskets, and crates with ease. It features a horizontal load center with swivel phenolic rear casters for a smooth roll. The DC power comes standard with an on-board charger.

  • Includes an on-board charger for longer battery life
  • Transport open bottom pallets, skids, baskets, and crates with ease
  • Features a horizontal load center for optimal use
  • Swivel phenolic rear casters for smooth maneuverability
Total Ship Wt.(lbs.): 1017 (only 1 package) Size: 39.75"W x 66"L x 78"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Fork Width (in.): 4 Fork Length (in.): 36
Lowered Height (in.): 3-1/2 Raised Height (in.): 50 Operation: (1) 12V DC
Handle Height (in.): 40 Overall Fork Width (in.): 26 Rear Caster Diameter (in.): (2) 8x3
Caster Type: Swivel Caster Material: Phenolic Lift Time (sec.): 30
Lowering Time Range (sec.): 20 to 35 Base Legs Inside Diameter (in.): 14-1/2 Base Legs Outside Diameter (in.): 29-1/2
Horizontal Load Center (in.): 18

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
PMSS-50-DC
Product Name
Steel Basket/Skid Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue
UPC
691215031042
GTIN
00691215031042
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / tilters
Taxonomy 4
Box Stacker
Taxonomy 5
Electric
Assembled Depth (in.)
66
Assembled Width(in.)
39.75
Assembled Height(in.)
78
Assembled Weight(lbs.)
1006
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
38
Package Height (in.)
87
Package Weight (in.)
1017
Subclass
7
Freight Class
110
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101606
HTSUS Number
8428900390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
42
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PMSS-50-DC
PMSS-50-DC

Steel Basket/Skid Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue

The basket and skid stacker transports open bottom pallets, skids, baskets, and crates with ease. It features a horizontal load center with swivel phenolic rear casters for a smooth roll. The DC power comes standard with an on-board charger.

  • Includes an on-board charger for longer battery life
  • Transport open bottom pallets, skids, baskets, and crates with ease
  • Features a horizontal load center for optimal use
  • Swivel phenolic rear casters for smooth maneuverability
Dimensions: 39.75"W x 66"L x 78"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215031042 GTIN: 00691215031042
Warranty: -- Shipping Weight: 1017 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4000 Fork Width (in.): 4 Fork Length (in.): 36
Lowered Height (in.): 3-1/2 Raised Height (in.): 50 Operation: (1) 12V DC
Handle Height (in.): 40 Overall Fork Width (in.): 26 Rear Caster Diameter (in.): (2) 8x3
Caster Type: Swivel Caster Material: Phenolic Lift Time (sec.): 30
Lowering Time Range (sec.): 20 to 35 Base Legs Inside Diameter (in.): 14-1/2 Base Legs Outside Diameter (in.): 29-1/2
Horizontal Load Center (in.): 18
