Model Details

PRDC-36

- Temporarily Unavailable - Please Contact Sales

Printer Friendly

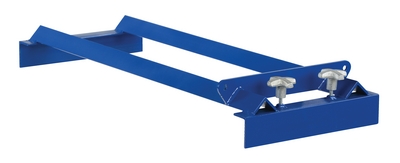

PRDC-36

Steel Pallet Rack Drum Cradle 36-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue

The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 61 (only 1 package) Size: 15.875"W x 36.5"L x 5.625"H Color: Blue

Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55 Acceptable Drum Type: Steel
Acceptable Pallet Rack Depth (in.): 36

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: PRDC-36
PRDC-36

Steel Pallet Rack Drum Cradle 36-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue

The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use
Dimensions: 15.875"W x 36.5"L x 5.625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215321617 GTIN: 00691215321617
Warranty: -- Shipping Weight: 61 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Acceptable Drum Size (gal.): 30 & 55 Acceptable Drum Type: Steel
Acceptable Pallet Rack Depth (in.): 36
