Model Details

RDBT-MR

RDBT-MR

Steel Drum Truck Cradle With Mold On Rubber Wheel 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity Yellow

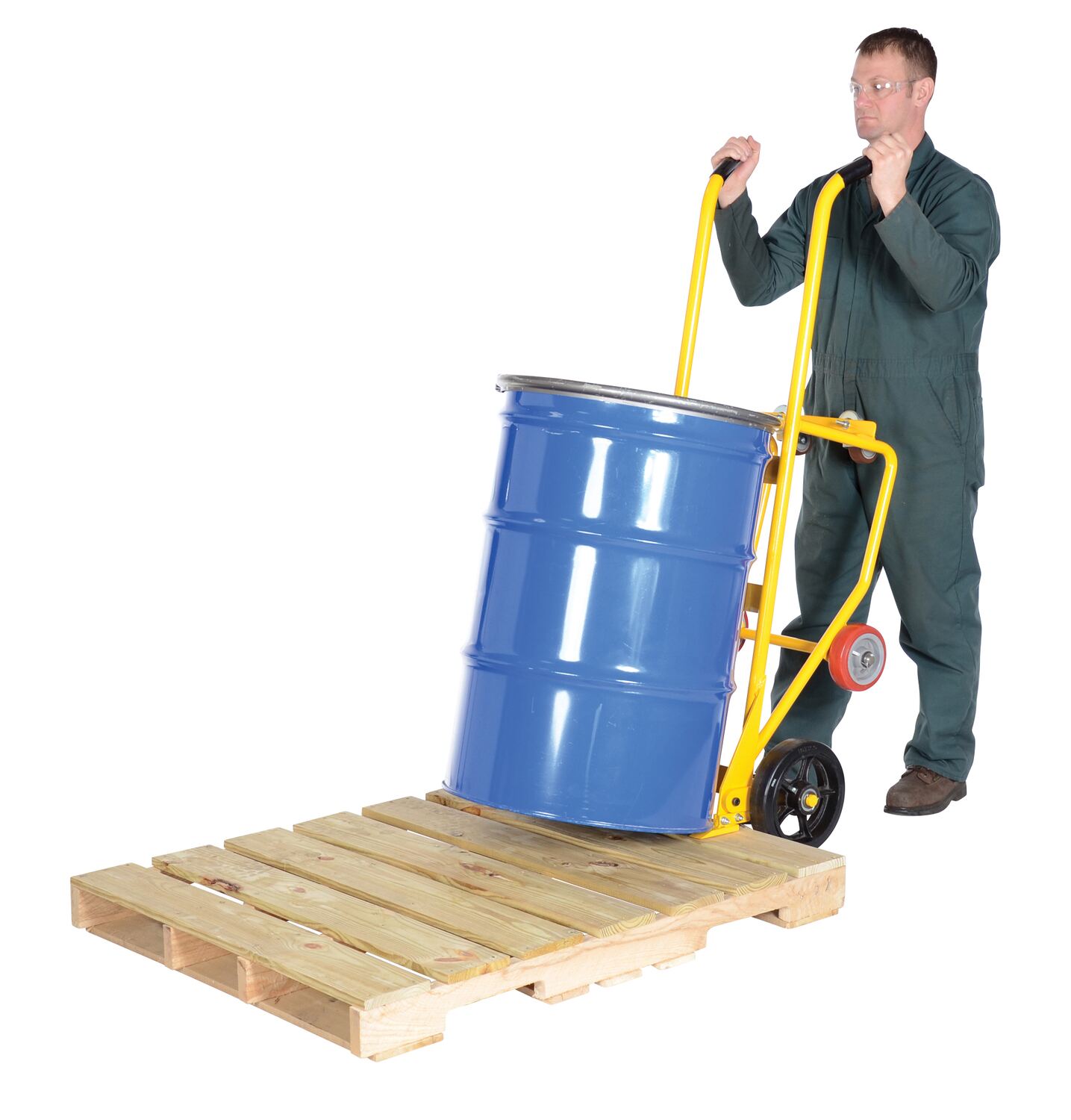

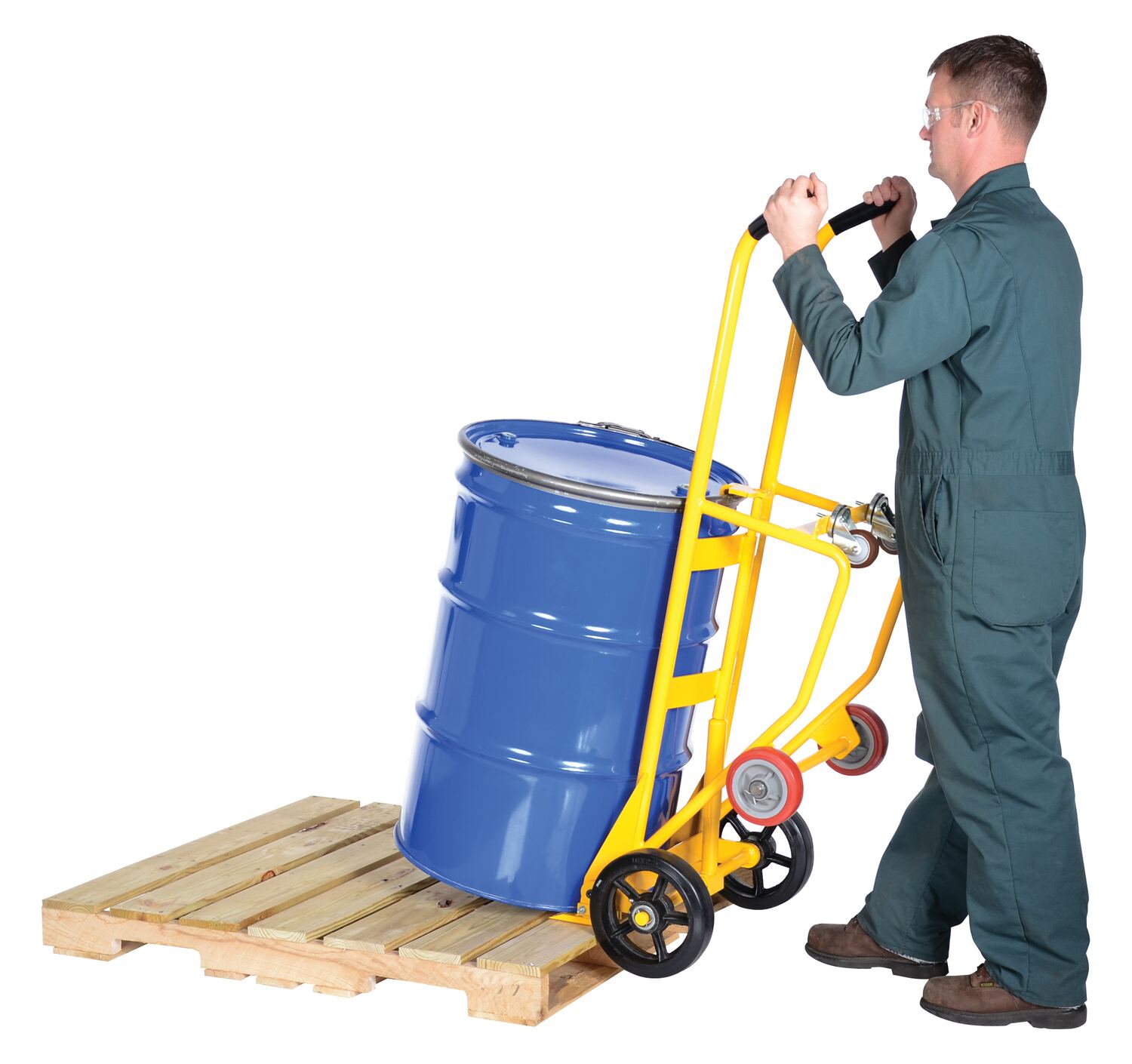

This multi-purpose drum truck/cradle is one of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four (4) wheels. Unit doubles as a drum cradle for storage and dispensing all in one. This unique design also allows the operator to place drums and retrieve off of a pallet. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. Powder coat finish.

  • Multi-purpose drum truck/cradle is versatile for ideal operation
  • Tip back the truck in order to transport drums ergonomically on four wheels

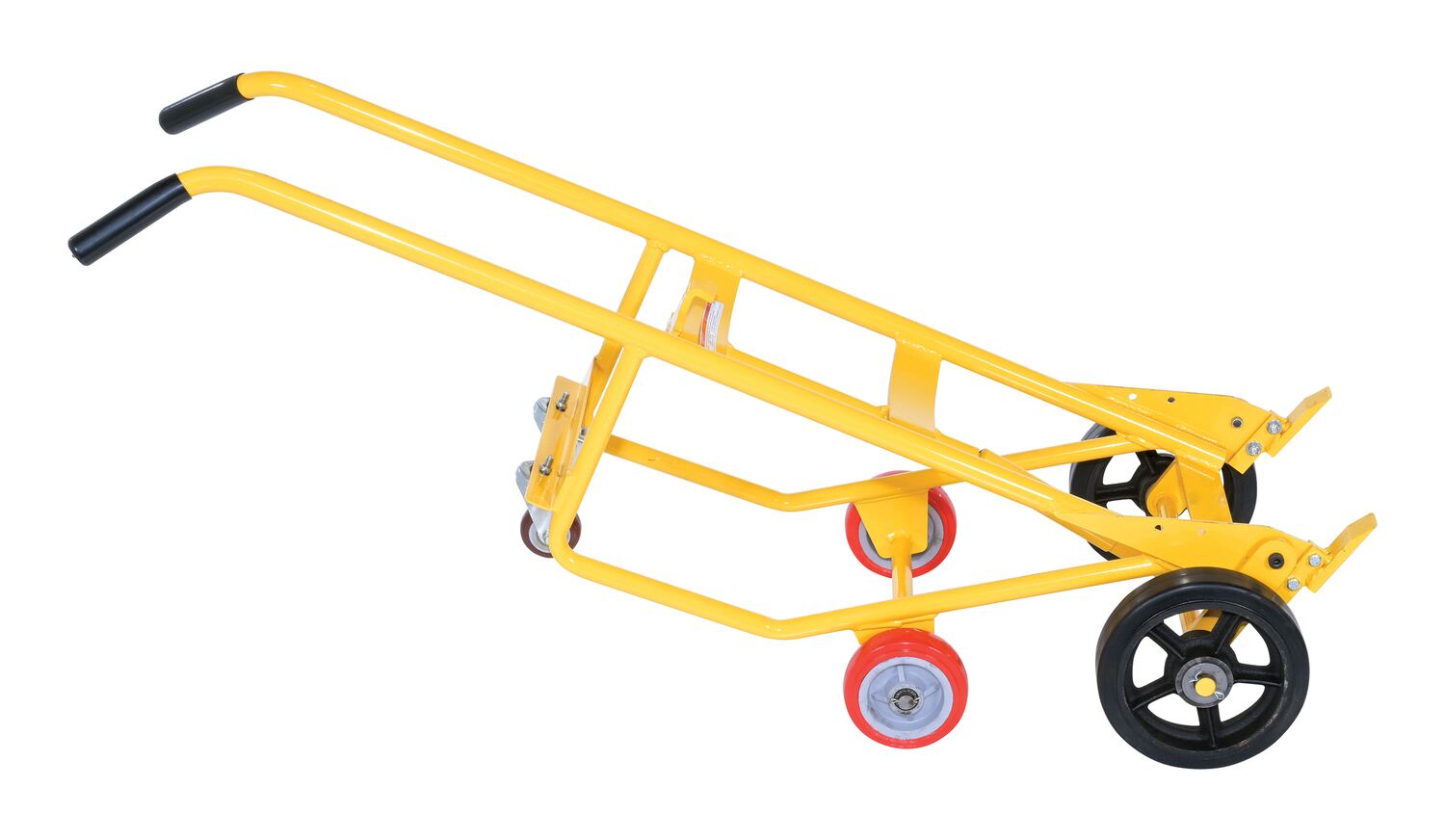

  • Features a wheeled undercarriage that positions the drum for drainage or storage
  • Includes an integral self-storing bung wrench
Total Ship Wt.(lbs.): 124 (only 1 package) Size: 23.6875"W x 20.0625"L x 60.625"H Color: Yellow QuickShip

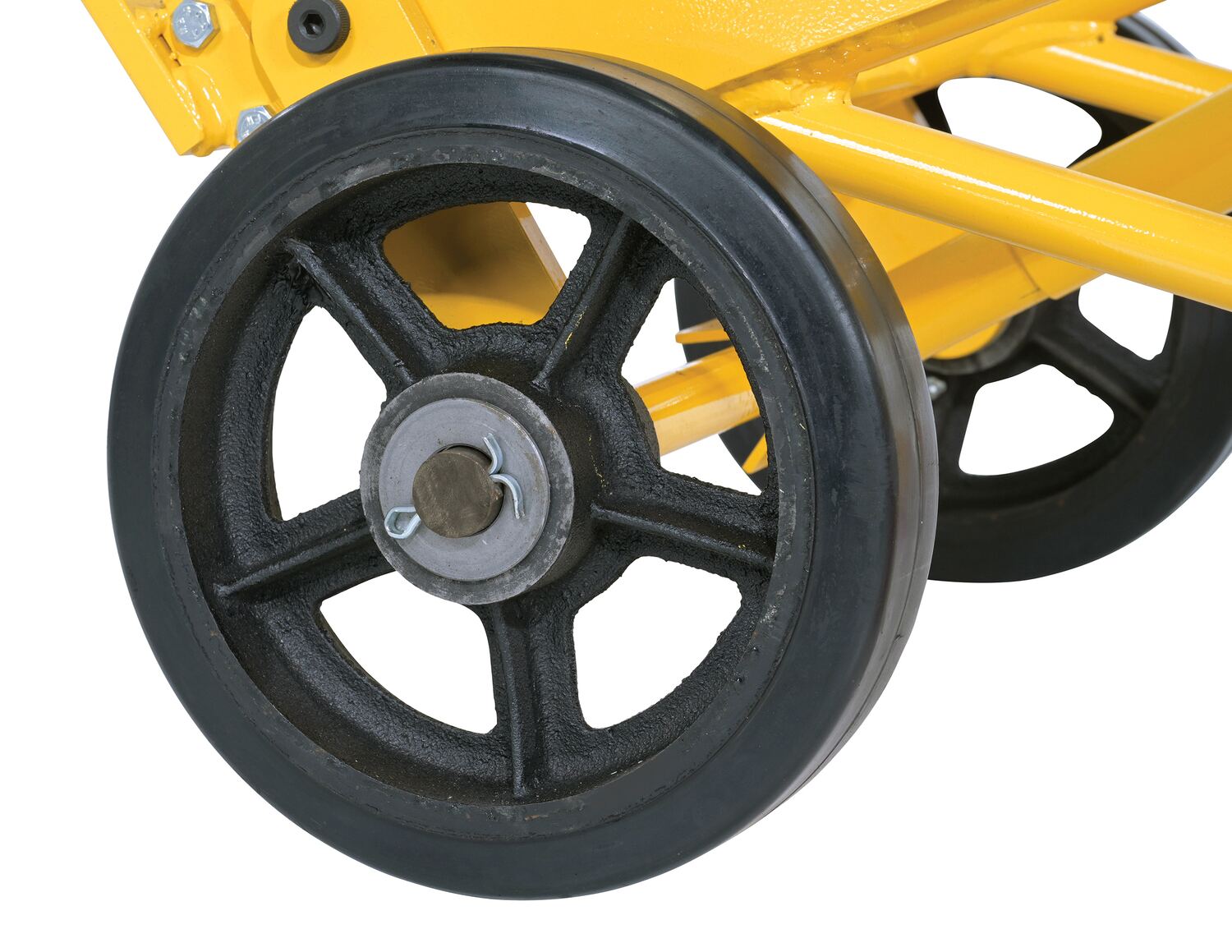

Uniform Capacity (lb.): 1,000 Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2 Poly on Poly Wheel Quantity/Diameter/Width (in.): (2) 6 x 2
Poly on Poly Swivel Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/4 Drain Height (in.): 12-13/16 Tip Angle (degree): 3
Accepts: 55-gallon steel, plastic or fiber drums Nose plate Depth (in.): 4 Nose plate Width (in.): 1-1/2
Nose plate Thickness (in.): 1/2 Number of Vertical Supports (quantity): 2 Usable Width (in.): 17-1/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: RDBT-MR


RDBT-MR

Steel Drum Truck Cradle With Mold On Rubber Wheel 20-1/16 In. x 23-11/16 In. x 60-5/8 In. 1000 Lb. Capacity Yellow

This multi-purpose drum truck/cradle is one of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four (4) wheels. Unit doubles as a drum cradle for storage and dispensing all in one. This unique design also allows the operator to place drums and retrieve off of a pallet. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. Powder coat finish.

  • Multi-purpose drum truck/cradle is versatile for ideal operation
  • Tip back the truck in order to transport drums ergonomically on four wheels
  • Features a wheeled undercarriage that positions the drum for drainage or storage
  • Includes an integral self-storing bung wrench
Dimensions: 23.6875"W x 20.0625"L x 60.625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215052900 GTIN: 00691215052900
Warranty: -- Shipping Weight: 124 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Mold-on-Rubber Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2 Poly on Poly Wheel Quantity/Diameter/Width (in.): (2) 6 x 2
Poly on Poly Swivel Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/4 Drain Height (in.): 12-13/16 Tip Angle (degree): 3
Accepts: 55-gallon steel, plastic or fiber drums Nose plate Depth (in.): 4 Nose plate Width (in.): 1-1/2
Nose plate Thickness (in.): 1/2 Number of Vertical Supports (quantity): 2 Usable Width (in.): 17-1/16
