Model Details

SCALE-SC20-55-20K

Printer Friendly
SCALE-SC20-55-20K

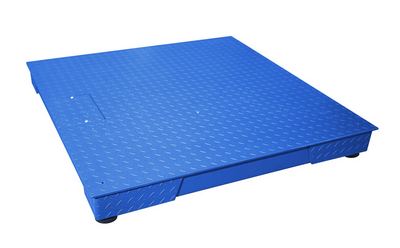

Steel Premium Heavy Duty Floor Scale 60 In. x 60 In. x 5-1/2 In. 20,000 Lb. Capacity

Heavy-duty, 10,000 pound capacity bases utilize a strong 2" channel perimeter and 7" @ 9.8# per foot channel understructure. Plate features up to 3/8" tread and the load cells are 5K-LE. 20,000 lb. capacity bases utilize 1/2" thick diamond plate with 10K-LE load cells. Scale-SC20-44-20K utilizes 7" @ 9.8# per foot channel under structure and the same perimeter. These are the ultimate, all around heavy bases! Contact factory for ramp options. Indexing accuracy is +/- 0.1% of applied load or 1 division.

  • Attachable to optional ramps for simpler weighing
  • Extended height scale for easy reading
  • Scale is AC powered for constant power supply
  • Large platform for weighing oversized loads
Total Ship Wt.(lbs.): 1183 (only 1 package) Size: 60"W x 60"L x 5.5"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 20000 Diamond Plate Thickness (in.): 1/2 Platform Width (in.): 60
Platform Length (in.): 60 Platform Height (in.): 5-1/2 Digital Display Volts: 115

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
SCALE-SC20-55-20K
Product Name
Steel Premium Heavy Duty Floor Scale 60 In. x 60 In. x 5-1/2 In. 20,000 Lb. Capacity
UPC
691215112390
GTIN
00691215112390
Taxonomy 1
Material Handling
Taxonomy 2
Scales
Taxonomy 3
Electronic Floor
Assembled Depth (in.)
60
Assembled Width(in.)
60
Assembled Height(in.)
5.5
Assembled Weight(lbs.)
1122
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
64
Package Height (in.)
6
Package Weight (in.)
1183
Freight Class
85
NMFC Code
Scales NOI in boxes or crates
NMFC Number
129500
LTL Freight
LTL Palletized
UNSPSC
41111509
HTSUS Number
8423820010
USMCA HS
8423.82
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Terre Haute, IN
Supplier Postal Code
47804
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2024 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SCALE-SC20-55-20K
SCALE-SC20-55-20K

Steel Premium Heavy Duty Floor Scale 60 In. x 60 In. x 5-1/2 In. 20,000 Lb. Capacity

Heavy-duty, 10,000 pound capacity bases utilize a strong 2" channel perimeter and 7" @ 9.8# per foot channel understructure. Plate features up to 3/8" tread and the load cells are 5K-LE. 20,000 lb. capacity bases utilize 1/2" thick diamond plate with 10K-LE load cells. Scale-SC20-44-20K utilizes 7" @ 9.8# per foot channel under structure and the same perimeter. These are the ultimate, all around heavy bases! Contact factory for ramp options. Indexing accuracy is +/- 0.1% of applied load or 1 division.

  • Attachable to optional ramps for simpler weighing
  • Extended height scale for easy reading
  • Scale is AC powered for constant power supply
  • Large platform for weighing oversized loads
Dimensions: 60"W x 60"L x 5.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215112390 GTIN: 00691215112390
Warranty: -- Shipping Weight: 1183 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 20000 Diamond Plate Thickness (in.): 1/2 Platform Width (in.): 60
Platform Length (in.): 60 Platform Height (in.): 5-1/2 Digital Display Volts: 115
