Model Details

SE-3642

SE-3642

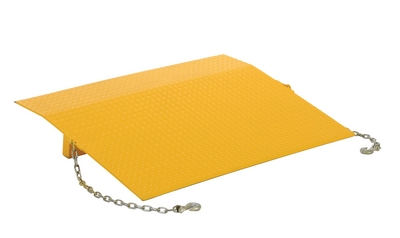

Steel Truck Dock Plate 42 In. x 36 In. x 7-9/16 In. 2,650 Lb. Capacity Yellow

The steel truck dock plate is constructed of high strength INX-55 (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degrees bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Raised pattern safety tread plate helps provide positive traction
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition
Total Ship Wt.(lbs.): 164 (only 1 package) Size: 36"W x 42"L x 7.5625"H Color: Yellow

Uniform Capacity (lb.): 2650 Height Difference (in.): 6 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Beveled Edge (in.): 10
Plate Thickness (in.): 3/8 OSHA: 1910.30(a) ANSI: MH 30.2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
SE-3642
Product Name
Steel Truck Dock Plate 42 In. x 36 In. x 7-9/16 In. 2,650 Lb. Capacity Yellow
UPC
691215053112
GTIN
00691215053112
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dockplates
Assembled Depth (in.)
42
Assembled Width(in.)
36
Assembled Height(in.)
7.5625
Assembled Weight(lbs.)
164
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
42
Package Width (in.)
36
Package Height (in.)
7
Package Weight (in.)
164
Subclass
2
Freight Class
60
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
LTL Freight
LTL Loose
UNSPSC
24101807
HTSUS Number
7326908688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Copyright © 2024 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SE-3642


SE-3642

Steel Truck Dock Plate 42 In. x 36 In. x 7-9/16 In. 2,650 Lb. Capacity Yellow

The steel truck dock plate is constructed of high strength INX-55 (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degrees bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Raised pattern safety tread plate helps provide positive traction
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition
Dimensions: 36"W x 42"L x 7.5625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215053112 GTIN: 00691215053112
Warranty: -- Shipping Weight: 164 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2650 Height Difference (in.): 6 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Beveled Edge (in.): 10
Plate Thickness (in.): 3/8 OSHA: 1910.30(a) ANSI: MH 30.2
