SE-5448
SE-5448 SE-5448 SE-5448 SE-5448

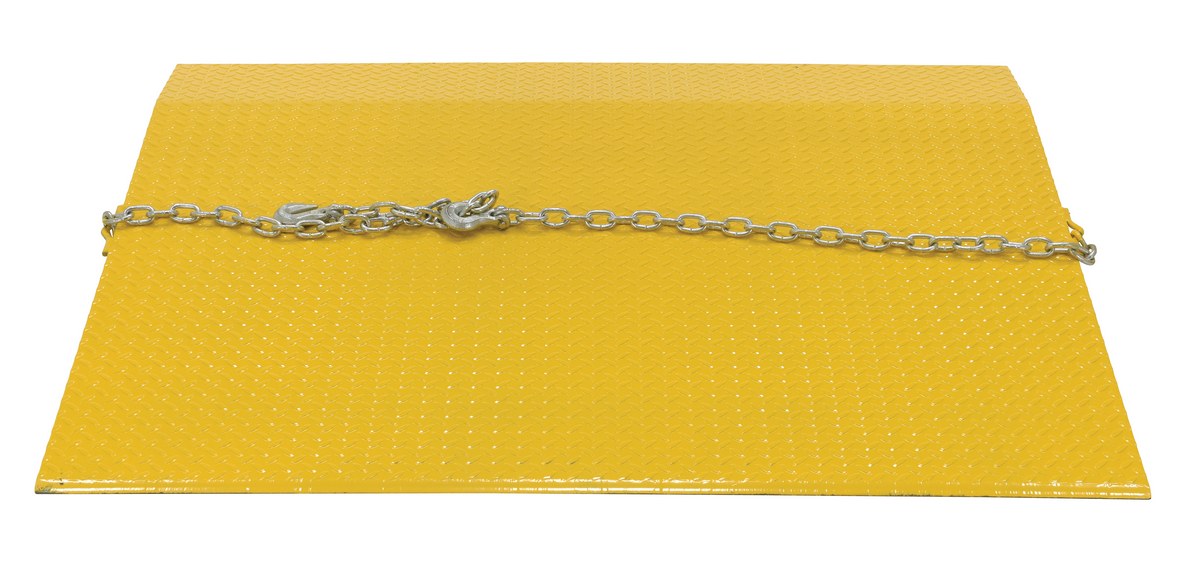

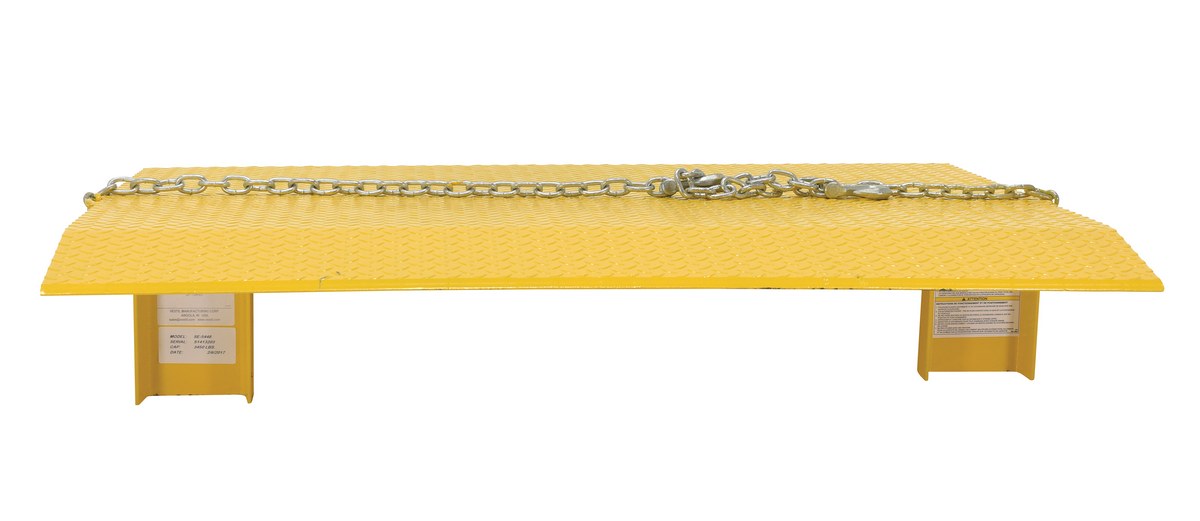

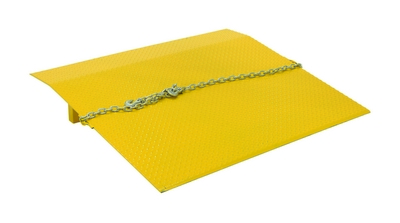

Steel Truck Dock Plate 48 In. x 54 In. x 9-9/16 In. 3,450 Lb. Capacity Yellow

The steel truck dock plate is constructed of high strength INX-55 (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degrees bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Raised pattern safety tread plate helps provide positive traction
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition
Assembled Wt.(lbs.): 288 Assembled Size: 54"W x 48"L x 9.5625"H

Total Ship Wt.(lbs.): 304 (only 1 package) Package 1 Size: 54"W x 48"D x 7"H Color: Yellow

Uniform Capacity (lb.): 3450 Height Difference (in.): 7 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Beveled Edge (in.): 10
Plate Thickness (in.): 3/8 OSHA: 1910.30(a) ANSI: MH 30.2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Marketing Specs.

MFG Model # (Series)
SE-5448
Product Name
Steel Truck Dock Plate 48 In. x 54 In. x 9-9/16 In. 3,450 Lb. Capacity Yellow
Assembled Depth (in.)
48
Assembled Width(in.)
54
Assembled Height(in.)
9.5625
Assembled Weight(lbs.)
288
Color/Finish
Yellow

Logistics

Package Depth (in.)
48
Package Width (in.)
54
Package Height (in.)
7
Package Weight (in.)
304
LTL Freight
LTL Loose

Warranty

Manufactuer Warranty
90 Days Limited Warranty
Returnable? Y/N
Y

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SE-5448
SE-5448

Steel Truck Dock Plate 48 In. x 54 In. x 9-9/16 In. 3,450 Lb. Capacity Yellow

The steel truck dock plate is constructed of high strength INX-55 (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degrees bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Raised pattern safety tread plate helps provide positive traction
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition
Dimensions: 54"W x 48"L x 9.5625"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 304 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 3450 Height Difference (in.): 7 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Beveled Edge (in.): 10
Plate Thickness (in.): 3/8 OSHA: 1910.30(a) ANSI: MH 30.2
