SHEET-200

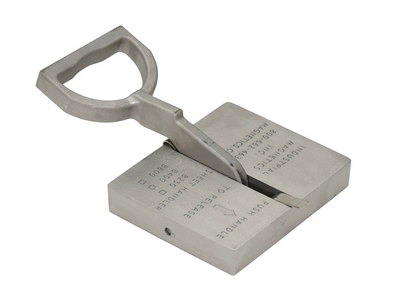

Sheet Handler 11-1/2 In. x 7-1/4 In. x 4 In. 200 Lb. Working Capacity Silver

The sheet handlers are a great addition to manufacturing and industrial facilities. The strong construction with attached magnets allows the user to maneuver specific products into position for simpler, safer handling. The easily accessible handle provides the user with a sure grip and a fast efficient way of releasing the products from the strength of the magnets. The units offer increased productivity for handling sheets stacked horizontally or vertically, that are hot or oily. For best use, simply place the sheet handler on the material and pull the handle back to magnetize, when finished transferring push the handle forward to demagnetize.

  • Sheet handler allows to grab and control the steel sheet that is being handled
  • Ideal for fork truck attachments for maximum efficiency
  • Made from sturdy construction for long life
  • Use in industrial applications for optimal results
Total Ship Wt.(lbs.): 8 (only 1 package) Size: 7.25"W x 11.5"L x 4"H Color: Silver QuickShip

Uniform Working Capacity (lb.): 200 Maximum Penetration (in.): 5/16 Magnet Width/Length (in.): 7 x 6-1/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: SHEET-200
SHEET-200

Sheet Handler 11-1/2 In. x 7-1/4 In. x 4 In. 200 Lb. Working Capacity Silver

The sheet handlers are a great addition to manufacturing and industrial facilities. The strong construction with attached magnets allows the user to maneuver specific products into position for simpler, safer handling. The easily accessible handle provides the user with a sure grip and a fast efficient way of releasing the products from the strength of the magnets. The units offer increased productivity for handling sheets stacked horizontally or vertically, that are hot or oily. For best use, simply place the sheet handler on the material and pull the handle back to magnetize, when finished transferring push the handle forward to demagnetize.

  • Sheet handler allows to grab and control the steel sheet that is being handled
  • Ideal for fork truck attachments for maximum efficiency
  • Made from sturdy construction for long life
  • Use in industrial applications for optimal results
Dimensions: 7.25"W x 11.5"L x 4"H Sell UOM: EA-Each Color: Silver
Material: Neodymium UPC: 691215092753 GTIN: 00691215092753
Warranty: -- Shipping Weight: 8 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Working Capacity (lb.): 200 Maximum Penetration (in.): 5/16 Magnet Width/Length (in.): 7 x 6-1/8
