Model Details

SWR-18-12-72

Printer Friendly
SWR-18-12-72

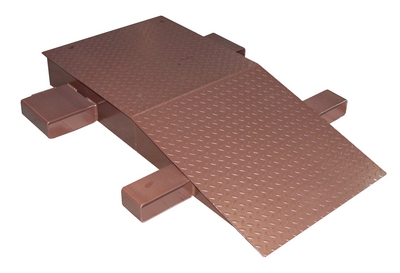

Steel Wheel Riser 72 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown

Wheel risers are designed to raise trailers to an appropriate crossover height for loaded fork trucks. Made of heavy-duty welded steel construction, these wheel risers are built to last! Each riser is equipped with fork pockets for easy transportation wherever a fork truck is available. Ramps may be stacked for convenient storage when not in use. Wheel risers are sold and priced as individual units.

  • Ramps can be stacked for compact storage when not in use
  • Raised diamond tread plate surface provides a non-slip grip
  • Built-in fork pockets allow movement with a fork truck
  • Designed for compliance with OSHA/ANSI B56.1 part 3 sec 38
Total Ship Wt.(lbs.): 357 (only 1 package) Size: 32.5"W x 72"L x 12.25"H Color: Brown

Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4 Usable Width (in.): 18
Level Length (in.): 24 Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 2-1/2
OSHA : 1910.30 (a) ANSI : B56.1 part 3 sec 7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
SWR-18-12-72
Product Name
Steel Wheel Riser 72 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown
UPC
691215038263
GTIN
00691215038263
Taxonomy 1
Automotive
Taxonomy 2
Accessories
Taxonomy 3
Truck & Towing
Taxonomy 4
Light Truck & Van
Taxonomy 5
Loading Ramps
Taxonomy 6
Loading Ramps
Assembled Depth (in.)
72
Assembled Width(in.)
32.5
Assembled Height(in.)
12.25
Assembled Weight(lbs.)
251
Color/Finish
Brown
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
84
Package Width (in.)
44
Package Height (in.)
32
Package Weight (in.)
357
Subclass
5
Freight Class
110
NMFC Code
Lifts Ramps or Runways vehicle or Parts thereof
NMFC Number
111220
LTL Freight
LTL Palletized
UNSPSC
24101615
HTSUS Number
7326908688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SWR-18-12-72
SWR-18-12-72

Steel Wheel Riser 72 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown

Wheel risers are designed to raise trailers to an appropriate crossover height for loaded fork trucks. Made of heavy-duty welded steel construction, these wheel risers are built to last! Each riser is equipped with fork pockets for easy transportation wherever a fork truck is available. Ramps may be stacked for convenient storage when not in use. Wheel risers are sold and priced as individual units.

  • Ramps can be stacked for compact storage when not in use
  • Raised diamond tread plate surface provides a non-slip grip
  • Built-in fork pockets allow movement with a fork truck
  • Designed for compliance with OSHA/ANSI B56.1 part 3 sec 38
Dimensions: 32.5"W x 72"L x 12.25"H Sell UOM: EA-Each Color: Brown
Material: Steel UPC: 691215038263 GTIN: 00691215038263
Warranty: -- Shipping Weight: 357 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4 Usable Width (in.): 18
Level Length (in.): 24 Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 2-1/2
OSHA : 1910.30 (a) ANSI : B56.1 part 3 sec 7
