Model Details

SWR-18-6-60

- Temporarily Unavailable - Please Contact Sales

SWR-18-6-60

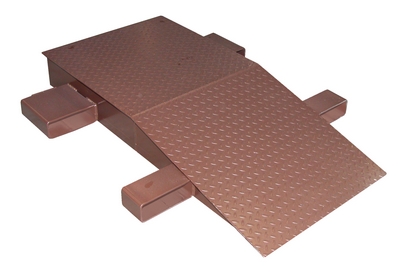

Steel Wheel Riser 60 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown

Wheel risers are designed to raise trailers to an appropriate crossover height for loaded fork trucks. Made of heavy-duty welded steel construction, these wheel risers are built to last! Each riser is equipped with fork pockets for easy transportation wherever a fork truck is available. Ramps may be stacked for convenient storage when not in use. Wheel risers are sold and priced as individual units.

  • Ramps can be stacked for compact storage when not in use
  • Raised diamond tread plate surface provides a non-slip grip
  • Built-in fork pockets allow movement with a fork truck
  • Designed for compliance with OSHA/ANSI B56.1 part 3 sec 38
Total Ship Wt.(lbs.): 255 (only 1 package) Size: 32.5"W x 60"L x 6.25"H Color: Brown

Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4 Usable Width (in.): 18
Level Length (in.): 36 Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 2-1/2
OSHA : 1910.30 (a) ANSI : B56.1 part 3 sec 7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SWR-18-6-60


SWR-18-6-60

Steel Wheel Riser 60 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown

Wheel risers are designed to raise trailers to an appropriate crossover height for loaded fork trucks. Made of heavy-duty welded steel construction, these wheel risers are built to last! Each riser is equipped with fork pockets for easy transportation wherever a fork truck is available. Ramps may be stacked for convenient storage when not in use. Wheel risers are sold and priced as individual units.

  • Ramps can be stacked for compact storage when not in use
  • Raised diamond tread plate surface provides a non-slip grip
  • Built-in fork pockets allow movement with a fork truck
  • Designed for compliance with OSHA/ANSI B56.1 part 3 sec 38
Dimensions: 32.5"W x 60"L x 6.25"H Sell UOM: EA-Each Color: Brown
Material: Steel UPC: 691215038300 GTIN: 00691215038300
Warranty: -- Shipping Weight: 255 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4 Usable Width (in.): 18
Level Length (in.): 36 Usable Fork Pocket Width (in.): 7-1/2 Usable Fork Pocket Height (in.): 2-1/2
OSHA : 1910.30 (a) ANSI : B56.1 part 3 sec 7
