← All Products- ← - ← -← - SWR-CPL-18-12-108

SWR-CPL-18-12-108

Printer Friendly
SWR-CPL-18-12-108

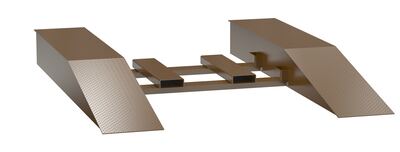

Steel Wheel Risers With Pick-Up Loop 108 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown

The steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.

  • Built-in fork pocket loop
  • Raised diamond tread plate surface provides a non-slip grip
  • 24" fork pocket center
  • 1/4" thick material
Assembled Wt.(lbs.): 908 Assembled Size: 89.125"W x 108.0625"L x 12.25"H

Total Ship Wt.(lbs.): 958 (only 1 package) Package 1 Size: 40"W x 108"D x 23"H Color: Brown Non-Returnable

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

30 Days Limited Warranty

Marketing Specs.

MFG Model # (Series)
SWR-CPL-18-12-108
Product Name
Steel Wheel Risers With Pick-Up Loop 108 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown
Assembled Depth (in.)
108.0625
Assembled Width(in.)
89.125
Assembled Height(in.)
12.25
Assembled Weight(lbs.)
908
Color/Finish
Brown

Logistics

Package Depth (in.)
108
Package Width (in.)
40
Package Height (in.)
23
Package Weight (in.)
958
LTL Freight
LTL Palletized

Warranty

Manufactuer Warranty
30 Days Limited Warranty
Returnable? Y/N
N

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SWR-CPL-18-12-108
SWR-CPL-18-12-108

Steel Wheel Risers With Pick-Up Loop 108 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown

The steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.

  • Built-in fork pocket loop
  • Raised diamond tread plate surface provides a non-slip grip
  • 24" fork pocket center
  • 1/4" thick material
Dimensions: 89.125"W x 108.0625"L x 12.25"H Sell UOM: -- Color: Brown
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 958 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
