Model Details

TAS-10-5460

TAS-10-5460

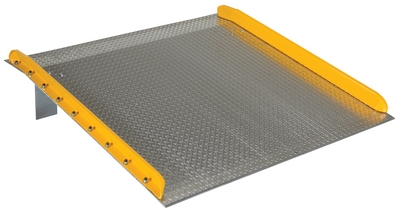

Aluminum Dock Board Steel Curb 54 In. x 60 In. 10,000 Lb. Capacity Silver

The Aluminum truck dock board with steel safety curbs is designed for portability and safety. The deck is made of tough high strength aluminum tread plate. The edges are beveled for smooth entry and exit. Safety curbs are coated yellow and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Canted locking legs for easier truck portability. Manufactured in compliance with OSHA. The capacity is based upon the heaviest type of equipment used plus the maximum load carried times the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least fifteen (15) inches wider than the load or equipment passing between the curbs. If the load does not pass between curbs, but is elevated above, add fifteen (15) inches to overall width of equipment.

  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs are within OSHA compliance
  • Beveled entrance and exit edges allow for smoother transition
  • Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use
Total Ship Wt.(lbs.): 157 (only 1 package) Size: 54"W x 60"L x 17"H Color: Silver

Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 10 Location of legs from beveled edge (in.): 11
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Usable Width (in.): 50-1/2
Usable Length (in.): 60 Plate Thickness (in.): 3/8 Curb Height (in.): 3
OSHA: 1910.30(a) ANSI: MH 30.2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
TAS-10-5460
Product Name
Aluminum Dock Board Steel Curb 54 In. x 60 In. 10,000 Lb. Capacity Silver
UPC
691215039291
GTIN
00691215039291
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dockboards & Accessories
Taxonomy 4
Dockboard
Assembled Depth (in.)
60
Assembled Width(in.)
54
Assembled Height(in.)
17
Assembled Weight(lbs.)
157
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
60
Package Width (in.)
54
Package Height (in.)
12
Package Weight (in.)
157
Subclass
1
Freight Class
100
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
LTL Freight
LTL Loose
UNSPSC
24101803
HTSUS Number
7610900080
USMCA HS
7610.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Copyright © 2024 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: TAS-10-5460


TAS-10-5460

Aluminum Dock Board Steel Curb 54 In. x 60 In. 10,000 Lb. Capacity Silver

The Aluminum truck dock board with steel safety curbs is designed for portability and safety. The deck is made of tough high strength aluminum tread plate. The edges are beveled for smooth entry and exit. Safety curbs are coated yellow and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Canted locking legs for easier truck portability. Manufactured in compliance with OSHA. The capacity is based upon the heaviest type of equipment used plus the maximum load carried times the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least fifteen (15) inches wider than the load or equipment passing between the curbs. If the load does not pass between curbs, but is elevated above, add fifteen (15) inches to overall width of equipment.

  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs are within OSHA compliance
  • Beveled entrance and exit edges allow for smoother transition
  • Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use
Dimensions: 54"W x 60"L x 17"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215039291 GTIN: 00691215039291
Warranty: -- Shipping Weight: 157 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 10 Location of legs from beveled edge (in.): 11
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Usable Width (in.): 50-1/2
Usable Length (in.): 60 Plate Thickness (in.): 3/8 Curb Height (in.): 3
OSHA: 1910.30(a) ANSI: MH 30.2
