TS-25-6630
TS-25-6630

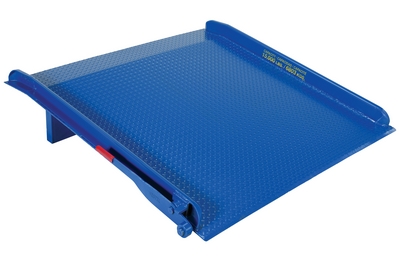

Steel Truck Dock Board 66 In. x 30 In. 25,000 Lb. Capacity Blue

The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit
Assembled Wt.(lbs.): 321 Assembled Size: 68.5625"W x 29.8125"L x 10"H

Total Ship Wt.(lbs.): 422 (only 1 package) Package 1 Size: 66"W x 30"D x 16"H Color: Blue

Uniform Capacity (lb.): 25000 Height Difference at 11 degree/19 percent (in.): 4 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Edge (in.): 12
Deck Thickness (in.): 1/2 OSHA: 1910.30(a) ANSI: MH 30.2
Usable Width (in.): 61-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Marketing Specs.

MFG Model # (Series)
TS-25-6630
Product Name
Steel Truck Dock Board 66 In. x 30 In. 25,000 Lb. Capacity Blue
Assembled Depth (in.)
29.8125
Assembled Width(in.)
68.5625
Assembled Height(in.)
10
Assembled Weight(lbs.)
321
Color/Finish
Blue

Logistics

Package Depth (in.)
30
Package Width (in.)
66
Package Height (in.)
16
Package Weight (in.)
422
LTL Freight
LTL Loose

Warranty

Manufactuer Warranty
90 Days Limited Warranty
Returnable? Y/N
Y

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: TS-25-6630
TS-25-6630

Steel Truck Dock Board 66 In. x 30 In. 25,000 Lb. Capacity Blue

The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit
Dimensions: 68.5625"W x 29.8125"L x 10"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 422 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 25000 Height Difference at 11 degree/19 percent (in.): 4 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Edge (in.): 12
Deck Thickness (in.): 1/2 OSHA: 1910.30(a) ANSI: MH 30.2
Usable Width (in.): 61-1/2
