Model Details

TS-25-6654

TS-25-6654

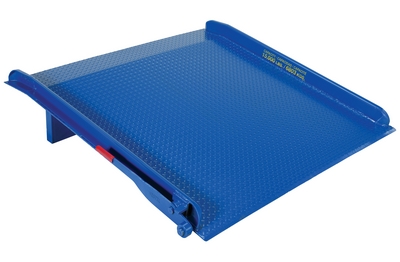

Steel Truck Dock Board 66 In. x 54 In. 25,000 Lb. Capacity Blue

The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit
Total Ship Wt.(lbs.): 669 (only 1 package) Size: 68.5625"W x 53.8125"L x 16.875"H Color: Blue

Uniform Capacity (lb.): 25000 Height Difference at 11 degree/19 percent (in.): 8-1/2 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Edge (in.): 12
Deck Thickness (in.): 1/2 OSHA: 1910.30(a) ANSI: MH 30.2
Usable Width (in.): 61-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Marketing Specs.

MFG Model # (Series)
TS-25-6654
Product Name
Steel Truck Dock Board 66 In. x 54 In. 25,000 Lb. Capacity Blue
UPC
691215043564
GTIN
00691215043564
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dockboards & Accessories
Taxonomy 4
Dockboard
Assembled Depth (in.)
53.8125
Assembled Width(in.)
68.5625
Assembled Height(in.)
16.875
Assembled Weight(lbs.)
571
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
54
Package Width (in.)
66
Package Height (in.)
16
Package Weight (in.)
669
Subclass
2
Freight Class
60
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
LTL Freight
LTL Loose
UNSPSC
24101807
HTSUS Number
7326908688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Copyright © 2024 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: TS-25-6654


TS-25-6654

Steel Truck Dock Board 66 In. x 54 In. 25,000 Lb. Capacity Blue

The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit
Dimensions: 68.5625"W x 53.8125"L x 16.875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215043564 GTIN: 00691215043564
Warranty: -- Shipping Weight: 669 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 25000 Height Difference at 11 degree/19 percent (in.): 8-1/2 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Edge (in.): 12
Deck Thickness (in.): 1/2 OSHA: 1910.30(a) ANSI: MH 30.2
Usable Width (in.): 61-1/2
