Model Details

ZLTT-4452-4-36

ZLTT-4452-4-36

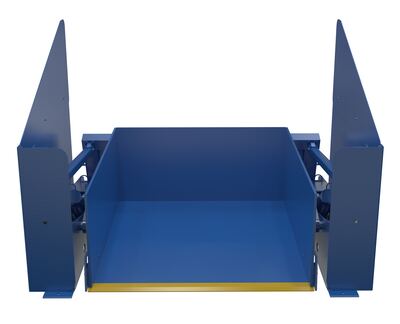

Steel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity Blue

The zero lift & tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote power unit with hand-held control is standard.

  • 45 Degrees maximum tilt angle positions loads to optimum ergonomic positions
  • Lift and tilt options are controlled separately allowing a precise working angle for the employee
  • No pit mounting required makes installation quick and easy
  • Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available
Total Ship Wt.(lbs.): 2230 (only 1 package) Size: 69"W x 60"L x 30"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Raised Height (in.): 36 Platform Width (in.): 44
Platform Length (in.): 51-1/2 Maximum Tilt (degrees): 45 Voltage/Phase: 460/3
Horsepower: 2 Power Cord Length (in.): 24

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ZLTT-4452-4-36


ZLTT-4452-4-36

Steel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity Blue

The zero lift & tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote power unit with hand-held control is standard.

  • 45 Degrees maximum tilt angle positions loads to optimum ergonomic positions
  • Lift and tilt options are controlled separately allowing a precise working angle for the employee
  • No pit mounting required makes installation quick and easy
  • Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available
Dimensions: 69"W x 60"L x 30"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215048828 GTIN: 00691215048828
Warranty: -- Shipping Weight: 2230 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 4000 Raised Height (in.): 36 Platform Width (in.): 44
Platform Length (in.): 51-1/2 Maximum Tilt (degrees): 45 Voltage/Phase: 460/3
Horsepower: 2 Power Cord Length (in.): 24
