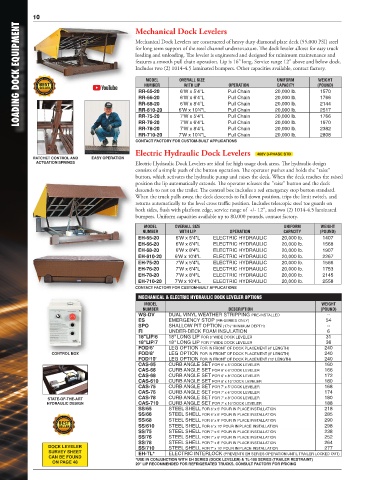

10                               Mechanical Dock Levelers
       LOADING DOCK EQUIPMENT                for long term support of the steel channel understructure. The dock leveler allows for easy truck


                                             Mechanical Dock Levelers are constructed of heavy duty diamond plate deck (55,000 PSI) steel
                                             loading and unloading. The leveler is engineered and designed for minimum maintenance and
                                             features a smooth pull chain operation. Lip is 16" long. Service range 12" above and below dock.
                                             Includes two (2) 1014-4.5 laminated bumpers. Other capacities available, contact factory.

                                                                                            UNIFORM
                                                            OVERALL SIZE
                                                 MODEL
                                                                                                         WEIGHT
                                                             WITH LIP
                                                                                                         (POUND)
                                                NUMBER
                                                                                            CAPACITY
                                                                            OPERATION
                                              RR-65-20
                                                            6'W x 5'4"L
                                                                           Pull Chain
                                                                                           20,000 lb.
                                                                                                          1570
                                              RR-66-20
                                                                           Pull Chain
                                                                                           20,000 lb.
                                                            6'W x 6'4"L
                                                                                                          1766
                                              RR-68-20
                                                            6'W x 8'4"L
                                              RR-610-20
                                                                                           20,000 lb.
                                                                           Pull Chain
                                                                                                          2517
                                              RR-75-20
                                                                                                          1766
                                                            7'W x 5'4"L
                                                                                           20,000 lb.
                                                                           Pull Chain
                                              RR-76-20
                                                            7'W x 6'4"L
                                                                                                          1970
                                                                           Pull Chain
                                                                                           20,000 lb.
                                              RR-78-20     6'W x 10'4"L    Pull Chain      20,000 lb.     2144
                                                                                                          2382
                                                                                           20,000 lb.
                                                                           Pull Chain
                                                            7'W x 8'4"L
                                              RR-710-20    7'W x 10'4"L    Pull Chain      20,000 lb.     2808
                                             CONTACT FACTORY FOR CUSTOM-BUILT APPLICATIONS
                                             Electric Hydraulic Dock Levelers        460V 3-PHASE STD
            RATCHET CONTROL AND   EASY OPERATION
             ACTUATION SPRINGS               Electric Hydraulic Dock Levelers are ideal for high usage dock areas. The hydraulic design
                                             consists of a simple push of the button operation. The operator pushes and holds the "raise"
                                             button, which activates the hydraulic pump and raises the deck. When the deck reaches the raised
                                             position the lip automatically extends. The operator releases the "raise" button and the deck
                                             descends to rest on the trailer. The control box includes a red emergency stop button standard.
                                             When the truck pulls away, the deck descends to full down position, trips the limit switch, and
                                             returns automatically to the level cross traffic position. Includes telescopic steel toe guards on
                                             both sides, flush with platform edge, service range of  +/- 12", and two (2) 1014-4.5 laminated
                                             bumpers. Uniform capacities available up to 80,000 pounds, contact factory.
                                                MODEL     OVERALL SIZE                        UNIFORM     WEIGHT
                                                NUMBER      WITH LIP        OPERATION         CAPACITY    (POUND)
                                              EH-65-20    6'W x 5'4"L  ELECTRIC HYDRAULIC    20,000 lb.   1407
                                              EH-66-20    6'W x 6'4"L  ELECTRIC HYDRAULIC    20,000 lb.   1568
                                              EH-68-20    6'W x 8'4"L  ELECTRIC HYDRAULIC    20,000 lb.   1907
                                              EH-610-20   6'W x 10'4"L  ELECTRIC HYDRAULIC   20,000 lb.   2267
                                              EH-75-20    7'W x 5'4"L  ELECTRIC HYDRAULIC    20,000 lb.   1566
                                              EH-76-20    7'W x 6'4"L  ELECTRIC HYDRAULIC    20,000 lb.   1753
                                              EH-78-20    7'W x 8'4"L  ELECTRIC HYDRAULIC    20,000 lb.   2145
                                              EH-710-20   7'W x 10'4"L  ELECTRIC HYDRAULIC   20,000 lb.   2558
                                             CONTACT FACTORY FOR CUSTOM-BUILT APPLICATIONS
                                              MECHANICAL & ELECTRIC HYDRAULIC DOCK LEVELER OPTIONS
                                                MODEL                                                     WEIGHT
                                                NUMBER                      DESCRIPTION                   (POUND)
                                              WS-DV     DUAL VINYL WEATHER STRIPPING PRE-INSTALLED          --
                                              ES        EMERGENCY STOP (RR-SERIES ONLY)                     54
                                              SPO       SHALLOW PIT OPTION (17½" MINIMUM DEPTH)             --
                                              FI        UNDER-DECK FOAM INSULATION                          6
                                              18"LIP/6  18" LONG LIP FOR 6' WIDE DOCK LEVELER               31
                                              18"LIP/7  18" LONG LIP FOR 7' WIDE DOCK LEVELER               36
                                              FOD/6'    LEG OPTION FOR IN FRONT OF DOCK PLACEMENT (6' LENGTH)  240
                  CONTROL BOX                 FOD/8'    LEG OPTION FOR IN FRONT OF DOCK PLACEMENT (8' LENGTH)  240
                                              FOD/10'   LEG OPTION FOR IN FRONT OF DOCK PLACEMENT (10' LENGTH)  240
                                              CAS-65    CURB ANGLE SET FOR 6' x 5' DOCK LEVELER            160
                                              CAS-66    CURB ANGLE SET FOR 6' x 6' DOCK LEVELER            166
                                              CAS-68    CURB ANGLE SET FOR 6' x 8' DOCK LEVELER            172
                                              CAS-610   CURB ANGLE SET FOR 6' x 10' DOCK LEVELER           180
                                              CAS-75    CURB ANGLE SET FOR 7' x 5' DOCK LEVELER            168
                                              CAS-76    CURB ANGLE SET FOR 7' x 6' DOCK LEVELER            174
                 STATE-OF-THE-ART             CAS-78    CURB ANGLE SET FOR 7' x 8' DOCK LEVELER            180
                HYDRAULIC DESIGN              CAS-710   CURB ANGLE SET FOR 7' x 10' DOCK LEVELER           188
                                              SS/65     STEEL SHELL FOR 6' x 5' POUR IN PLACE INSTALLATION  218
                                              SS/66     STEEL SHELL FOR 6' x 6' POUR IN PLACE INSTALLATION  285
                                              SS/68     STEEL SHELL FOR 6' x 8' POUR IN PLACE INSTALLATION  290
                                              SS/610    STEEL SHELL FOR 6' x 10' POUR IN PLACE INSTALLATION  298
                                              SS/75     STEEL SHELL FOR 7' x 5' POUR IN PLACE INSTALLATION  238
                                              SS/76     STEEL SHELL FOR 7' x 6' POUR IN PLACE INSTALLATION  252
                                              SS/78     STEEL SHELL FOR 7' x 8' POUR IN PLACE INSTALLATION  264
                 DOCK LEVELER                 SS/710    STEEL SHELL FOR 7' x 10' POUR IN PLACE INSTALLATION  277
                 SURVEY SHEET                 EH-TL*    ELECTRIC INTERLOCK (PREVENTS EH SERIES OPERATION UNTIL TRAILER LOCKED OUT)
                 CAN BE FOUND                *USE IN CONJUNCTION WITH EH SERIES (DOCK LEVELER) & TL-100 SERIES (TRAILER RESTRAINT)
                  ON PAGE 48                 20" LIP RECOMMENDED FOR REFRIGERATED TRUCKS, CONSULT FACTORY FOR PRICING
