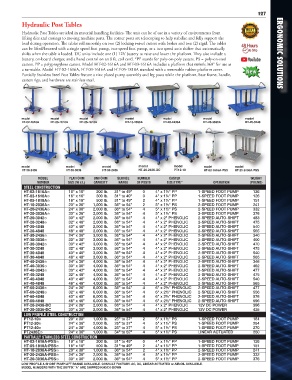

Hydraulic Post Tables
Hydraulic Post Tables are ideal in material handling facilities. The unit can be of use in a variety of environments from
lifting dies and castings to moving machine parts. The corner posts are telescoping to help stabilize and fully support the
load during operation. The tables roll smoothly on two (2) locking swivel casters with brakes and two (2) rigid. The tables
can be lifted/lowered with a single speed foot pump, two-speed foot pump, or a two speed auto shifter that automatically
shifts when the table is loaded. DC units include one (1) 12V battery to raise and lower the platform. They also include a ERGONOMIC SOLUTIONS
battery, on-board charger, and a hand control on an 8 ft. coil cord. *PP stands for poly-on-poly casters. PS = poly-on-steel
casters. PP = polypropylene casters. Model HT-02-1616A and HT-03-1616A includes a platform that swivels 360° for use as
a turntable. Model HT-02-1616A, HT-03-1616A and HT-05-1818A standard with a removable rubber platform cover. New
Partially Stainless Steel Post Tables feature a zinc plated pump assembly and leg posts while the platform, base frame, handle,
casters rigs, and hardware are stainless steel.
model model model model model model model
HT-02-1616A HT-03-1616A HT-05-1818A HT-10-2036A HT-20-2436A HT-20-3036A HT-20-3248
model model model model model model model
HT-30-2436 HT-30-3036 HT-60-2436 HT-20-2436-DC PT12-10 HT-02-1616A-PSS HT-20-2436A-PSS
MODEL PLATFORM UNIFORM SERVICE NUMBER CASTER WEIGHT
NUMBER SIZE (W x L) CAPACITY RANGE OF POSTS SIZE/TYPE* OPERATION (POUND)
STEEL CONSTRUCTION
HT-02-1616A� 16" x 16" 200 lb. 31" to 49" 0 4" x 1¼" PP 1-SPEED FOOT PUMP 126
HT-03-1616A� 16" x 16" 300 lb. 31" to 49" 0 4" x 1¼" PP 1-SPEED FOOT PUMP 126
HT-05-1818A� 18" x 18" 500 lb. 31" to 49" 2 4" x 1¼" PP 1-SPEED FOOT PUMP 151
HT-10-2036A� 20" x 36" 1,000 lb. 36" to 54" 2 5" x 1½" PS 2-SPEED FOOT PUMP 241
HT-20-2436A� 24" x 36" 2,000 lb. 36" to 54" 4 5" x 1½" PS 2-SPEED FOOT PUMP 332
HT-20-3036A� 30" x 36" 2,000 lb. 36" to 54" 4 5" x 1½" PS 2-SPEED FOOT PUMP 376
HT-20-3042� 30" x 42" 2,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 483
HT-20-3248� 32" x 48" 2,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 475
HT-20-4048 40" x 48" 2,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 540
HT-20-4848 48" x 48" 2,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 565
HT-30-2436� 24" x 36" 3,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 340
HT-30-3036� 30" x 36" 3,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 400
HT-30-3042� 30" x 42" 3,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 470
HT-30-3248 32" x 48" 3,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 475
HT-30-4048 40" x 48" 3,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 540
HT-30-4848 48" x 48" 3,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 565
HT-40-2436� 24" x 36" 4,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 346
HT-40-3036� 30" x 36" 4,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 462
HT-40-3042� 30" x 42" 4,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 477
HT-40-3248 32" x 48" 4,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 475
HT-40-4048 40" x 48" 4,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 540
HT-40-4848 48" x 48" 4,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 2-SPEED AUTO-SHIFT 565
HT-60-2436� 24" x 36" 6,000 lb. 36" to 54" 4 6" x 2½" PHENOLIC 2-SPEED AUTO-SHIFT 477
HT-60-3248� 32" x 48" 6,000 lb. 36" to 54" 4 6" x 2½" PHENOLIC 2-SPEED AUTO-SHIFT 556
HT-60-4048 40" x 48" 6,000 lb. 36" to 54" 4 6" x 2½" PHENOLIC 2-SPEED AUTO-SHIFT 576
HT-60-4848 48" x 48" 6,000 lb. 36" to 54" 4 6" x 2½" PHENOLIC 2-SPEED AUTO-SHIFT 596
HT-20-2436-DC 24" x 36" 2,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 12V DC POWER 396
HT-20-3036-DC 30" x 36" 2,000 lb. 36" to 54" 4 4" x 2" PHENOLIC 12V DC POWER 425
LOW PROFILE STEEL CONSTRUCTION
PT12-10� 20" x 30" 1,000 lb. 25" to 37" 2 5" x 1½" PS 1-SPEED FOOT PUMP 184
PT12-20� 24" x 36" 2,000 lb. 25" to 37" 4 5" x 1½" PS 1-SPEED FOOT PUMP 254
PT12-40� 24" x 36" 4,000 lb. 25" to 37" 4 5" x 1½" PS 1-SPEED FOOT PUMP 270
PT2436E� 24" x 36" 1,000 lb. 34" to 52" 4 5" x 1½" PS LINEAR ACTUATED 250
PARTIALLY STAINLESS STEEL CONSTRUCTION
HT-02-1616A-PSS� 16" x 16" 200 lb. 31" to 49" 0 4" x 1¼" PP 1-SPEED FOOT PUMP 126
HT-05-1818A-PSS� 18" x 18" 500 lb. 31" to 49" 2 4" x 1¼" PP 1-SPEED FOOT PUMP 151
HT-10-2036A-PSS� 20" x 36" 1,000 lb. 36" to 54" 2 4" x 1½" PP 2-SPEED FOOT PUMP 241
HT-20-2436A-PSS� 24" x 36" 2,000 lb. 36" to 54" 4 5" x 1½" PP 2-SPEED FOOT PUMP 332
HT-20-3036A-PSS� 30" x 36" 2,000 lb. 36" to 54" 4 5" x 1½" PP 2-SPEED FOOT PUMP 376
LOW PROFILE & SHORT PUMP LIFT RANGE AVAILABLE. CONSULT FACTORY. AC, DC, LINEAR ACTUATED or AIR/OIL AVAILABLE.
MODEL NUMBERS WITH THE SUFFIX "A" ARE SHIPPED KNOCK-DOWN
