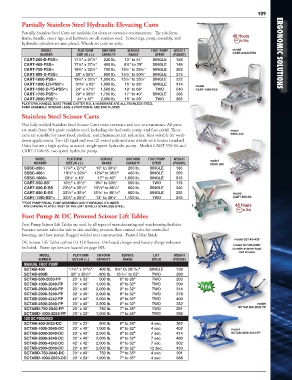

Page 37 - Ergonomic Solutions

129
Partially Stainless Steel Hydraulic Elevating Carts

Partially Stainless Steel Carts are available for clean or corrosive environments. The platform,
frame, handle, caster rigs, and hardware are all stainless steel. Scissor legs, pump assembly, and
hydraulic cylinders are zinc plated. Wheels are poly-on-poly.
MODEL PLATFORM UNIFORM SERVICE FOOT PUMP WEIGHT model
NUMBER SIZE (W x L) CAPACITY RANGE SPEED (POUND) CART-200-D-PSS ERGONOMIC SOLUTIONS
CART-200-D-PSS� 17½" x 27½" 220 lb. 10" to 51" SINGLE 158
CART-400-PSS� 17½" x 27½" 400 lb. 8¾" to 29" SINGLE 149
CART-750-PSS� 19¾" x 32½" 750 lb. 15½" to 35½" SINGLE 202
CART-800-D-PSS� 20" x 35½" 800 lb. 15½" to 50¾" SINGLE 275
CART-1000-PSS� 19¾" x 32½" 1,000 lb. 15½" to 35½" SINGLE 222
CART-1000-LD-PSS*� 31½" x 63" 1,000 lb. 15" to 36" SINGLE 314 model
CART-1500-D-TS-PSS*� 24" x 47½" 1,500 lb. 19" to 68" TWO 540 CART-1000-PSS
CART-1750-PSS*� 20" x 39½" 1,750 lb. 17" to 40" SINGLE 288
CART-2000-PSS*� 24" x 47" 2,000 lb. 15" to 39" TWO 395
PLATFORM, HANDLE, BASE FRAME CASTER RIG, & HARDWARE ARE ALL STAINLESS STEEL
PUMP ASSEMBLY, SCISSOR LEGS, & FOOT PEDAL ARE ZINC PLATED
Stainless Steel Scissor Carts
Our fully welded Stainless Steel Scissor Carts resist corrosive and wet environments. All parts
are made from 304 grade stainless steel, including the hydraulic pump and foot pedal. These model
carts are suitable for most food, medical, and pharmaceutical industries. Also suitable for wash- SSSC-400
down applications. Two (2) rigid and two (2) swivel polyurethane wheels with brakes standard.
Units feature a high quality actuated, single-speed hydraulic pump. Models CART-550-SS and
CART-1100-SS, two-speed hydraulic pump.
MODEL PLATFORM SERVICE UNIFORM FOOT PUMP WEIGHT model
NUMBER SIZE (W x L) RANGE CAPACITY SPEED (POUND) SSSC-200
SSSC-200� 17¾" x 27½" 10" to 30½" 200 lb. SINGLE 135
SSSC-400� 19½" x 32¾" 12¾" to 36½" 400 lb. SINGLE 209
SSSC-1000� 20½" x 40" 17" to 40" 1,000 lb. SINGLE 313
CART-550-SS* 19½" x 31½" 9¾" to 33½" 550 lb. TWO 179
5
3
1
1
CART-600-D-SS 23 /8" x 35 /2" 13 /8" to 56 /4" 600 lb. SINGLE 340
3
5
7
CART-800-D-SS 23 /8" x 35½" 13 /8" to 48 /16" 800 lb. SINGLE 335 model
CART-1100-SS*� 23½" x 35½" 13" to 38½" 1,100 lb. TWO 249 CART-550-SS
*FOOT PUMP PEDAL, PUMP ASSEMBLY, AND HYDRAULIC CYLINDER
ARE CHROME PLATED. REST OF THE UNIT IS FULLY STAINLESS STEEL.
Foot Pump & DC Powered Scissor Lift Tables
Foot Pump Scissor Lift Tables are used by all types of manufacturing and warehousing facilities.
Features torsion tubes for side to side stability, pressure flow control valve for controlled
lowering, and foot pump. Rugged welded steel construction. Painted blue finish.
model SCTAB-400
DC Scissor Lift Tables utilizes (1) 12V battery. On-board charger and battery charge indicator
model SCTAB-800D
included. Power options are located on page 108. (double scissor legs)
(not shown)
MODEL PLATFORM UNIFORM SERVICE LIFT WEIGHT
NUMBER SIZE (W x L) CAPACITY RANGE SPEED (POUND)
MANUAL FOOT PUMP
13
5
SCTAB-400 17¾" x 27 /8" 400 lb. 8½" to 28 /16" SINGLE 138
7
SCTAB-800D 20" x 35½" 800 lb. 15 /16" to 52" TWO 290
SCTAB-500-2033-FP 20" x 33" 500 lb. 6" to 28" TWO 263
SCTAB-1000-2040-FP 20" x 40" 1,000 lb. 8" to 32" TWO 298 New
SCTAB-2000-2040-FP 20" x 40" 2,000 lb. 8" to 32" TWO 314
SCTAB-2000-3240-FP 32" x 40" 2,000 lb. 8" to 32" TWO 379
SCTAB-2000-4242-FP 42" x 42" 2,000 lb. 8" to 32" TWO 400
SCTAB-2500-2040-FP 20" x 40" 2,500 lb. 8" to 32" TWO 332 model
SCTABD-750-2040-FP 20" x 40" 750 lb. 7" to 35" TWO 291 SCTAB-500-2033-FP
SCTABD-1000-2033-FP 20" x 33" 1,000 lb. 7" to 35" TWO 288
12V DC POWERED
SCTAB-500-2033-DC 20" x 33" 500 lb. 6" to 28" 4 sec. 362
SCTAB-1000-2040-DC 20" x 40" 1,000 lb. 8" to 32" 4 sec. 402 model
SCTAB-2000-2040-DC 20" x 40" 2,000 lb. 8" to 32" 7 sec. 414 SCTAB-2000-4242-FP
SCTAB-2000-3240-DC 32" x 40" 2,000 lb. 8" to 32" 7 sec. 480
SCTAB-2000-4242-DC 42" x 42" 2,000 lb. 8" to 32" 7 sec. 502
SCTAB-2500-2040-DC 20" x 40" 2,500 lb. 8" to 32" 12 sec. 433
SCTABD-750-2040-DC 20" x 40" 750 lb. 7" to 35" 4 sec. 391
SCTABD-1000-2033-DC 20" x 33" 1,000 lb. 7" to 35" 4 sec. 388
