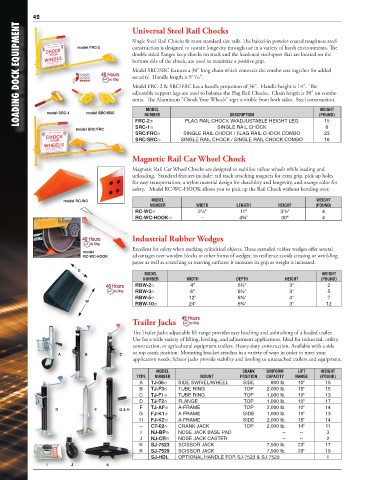

Page 36 - Loading Dock Equipment

42 Universal Steel Rail Chocks
LOADING DOCK EQUIPMENT model FRC-2 construction is designed to sustain longevity through use in a variety of harsh environments. The

Single Steel Rail Chocks fit most standard size rails. The baked-in powder-coated toughness steel
double sided flanges keep chocks on track and the hardened steel spurs that are located on the
bottom side of the chock, are used to maximize a positive grip.
Model SRC/SRC features a 30" long chain which connects the combo sets together for added
11
security. Handle length is 9 /16".
Model FRC-2 & SRC/FRC has a handle projection of 36". Handle height is 14". The
adjustable support legs are used to balance the Flag Rail Chocks. Chain length is 30" on combo
units. The Aluminum "Chock Your Wheels" sign is visible from both sides. Steel construction.
MODEL
WEIGHT
model SRC-1
model SRC/SRC
DESCRIPTION
NUMBER
15
8
SINGLE RAIL CHOCK
SRC-1�
model SRC/FRC FRC-2� FLAG RAIL CHOCK W/ADJUSTABLE HEIGHT LEG (POUND)
SRC/FRC� SINGLE RAIL CHOCK / FLAG RAIL CHOCK COMBO 23
SRC/SRC� SINGLE RAIL CHOCK / SINGLE RAIL CHOCK COMBO 16
Magnetic Rail Car Wheel Chock
Magnetic Rail Car Wheel Chocks are designed to stabilize railcar wheels while loading and
unloading. Standard features include: rail track attaching magnets for extra grip, pick up holes
for easy transportation, a nylon material design for durability and longevity, and orange color for
safety. Model RC-WC-HOOK allows you to pick up the Rail Chock without bending over.
model RC-WC MODEL WEIGHT
NUMBER WIDTH LENGTH HEIGHT (POUND)
5
RC-WC� 2¼" 11" 3 /8" 4
RC-WC-HOOK� -- 4¾" 30" 4

Industrial Rubber Wedges
Excellent for safety when stacking cylindrical objects. These extruded rubber wedges offer several
model
RC-WC-HOOK advantages over wooden blocks or other forms of wedges: its resilience avoids creasing or wrinkling
paper as well as scratching or marring surfaces; it increases its grip as weight is increased.
D
MODEL WEIGHT
NUMBER WIDTH DEPTH HEIGHT (POUND)
RBW-2� 4" 6½" 3" 2
RBW-3� 6" 6½" 3" 5
RBW-5� 12" 6¾" 3" 7
W
RBW-10� 24" 6¾" 3" 12

Trailer Jacks
The Trailer Jacks adjustable lift range provides easy hitching and unhitching of a loaded trailer.
Use for a wide variety of lifting, leveling, and adjustment applications. Ideal for industrial, utility,
construction, or agricultural equipment trailers. Heavy-duty construction. Available with a side
or top crank position. Mounting bracket attaches in a variety of ways in order to meet your
A B C
application needs. Scissor jacks provide stability and leveling to unattached trailers and equipment.
MODEL CRANK UNIFORM LIFT WEIGHT
TYPE NUMBER MOUNT POSITION CAPACITY RANGE (POUND)
A TJ-06� SIDE SWIVEL/WHEEL SIDE 800 lb. 10" 15
B TJ-F3� TUBE RING TOP 2,000 lb. 15" 15
C TJ-F1� TUBE RING TOP 1,000 lb. 10" 13
D TJ-F2� FLANGE TOP 1,000 lb. 10" 17
F TJ-AF� A-FRAME TOP 2,000 lb. 10" 14
D F G & H
G FJ-K1� A-FRAME SIDE 1,000 lb. 15" 13
H FJ-K2� A-FRAME SIDE 2,000 lb. 15" 14
-- CT-02� CRANK JACK TOP 2,000 lb. 14" 11
I NJ-BP� NOSE JACK BASE PAD -- -- 3
J NJ-CR� NOSE JACK CASTER -- -- 2
K SJ-7523 SCISSOR JACK 7,500 lb. 23" 17
K SJ-7529 SCISSOR JACK 7,500 lb. 29" 19
- SJ-HDL OPTIONAL HANDLE FOR SJ-7523 & SJ-7529 1
I J K
