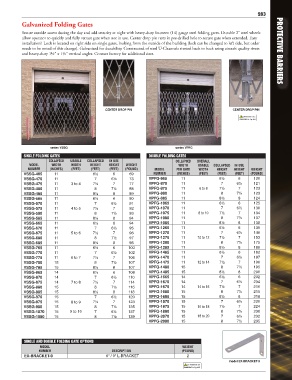

Page 35 - Protective Barriers

283
Galvanized Folding Gates

Secure outside access during the day and add security at night with heavy-duty fourteen (14) gauge steel folding gates. Durable 2" steel wheels
allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre-drilled hole to secure gate when extended. Easy
installation! Lock is located on right side on single gates, looking from the outside of the building (lock can be changed to left side, but order
needs to be noted of this change). Galvanized for durability. Constructed of steel U-Channels riveted back to back using aircraft quality rivets
and heavy-duty 1½" x 1½" vertical angles. Contact factory for additional sizes. PROTECTIVE BARRIERS

CENTER DROP PIN CENTER DROP PIN
CA Residents see
WARNING A, Pg. 459

series VSSG series VPFG
SINGLE FOLDING GATES DOUBLE FOLDING GATES
COLLAPSED USABLE COLLAPSED IN USE COLLAPSED OVERALL
MODEL WIDTH WIDTH HEIGHT HEIGHT WEIGHT WIDTH USABLE COLLAPSED IN USE
NUMBER (INCHES) (FEET) (FEET) (FEET) (POUND) MODEL PER GATE WIDTH HEIGHT HEIGHT WEIGHT
VSSG-465 11 6½ 6 69 NUMBER (INCHES) (FEET) (FEET) (FEET) (POUND)
VSSG-470 11 7 6½ 73 VPFG-865 11 6½ 6 120
VSSG-475 11 3 to 4 7½ 7 77 VPFG-870 11 7 6½ 121
VSSG-480 11 8 7½ 88 VPFG-875 11 6 to 8 7½ 7 123
VSSG-485 11 8½ 8 89 VPFG-880 11 8 7½ 123
VSSG-565 11 6½ 6 90 VPFG-885 11 8½ 8 124
VSSG-570 11 7 6½ 91 VPFG-1065 11 6½ 6 125
VSSG-575 11 4 to 5 7½ 7 92 VPFG-1070 11 7 6½ 130
VSSG-580 11 8 7½ 93 VPFG-1075 11 8 to 10 7½ 7 134
VSSG-585 11 8½ 8 94 VPFG-1080 11 8 7½ 137
VSSG-665 11 6½ 6 94 VPFG-1085 11 8½ 8 138
VSSG-670 11 7 6½ 95 VPFG-1265 11 6½ 6 139
VSSG-675 11 5 to 6 7½ 7 96 VPFG-1270 11 7 6½ 140
VSSG-680 11 8 7½ 97 VPFG-1275 11 10 to 12 7½ 7 153
VSSG-685 11 8½ 8 98 VPFG-1280 11 8 7½ 175
VSSG-765 11 6½ 6 100 VPFG-1285 11 8½ 8 180
VSSG-770 11 7 6½ 102 VPFG-1465 11 6½ 6 182
VSSG-775 11 6 to 7 7½ 7 106 VPFG-1470 11 7 6½ 187
VSSG-780 15 8 7½ 107 VPFG-1475 11 12 to 14 7½ 7 190
VSSG-785 15 8½ 8 107 VPFG-1480 15 8 7½ 195
VSSG-865 14 6½ 6 108 VPFG-1485 15 8½ 8 200
VSSG-870 14 7 6½ 110 VPFG-1665 14 6½ 6 202
VSSG-875 14 7 to 8 7½ 7 114 VPFG-1670 14 7 6½ 204
VSSG-880 15 8 7½ 116 VPFG-1675 14 14 to 16 7½ 7 210
VSSG-885 15 8½ 8 118 VPFG-1680 15 8 7½ 215
VSSG-970 15 7 6½ 120 VPFG-1685 15 8½ 8 218
VSSG-975 15 8 to 9 7½ 7 123 VPFG-1870 15 7 6½ 220
VSSG-980 15 8 7½ 135 VPFG-1875 15 16 to 18 7½ 7 224
VSSG-1070 15 9 to 10 7 6½ 137 VPFG-1880 15 8 7½ 230
VSSG-1080 15 8 7½ 139 VPFG-2070 15 18 to 20 7 6½ 232
VPFG-2080 15 8 7½ 235

SINGLE AND DOUBLE FOLDING GATE OPTIONS
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
EX-BRACKET-9 6" / 9" L-BRACKET 2
model EX-BRACKET-9
CA Residents see
WARNING A, Pg. 459
