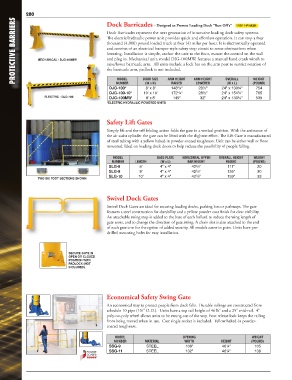

Page 32 - Protective Barriers

280 Dock Barricades - Designed to Prevent Loading Dock "Run Off's" 115V 1-PHASE
PROTECTIVE BARRIERS MECHANICAL • DJG-100MW Dock Barricades represent the next generation of innovative loading dock safety systems.

The electric/hydraulic power unit provides quick and effortless operation. It can stop a four
thousand (4,000) pound loaded truck at four (4) miles per hour. It is electronically operated
and consists of an electrical bumper-style safety stop circuit to sense obstructions when
lowering. Installation is simple, anchor the unit to the floor, mount the control on the wall
and plug in. Mechanical unit, model DJG-100MW, features a manual hand crank winch to
raise/lower barricade arm. All units include a lock bar on the arm post to restrict rotation of
the barricade arm, padlock is not included.

WEIGHT
OVERALL
MODEL
(W x H)
(W x L)
RAISED
NUMBER
LOWERED
DJG-100* DOOR SIZE ARM HEIGHT ARM HEIGHT 24" x 130¾" (POUND)
754
28½"
5
148 /8"
8' x 8'
DJG-100-10* 10' x 10' 172 /8" 28½" 24" x 154¾" 765
5
ELECTRIC • DJG-100 DJG-100MW 8' x 8' 149" 32" 24" x 133¼" 539
*ELECTRIC HYDRAULIC POWERED UNITS
Safety Lift Gates
Simply lift and the self folding action folds the gate in a vertical position. With the assistance of
the air assist cylinder the gate can be lifted with the slightest effort. The Lift Gate is manufactured
of steel tubing with a yellow baked-in powder-coated toughness. Unit can be either wall or floor
mounted. Ideal on loading dock doors to help reduce the possibility of people falling.
MODEL BASE PLATE HORIZONTAL UPPER OVERALL HEIGHT WEIGHT
NUMBER LENGTH (W x L) BAR HEIGHT RAISED (POUND)
SLG-6 6' 4" x 4" 42 /8" 111" 20
5
SLG-8 8' 4" x 4" 42 /8" 135" 30
5
SLG-10 10' 4" x 4" 42 /8" 159" 33
5
TWO SIX FOOT SECTIONS SHOWN
Swivel Dock Gates
Swivel Dock Gates are ideal for securing loading docks, parking lots or pathways. The gate
features a steel construction for durability and a yellow powder coat finish for clear visibility.
An attachable swing stop is added to the base of each bollard to reduce the wing length of
gate arms, and to change the direction of gate swing. A chain slot is also attached to the end
of each gate arm for the option of added security. All models come in pairs. Units have pre-
drilled mounting holes for easy installation.

SECURE GATE IN
OPEN OR CLOSED
POSITION WITH
PADLOCK (NOT
INCLUDED).

Economical Safety Swing Gate
An economical way to protect people from dock falls. Durable railings are constructed from
schedule 10 pipe (1⅝" O.D.). Units have a top rail height of 46¼" and a 25" mid-rail. 4"
poly-on-poly wheel allows units to be swung out of the way. Foot release lock keeps the railing
from being moved when in use. Cast single socket is included. Yellow baked-in powder-
coated toughness.

MODEL OPENING WEIGHT
NUMBER MATERIAL WIDTH HEIGHT (POUND)
SSG-9 STEEL 108" 46¼" 105
SSG-11 STEEL 132" 46¼" 138
