Model Details

ACURT-96

Printer Friendly
ACURT-96

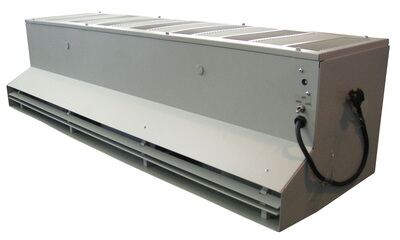

Steel Heavy Duty Variable Speed Air Curtain 96 In. x 12 In. 3/4 Horsepower Beige

The variable speed air curtain can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. The curtain contains a heavy duty rigid steel cabinet, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. SCR speed controller supplied compatible with the motor with low end adjustment for air volume control and savings in power consumption.

  • Heavy duty motor provides use in rugged conditions
  • Curtain design prevents loss of cool air and maintains a clean environment
  • Thermal over load design protects motor
  • Permanently lubricated motors provide long life
Total Ship Wt.(lbs.): 232 (Multiple Packages: P1: 147 lbs + P2: 85 lbs) Size: 96"W x 13"L x 16"H Color: Beige Non-Returnable

Steel Gauge: 20 Motor Horsepower: 3/4 Voltage: 120
CFM High: 9222 CFM Low: 1812 Fits Doorway Width (in.): 96
Fits Doorway Height (ft.): 12 Units need to fit doorway: (2) ACURT 48

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ACURT-96
ACURT-96

Steel Heavy Duty Variable Speed Air Curtain 96 In. x 12 In. 3/4 Horsepower Beige

The variable speed air curtain can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. The curtain contains a heavy duty rigid steel cabinet, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. SCR speed controller supplied compatible with the motor with low end adjustment for air volume control and savings in power consumption.

  • Heavy duty motor provides use in rugged conditions
  • Curtain design prevents loss of cool air and maintains a clean environment
  • Thermal over load design protects motor
  • Permanently lubricated motors provide long life
Dimensions: 96"W x 13"L x 16"H Sell UOM: EA-Each Color: Beige
Material: Steel UPC: 691215099882 GTIN: 00691215099882
Warranty: -- Shipping Weight: 147 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Steel Gauge: 20 Motor Horsepower: 3/4 Voltage: 120
CFM High: 9222 CFM Low: 1812 Fits Doorway Width (in.): 96
Fits Doorway Height (ft.): 12 Units need to fit doorway: (2) ACURT 48
