model: ACURT-48

SERIES: ACURT

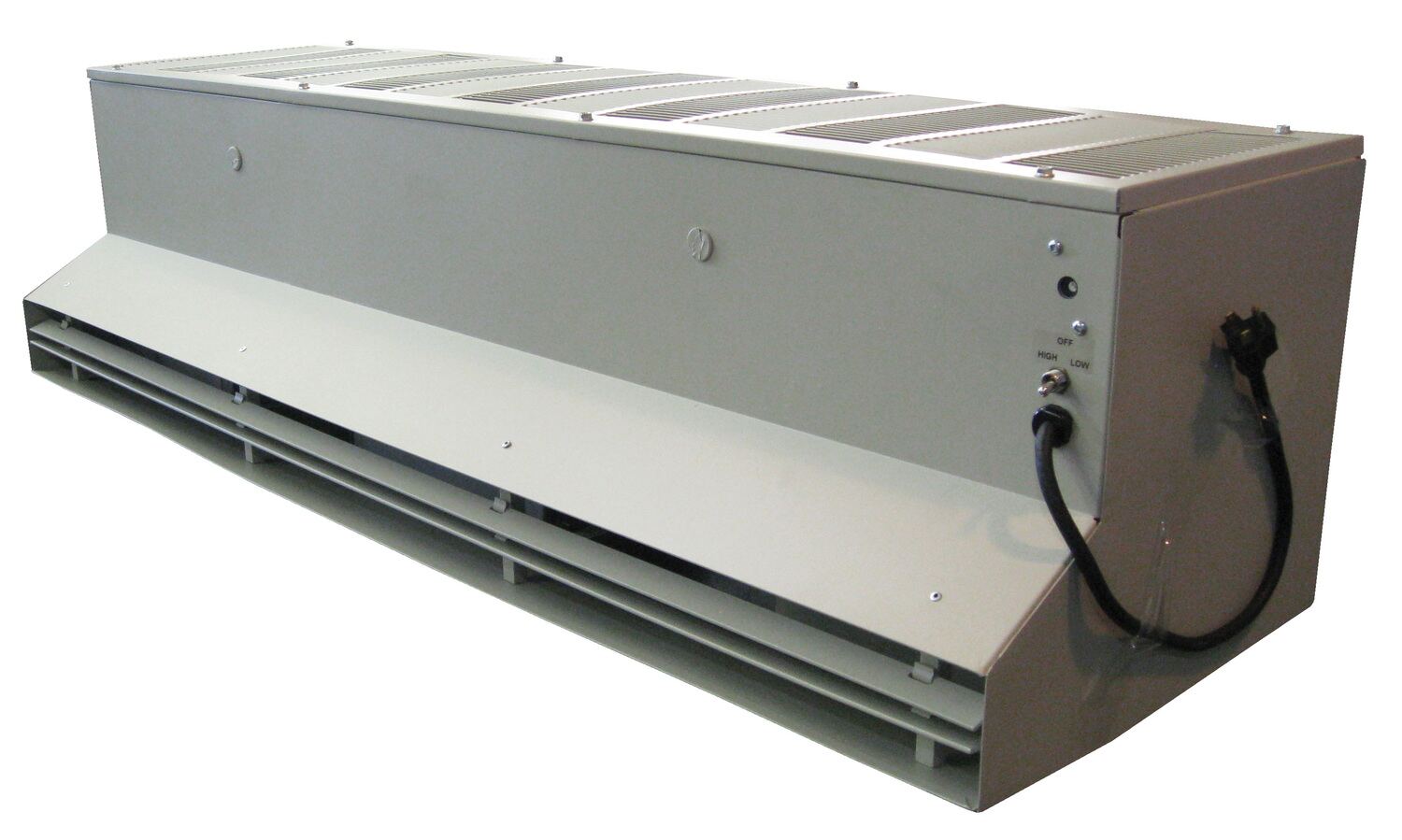

Variable Speed Air Curtains

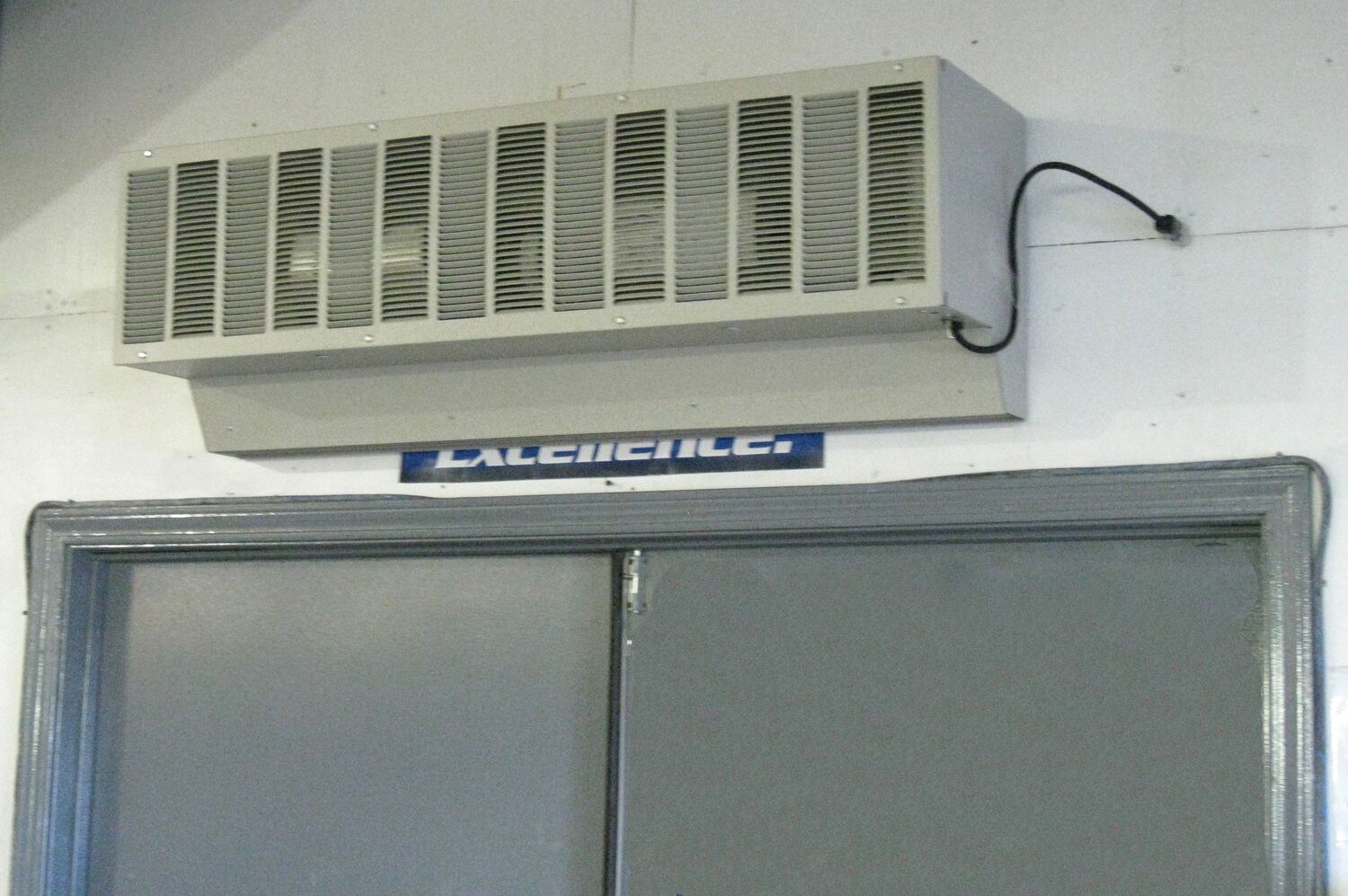

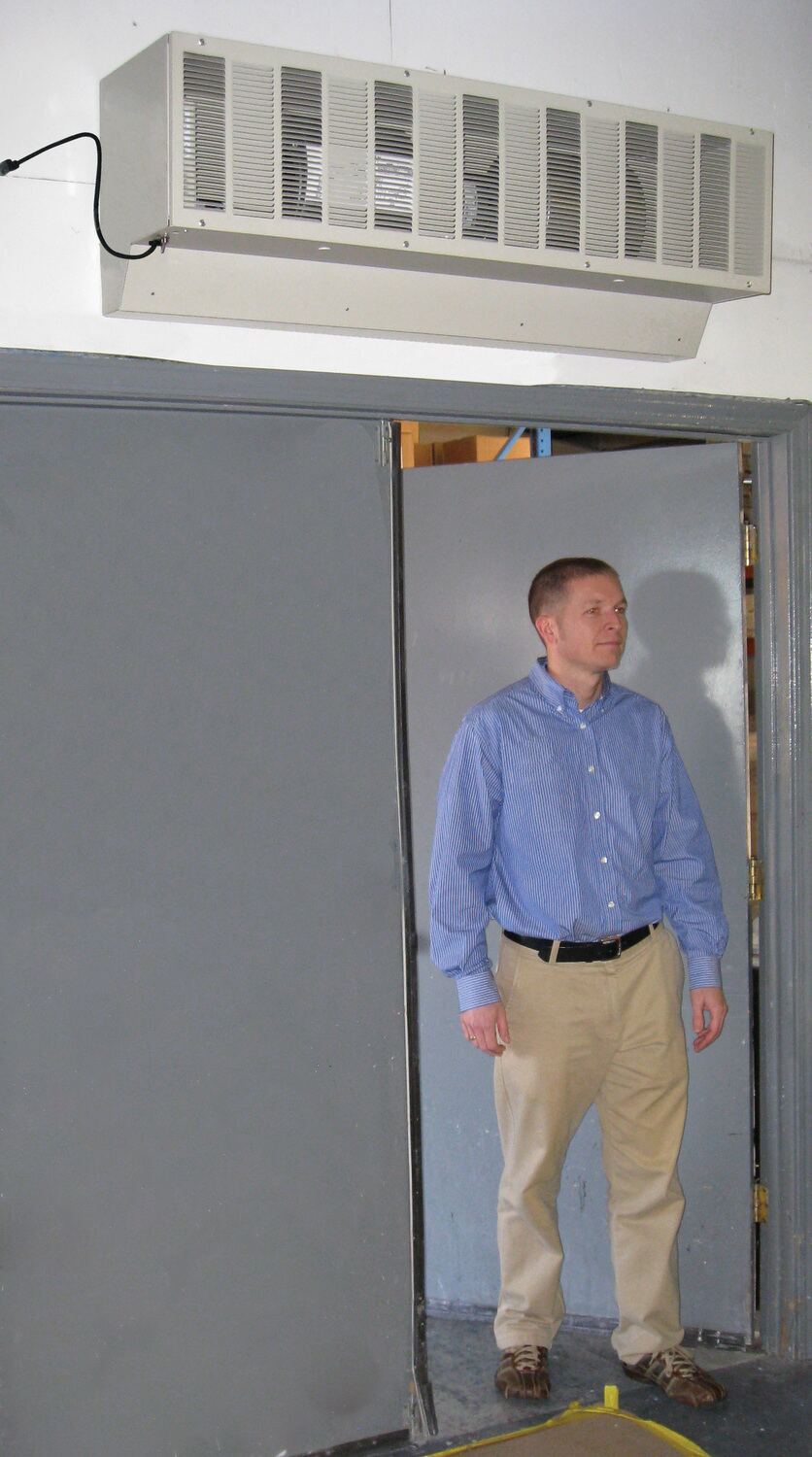

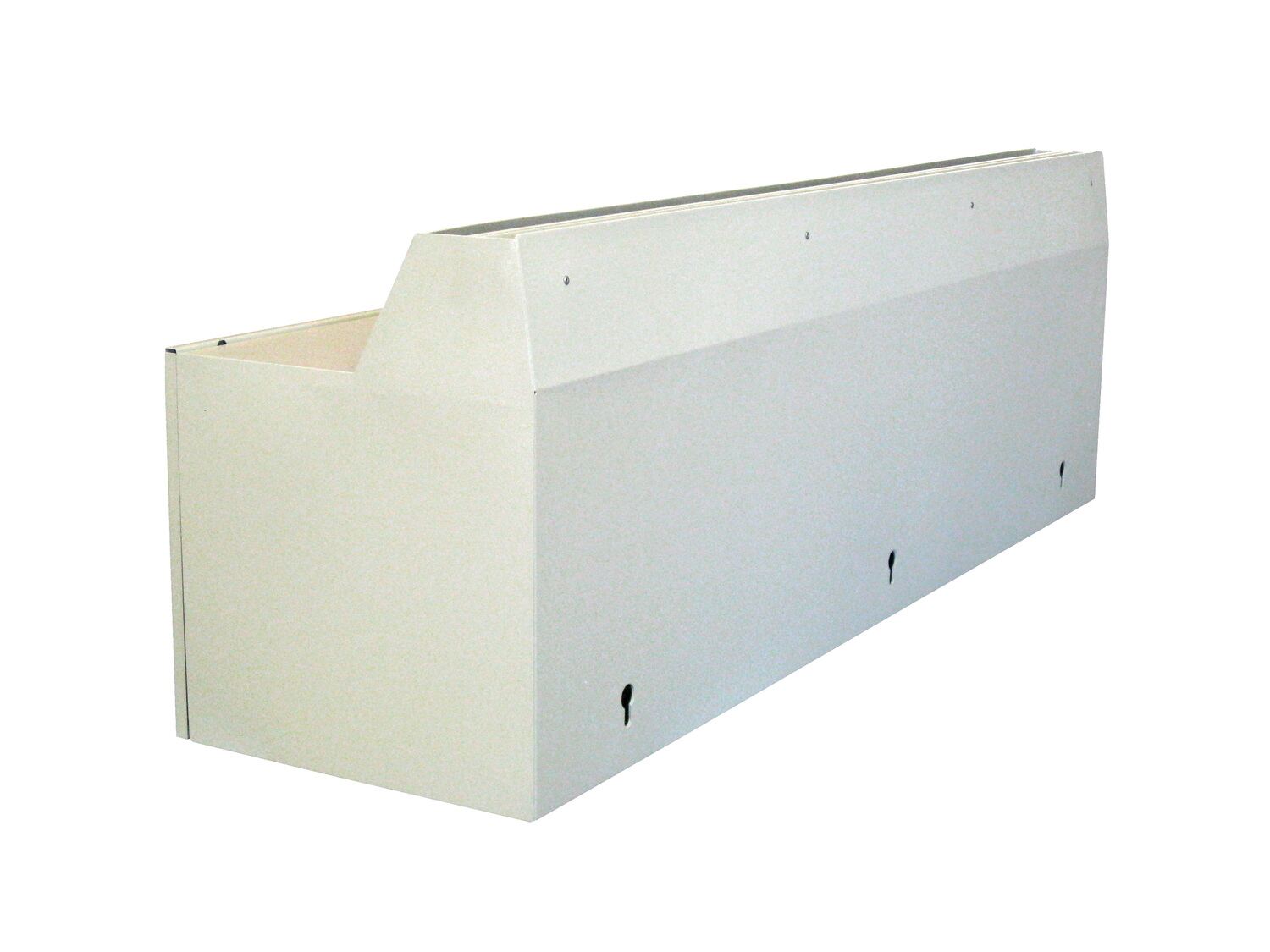

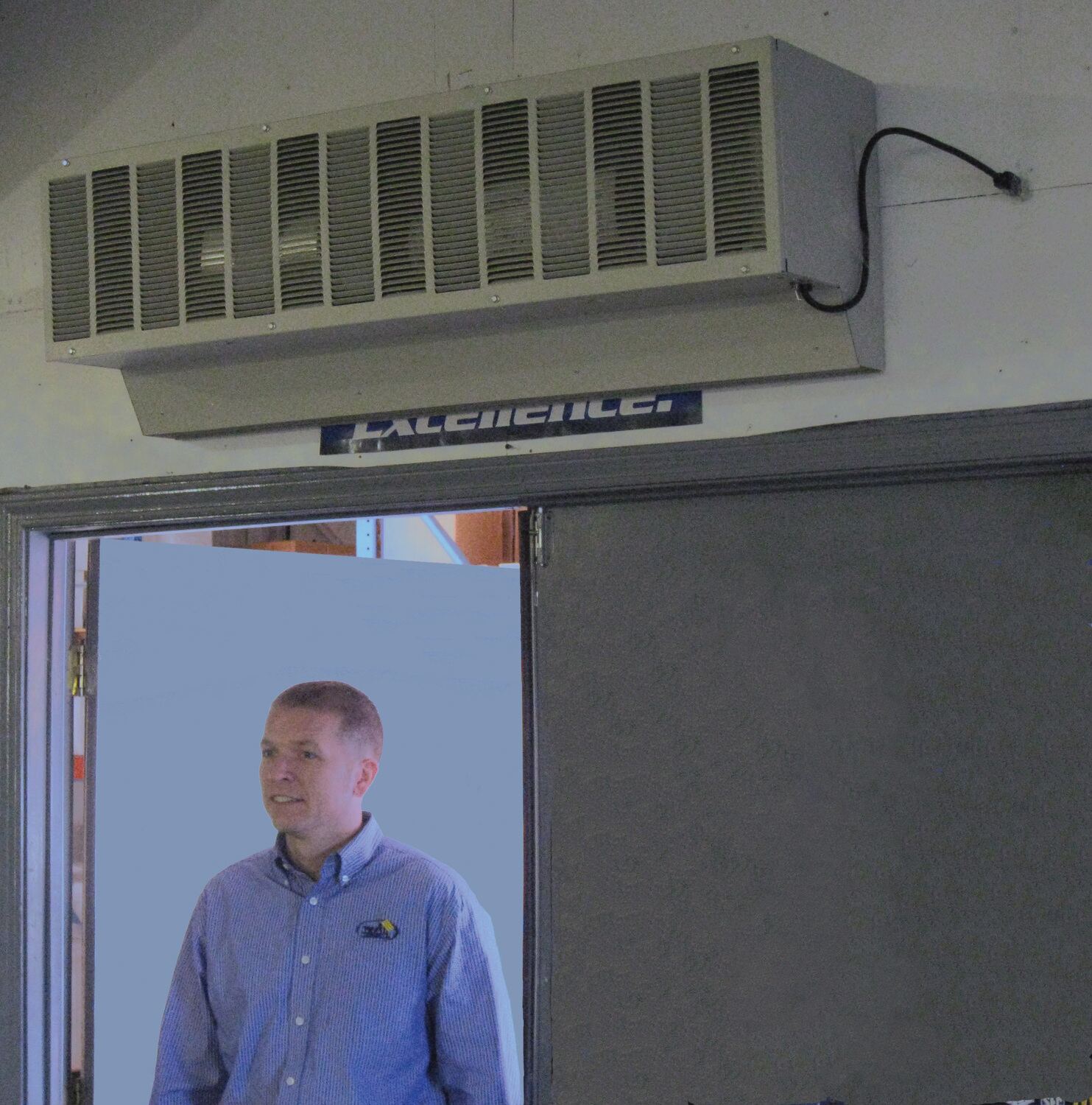

These Heavy Duty Air Curtains can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. These curtains contain a heavy duty 20 gauge rigid steel cabinets, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. Motors are permanently lubricated for long life and have thermal over load protection. SCR speed controller supplied on all units compatible with the motor with low end adjustment for air volume control and savings in power consumption. These heavy duty units have a 3/4 HP motor, and can go up to a 12' high doorway.




Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Heavy Duty Air Curtains

Model
Number
PDFs Description Dimensions CFM Volts Wt.
(lbs)
ACURT-36 Warranty PDF 3/4 HP Heavy Duty Air Curtain 36"Wx12'H
Doorway
2672 High
819 Low
115V 77
ACURT-48 Warranty PDF 3/4 HP Heavy Duty Air Curtain 48"Wx12'H
Doorway
4611 High
906 Low
115V 85
ACURT-60 Warranty PDF 3/4 HP Heavy Duty Air Curtain 60"Wx12'H
Doorway
5763 High
1126 Low
115V 93
ACURT-72 Warranty PDF 3/4 HP Heavy Duty Air Curtain 72"Wx12'H
Doorway (2 ACURT-36 's)
5344 High
1638 Low
115V 154
ACURT-96 Warranty PDF 3/4 HP Heavy Duty Air Curtain 96"Wx12'H
Doorway (2 ACURT-48's)
9222 High
1812 Low
115V 170
ACURT-108 Warranty PDF 3/4 HP Heavy Duty Air Curtain 108"Wx12'H
Doorway (3 ACURT-36 's)
8016 High
2457 Low
115V 231
ACURT-120 Warranty PDF 3/4 HP Heavy Duty Air Curtain 120"Wx12'H
Doorway (1 ACURT-48 & 2 ACURT-36's)
9955 High
2544 Low
115V 239
