Model Details

AHLT-2448-3-43

AHLT-2448-3-43

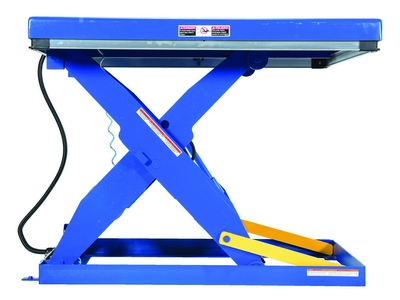

Steel Rotary Air Hydraulic Scissor Lift Table 24 In. x 48 In. 3,000 Lb. Capacity Blue

The rotary air/Hydraulic scissor lift table utilizes the convenience of factory air to power the lift table. Simply connect to an air supply through a filter, regulator, lubricator, and you will have a lift table suitable for a wide range of applications and operating environments. It features a pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.

  • Utilizes the convenience of factory air for power
  • Connect through a filter, regulator, or lubricator
  • Suitable for a wide range of applications and environments
  • Features a pneumatic upper travel limit switch and safety toe guards
Total Ship Wt.(lbs.): 662 (only 1 package) Size: 24.375"W x 51"L x 7"H Color: Blue

Uniform Capacity (lb.): 3000 Raised Height (in.): 43 Minimum (psi): 80
Minimum (cfm): 80 Minimum Supply (in.): 3/4 Air Inlet Size (in.): 1/2
Platform Width/Length (in.): 24-3/8 x 48-3/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHLT-2448-3-43


AHLT-2448-3-43

Steel Rotary Air Hydraulic Scissor Lift Table 24 In. x 48 In. 3,000 Lb. Capacity Blue

The rotary air/Hydraulic scissor lift table utilizes the convenience of factory air to power the lift table. Simply connect to an air supply through a filter, regulator, lubricator, and you will have a lift table suitable for a wide range of applications and operating environments. It features a pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.

  • Utilizes the convenience of factory air for power
  • Connect through a filter, regulator, or lubricator
  • Suitable for a wide range of applications and environments
  • Features a pneumatic upper travel limit switch and safety toe guards
Dimensions: 24.375"W x 51"L x 7"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215083065 GTIN: 00691215083065
Warranty: -- Shipping Weight: 662 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3000 Raised Height (in.): 43 Minimum (psi): 80
Minimum (cfm): 80 Minimum Supply (in.): 3/4 Air Inlet Size (in.): 1/2
Platform Width/Length (in.): 24-3/8 x 48-3/8
