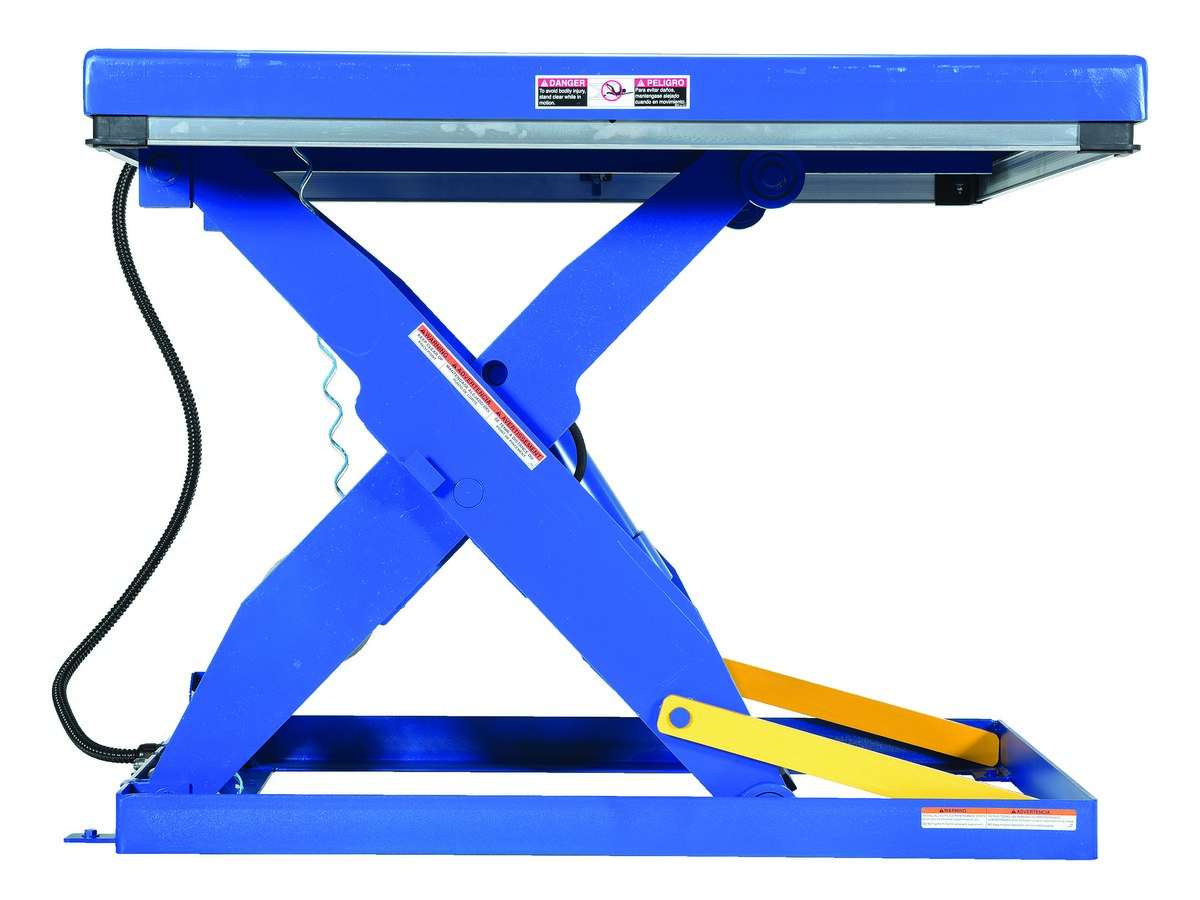

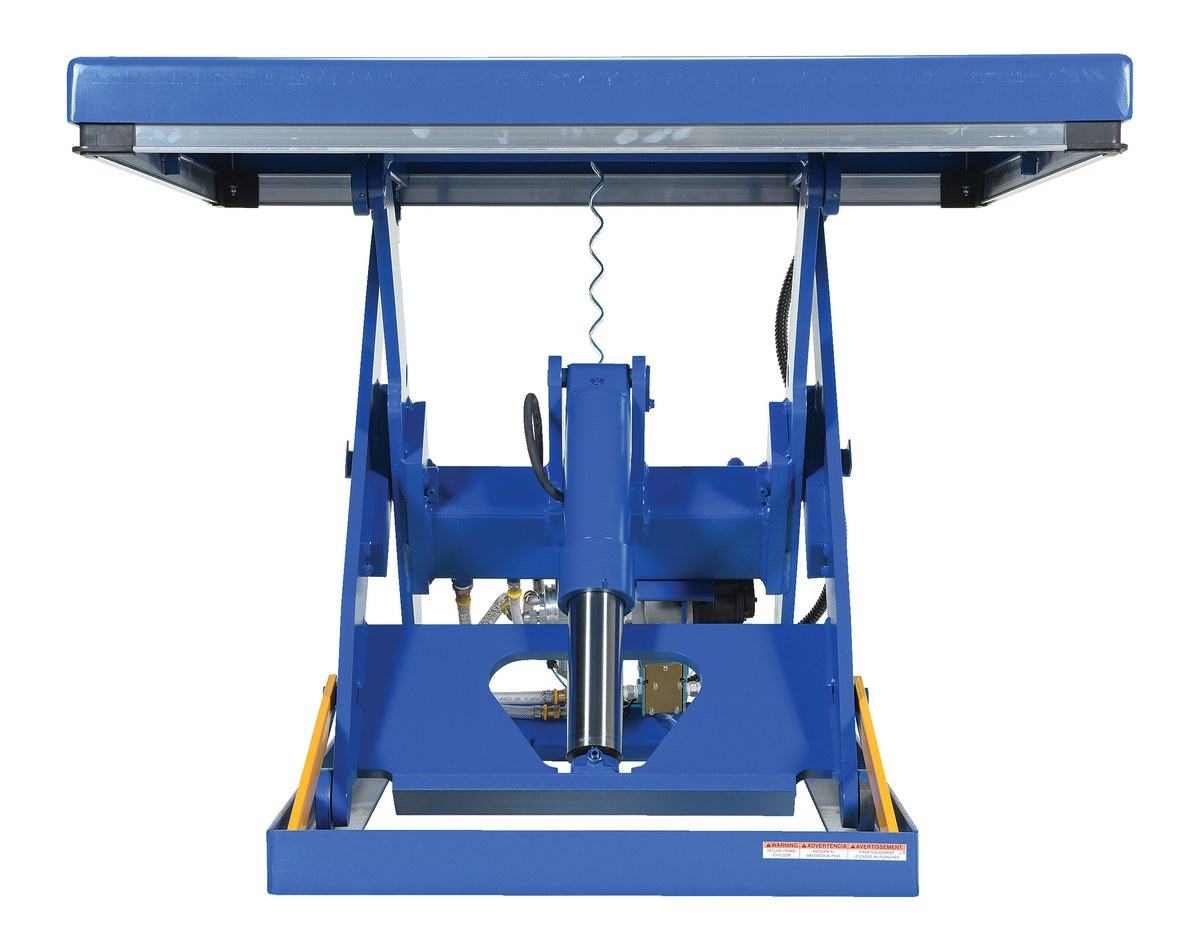

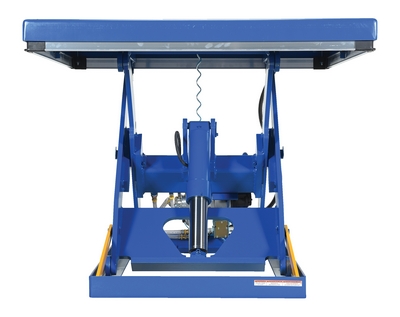

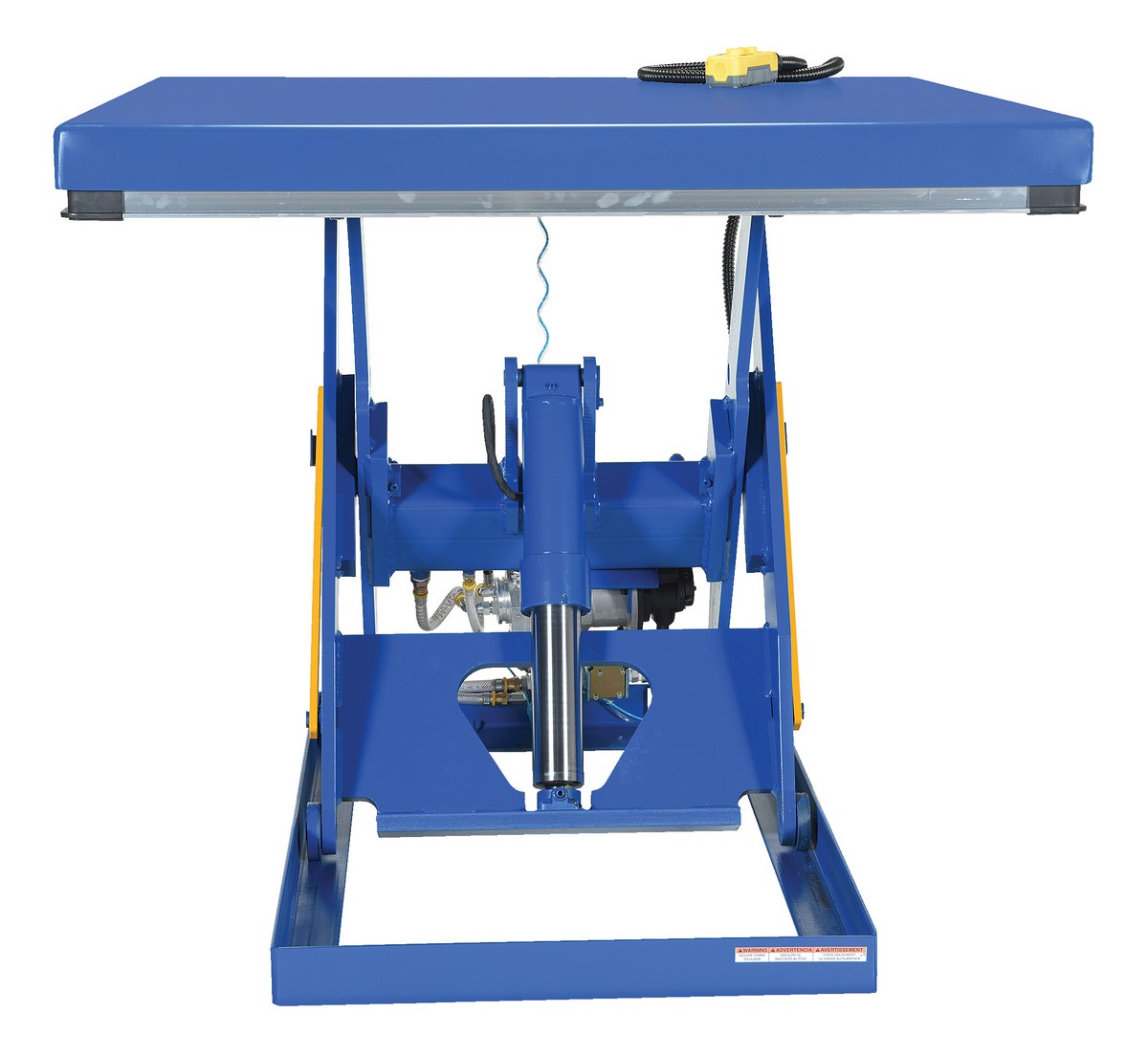

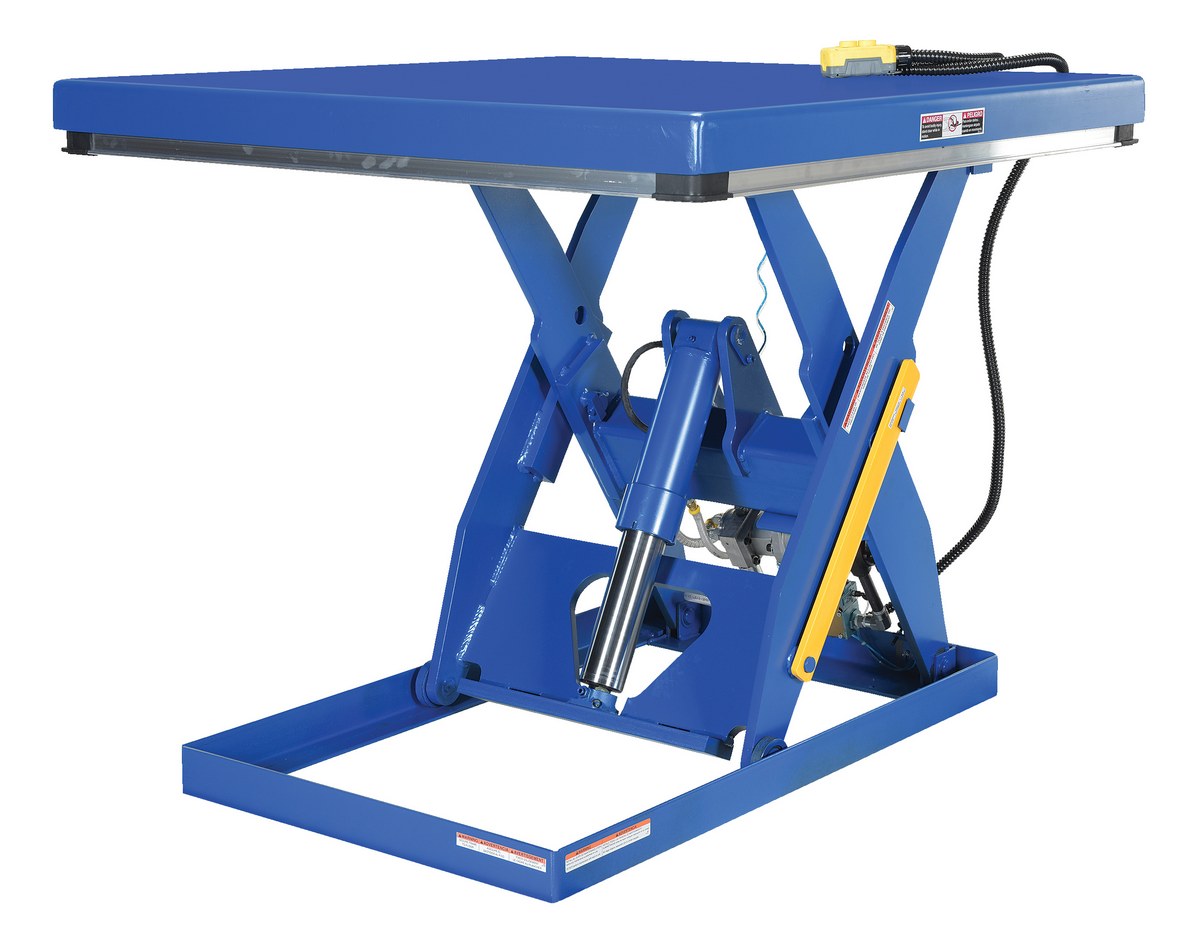

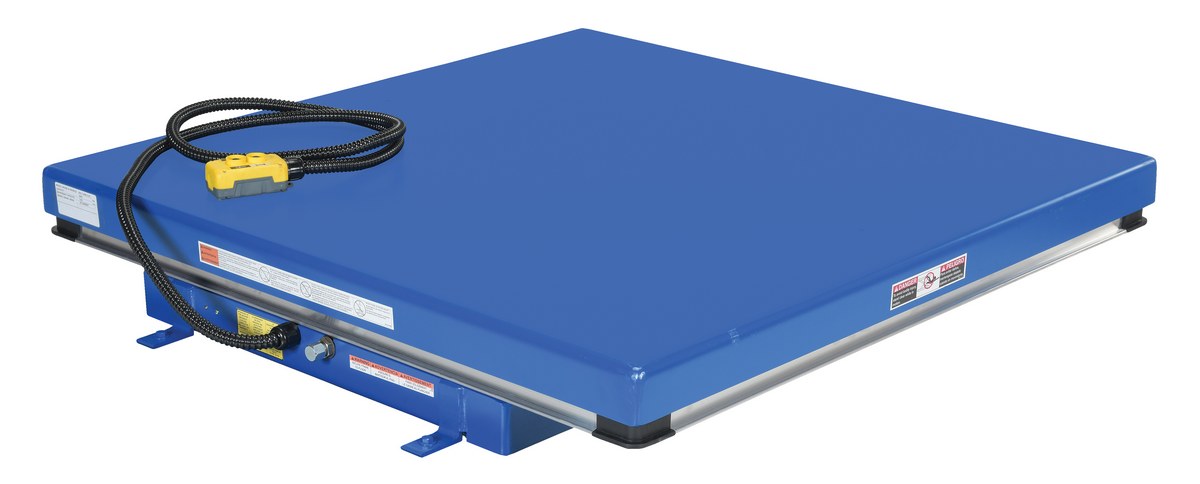

model: AHLT-4848-3-43


SERIES: AHLT
Rotary Air/Hydraulic Scissor Lift Tables

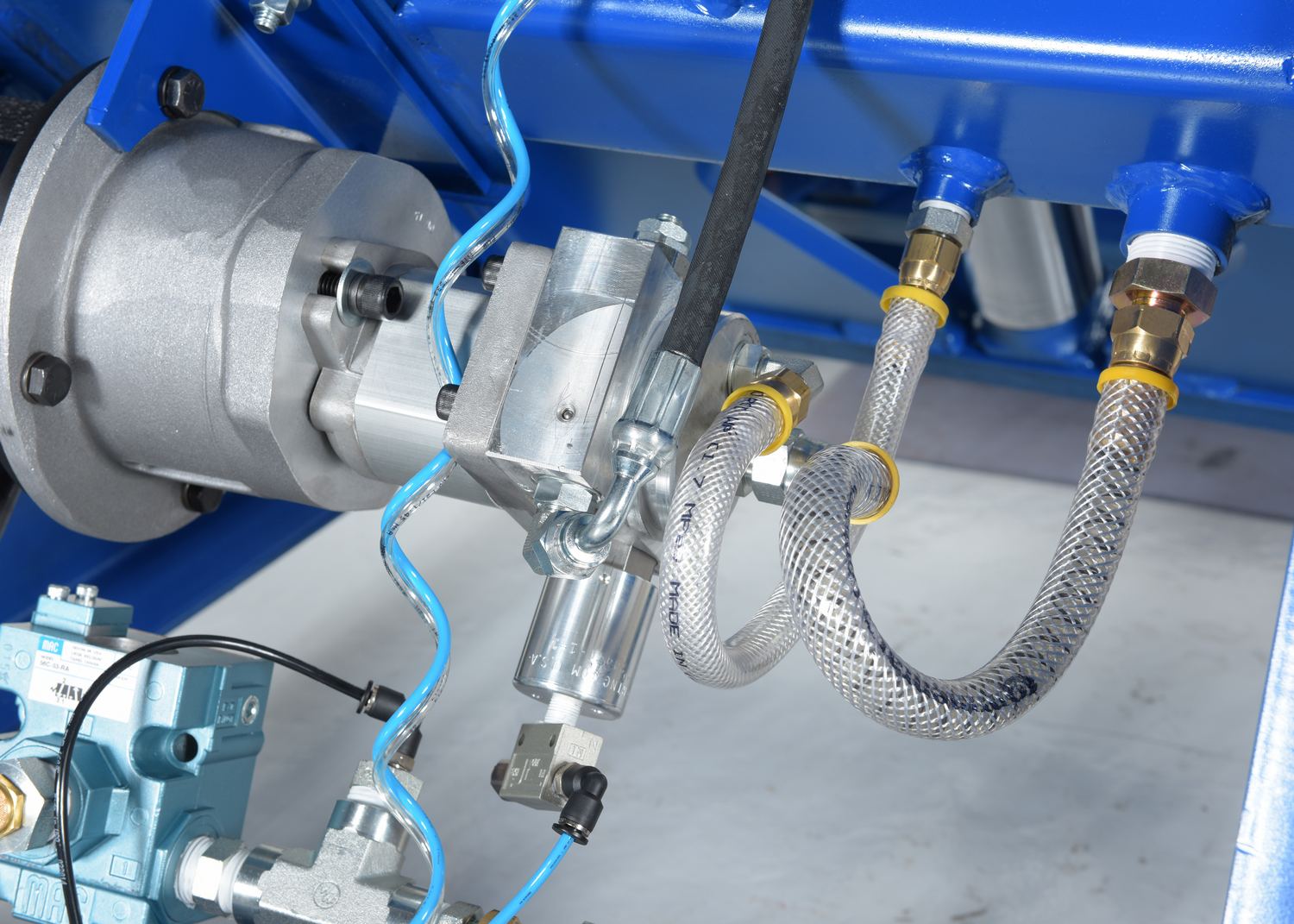

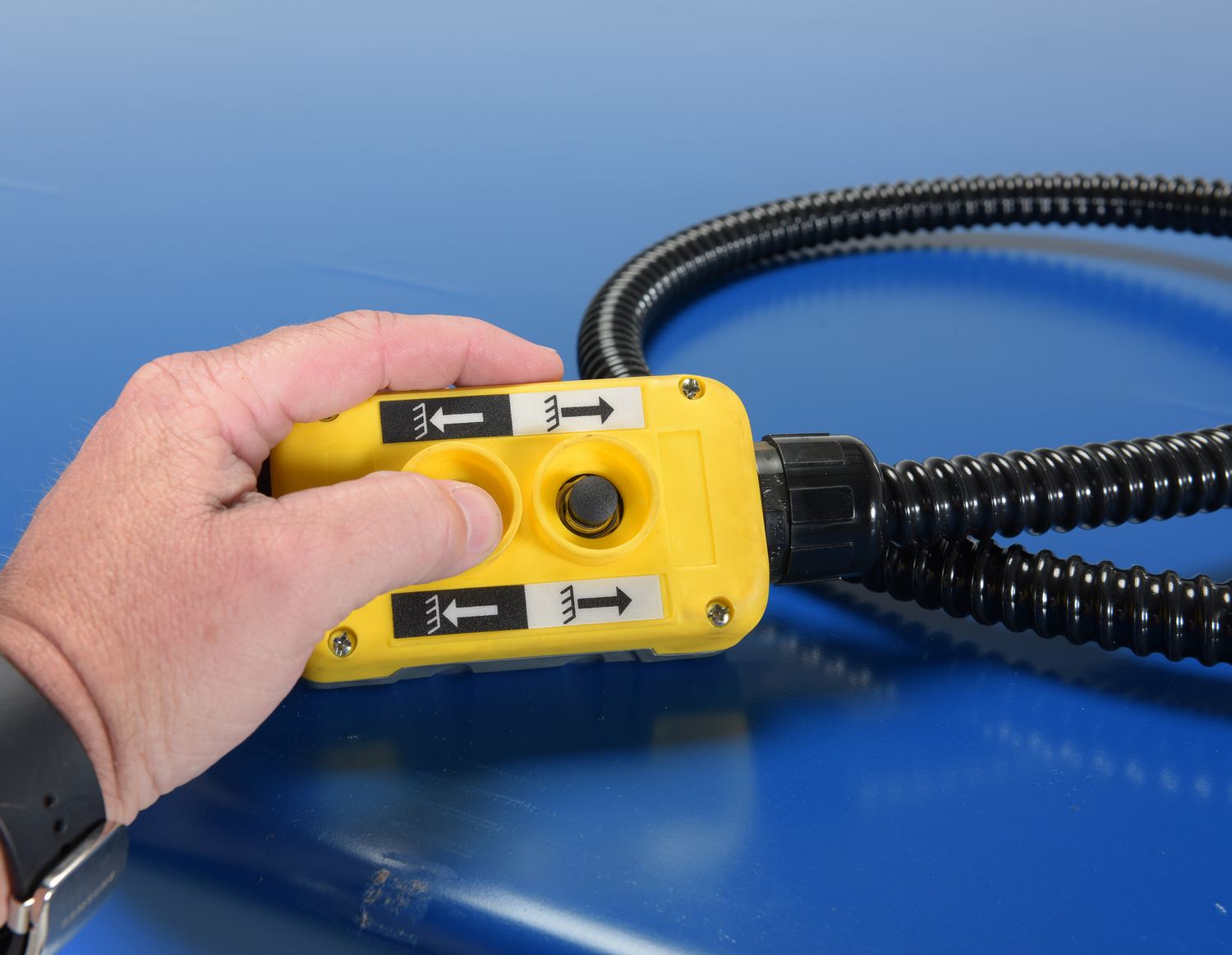

Utilize the convenience of factory air to power these lift tables. Simply connect to an 80 CFM & 80 PSI (minimum) air supply (minimum 3/4" supply recommended) through a filter, regulator, lubricator and you now have a lift table suitable for a wide range of applications and operating environments. Features pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.

Options For Electric Hydraulic Equipment
(Available at the time of sale for most powered
products listed in the Ergonomic Solutions section)

Utilize the convenience of factory air to power these lift tables. Simply connect to an 80 CFM & 80 PSI (minimum) air supply (minimum 3/4" supply recommended) through a filter, regulator, lubricator and you now have a lift table suitable for a wide range of applications and operating environments. Features pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.

Options For Electric Hydraulic Equipment
(Available at the time of sale for most powered
products listed in the Ergonomic Solutions section)

Other Lift & Tilt Tables

Electric Hydraulic Scissor Lift Tables

Electric Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Share This Page

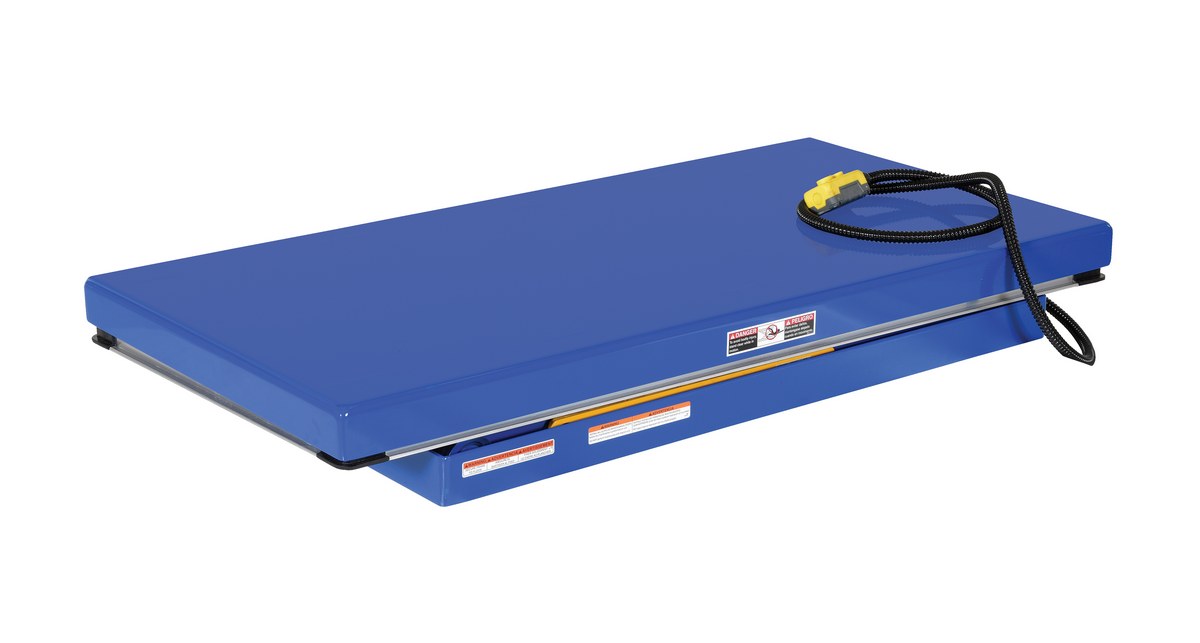

AHLT-3060-3-43

model AHLT-3060-3-43

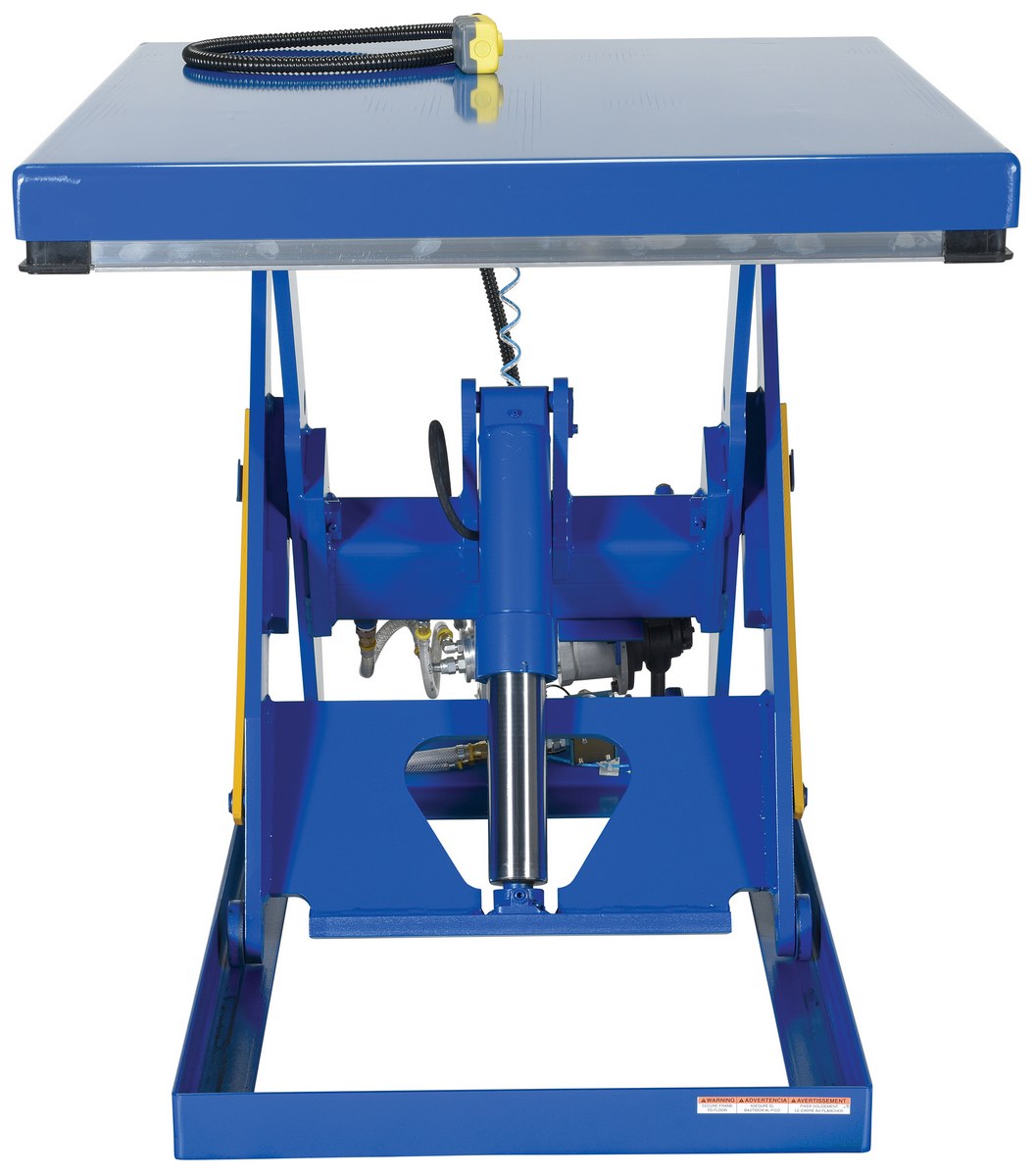

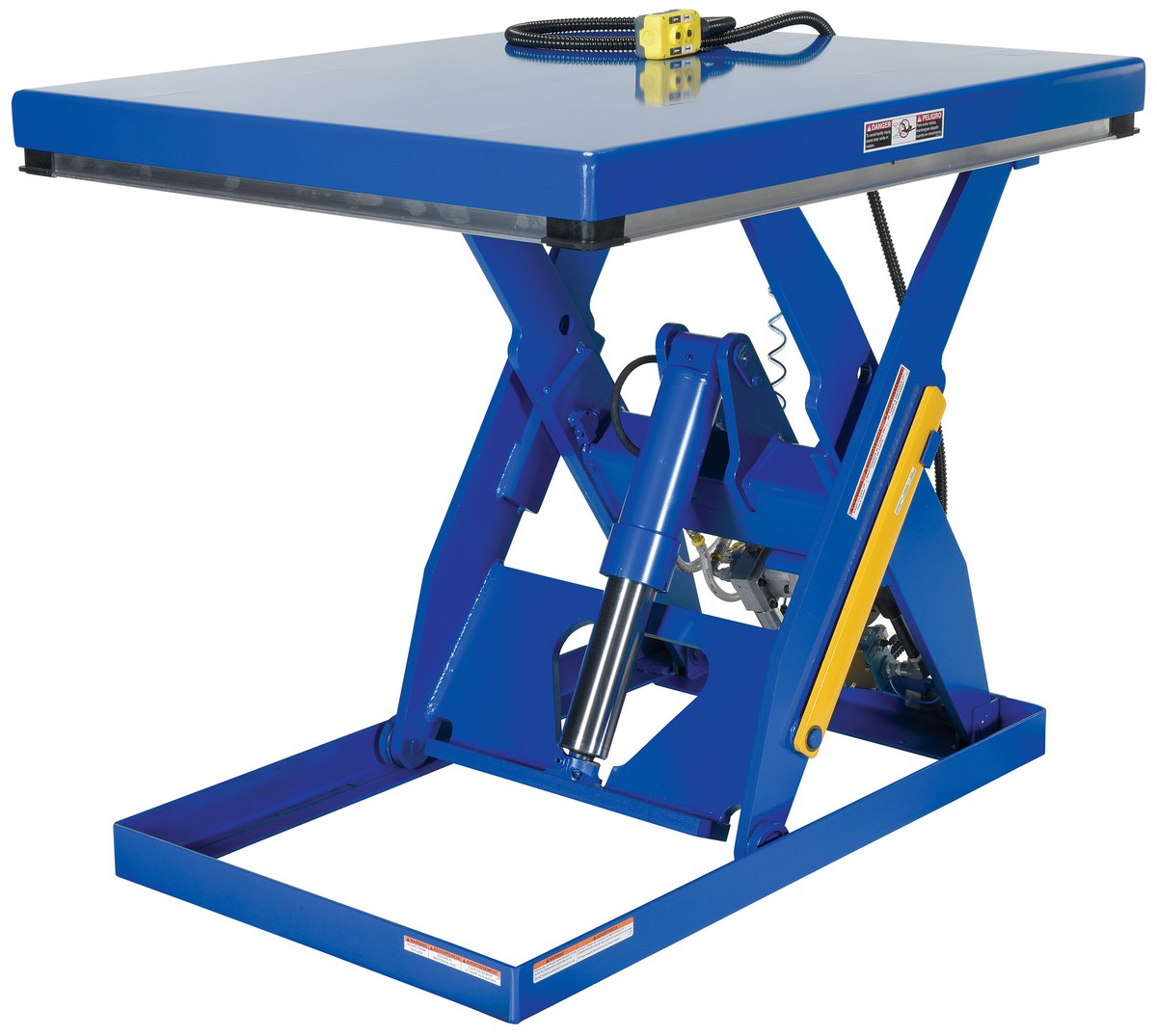

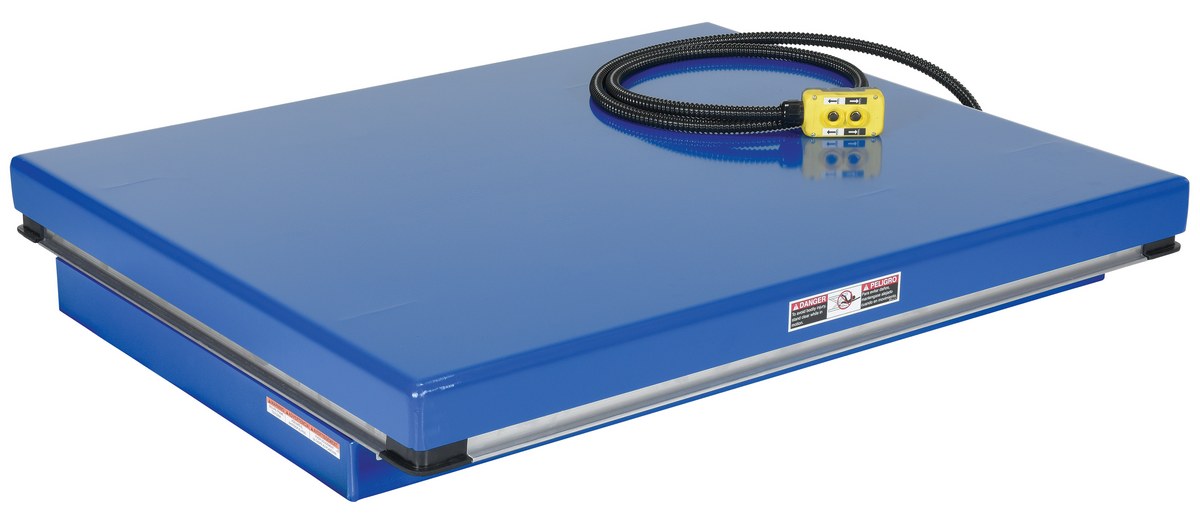

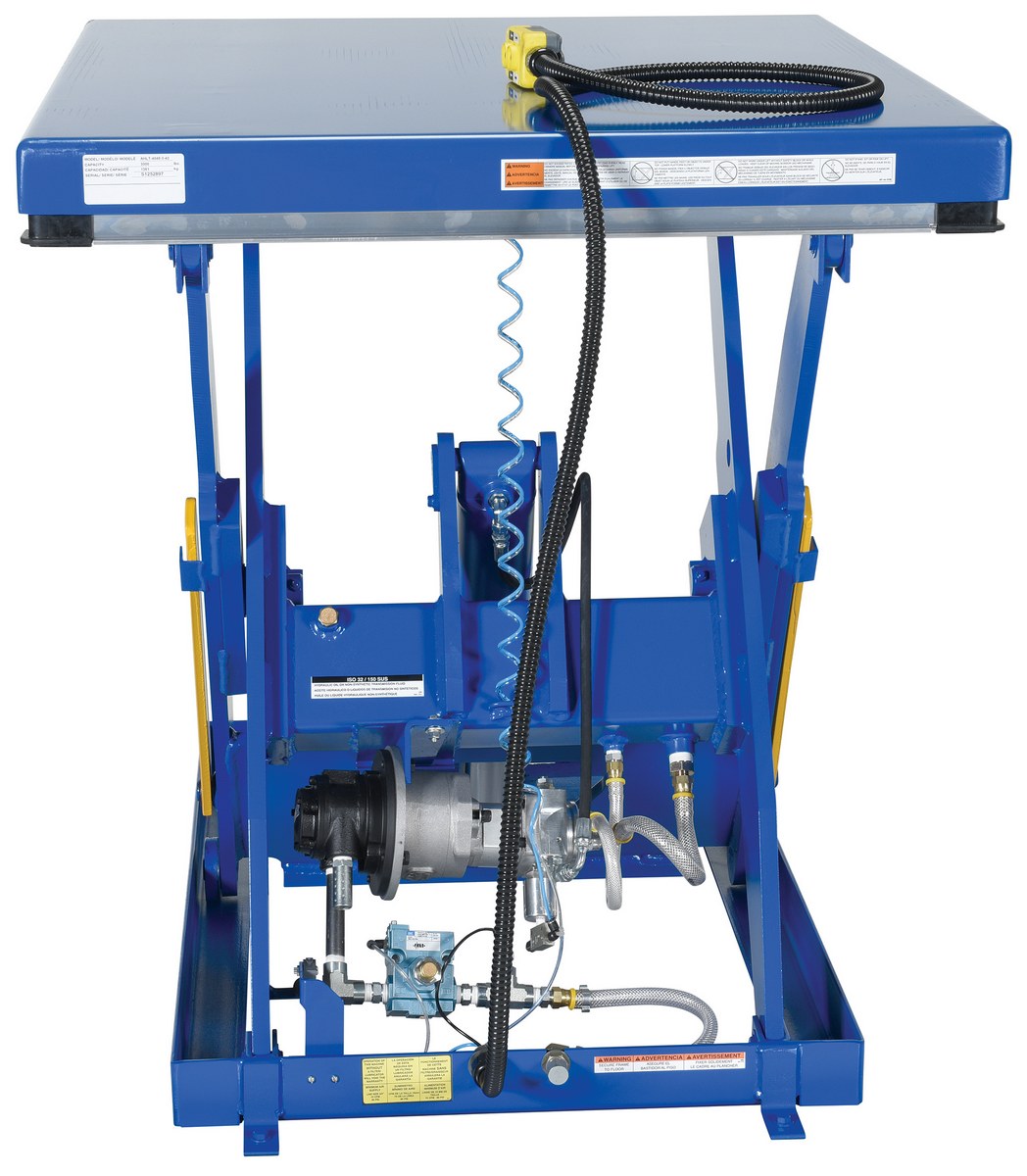

AHLT-4048-3-43

model AHLT-4048-3-43

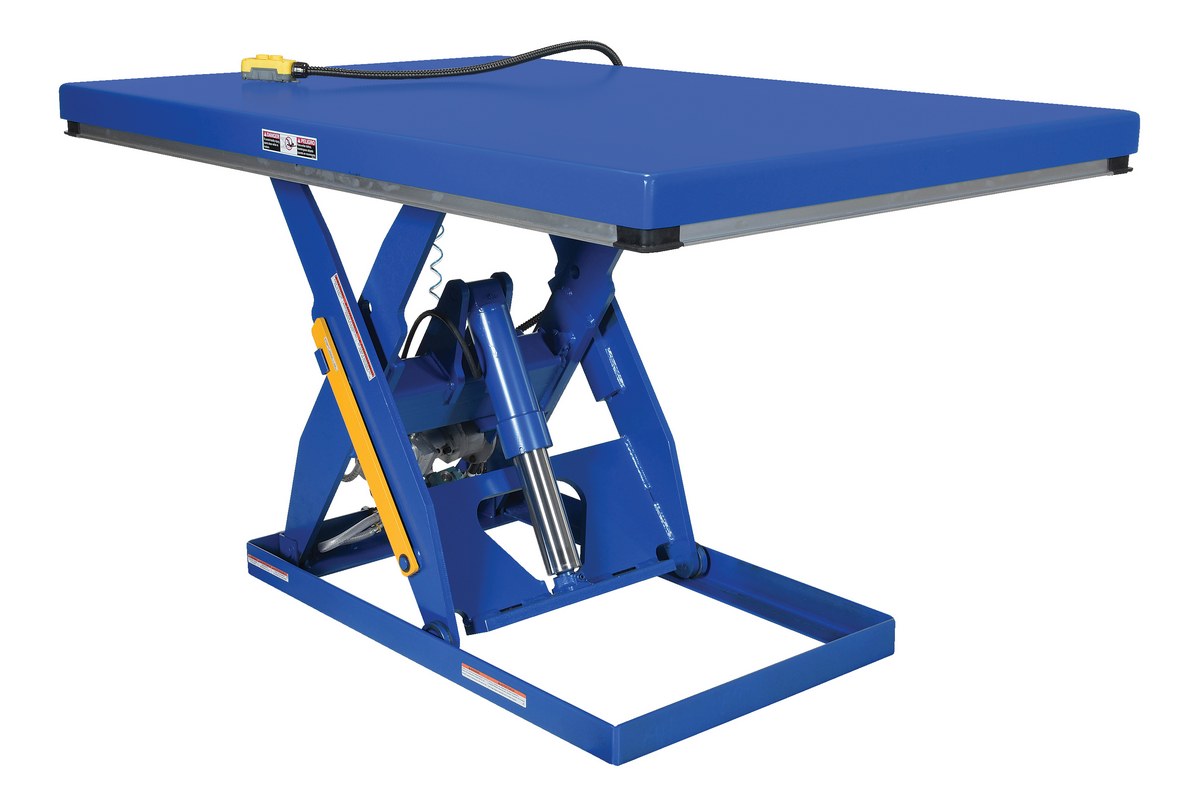

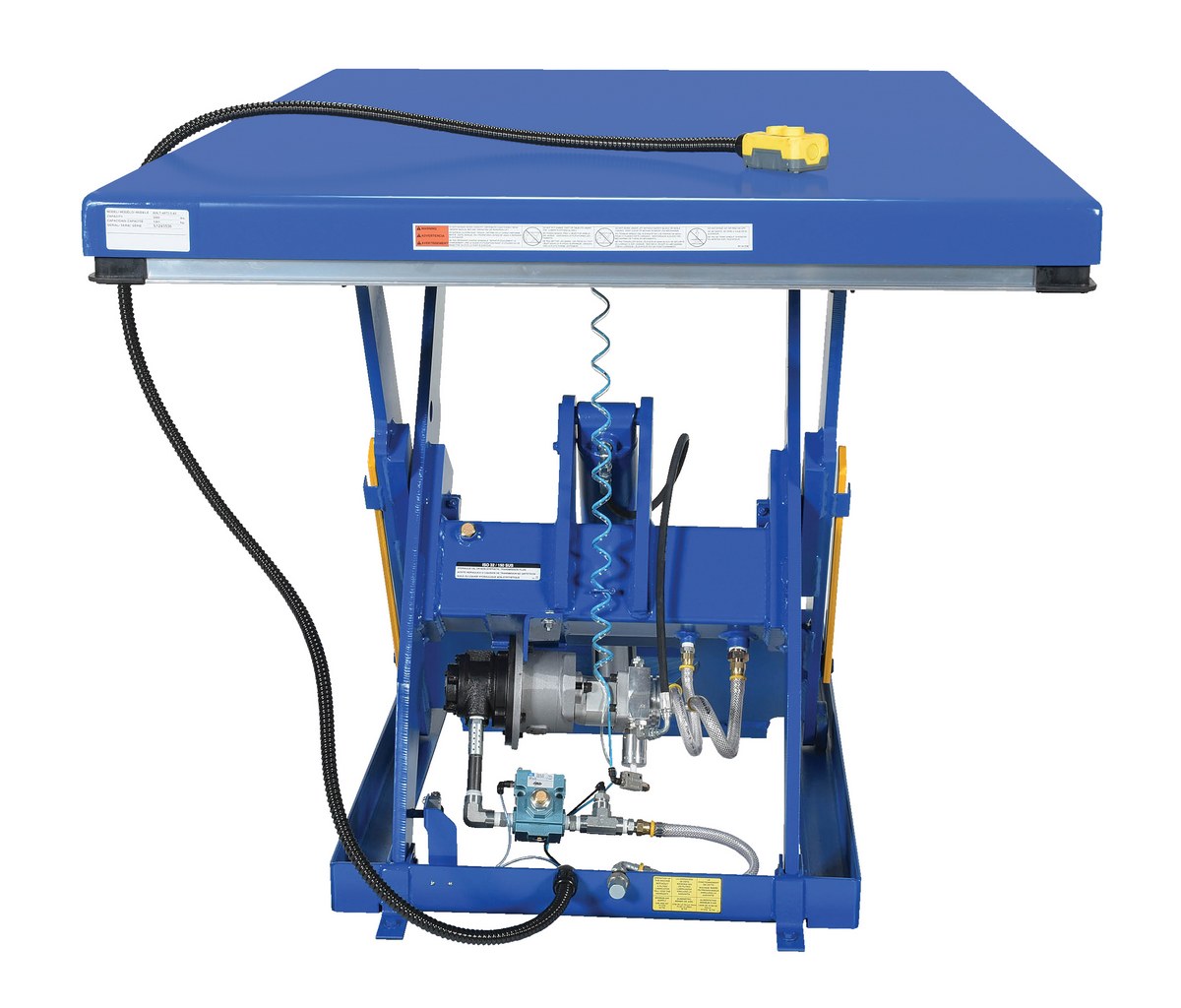

AHLT-4872-3-43

model AHLT-4872-3-43




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Rotary Air Hydraulic Scissor Lift Tables
Model PDF's Platform Size (WxL) Lowered Height Raised
Height
Capacity
(lbs)
Weight (lbs)
AHLT-2448-3-43 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x48" 7" 43" 3,000 689

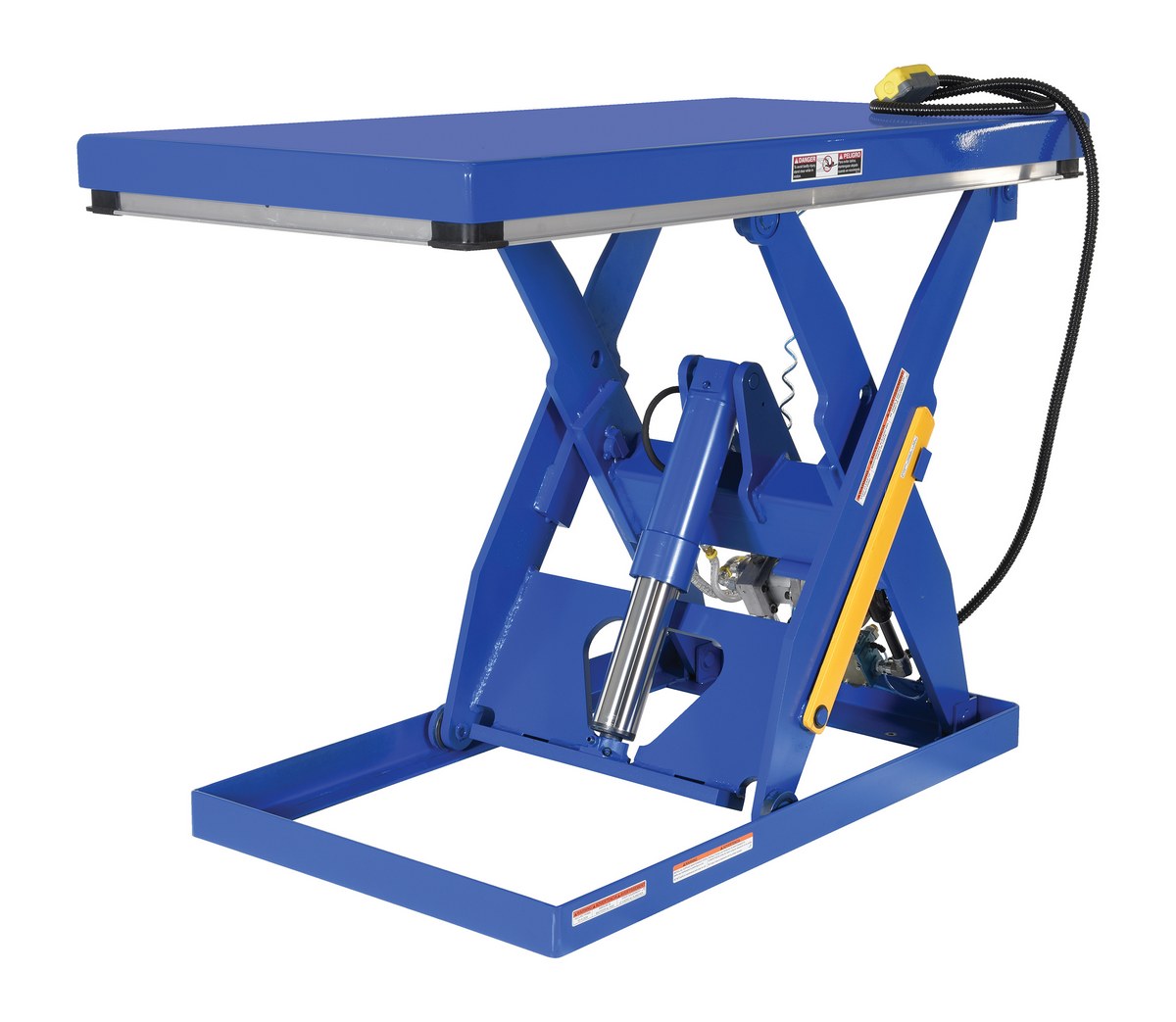

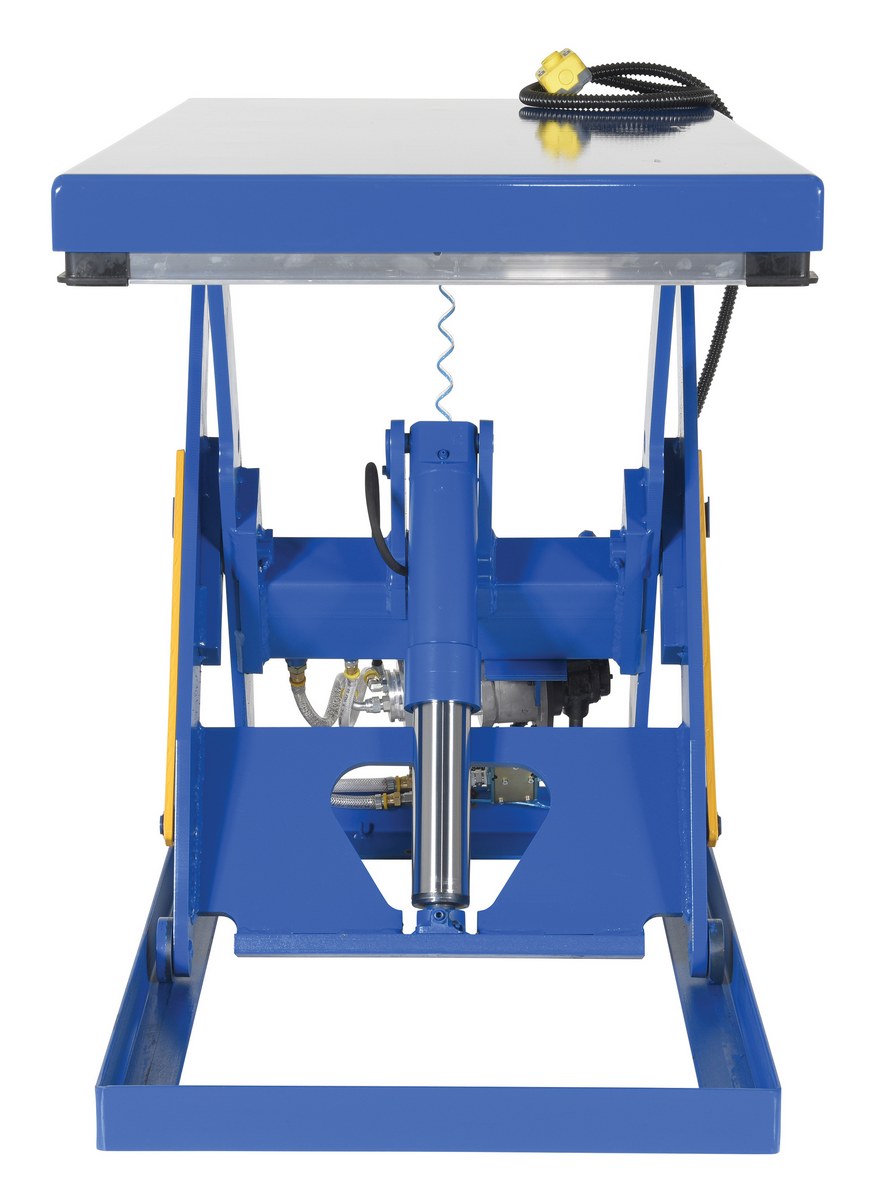

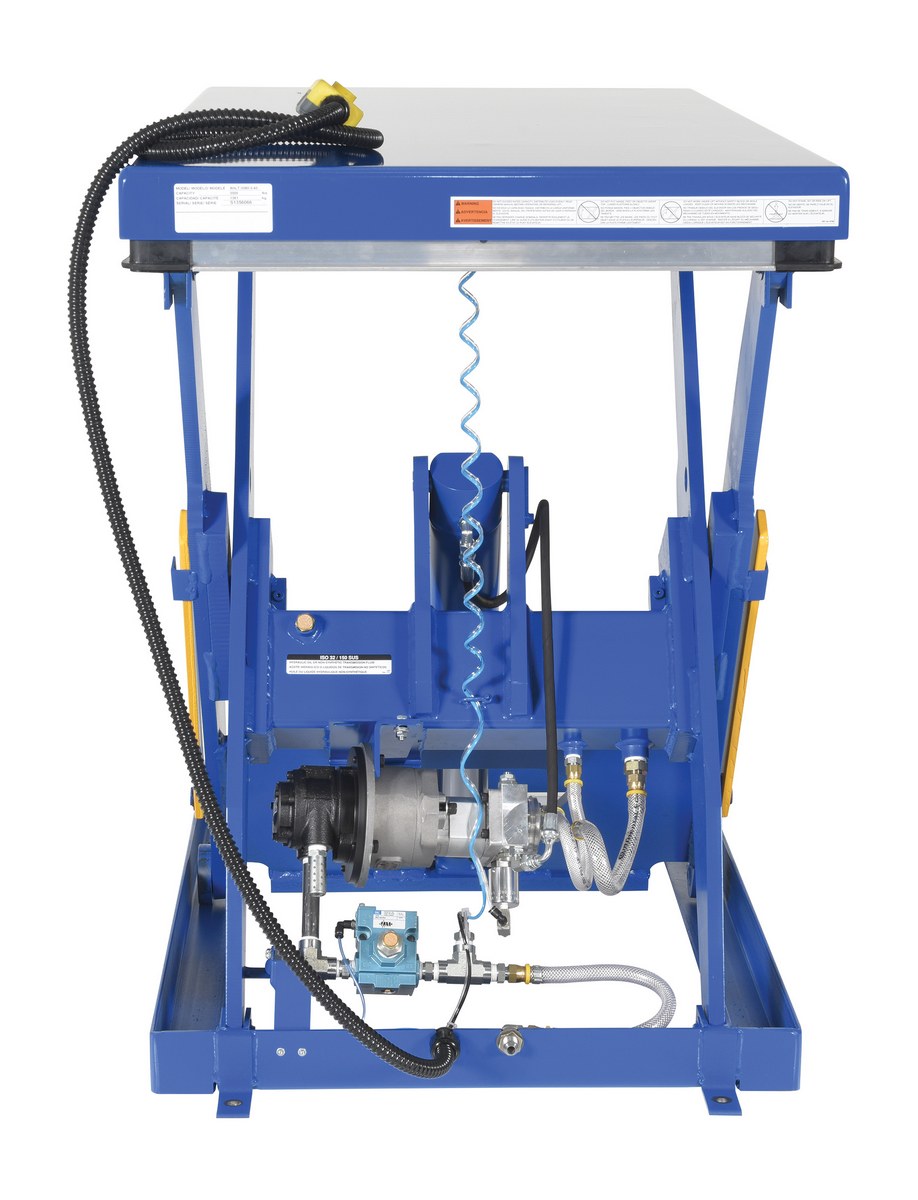

AHLT-3060-3-43 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30"x60" 7" 43" 3,000 787
AHLT-4048-3-43 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 40"x48" 7" 43" 3,000 769
AHLT-4848-3-43 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 7" 43" 3,000 780

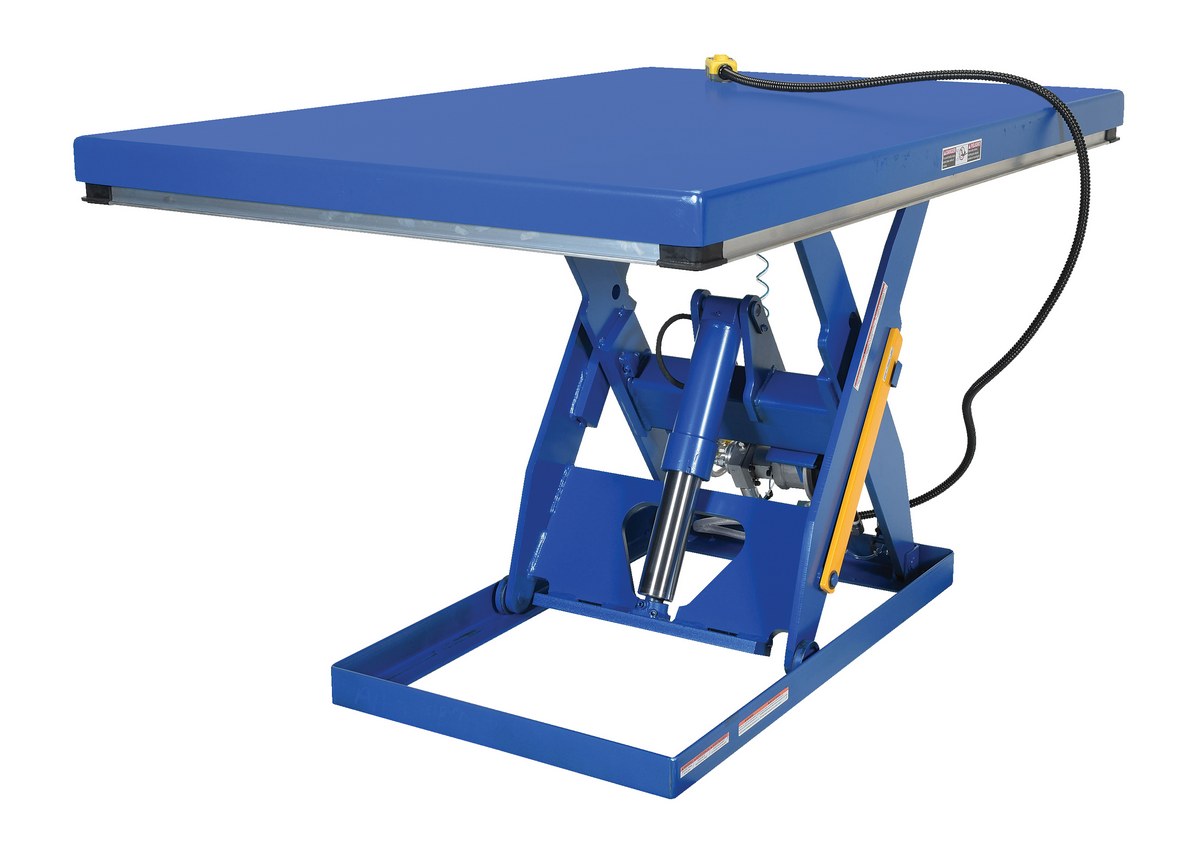

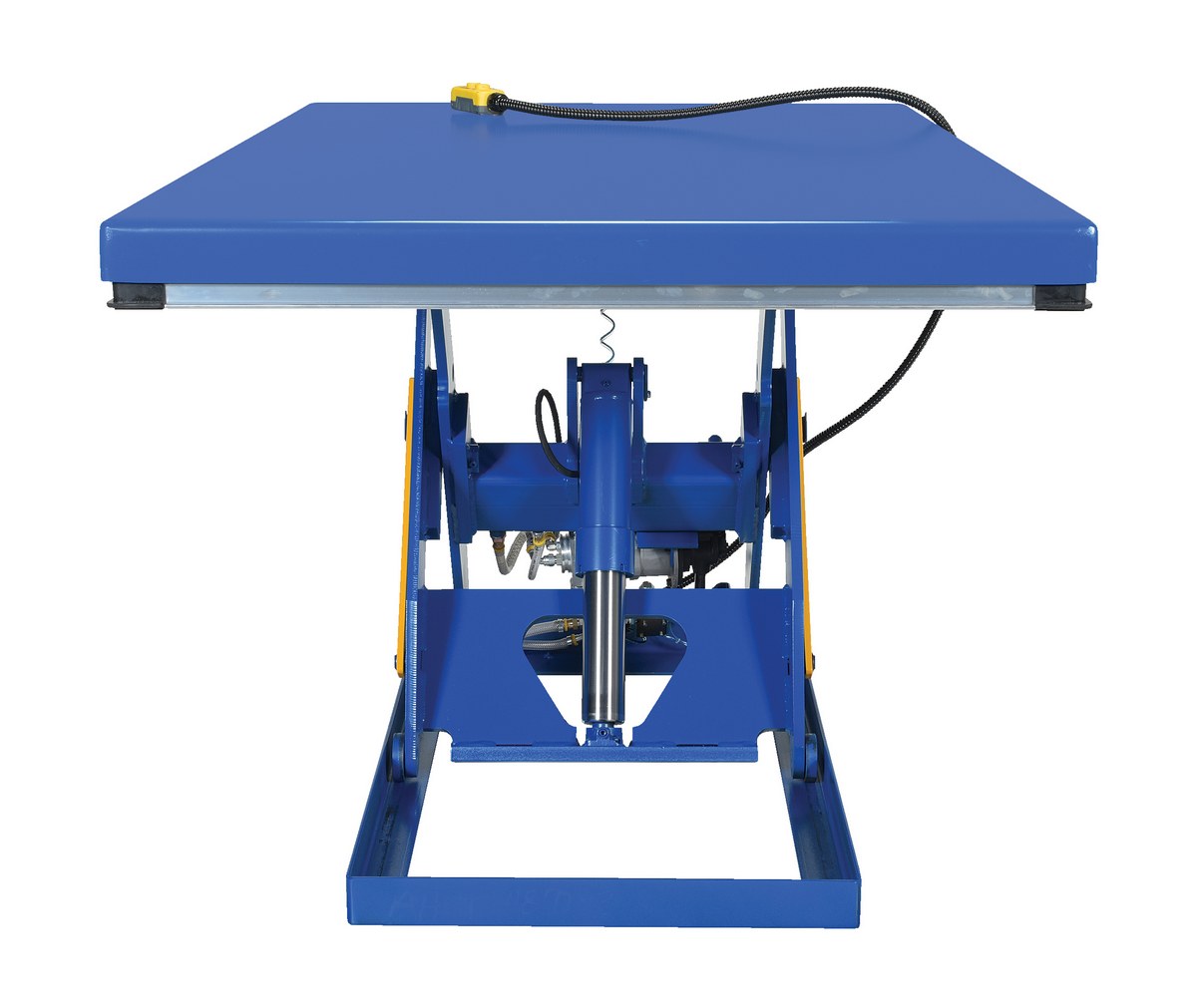

AHLT-4872-3-43 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x72" 7" 43" 3,000 937

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


LINK -Options For Electric Hydraulic Equipment
Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
