Model Details

ALLW-2020-FW

Printer Friendly
ALLW-2020-FW

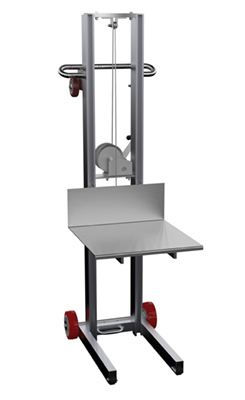

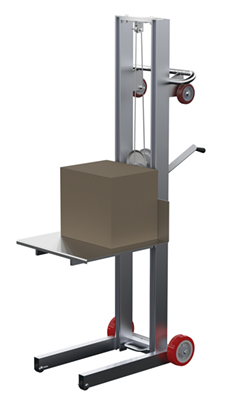

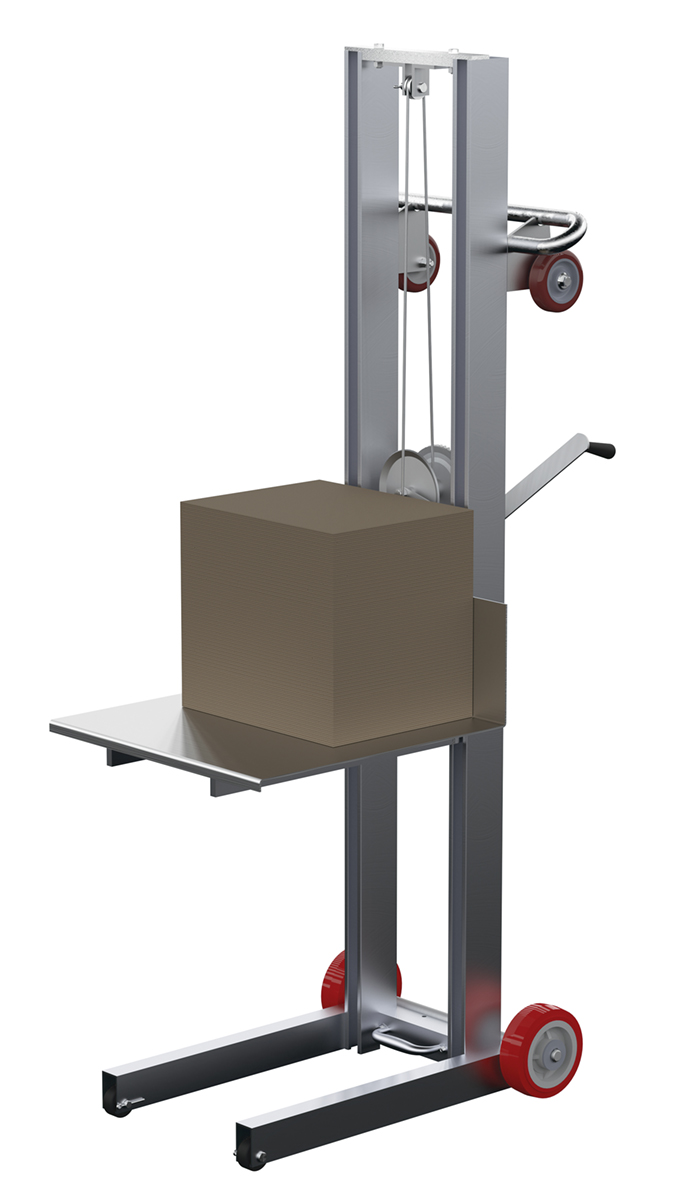

Aluminum Lite Load Lift With Winch and Fixed Wheels 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks.

  • Lite load lift is ideal for lifting and transporting loads
  • Hand winch operation and aluminum construction make the unit is easy to operate
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers, located on the handles, to ease loading into delivery trucks
Total Ship Wt.(lbs.): 84 (only 1 package) Size: 20.0625"W x 33.125"L x 66.5"H Color: Silver QuickShip

Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 3-1/8 Raised Height (in.): 58 Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Operation: Hand Winch Rear Wheel (qty.): 2
Rear Wheel Diameter/Width (in.): 6 x 2 Rear Wheel Material: Poly on Poly Rear Wheel Type: Rigid
Front Caster Quantity: 2 Front Caster Diameter/Width (in.): 2 x 1 Front Caster Material: Semi Steel
Front Caster Type: Rigid Handle Caster Quantity: 2 Handle Caster Diameter/Width (in.): 4 x 1-1/4
Handle Caster Material: Poly on Poly Handle Caster Type: Rigid

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ALLW-2020-FW
ALLW-2020-FW

Aluminum Lite Load Lift With Winch and Fixed Wheels 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks.

  • Lite load lift is ideal for lifting and transporting loads
  • Hand winch operation and aluminum construction make the unit is easy to operate
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers, located on the handles, to ease loading into delivery trucks
Dimensions: 20.0625"W x 33.125"L x 66.5"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215002349 GTIN: 00691215002349
Warranty: -- Shipping Weight: 84 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 20 Platform Length (in.): 20
Lowered Height (in.): 3-1/8 Raised Height (in.): 58 Per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Operation: Hand Winch Rear Wheel (qty.): 2
Rear Wheel Diameter/Width (in.): 6 x 2 Rear Wheel Material: Poly on Poly Rear Wheel Type: Rigid
Front Caster Quantity: 2 Front Caster Diameter/Width (in.): 2 x 1 Front Caster Material: Semi Steel
Front Caster Type: Rigid Handle Caster Quantity: 2 Handle Caster Diameter/Width (in.): 4 x 1-1/4
Handle Caster Material: Poly on Poly Handle Caster Type: Rigid
