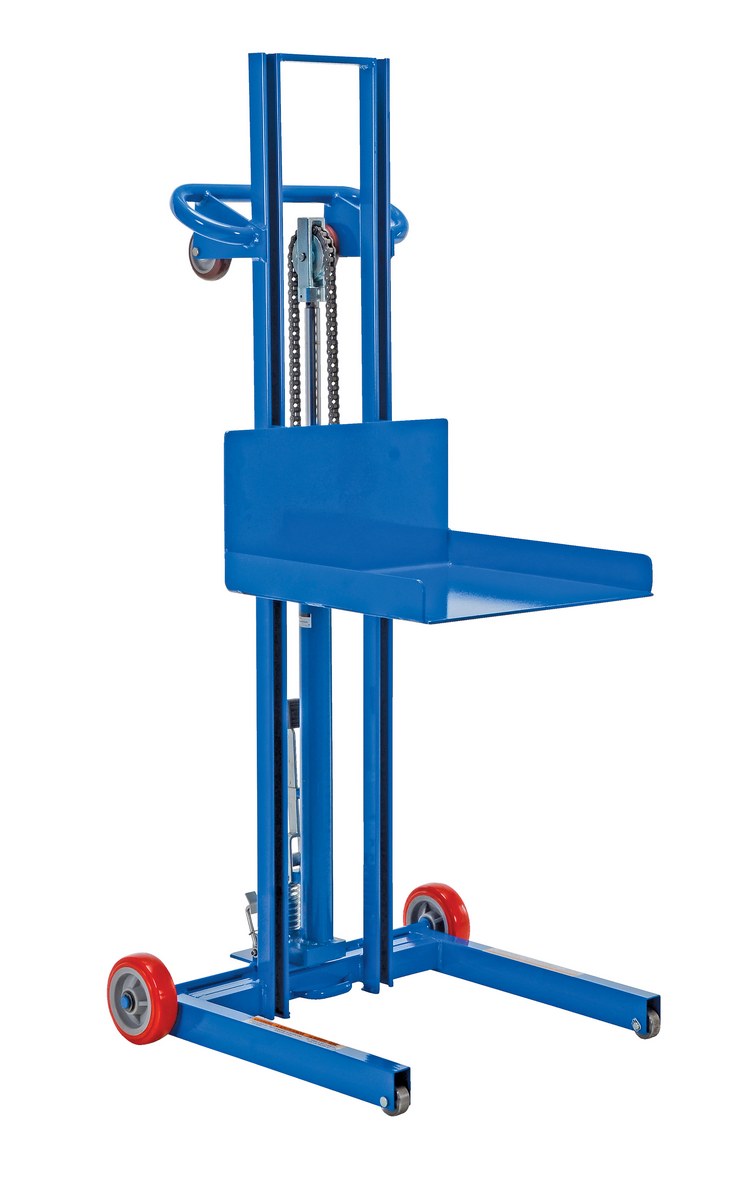

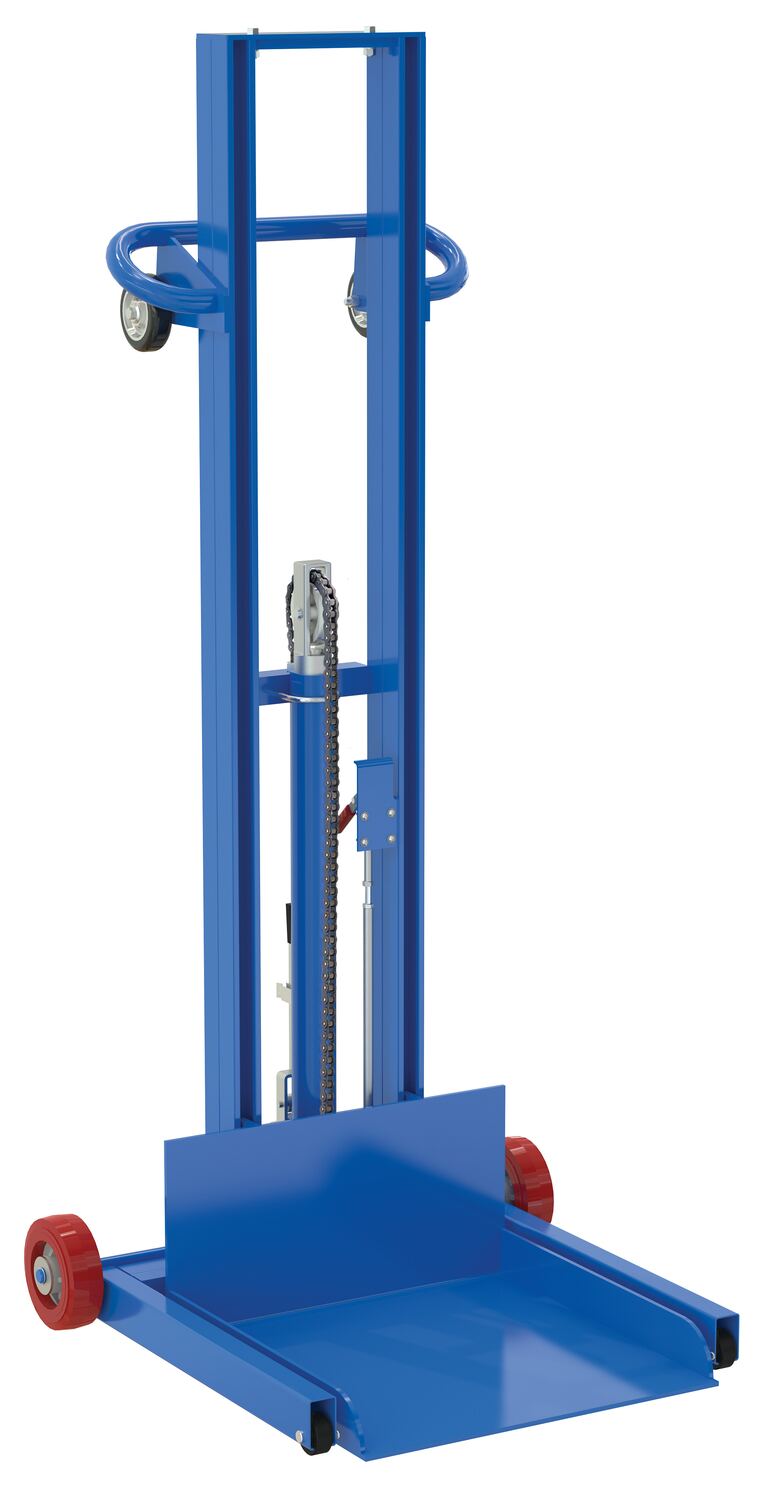

model LLPH-500-FW
SERIES: LLW


Lite Load Lifts

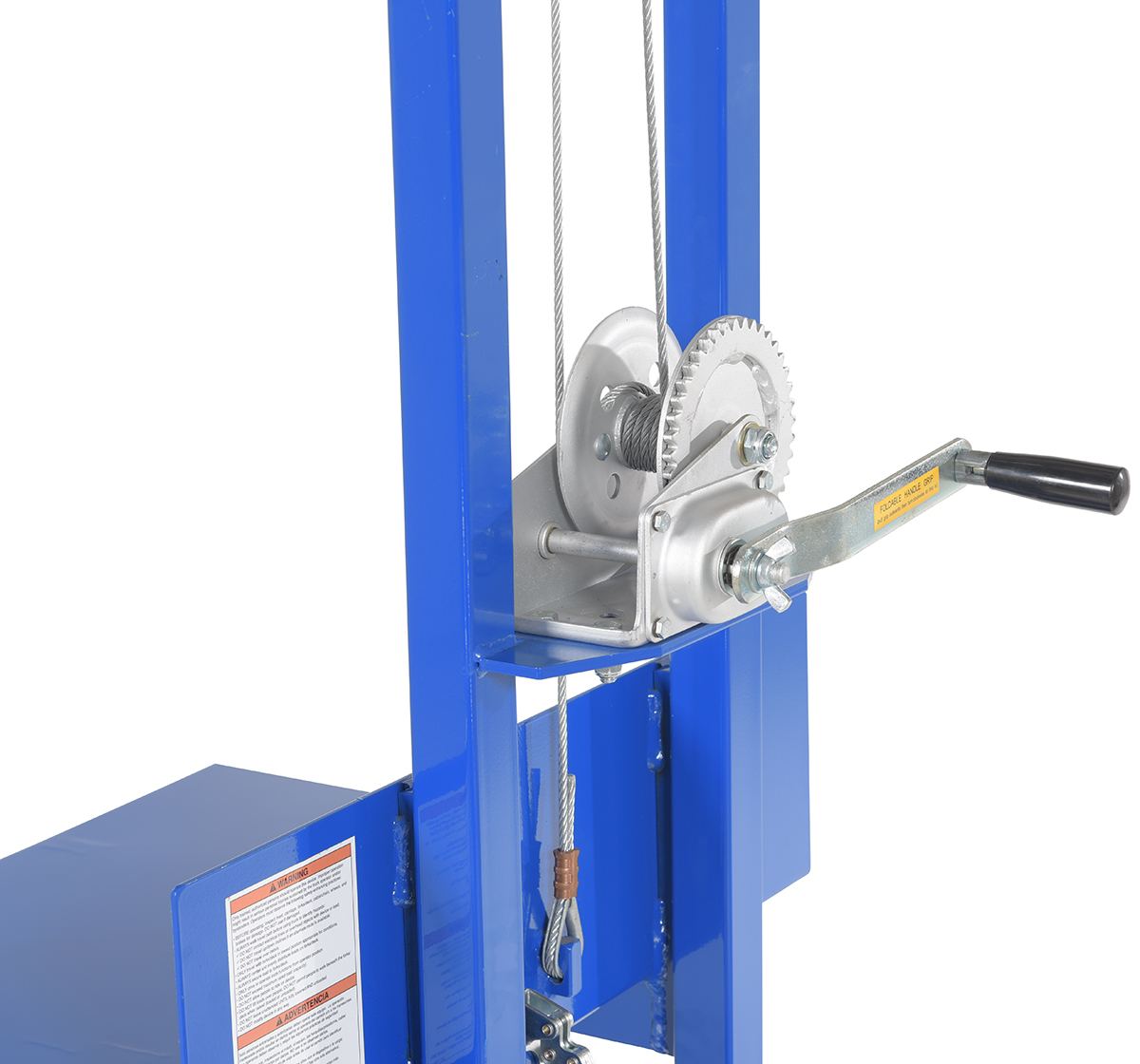

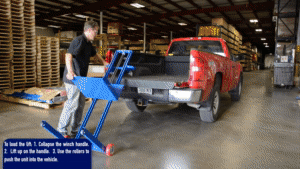

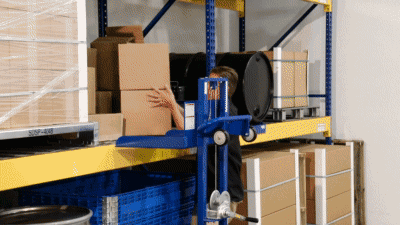

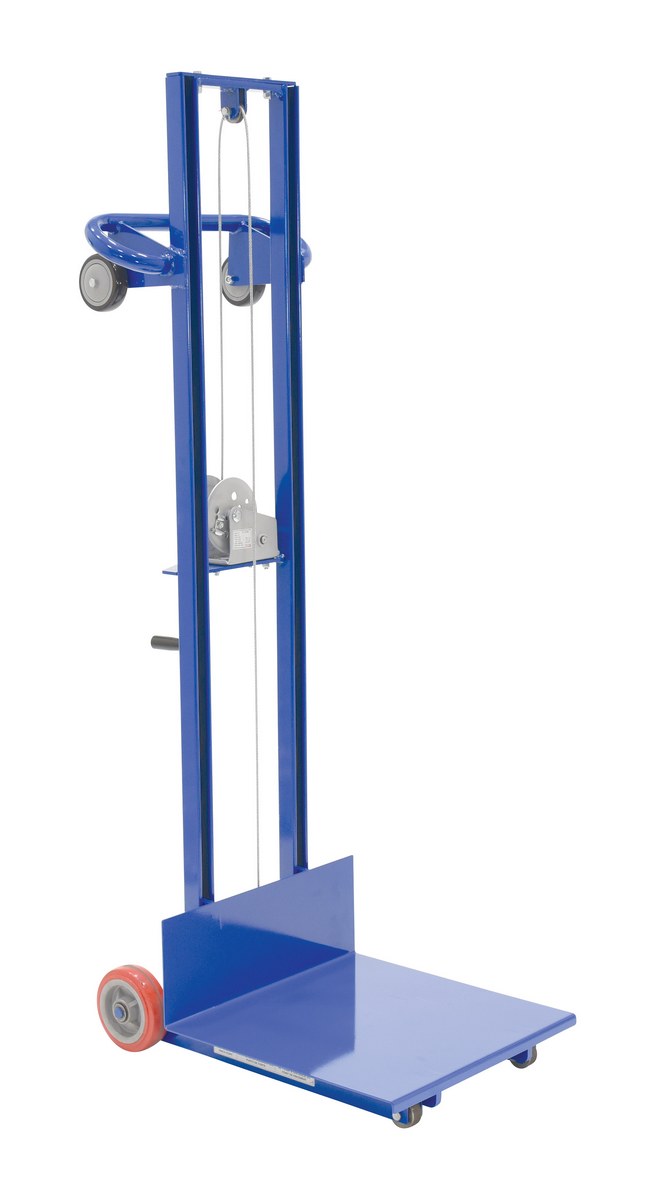

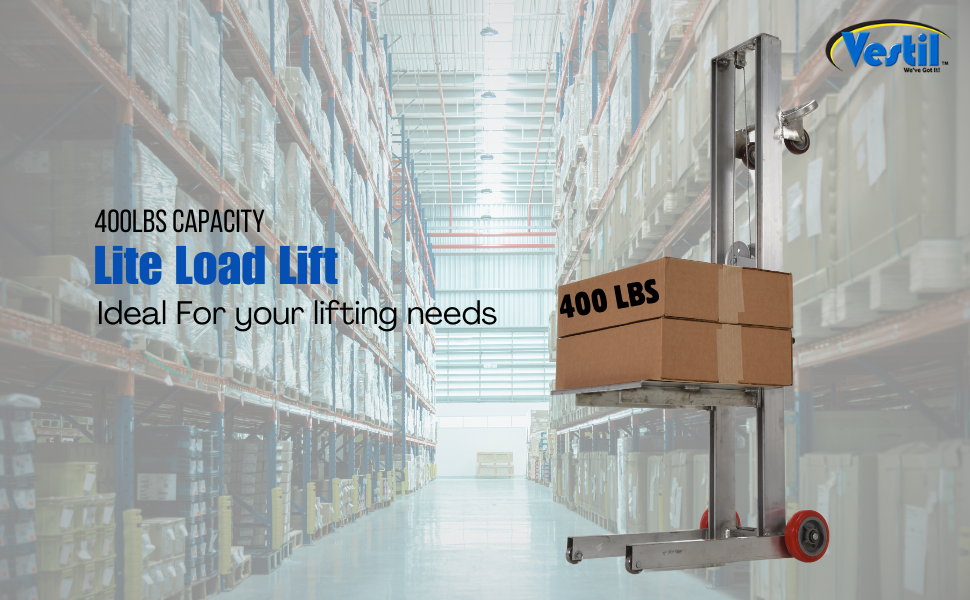

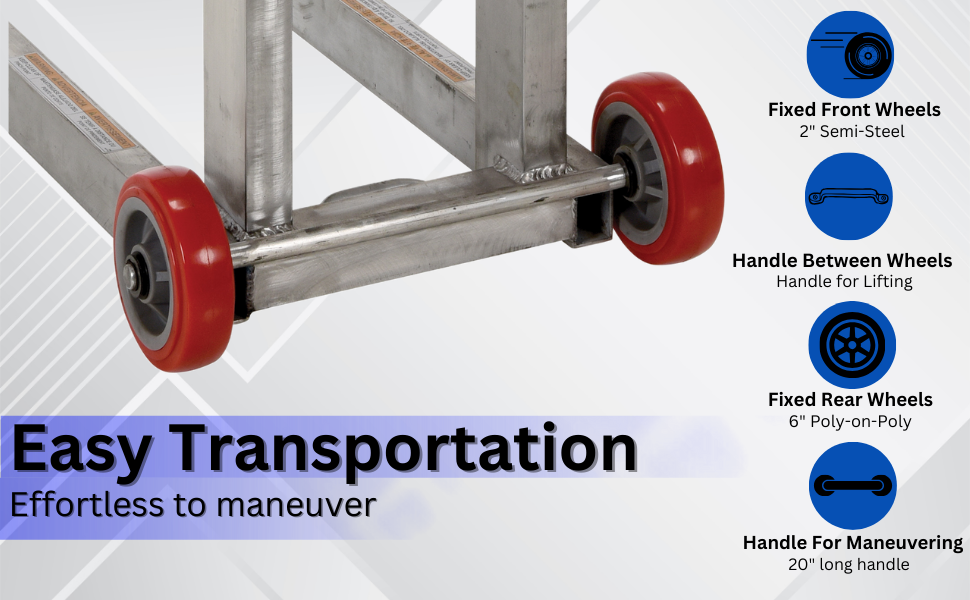

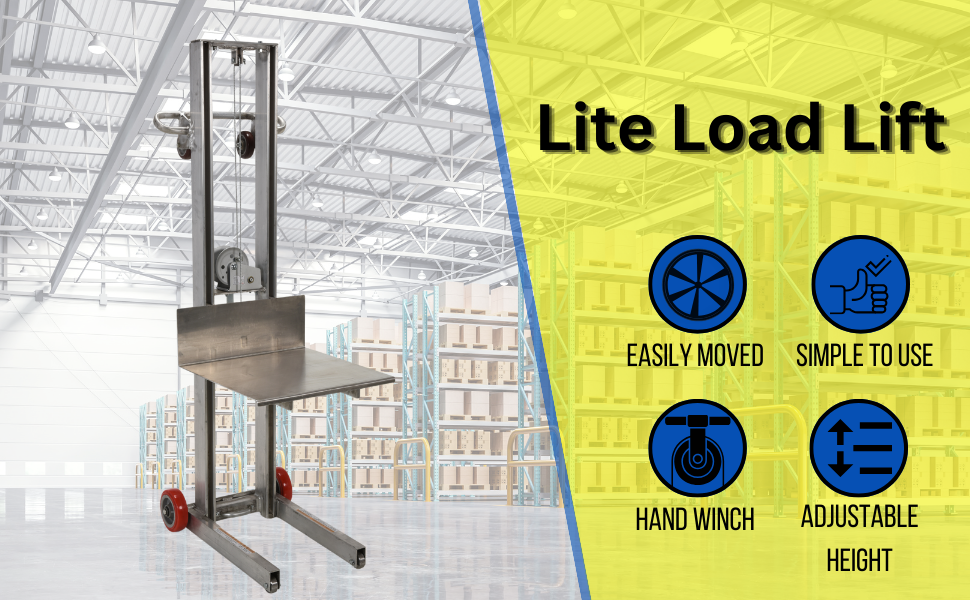

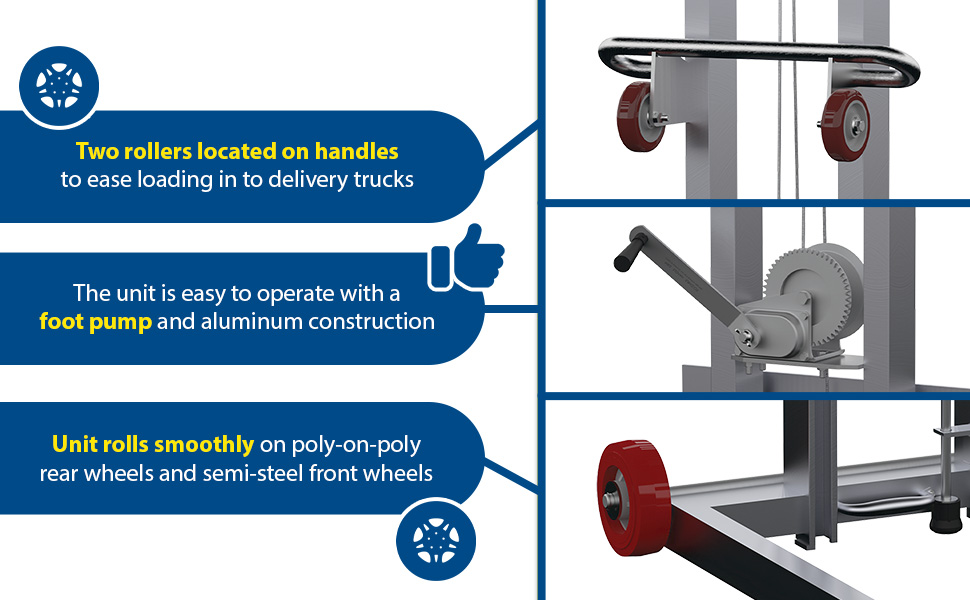

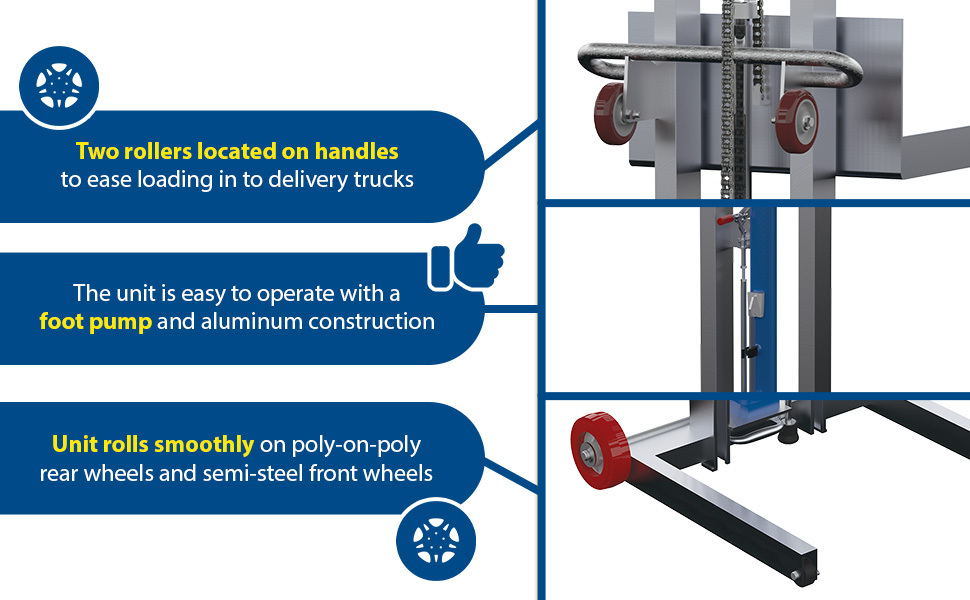

Lift and transport loads from delivery trucks to docks, or use to inventory storage systems. Easy to operate with either a hand winch or foot pump. The platform lifts approximately 1" per winch rotation or foot pump stroke. Available in steel or aluminum construction. Models with the suffix -FW roll smoothly on 6" x 2" poly-on-poly rear wheels with 2" semi-steel front wheels. Models with the suffix -4SFL have 8" x 2" poly-on-poly rear wheels, four swivel casters, and a hand operated floor lock. Located on the handle are two rollers to ease loading into delivery trucks. Model LLCB-202058 rolls on (2) front 4" x 2" mold on rubber and (2) back 4"x1-1/4" hard rubber swivel wheels and a foot operated floor lock. Horizontal load center is 10". Low Profile units have a deck height of 1/4" with 2" high side lips.

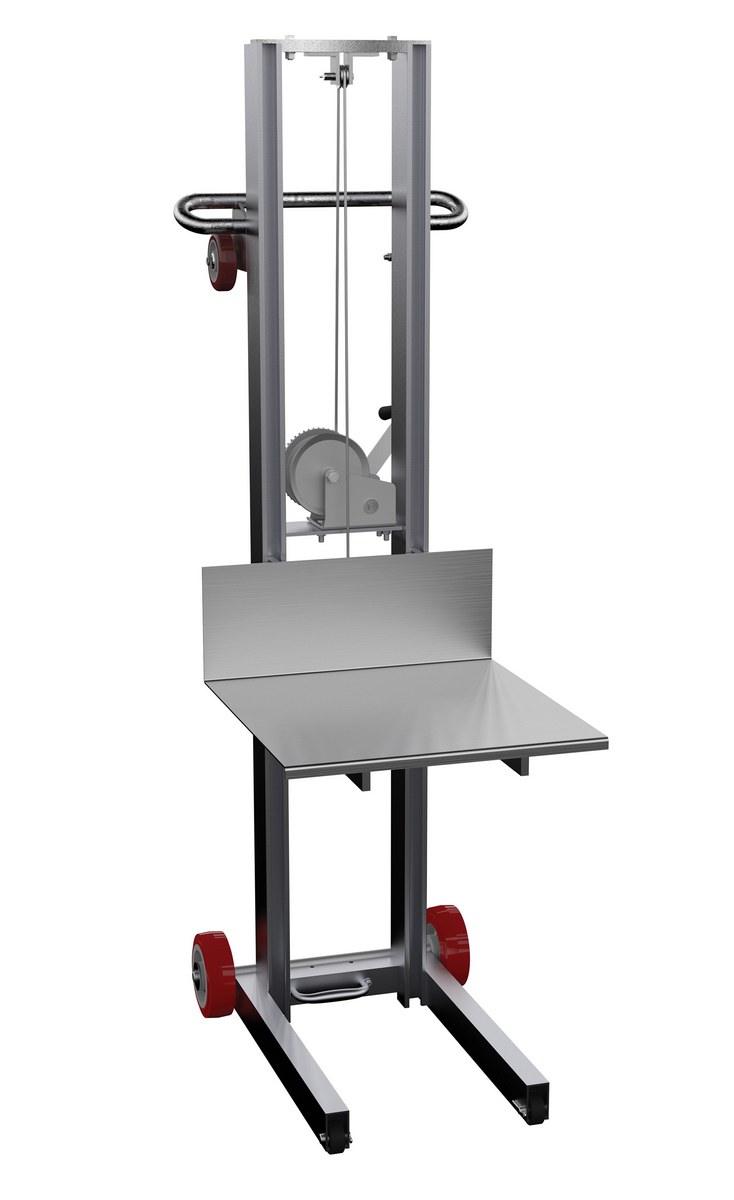

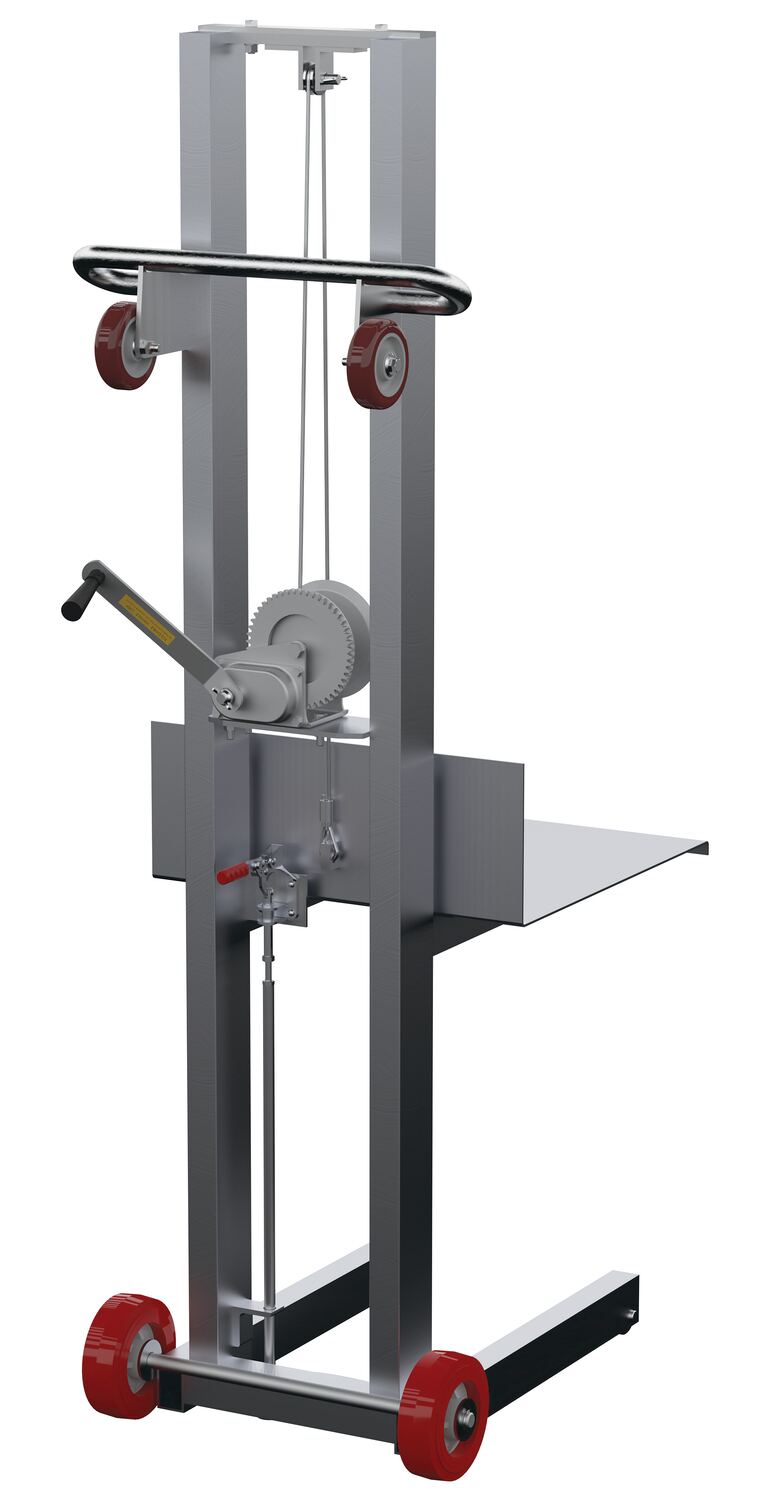

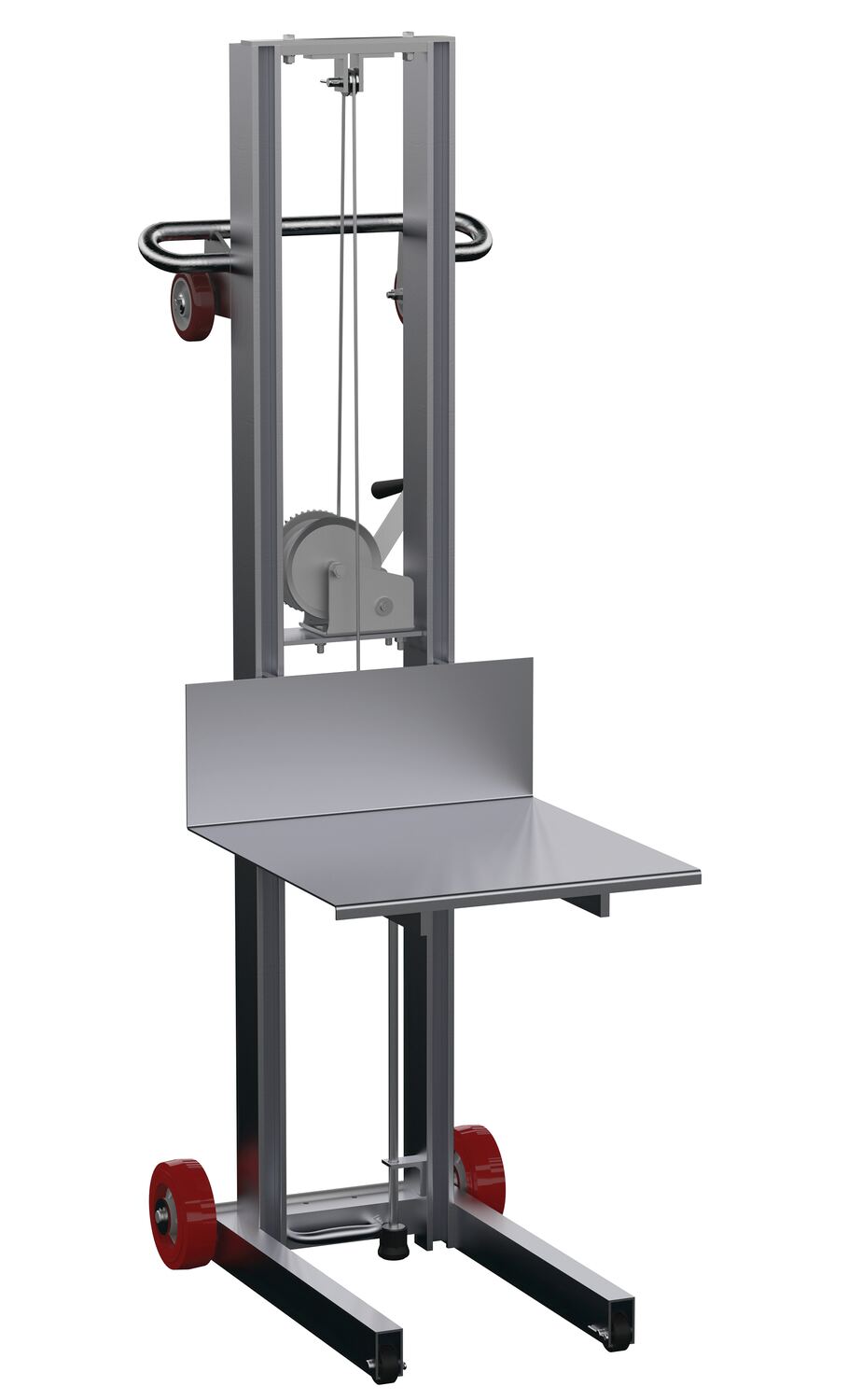

ALLW-2020-FW

model ALLW-2020-FW

ALLW-2420-4SFL

model ALLW-2420-4SFL

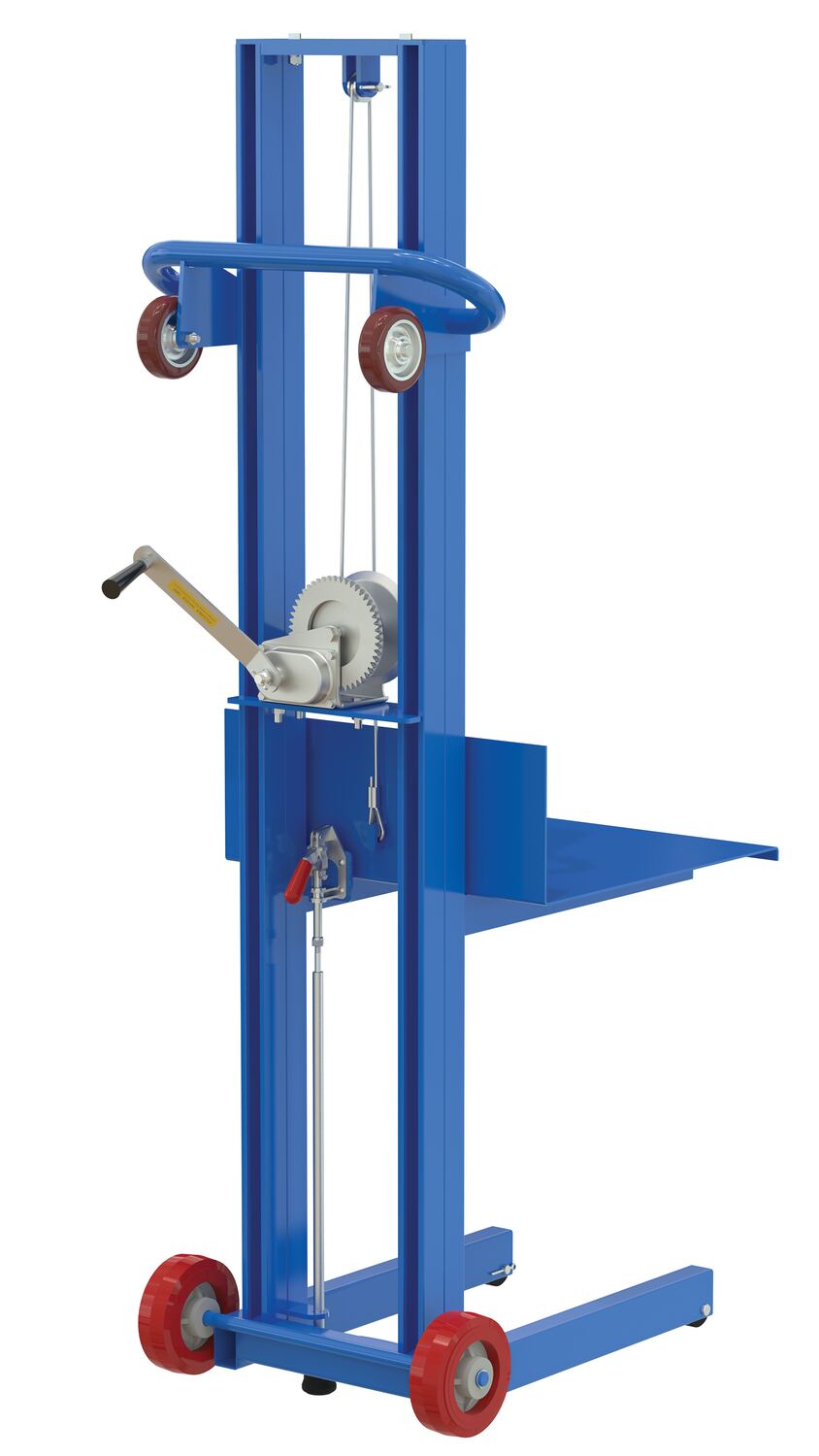

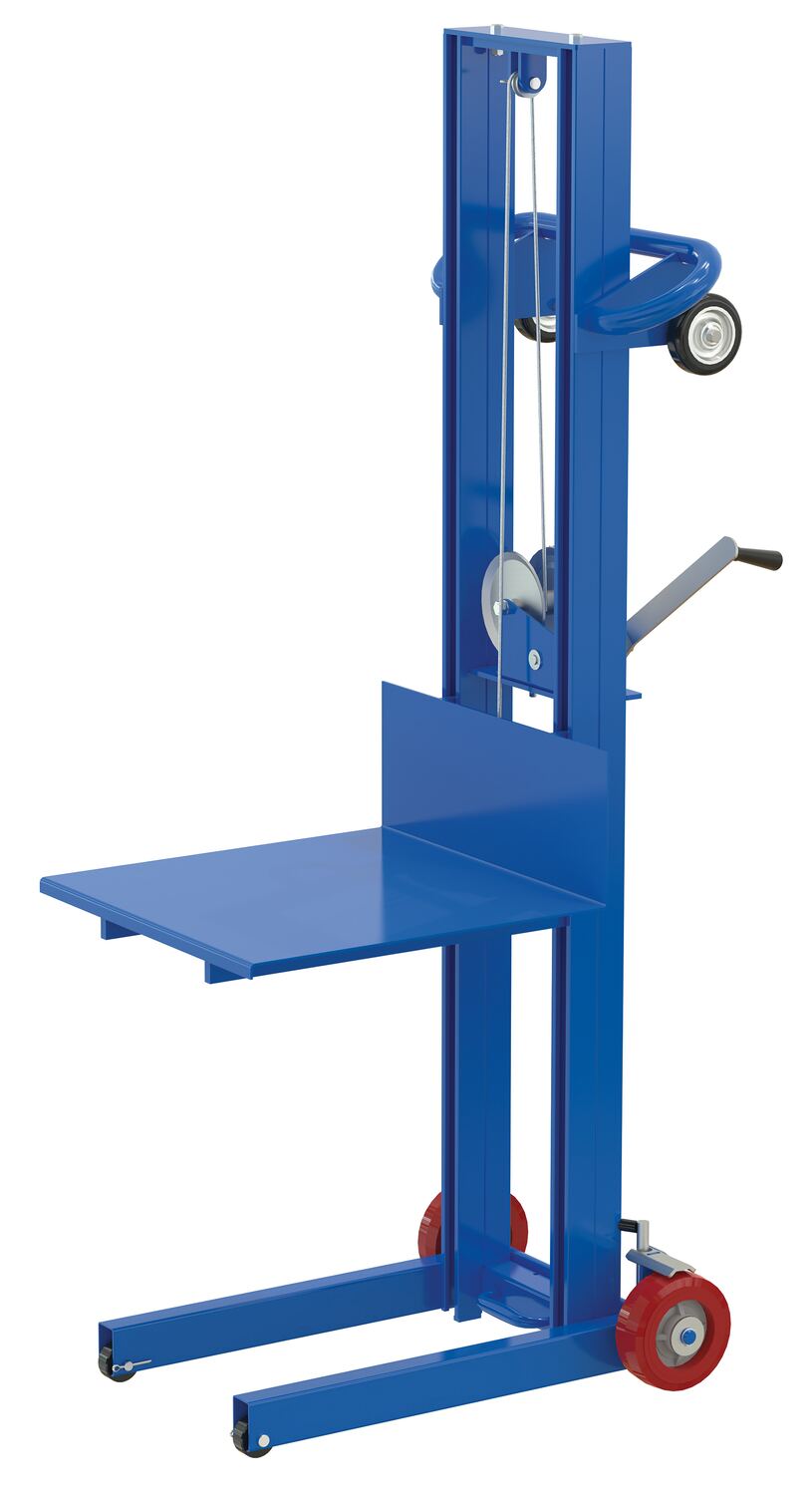

LLW-202058-FW

model LLW-202058-FW

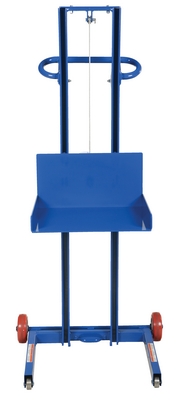

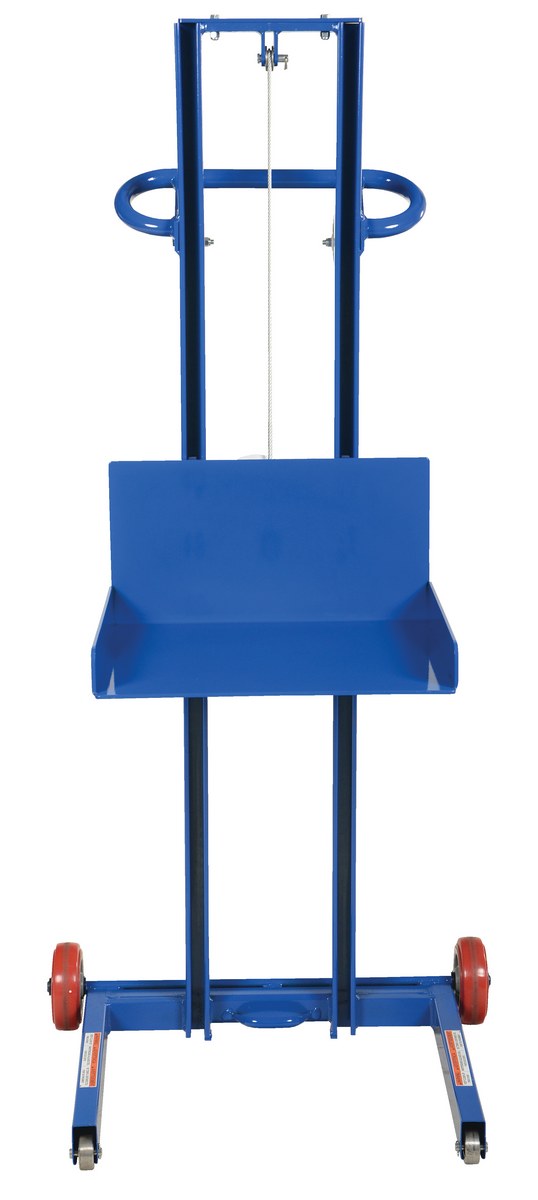

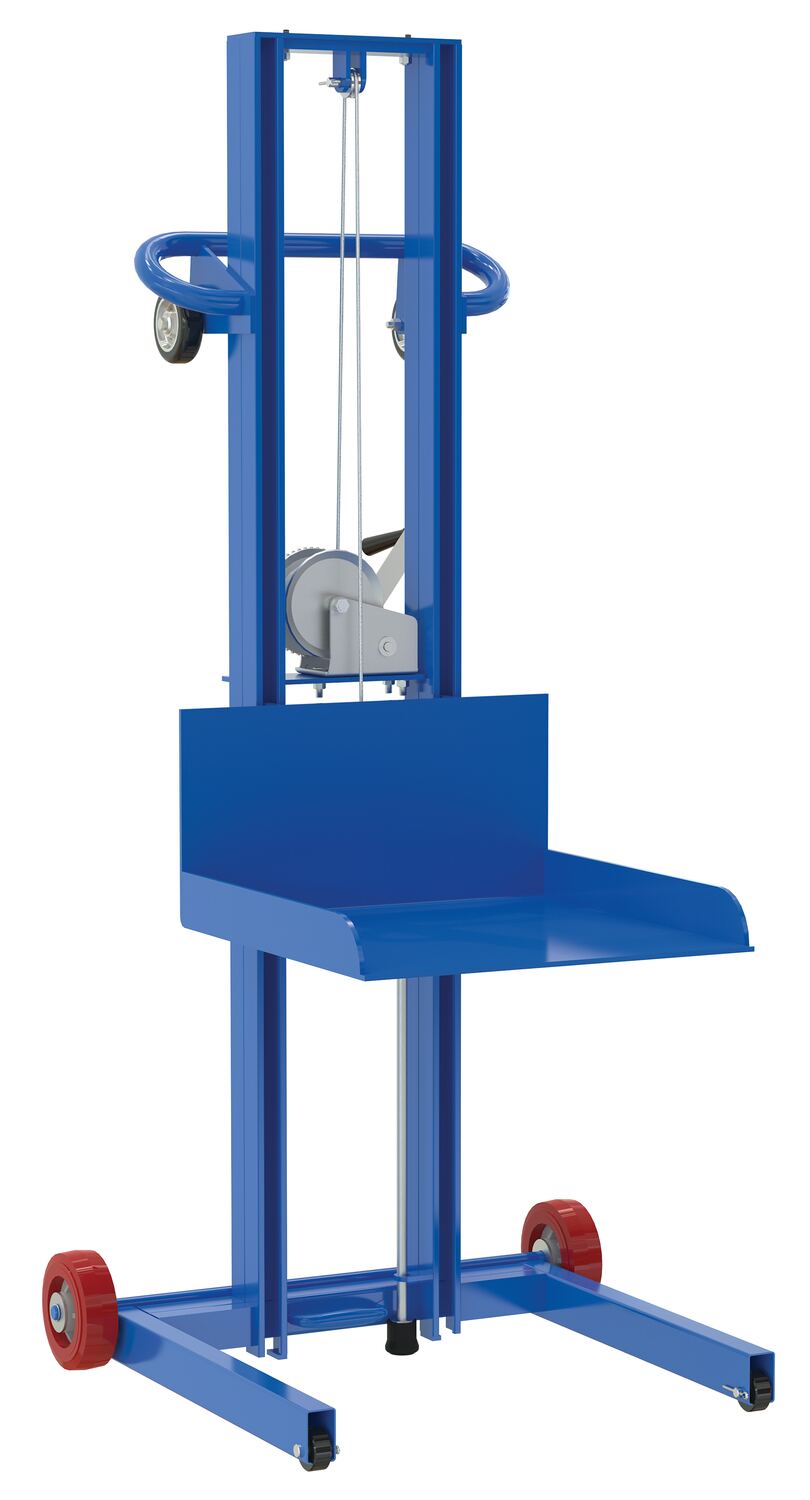

LLPW-500-FW

model LLPW-500-FW

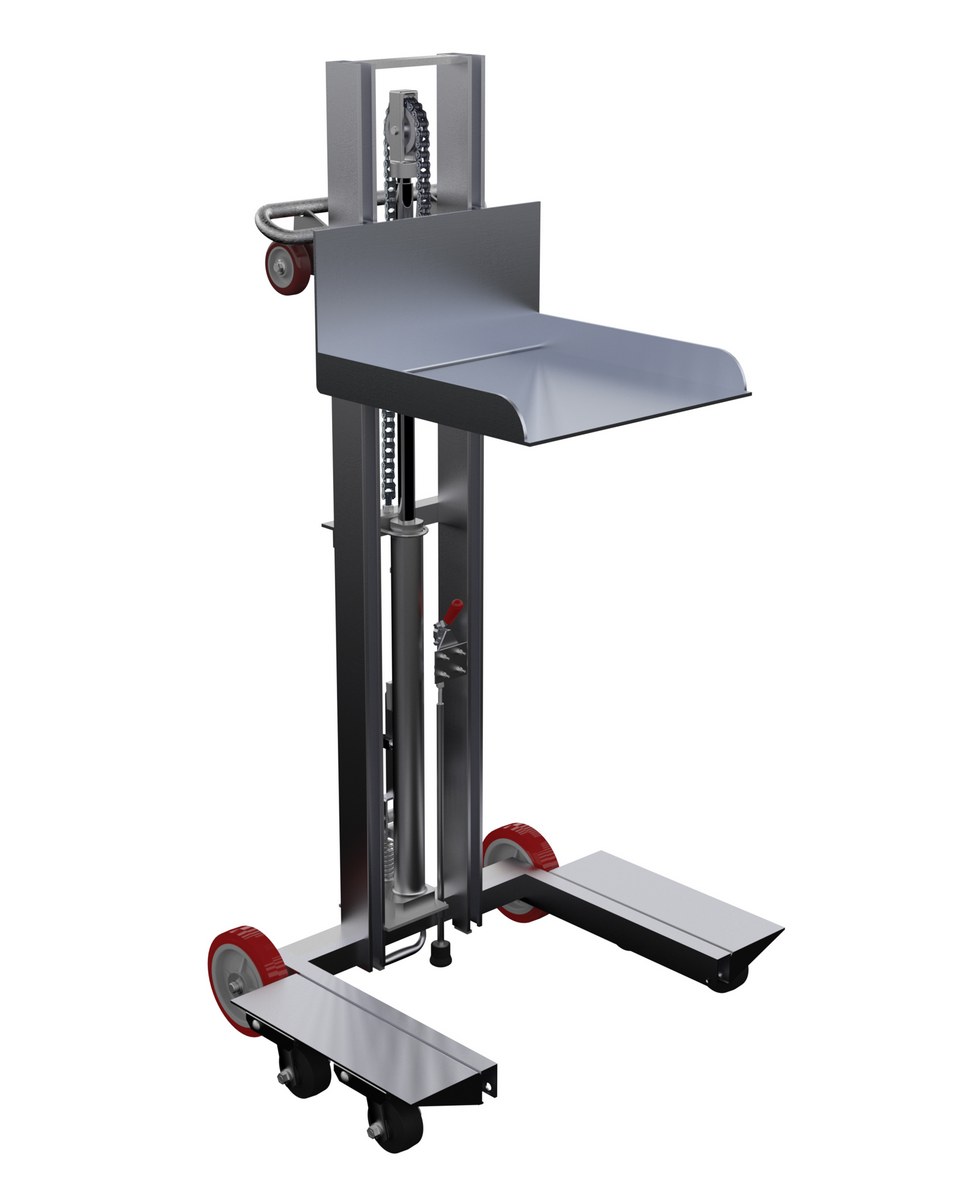

ALLPH-500-4SFL

model ALLPH-500-4SFL

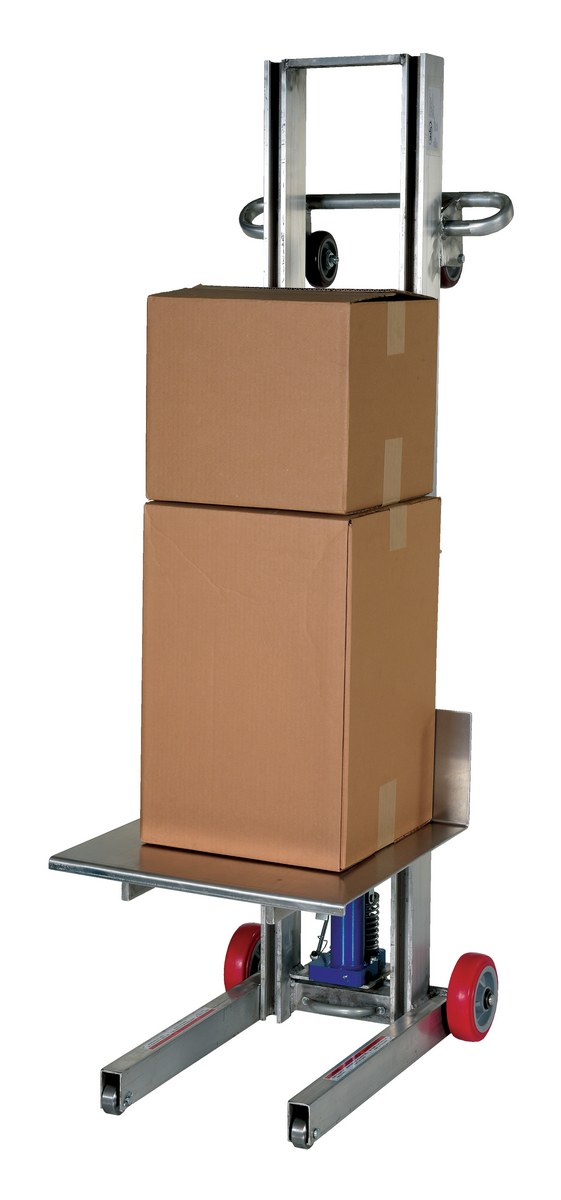

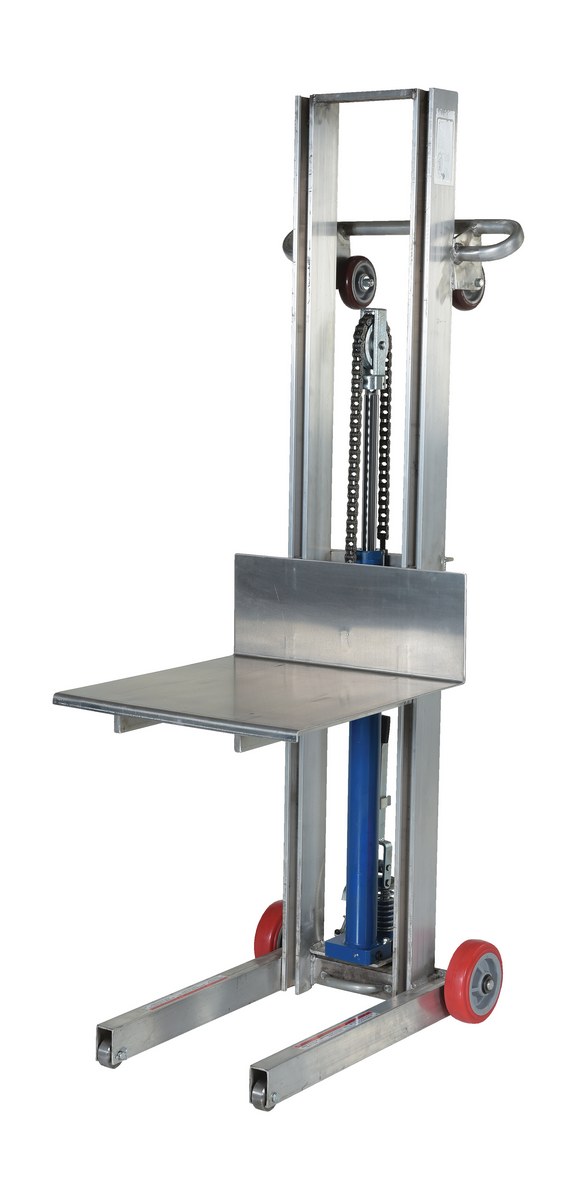

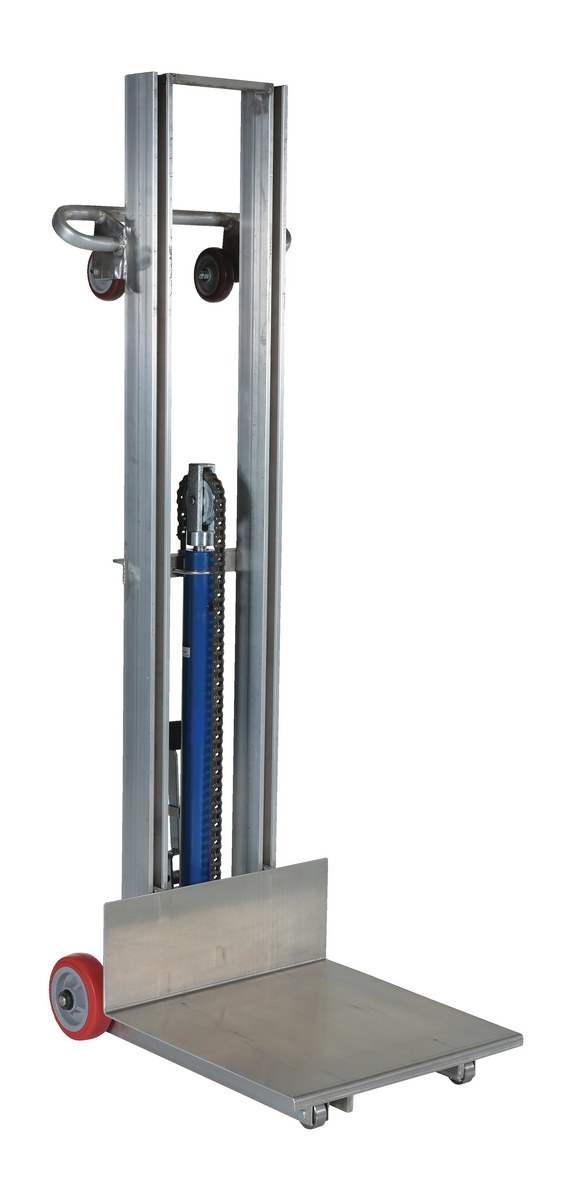

ALLH-2020-FW

model ALLH-2020-FW

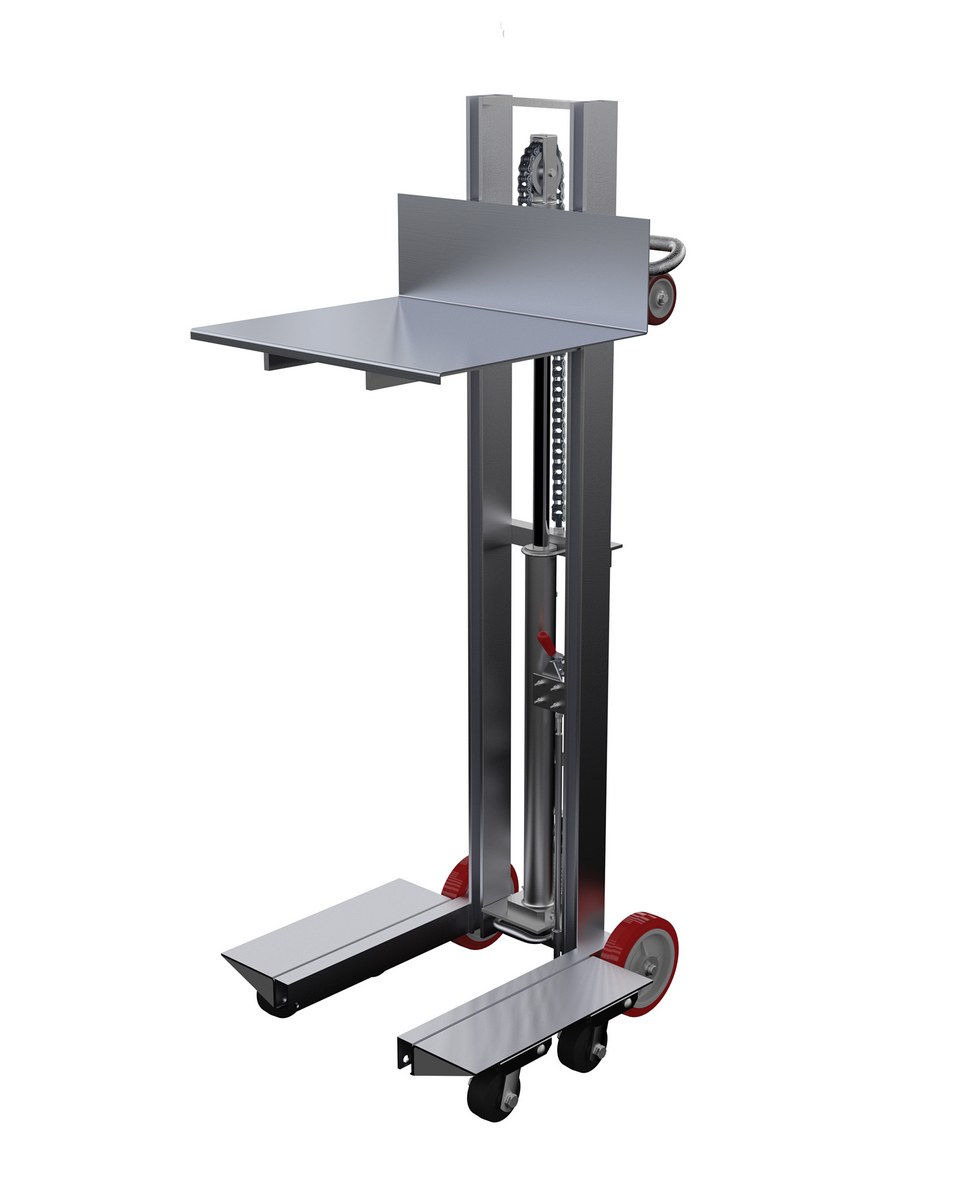

ALLH-2420-4SFL

model ALLH-2420-4SFL

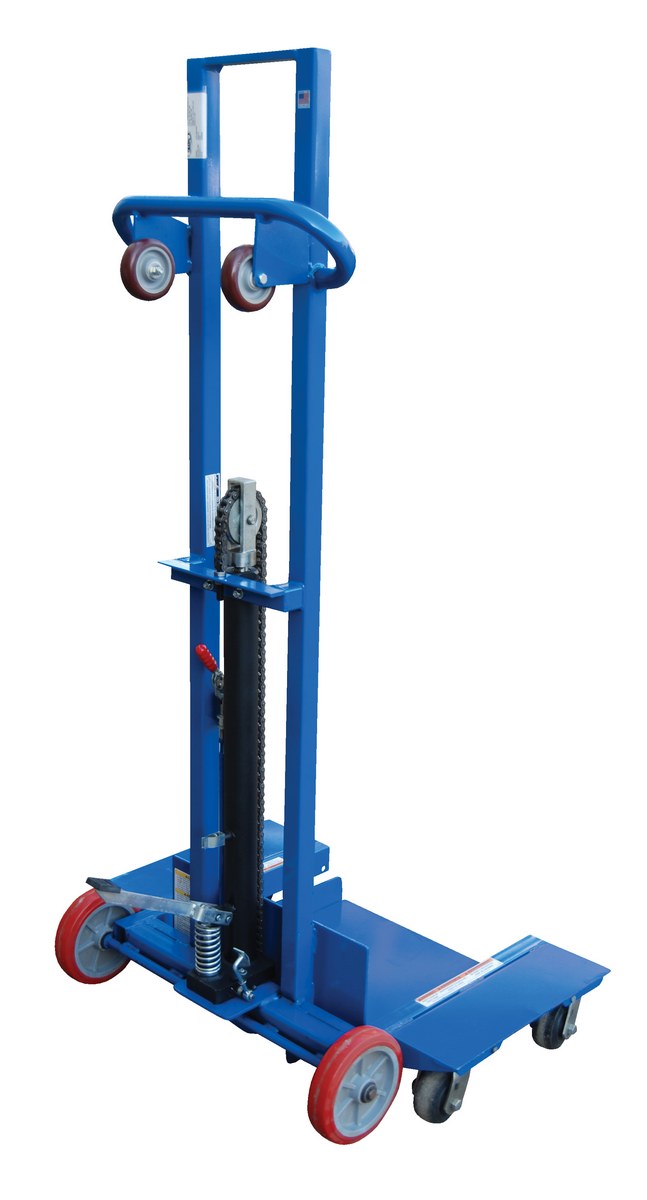

LLPH-500-4SFL

model LLPH-500-4SFL

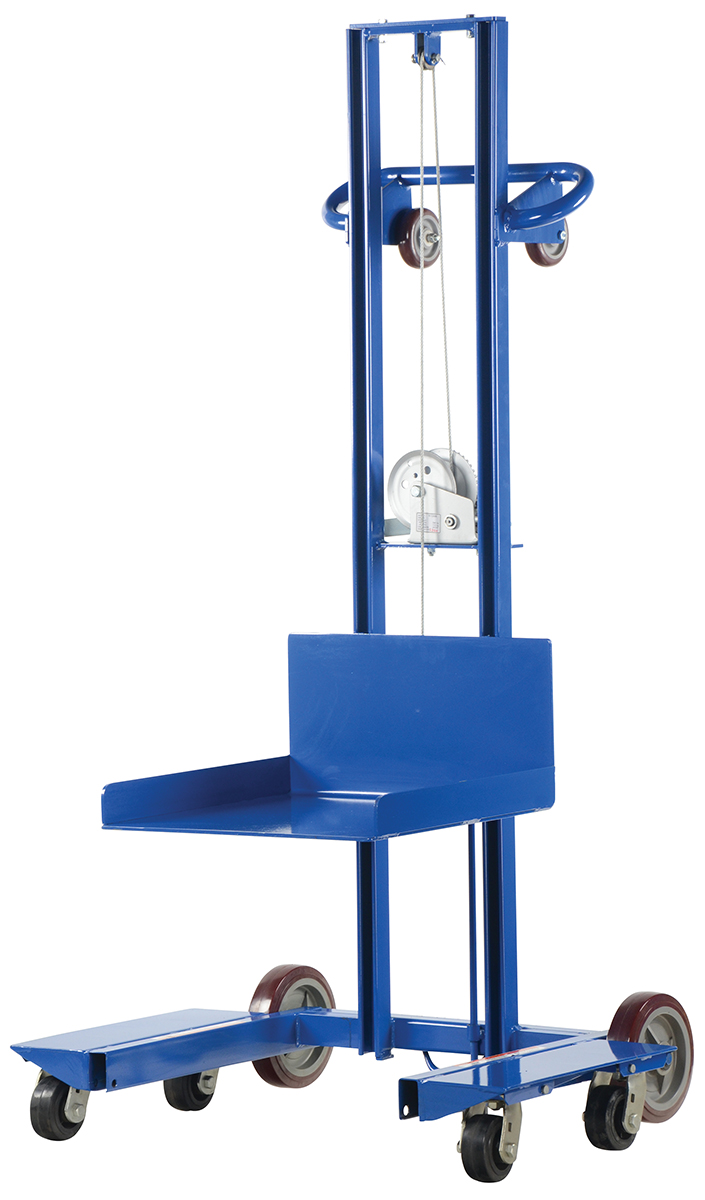

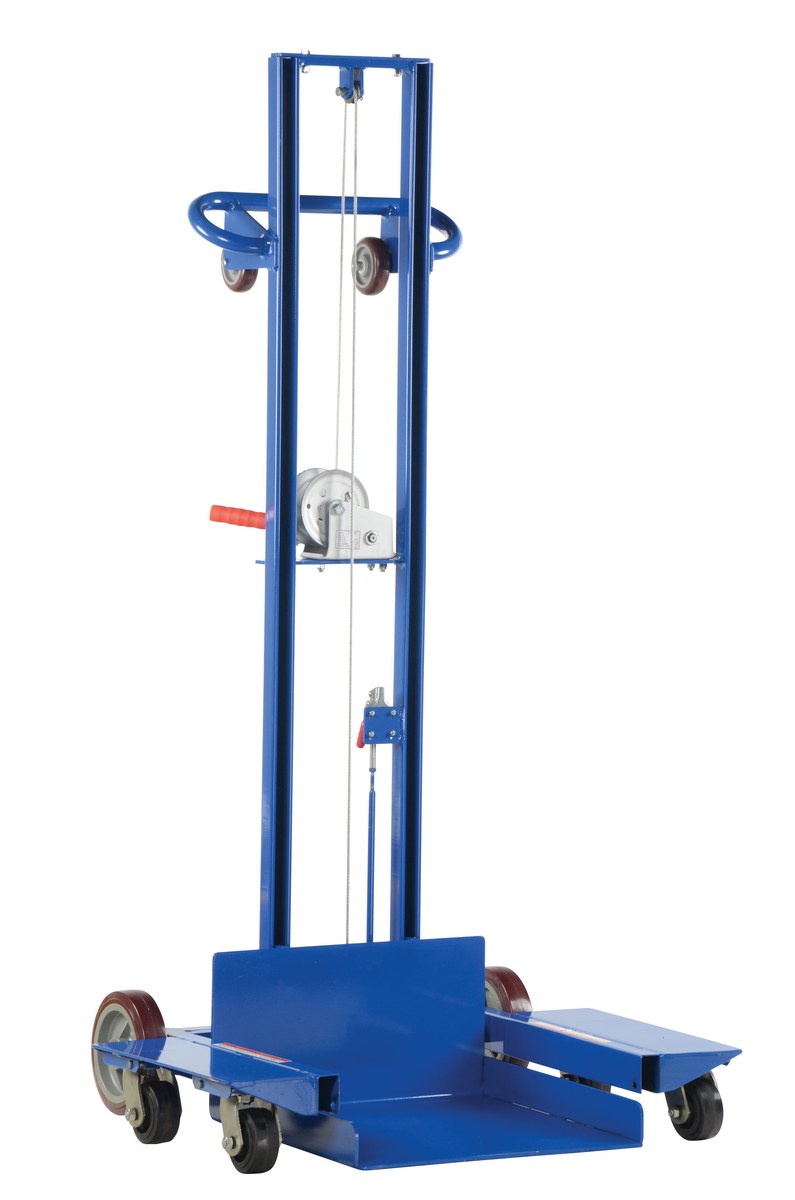

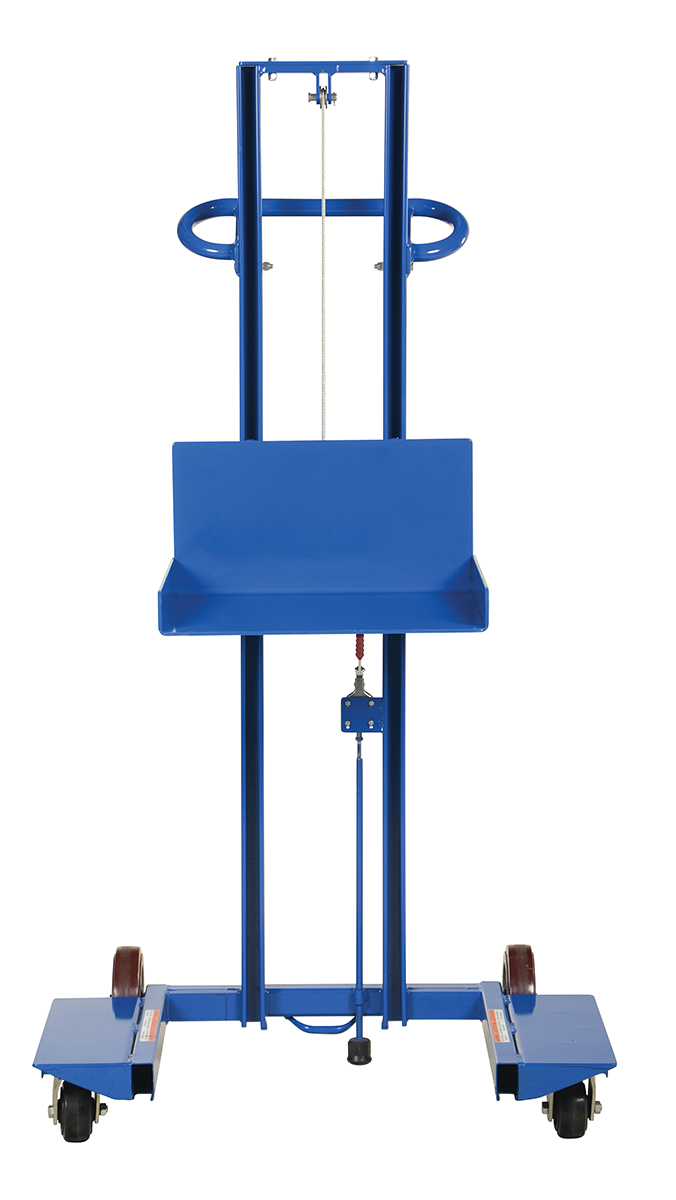

LLPW-500-4SFL

model LLPW-500-4SFL

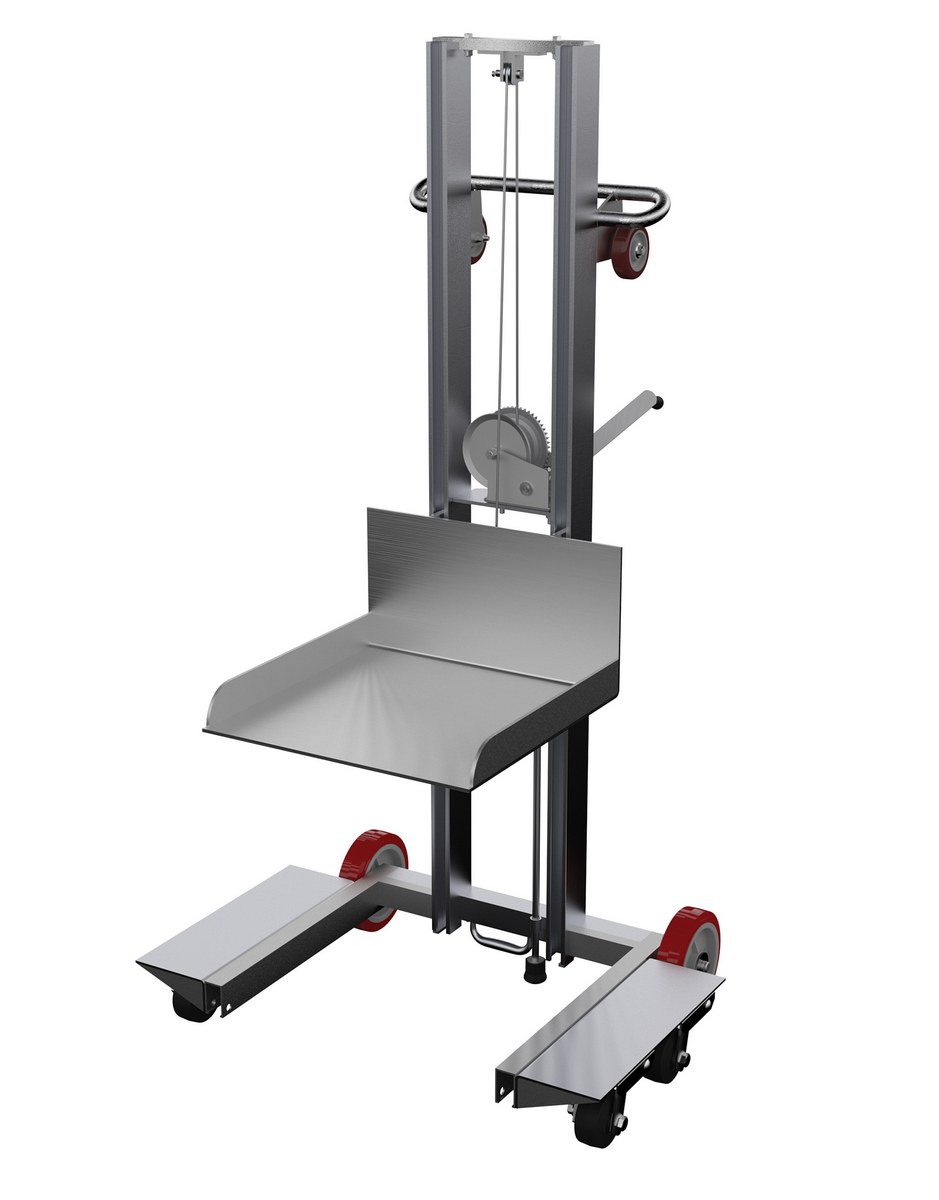

ALLPW-500-4SFL

model ALLPW-500-4SFL

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Light Load Lifts
Model PDF's Platform Size
(WxL)
Service
Range
Capacity
(lbs)
Operation Wt.
(lbs)

Steel Construction

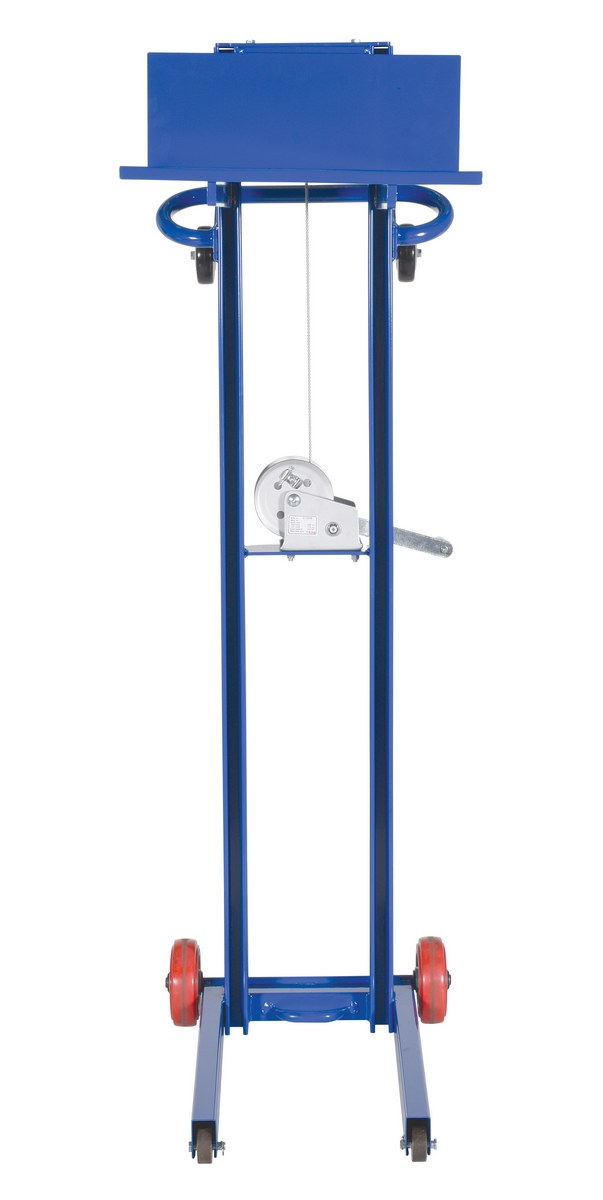

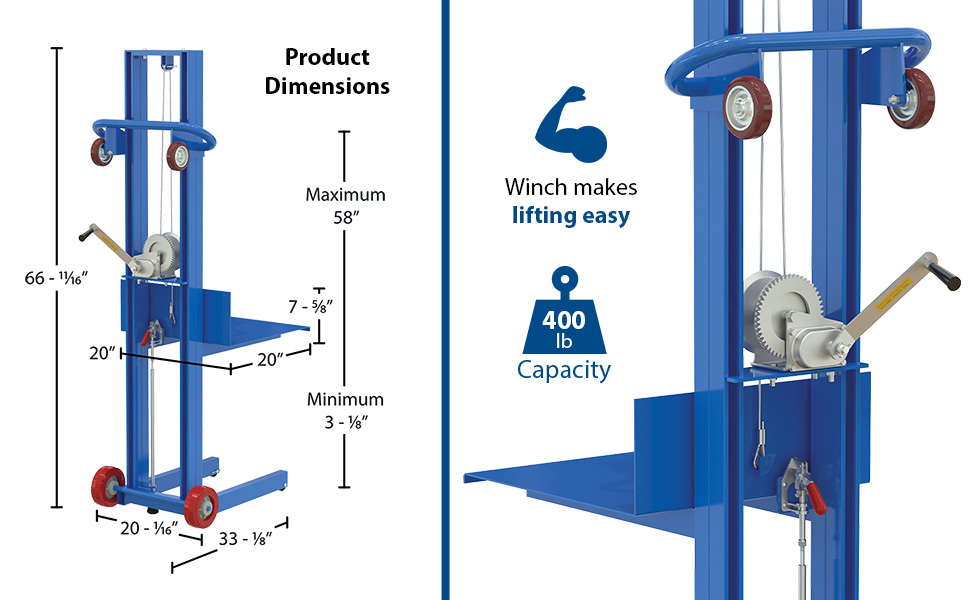

LLW-202058-FW** icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 3-1/8" to 58" 500 Winch 107

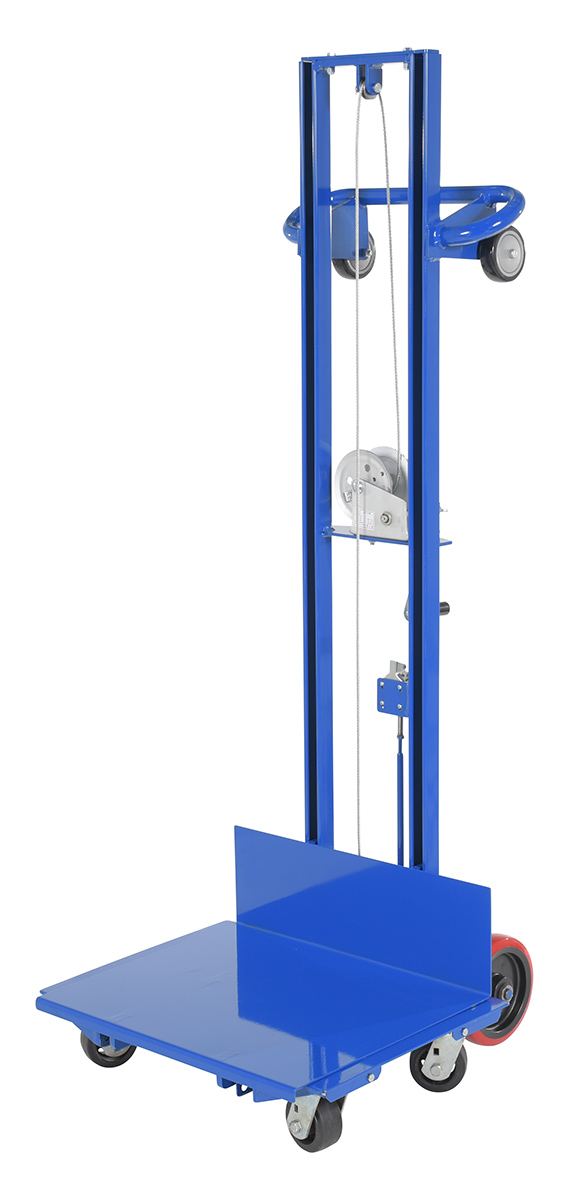

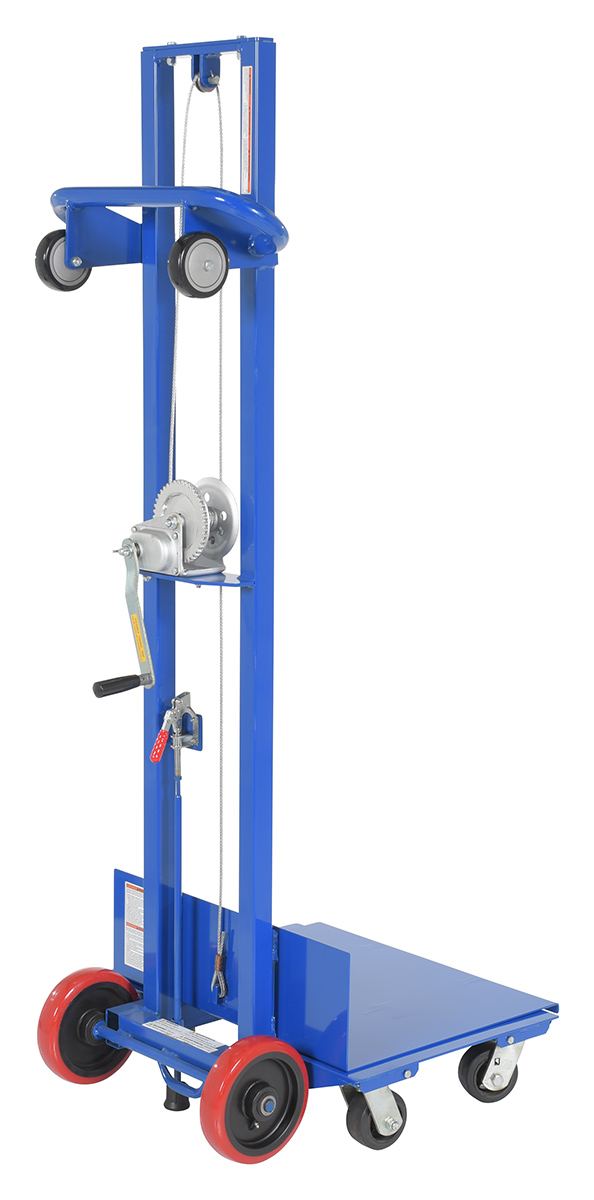

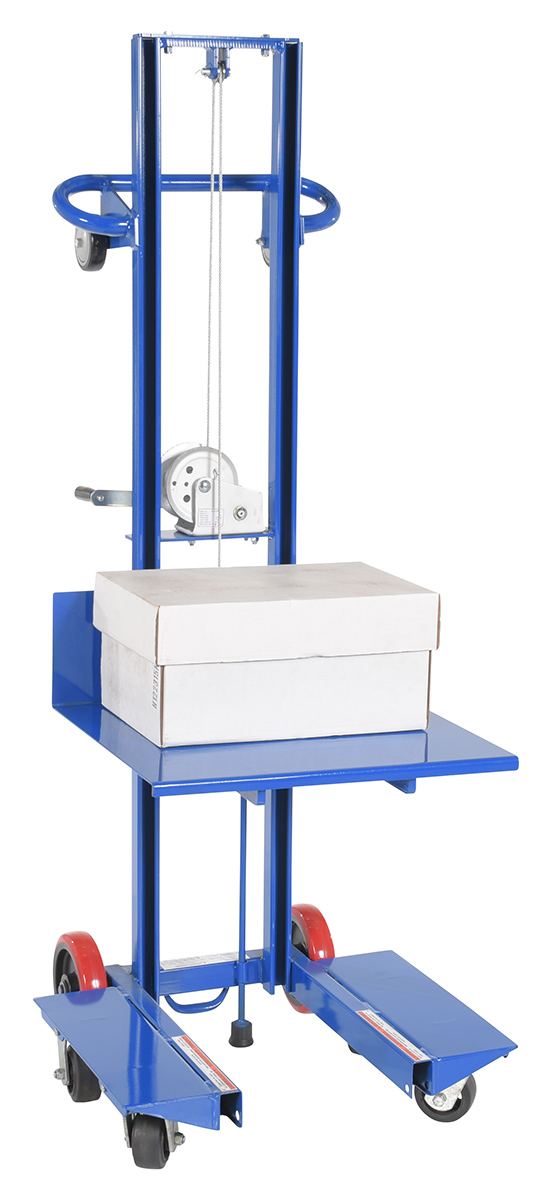

LLW-242060-4SFL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x20" 6-1/8" to 60" 500 Winch 198

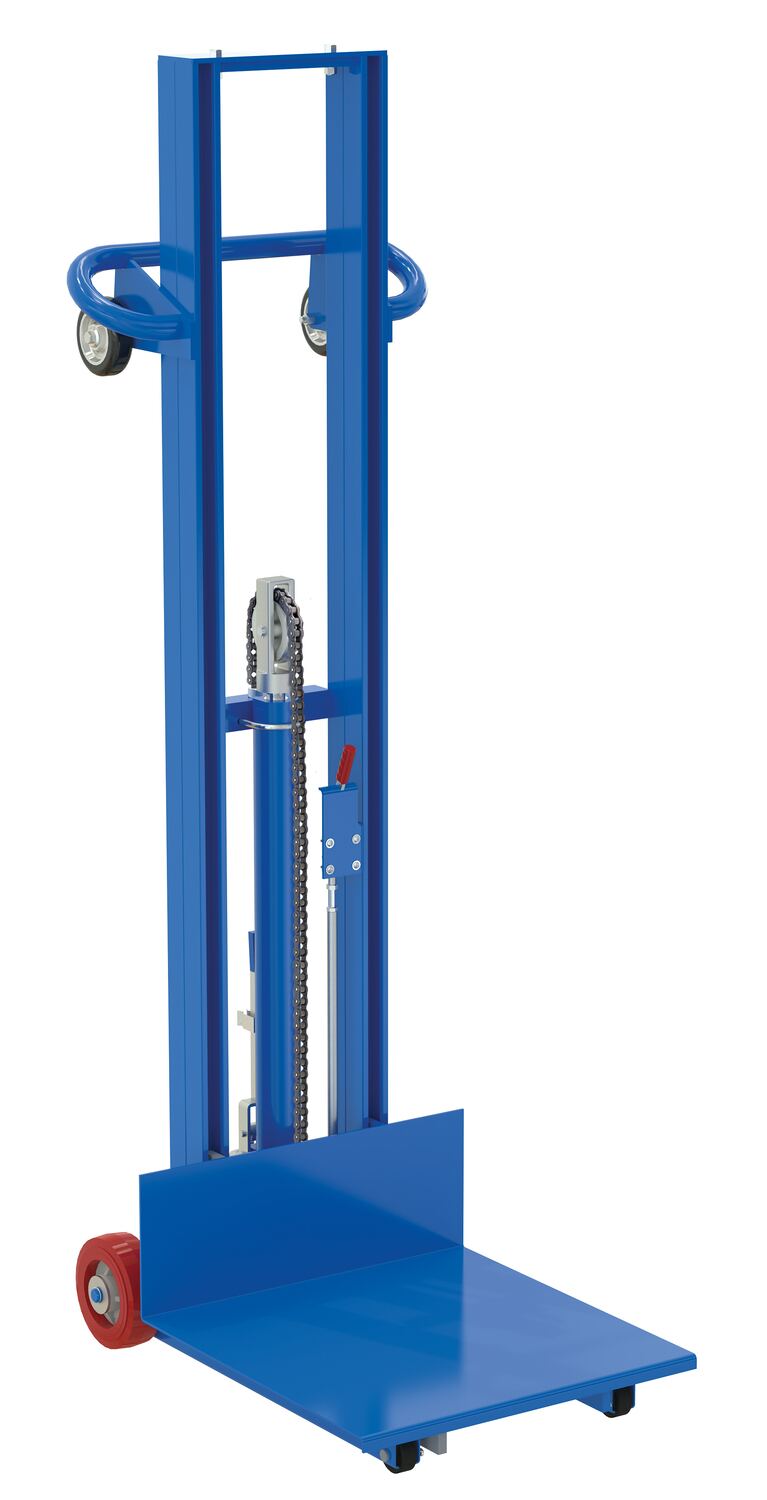

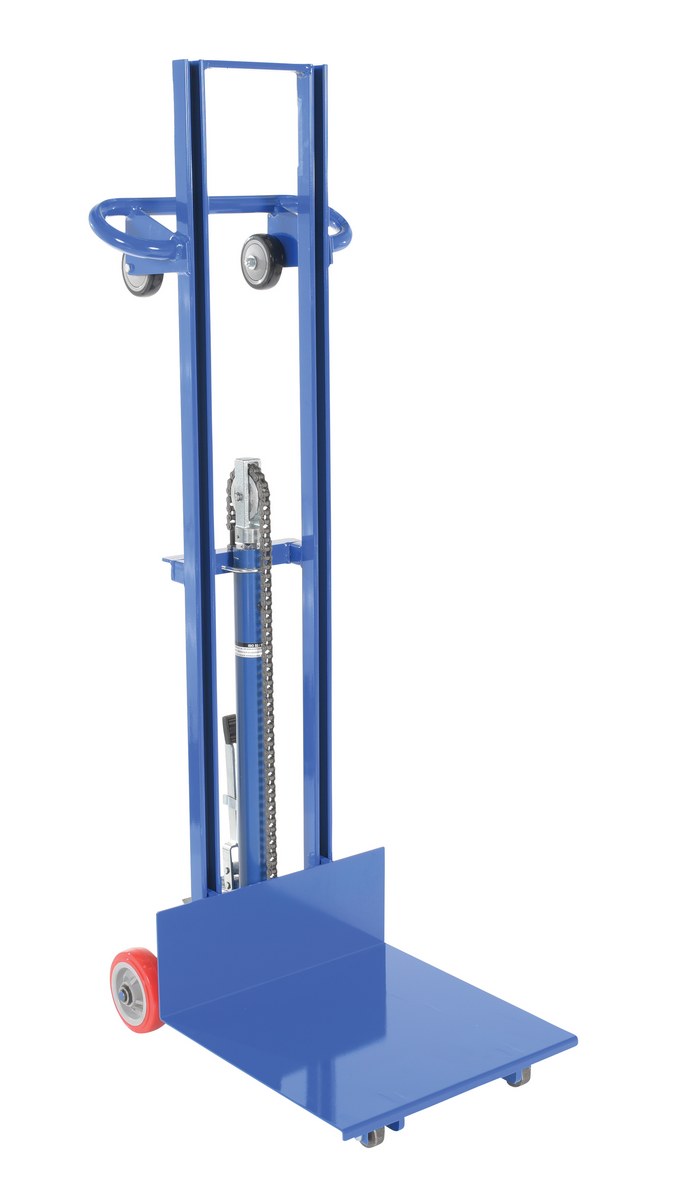

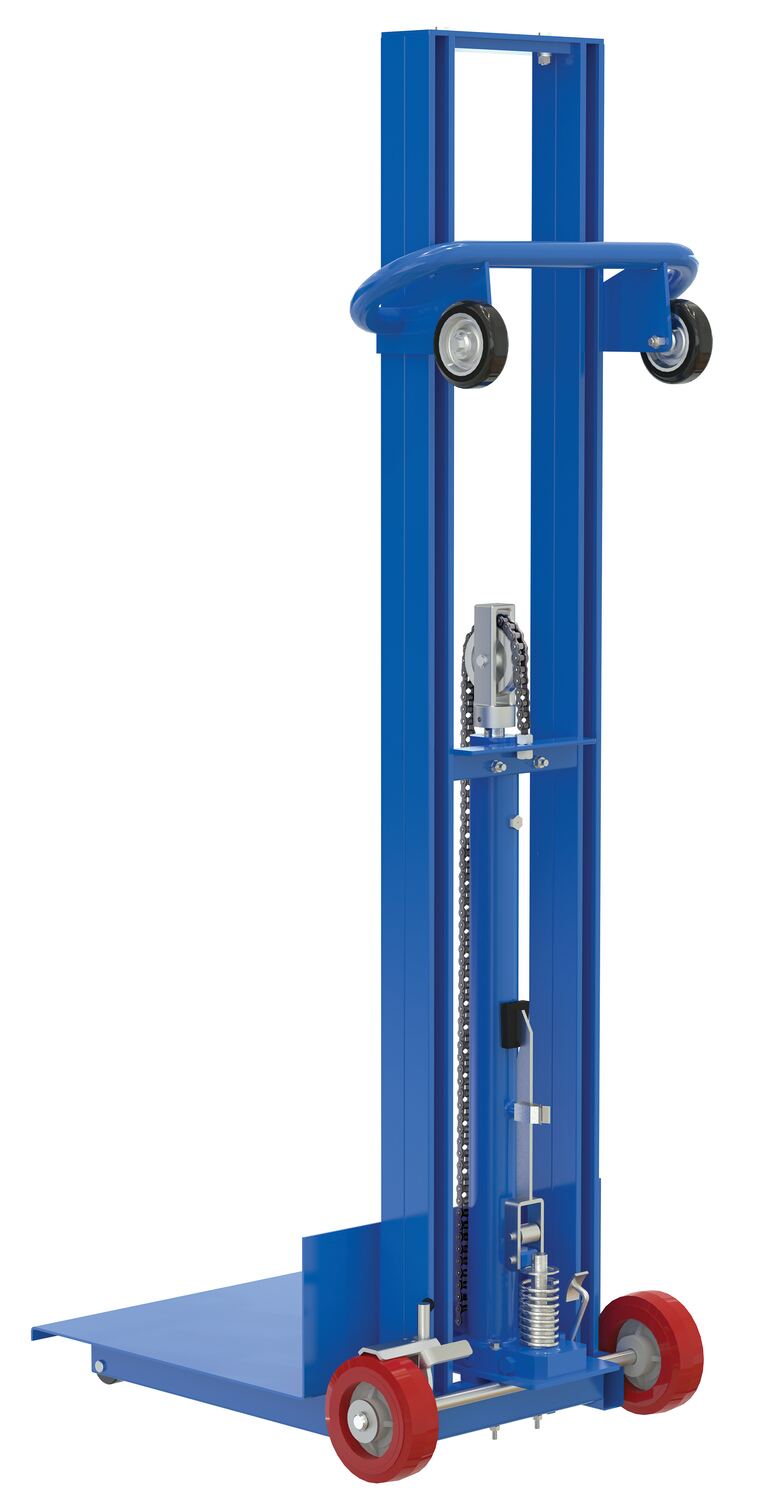

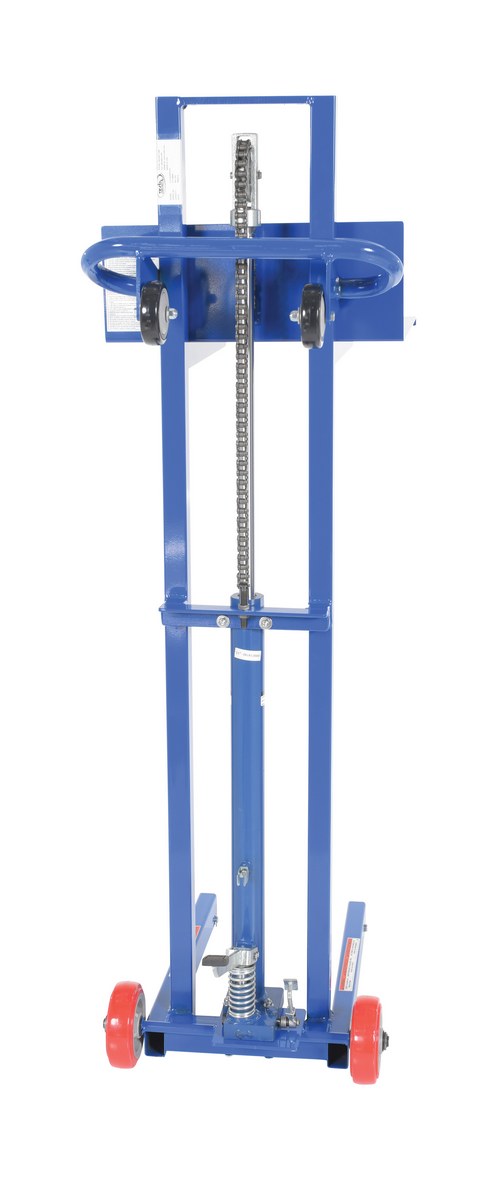

LLH-202053-FW** icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 3-1/8" to 51-1/8" 500 Foot Pump 180

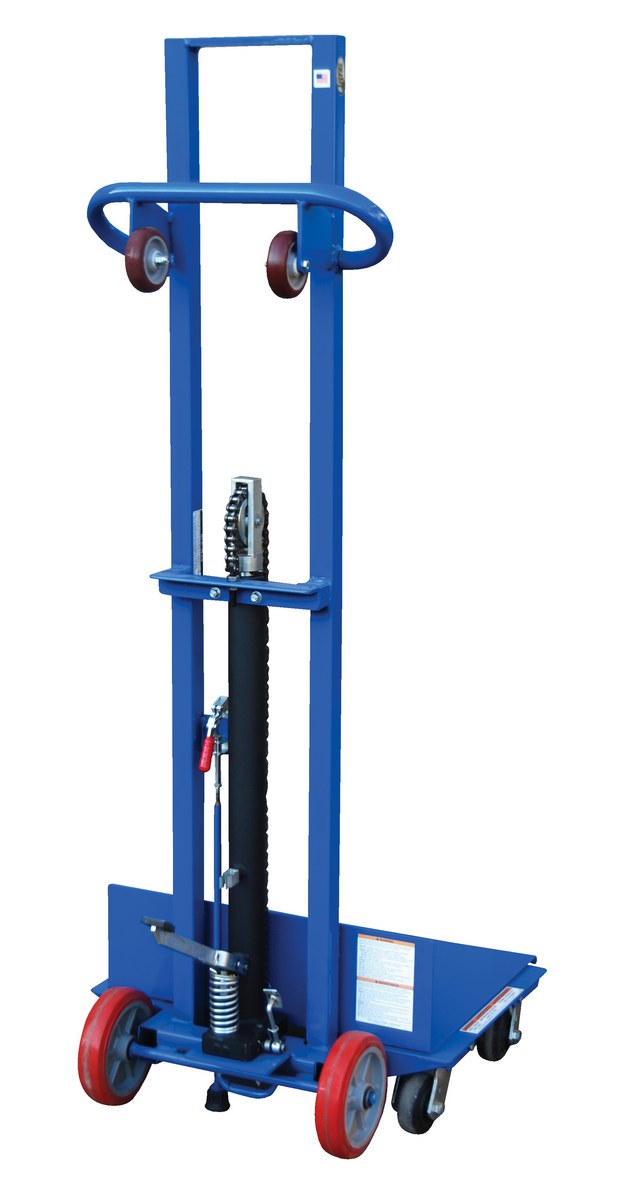

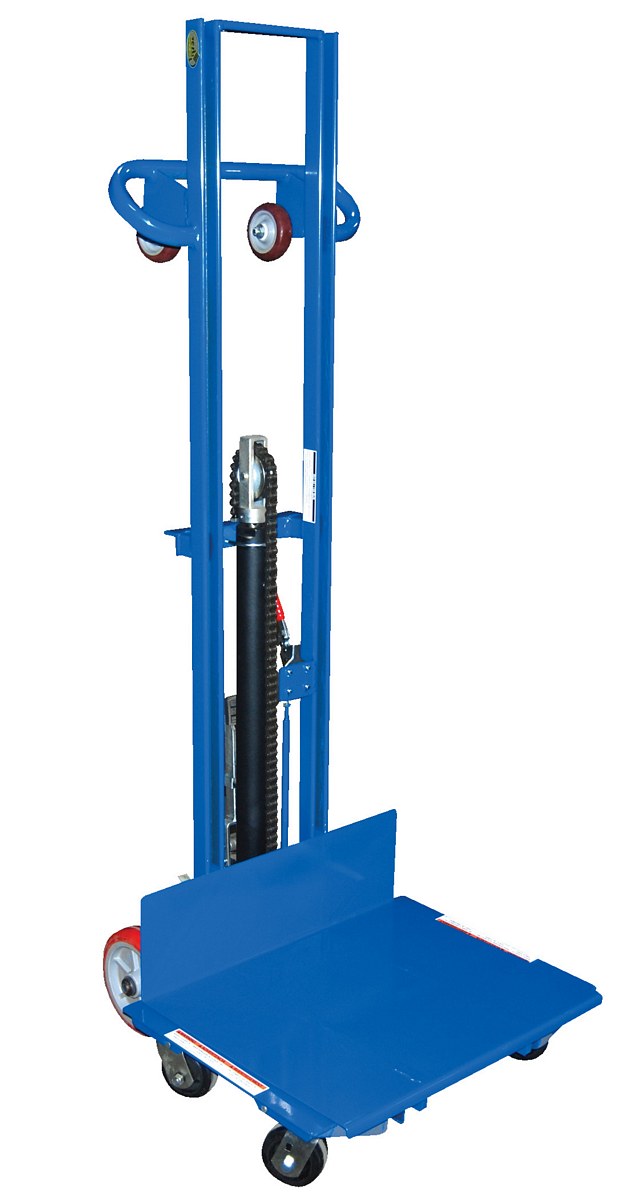

LLH-242056-4SFL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x20" 6-1/8" to 54-1/8" 500 Foot Pump 228
Aluminum Construction

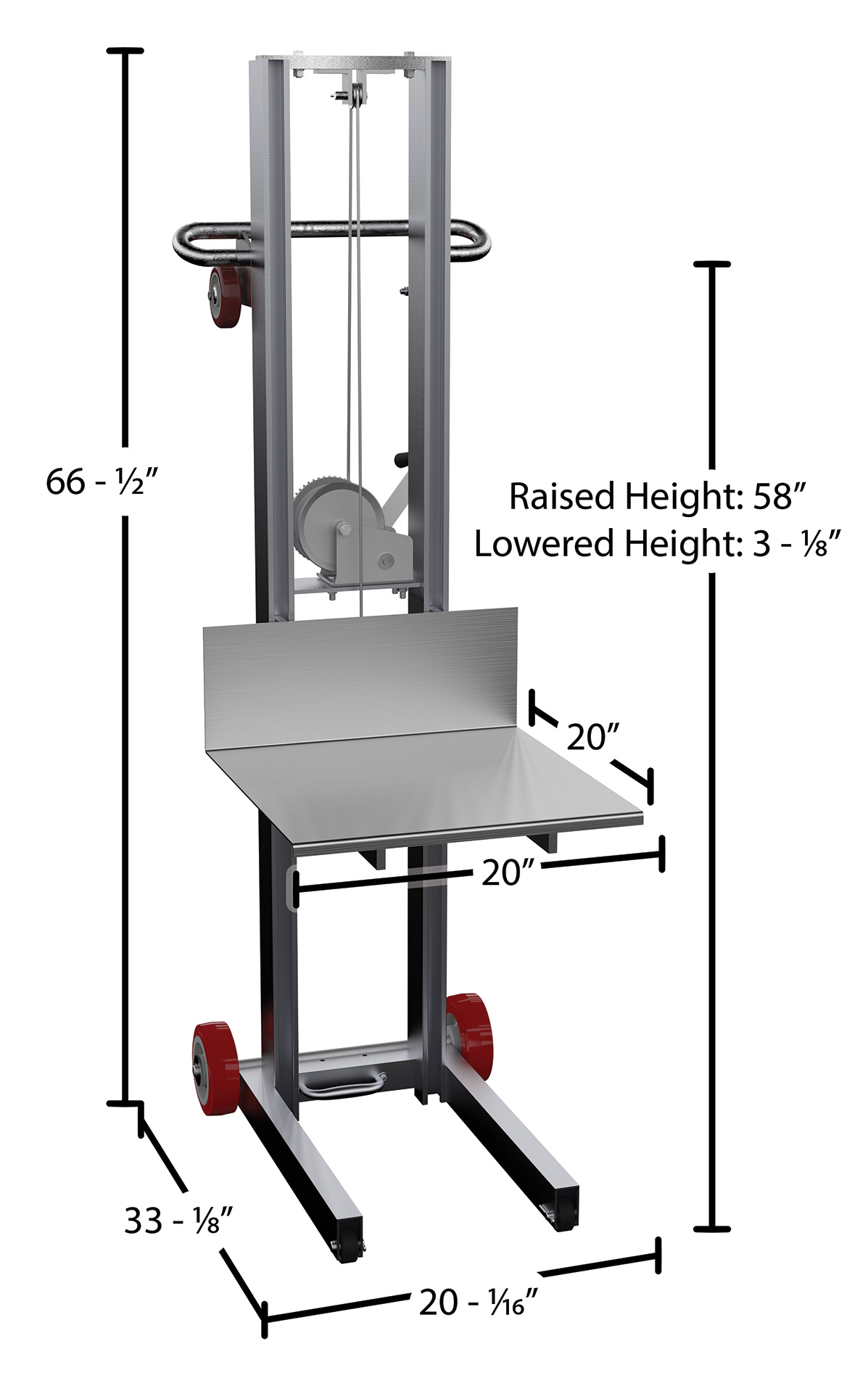

ALLW-2020-FW icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 3-1/8" to 58" 400 Winch 67
ALLW-2420-4SFL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x20" 6-1/8" to 60" 400 Winch 141

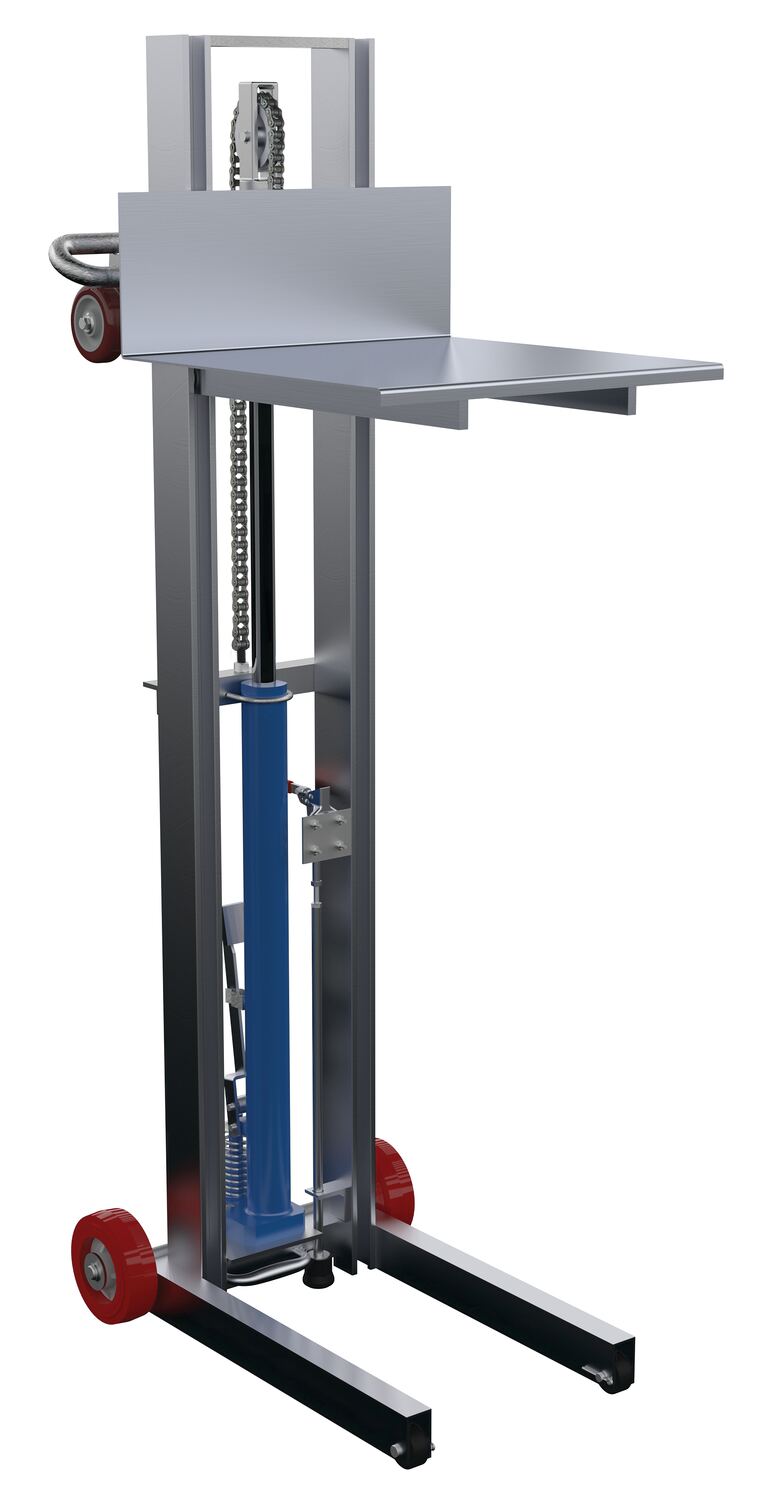

ALLH-2020-FW icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 3-1/8" to 51-1/8" 400 Foot Pump 135
ALLH-2420-4SFL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x20" 6-1/8" to 54-1/8" 400 Foot Pump 172
Low Profile Lite Load Lifts
Model PDF's Platform Size
(WxL)
Service
Range
Capacity
(lbs)
Operation Wt.
(lbs)

Steel Construction

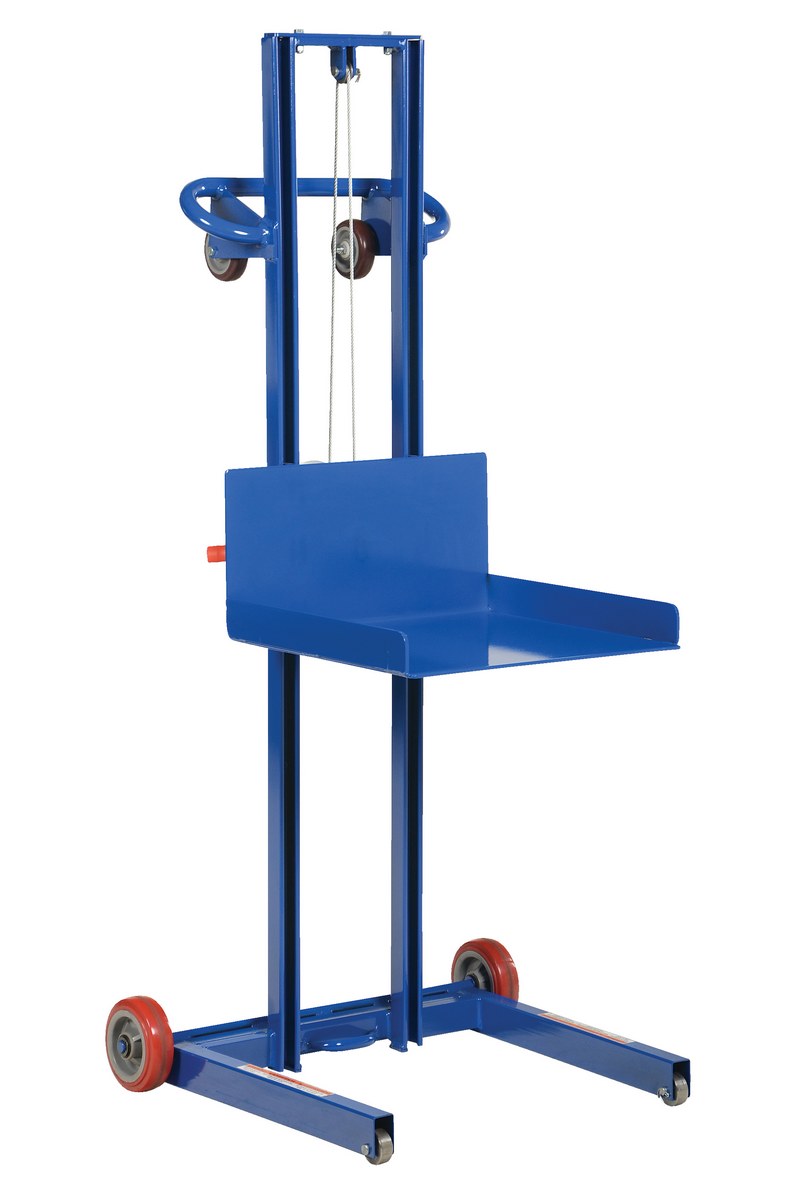

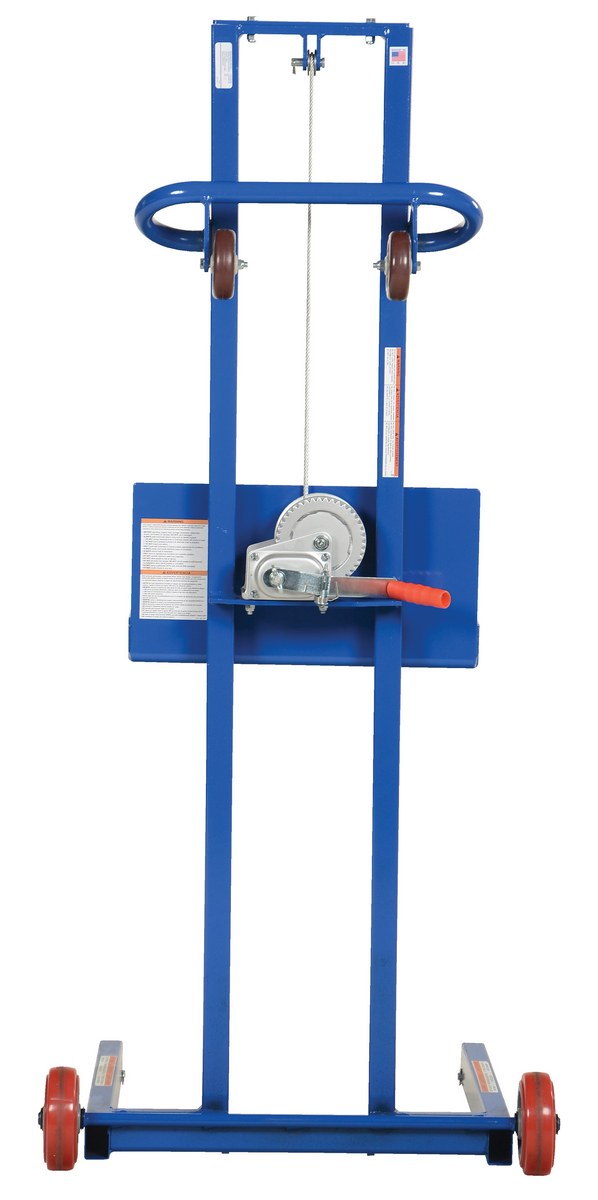

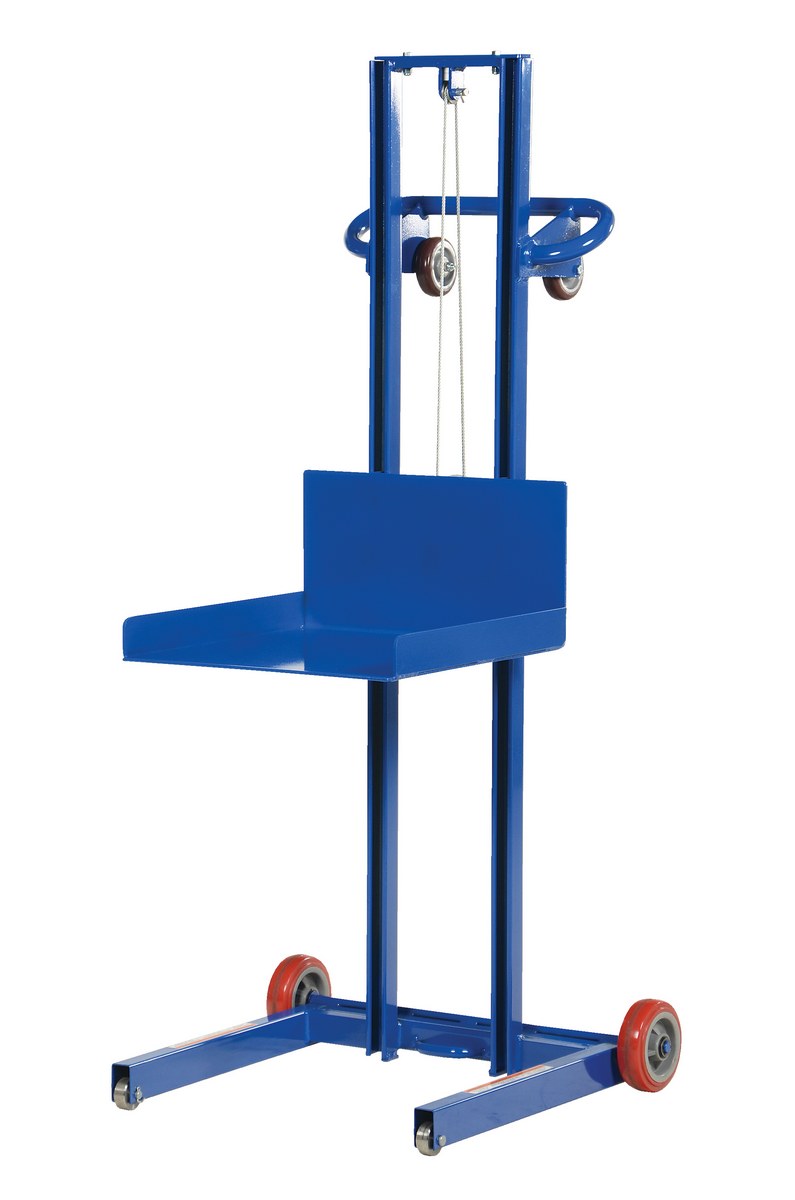

LLPW-500-FW icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 1/4" to 55" 500 Winch 134
LLPW-500-4SFL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 1/4" to 58" 500 Winch 222

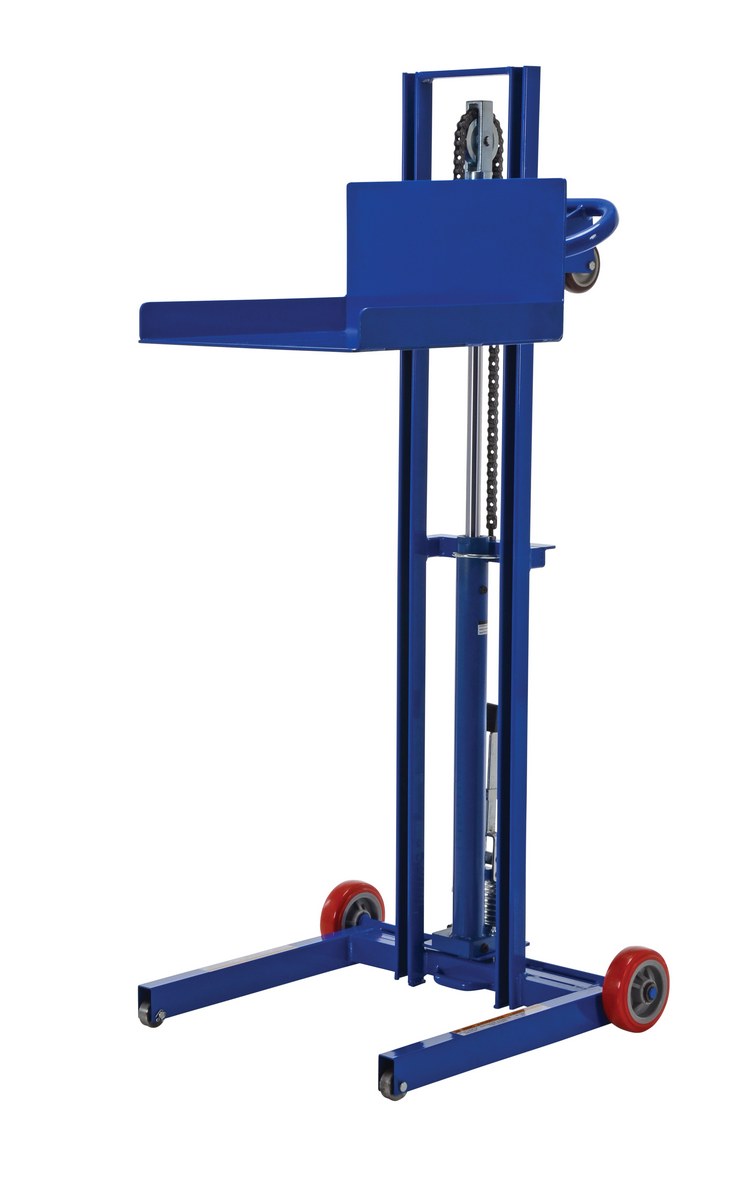

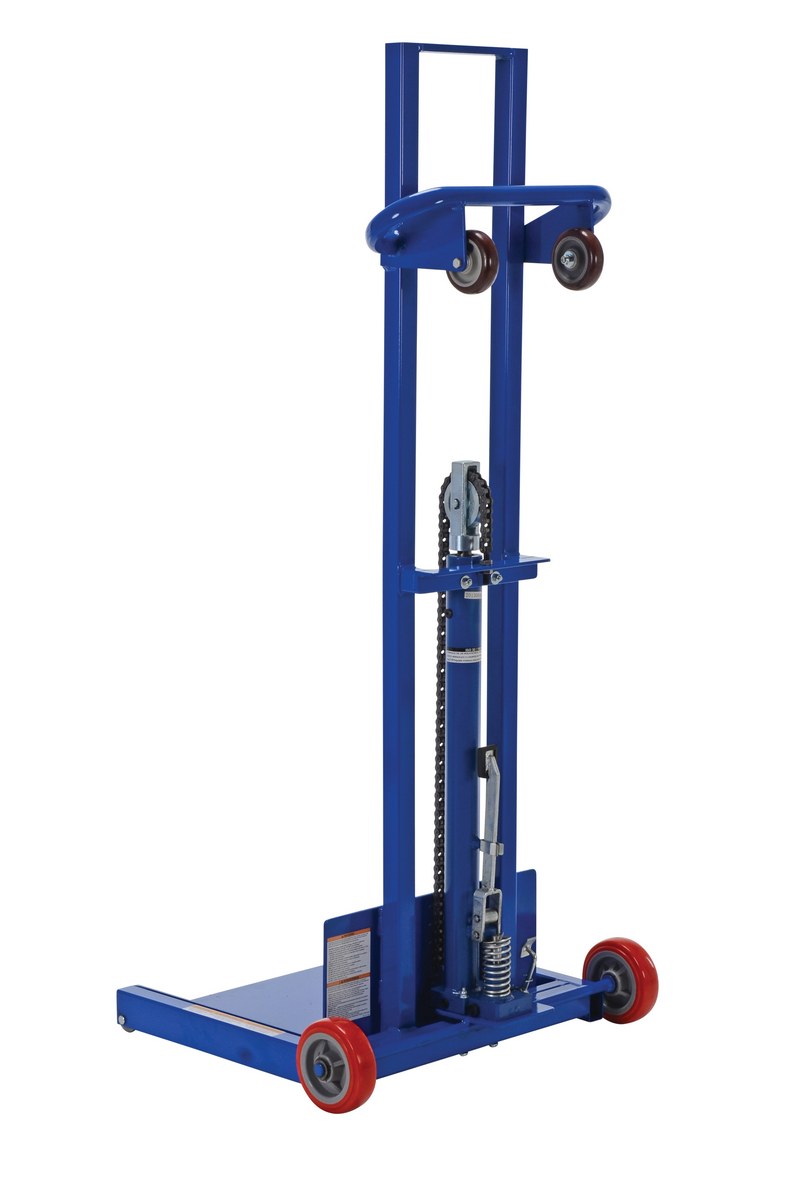

LLPH-500-FW icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 1/4" to 48-1/4" 500 Foot Pump 205
LLPH-500-4SFL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 1/4" to 48-1/4" 500 Foot Pump 249

Aluminum Construction

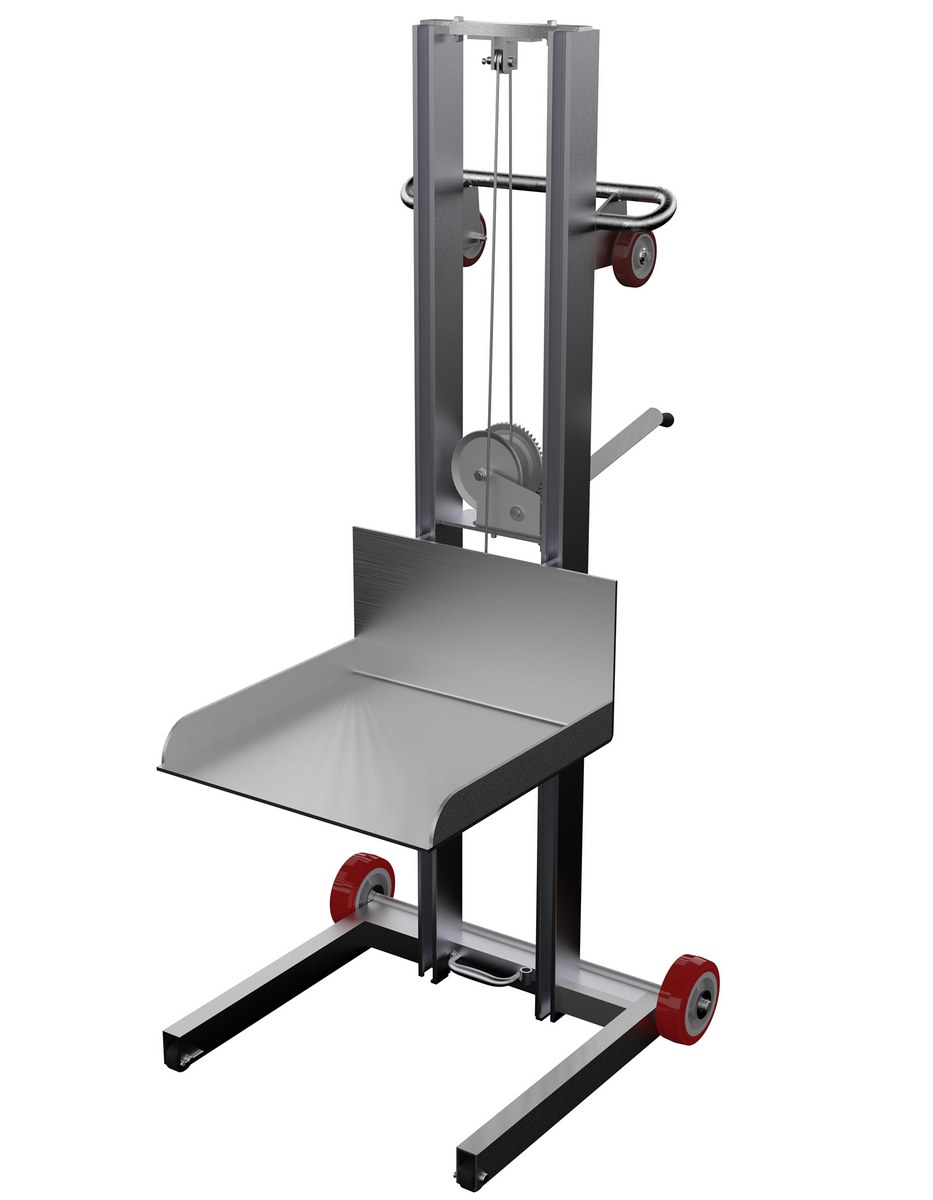

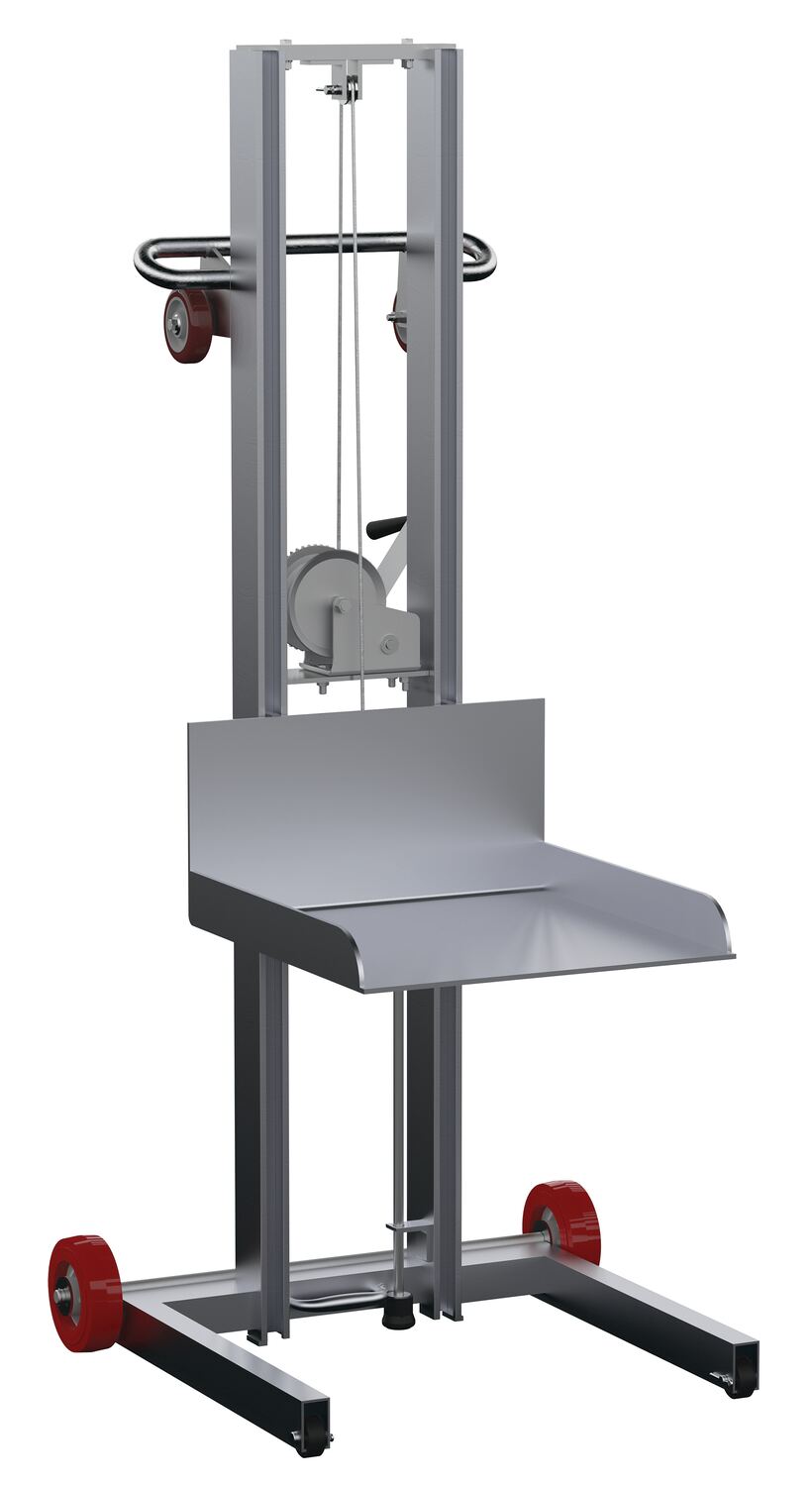

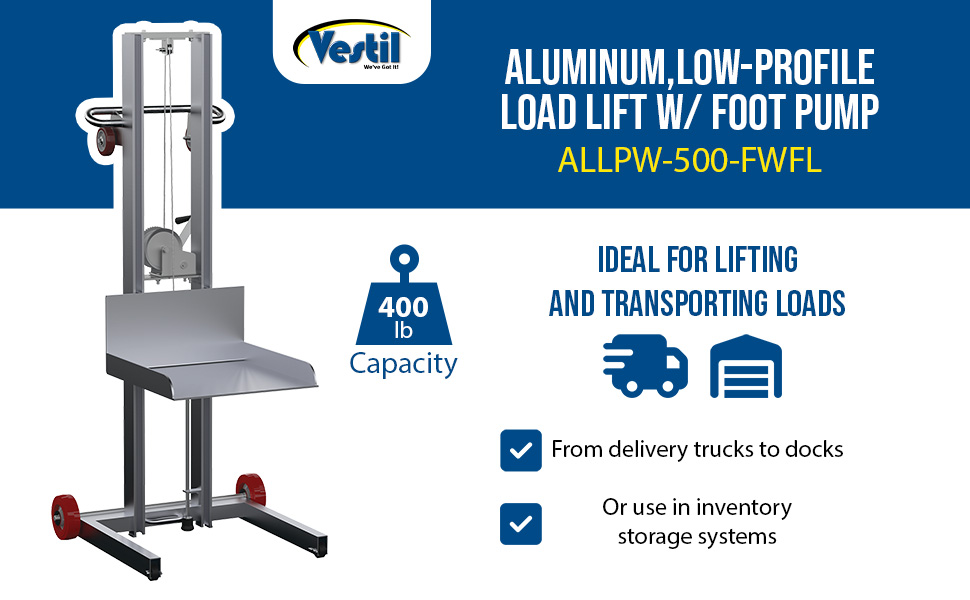

ALLPW-500-FW icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 19-1/2"x20" 1/4" to 55" 400 Winch 103
ALLPW-500-4SFL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 19-1/2"x20" 1/4" to 58" 400 Winch 143

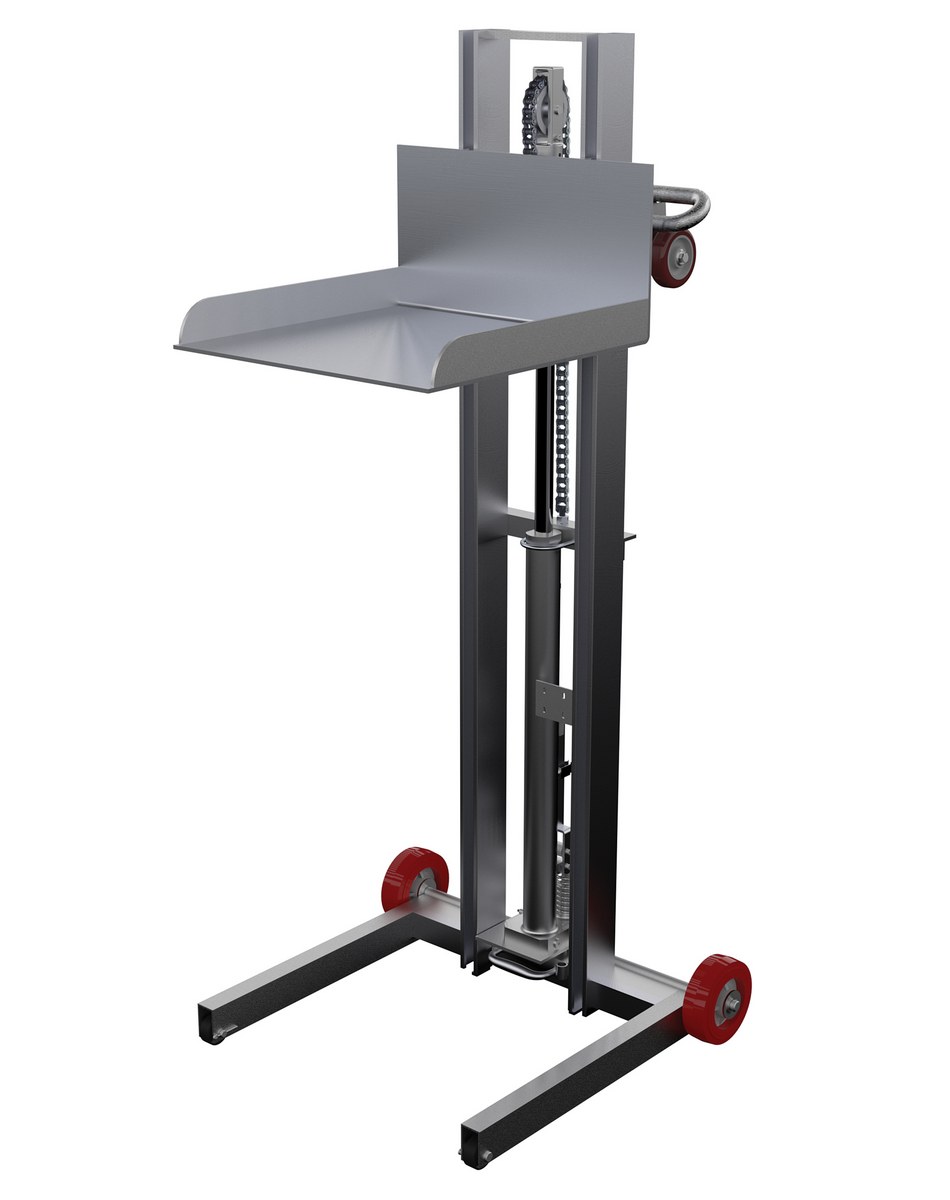

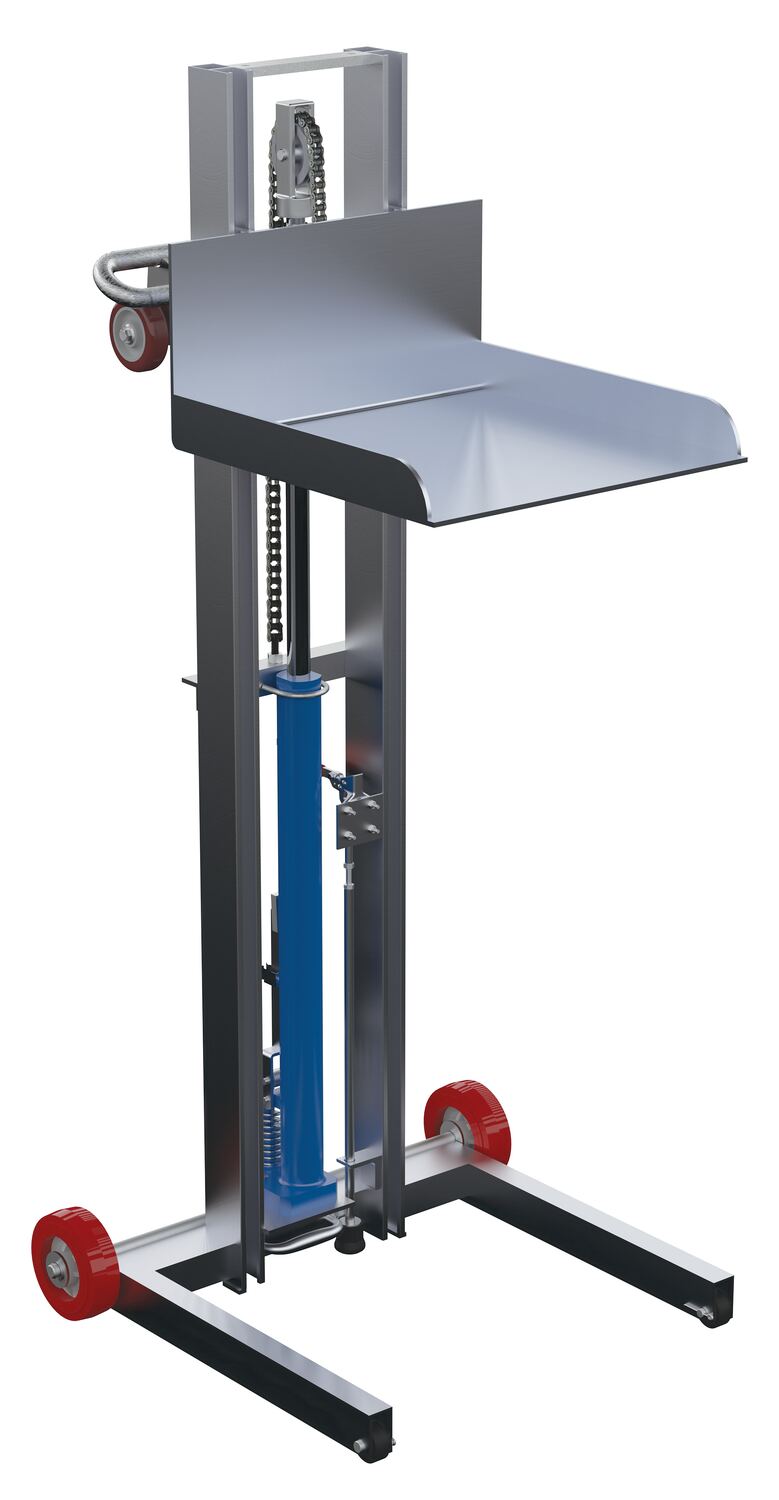

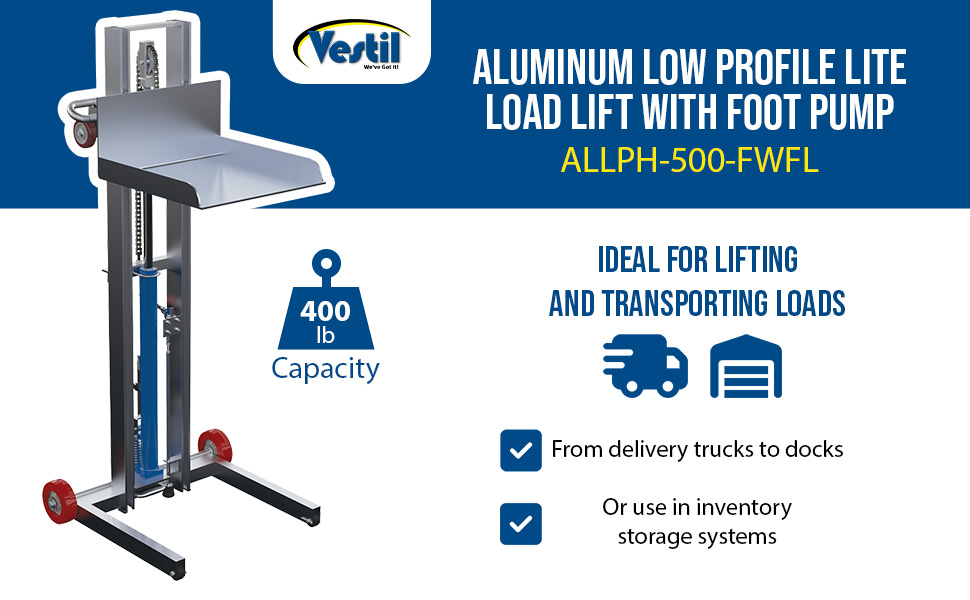

ALLPH-500-FW icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 19-1/2"x20" 1/4" to 48-1/4" 400 Foot Pump 141
ALLPH-500-4SFL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 19-1/2"x20" 1/4" to 48-1/4" 400 Foot Pump 172

Counter-Balanced Lite Load Lift (Steel) (includes weight counter-balance)

LLCB-202058 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 3-1/8" to 59" 300 Winch 540
Capacity of 300 lbs. is based on a 10" horizontal load center

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

ALLH-2020-FW
ALLH-2420-4SFL
ALLH-FL
ALLPH-500-4SFL
ALLPH-500-FW
ALLPH-FL
ALLPW-500-4SFL
ALLPW-500-FW
ALLPW-FL
ALLW-2020-FW
ALLW-2420-4SFL
ALLW-FL
LLCB-202058
LLH-202053-FW
LLH-242056-4SFL
LLH-FL
LLPH-500-4SFL
LLPH-500-FW
LLPH-FL
LLPW-500-4SFL
LLPW-500-FW
LLPW-FL
LLW-202058-FW
LLW-242060-4SFL
LLW-FL

Testing Certificates

ALLH-2020-FW
ALLH-2420-4SFL
ALLH-FL
ALLPH-500-4SFL
ALLPH-500-FW
ALLPW-500-4SFL
ALLPW-500-FW
ALLW-2020-FW
ALLW-2420-4SFL
ALLW-FL
LLCB-202058
LLH-202053-FW
LLH-242056-4SFL
LLPH-500-4SFL
LLPH-500-FW
LLPW-500-4SFL
LLPW-500-FW
LLW-202058-FW
LLW-242060-4SFL
LLW-FL
LLW-WL

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

Lite Load Lift Options *Factory Installed Only* (Not Available on Counter-Balanced Lite Load Lifts)
Model PDF's Description
LLW-WL** Warranty PDF Wheel Lock, Factory Installed (Only available for LLW-202058-FW and LLH-202053-FW)

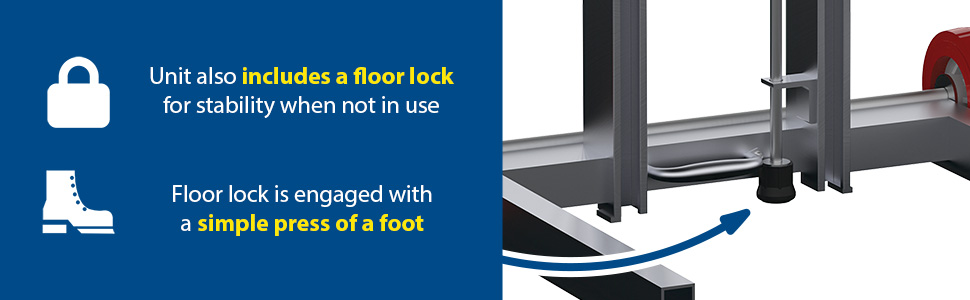

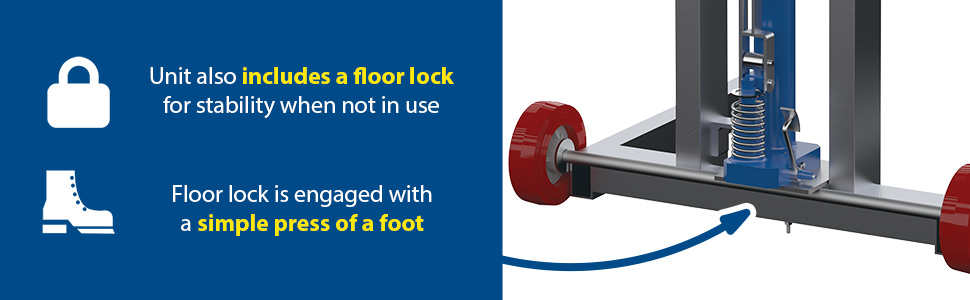

LLW-FL* Warranty PDF Floor Lock, Hand Operated
LLH-FL* -- Hand Operated Floor Lock for Series LLH
ALLW-FL* -- ALLW Lite Load Lift Option- Floor Lock
ALLH-FL* -- ALLH Lite Load Lift Option- Floor Lock
LLPW-FL* -- LLPW Lite Load Lift Option- Floor Lock
LLPH-FL* -- LLPH Lite Load Lift Option- Floor Lock
ALLPW-FL* -- ALLPW Lite Load Lift Option- Floor Lock
ALLPH-FL* -- ALLPH Lite Load Lift Option- Floor Lock
*Standard on 4SFL units
**ONLY AVAILABLE FOR LLW-202058-FW & LLH-202053-FW
